The primary goal of industrialized building construction is to achieve “two improvements and two reductions.” For enterprises, this focuses on enhancing building quality and construction efficiency. For governments, it aims to reduce labor demands and minimize environmental pollution. Prefabricated construction, which combines “finished building components + industrialized construction,” offers a cost-effective, efficient, and mutually beneficial solution for all parties involved.
Today, we will share the successful prefabricated construction experiences of Vanke and China Resources Construction.
1. Vanke Jade Park: A Successful Prefabricated Construction Case
1.1 Key Features of Vanke Jade Park
Noteworthy highlights include a 34% prefabrication rate for buildings with four or more floors, an overall prefabrication rate of 25% for the entire building, and engineering precision at the millimeter level.
1.2 Prefabricated Technology at Vanke Jade Park
This project features the design and application of PC shear wall residential buildings with a face brick reverse strike technique.
1.3 Vanke Jade Park PC Technology Implementation
The project employs an assembled integral shear wall structural system, with external PCF installed on the north and south sides, and prefabricated shear walls on the east and west mountain-facing walls. The standard layer PC layout unifies components in the same facade positions to maximize component replication. Ultimately, the project achieved over 50% PC exterior wall coverage, creating a simple, uniform facade with an elegant and refined architectural appearance.
Standardized facade design:

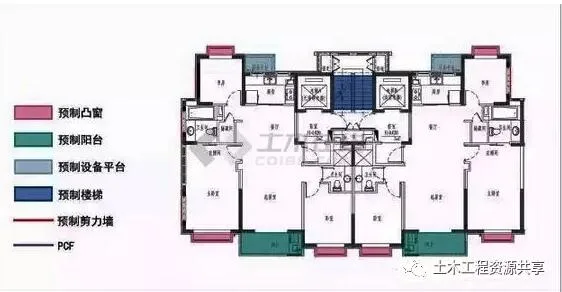

Flat PC layout plan:
Beyond vertical and horizontal PC applications, the project incorporates several technical methods, such as three-section screw tie formwork on the inner side of PCF wall panels, convenient vertical reinforcement connections within prefabricated walls, and scaffold-free installation techniques. These innovations make this project a benchmark for brick reverse PC shear wall residential design.

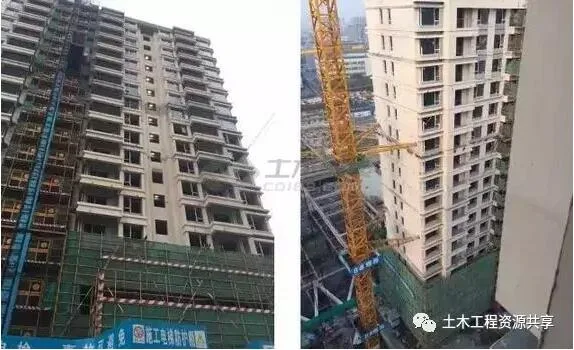

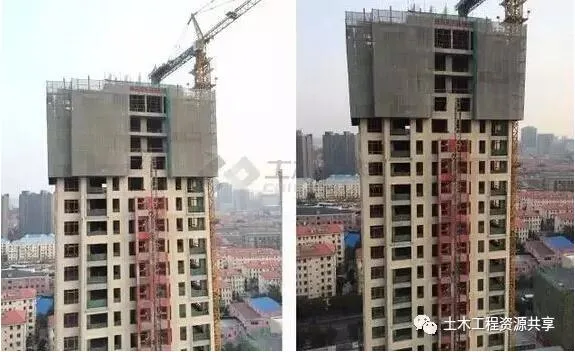

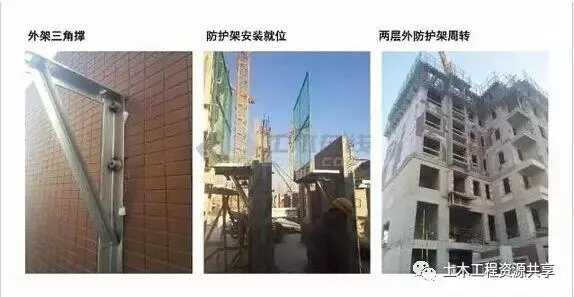

PC building installation and construction using scaffold-free methods:
2. China Resources: Successful Prefabricated Construction Projects
2.1 Architectural Features of CR Huafa Jing’an Mansion
The project boasts a 30% prefabricated assembly rate and incorporates green ecological housing technologies.
2.2 Prefabricated Technology Applied at Huarun Huafa Jing’an Mansion
China Resources successfully implemented sandwich insulation PC shear walls in this project.
2.3 Technology Implementation Process at China Resources Huafa Jing’an Mansion
Located in central Shanghai, this project features a full stone dry-hanging system that creates a rhythmic exterior effect. It is the first in Shanghai to adopt prefabricated sandwich insulation exterior wall PC integration technology. The uniquely assembled integral sandwich shear wall structure offers excellent insulation, waterproofing, and durability, without occupying interior space—fully embodying green and ecological housing principles.
PC facade design:

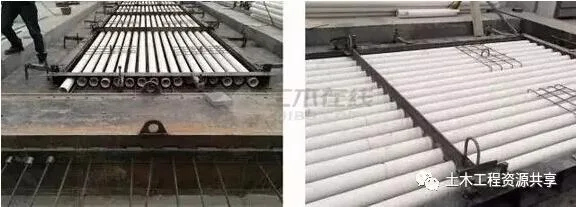

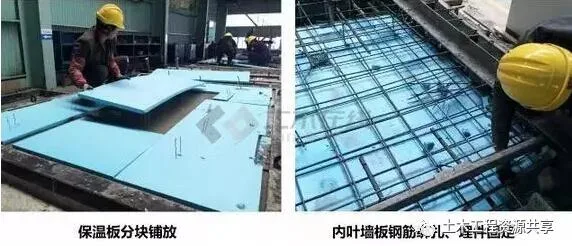

Factory production of sandwich insulated shear walls:

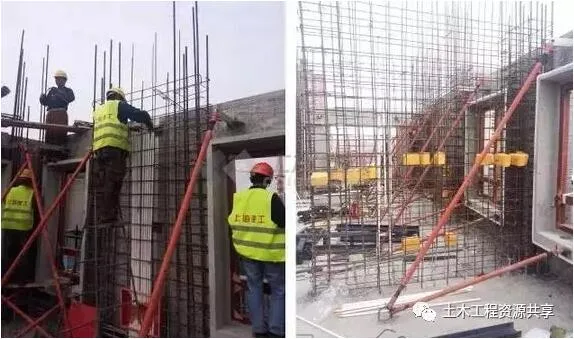

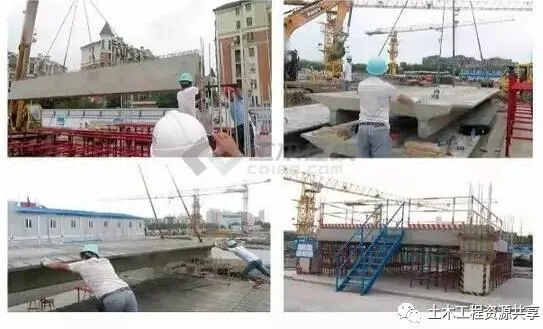

Design and installation method — on-site hoisting:

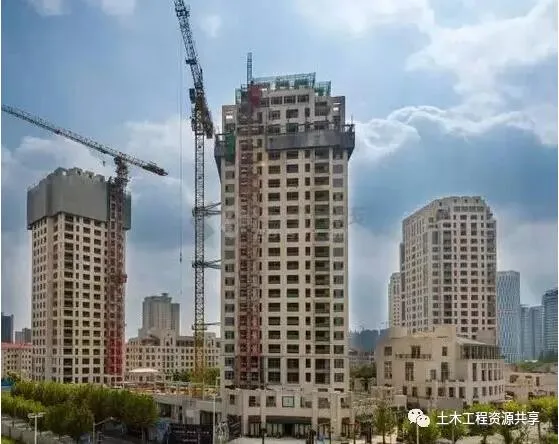

Design and installation of high-rise buildings — on-site completion:
3. China Construction: Hongqiao Ecological Commercial PC Technology Application
3.1 Architectural Features of Hongqiao Ecological Commercial Project
This project utilizes a post-tensioned prestressed frame and prefabricated segmental columns, achieving a prefabrication rate exceeding 60%.
3.2 Unique Prefabricated Structure Technology of China Construction Hongqiao
The clubhouse design and construction fully employ segmental column prestressed frames.
3.3 Technology Implementation at China Construction Hongqiao Ecological Commercial Community
Located in Shanghai’s Qingpu District, this project applies foundational cast-in-place technology combined with an assembled integral frame above ±0.000 level. It features various prefabricated components, including columns, composite beams, stair slabs, composite floor slabs, and eaves panels.

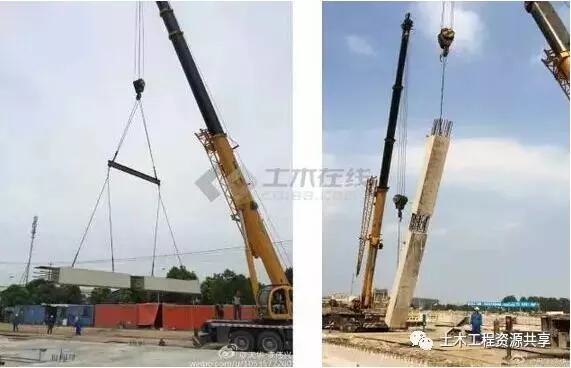

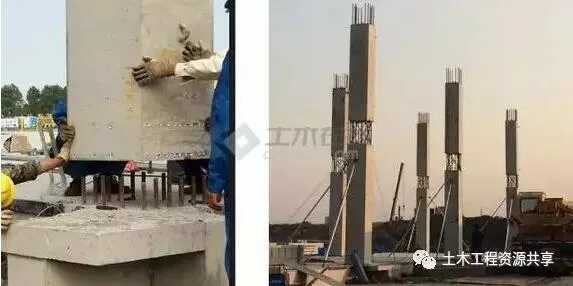

On-site fabrication and installation — hoisting of prefabricated segmental columns:
On-site fabrication and installation — positioning of prefabricated segmental columns:

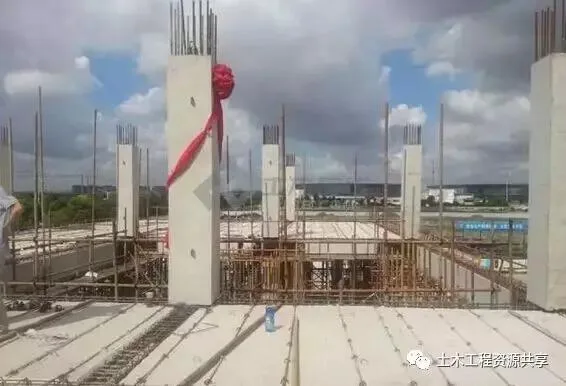

On-site production and installation — second floor lifting completed:
During the design phase, BIM modeling technology was utilized for collision detection and pre-assembly planning, resulting in a prefabrication rate exceeding 60% for this project. This achievement marks the Zhongjian Hongqiao Ecological Commercial Community as a fully integrated design project by Tianhua, covering design scheme, construction drawings, and detailed component development.
Application of BIM modeling technology in PC structural design:
Prefabricated integrated structural design — prestressed circular hole plate composite slab:
Double T-plate frame structure — design and installation of construction method building:
4. Vanke Zhongfang Jade Riverside PC Technology Case
4.1 Architectural Features of Vanke Jade Riverside
This project features a 15% prefabrication rate, standardized aluminum molds, and is Shanghai’s first high-end residential building to utilize stone reverse-fired PCF shear walls.
4.2 Vanke Jade Riverside PC Technology
The Vanke Zhongfang Feicui Binjiang Phase II project successfully applied stone reverse-fired PCF shear wall technology.
Located on the south bank of the Huangpu River, adjacent to the Lujiazui Financial and Trade Zone, this project integrates PC components with stone reverse-fired PCF shear walls. Pre-installed PCF panels are used in door and window frames, stairs, bay windows, and other components. Additionally, the use of standardized aluminum mold cast-in-place molding technology, combined with cantilever climbing frames and interlaced construction techniques, has significantly enhanced industrial construction efficiency.
Application of PC combined with aluminum film technology:
Climbing and interlaced construction:
4.3 Implementation Process of Vanke Jade Riverside PC Technology
Vanke Zhongfang Feicui Binjiang is the first high-end residential project in Shanghai to adopt the stone reverse-fired PCF process. Tianhua collaborated with a prefabricated component production factory (Shanghai Urban Construction Materials) and a deepening design unit (Shanghai Xingbang) to complete rigorous quality control throughout the entire stone reverse-fired PCF process.

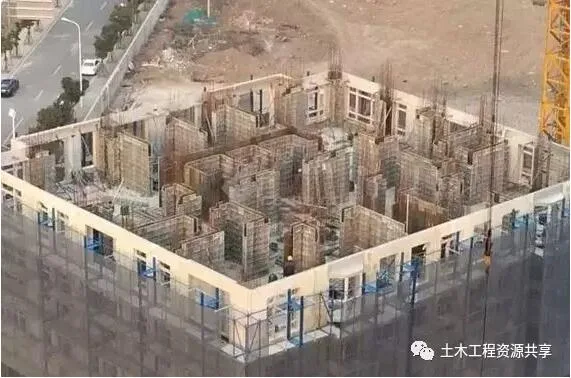

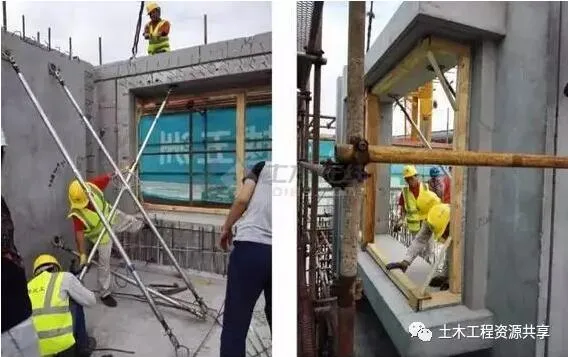

On-site installation of PCF exterior walls and protruding windows:

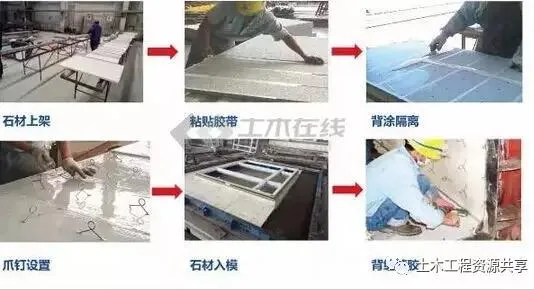

Stone reverse printing production process:
