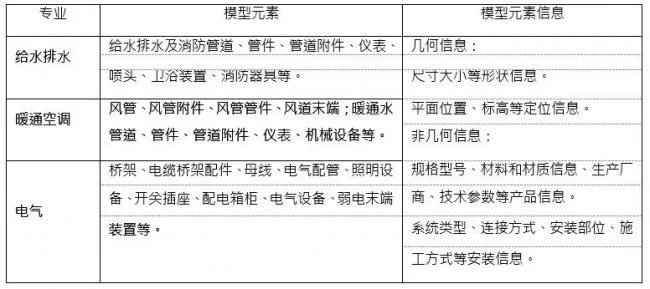

1. The elements of the electromechanical detailed design model should be based on the construction drawing design model elements. They must include specific dimensions, elevations, positioning, and shapes, along with any necessary professional and product information. The content should comply with the guidelines outlined in the table below.
2. The detailed electromechanical design model should encompass elements from various systems, including water supply and drainage, HVAC, and electrical systems. Additionally, it should include relevant components for support and protection, such as brackets, shock absorbers, and sleeves. Consistency must be maintained among model elements within the same system.
3. The electromechanical detailed design model can be organized by discipline, floor level, functional area, or other appropriate criteria.
