A Guide to Choosing the Right Size for Circular Connectors

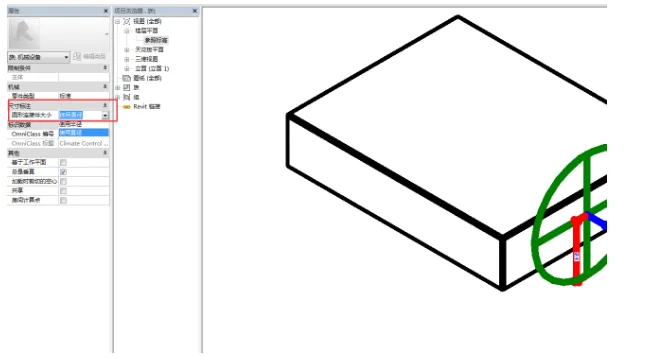

Within the electromechanical family, you can find this option in the family’s property panel.

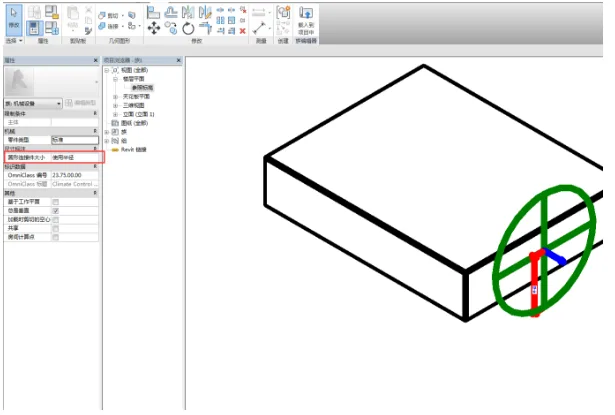

When set to use radius, the circular connector properties will control the connector size based on the radius.

Alternatively, if you select the option to use diameter,

the diameter will then be used to control the size of the circular connector in its properties.
