Abstract
To address the winter peak gas supply shortage and mitigate fluctuations caused by seasonal gas demand, Wuhu Zhongran Urban Gas Development Co., Ltd. has initiated the LNG Emergency Peak Shaving Gas Source Project. This project is based at the North Gate Gasification Station located in the suburbs of Wuhu, with an additional 14.5 acres of newly acquired land.
1. Project Background
1. Project Name: Wuhu LNG Emergency Peak Shaving Gas Source Project
2. Project Design Unit: China Municipal Engineering North China Design and Research Institute
3. Software Used: Graphisoft MEP Modeler
2. Main Text
China Municipal Engineering North China Design and Research Institute
Wuhu LNG Emergency Peak Shaving Gas Source Project

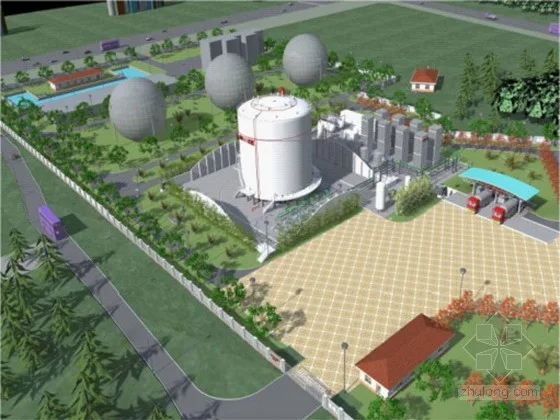

Aerial rendering of the project
Owner: Wuhu Zhongran Urban Gas Development Co., Ltd.
Project Scale: LNG gasification station with a 4500m3 storage tank and gas supply capacity of 30,000 Nm3/h.
Location: Expansion based on the North Gate Gasification Station in Wuhu suburbs, with an additional 14.5 acres of land acquired.
Project Objective: To bridge the gap in winter peak gas supply and smooth out the supply-demand fluctuations caused by seasonal peaks and troughs.
Project Status: Completed

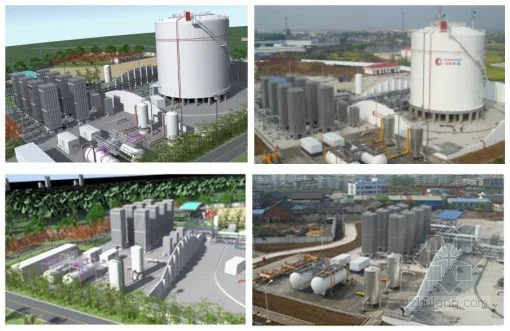

Comparison of project achievements

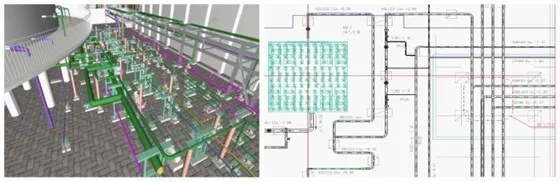

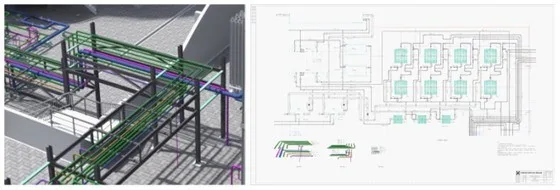

MEP Model

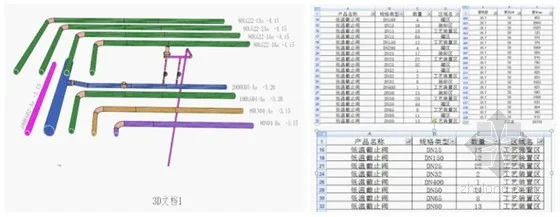

Documents are automatically generated based on BIM models.
The list exported from ArchiCAD to Excel can be filtered and processed using required functions with ease.
Design Phase:
Design reviews are conducted on a shared server to improve collaboration and efficiency. This approach reduces the cost of rendering by utilizing the created models for in-house processing.
Given the tight schedule and heavy workload, models are created to detect clashes promptly. Early coordination and resolution of conflicts prior to construction minimize modifications, reducing both material waste and time delays.
Construction Phase:
Accurate material lists are generated quickly, enhancing the ability to summarize and analyze costs efficiently. This enables precise project cost estimation and effective cost control.
*Project developed with Graphisoft software
