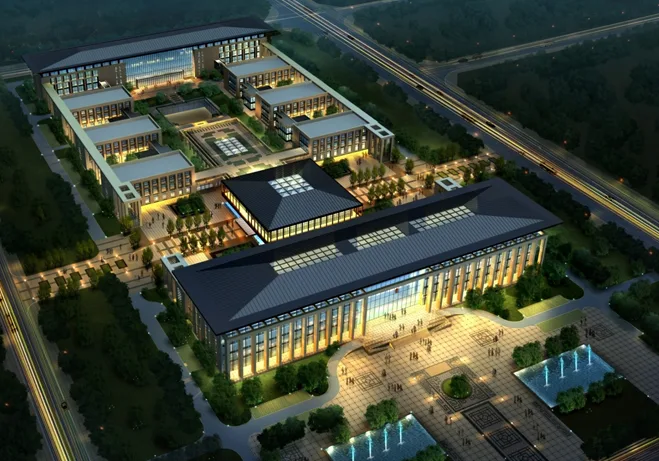

Aerial Rendering

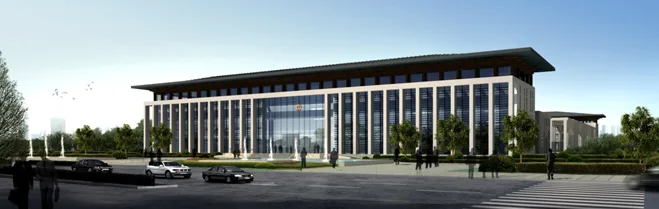

Street Perspective Rendering

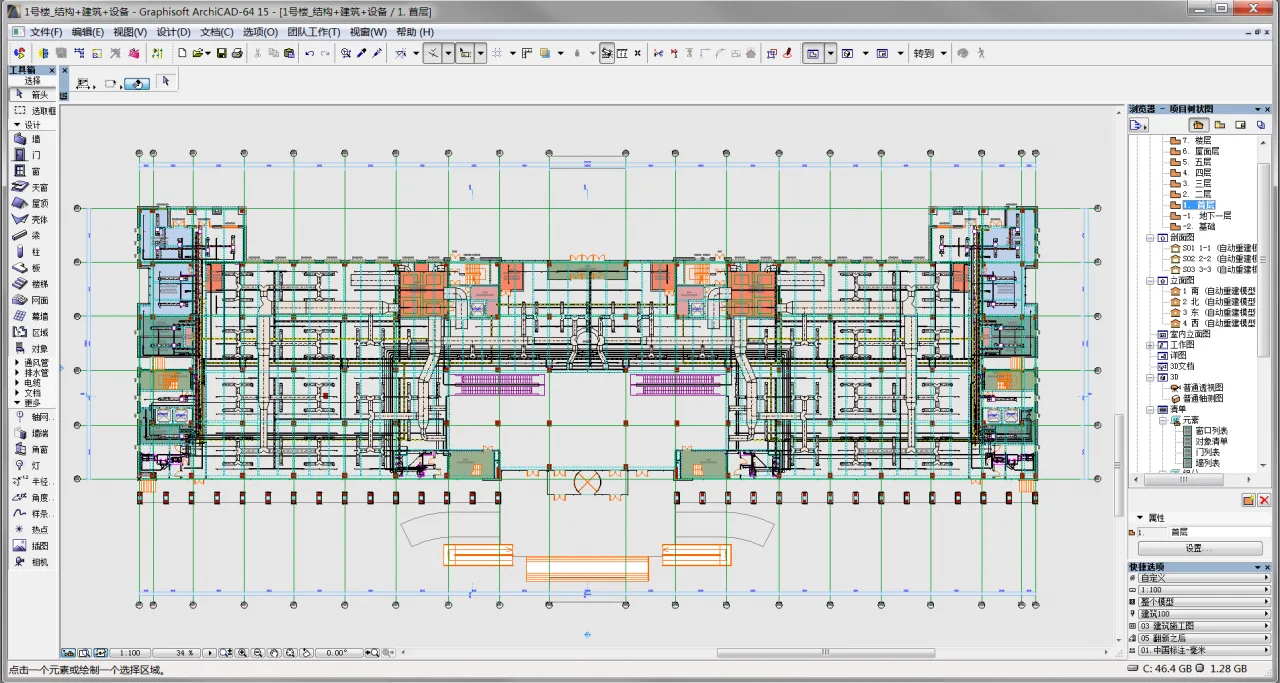

ArchiCAD Comprehensive Plan Overview
Linking structural and equipment models within the BIM framework allows for thorough proofreading and clash detection.

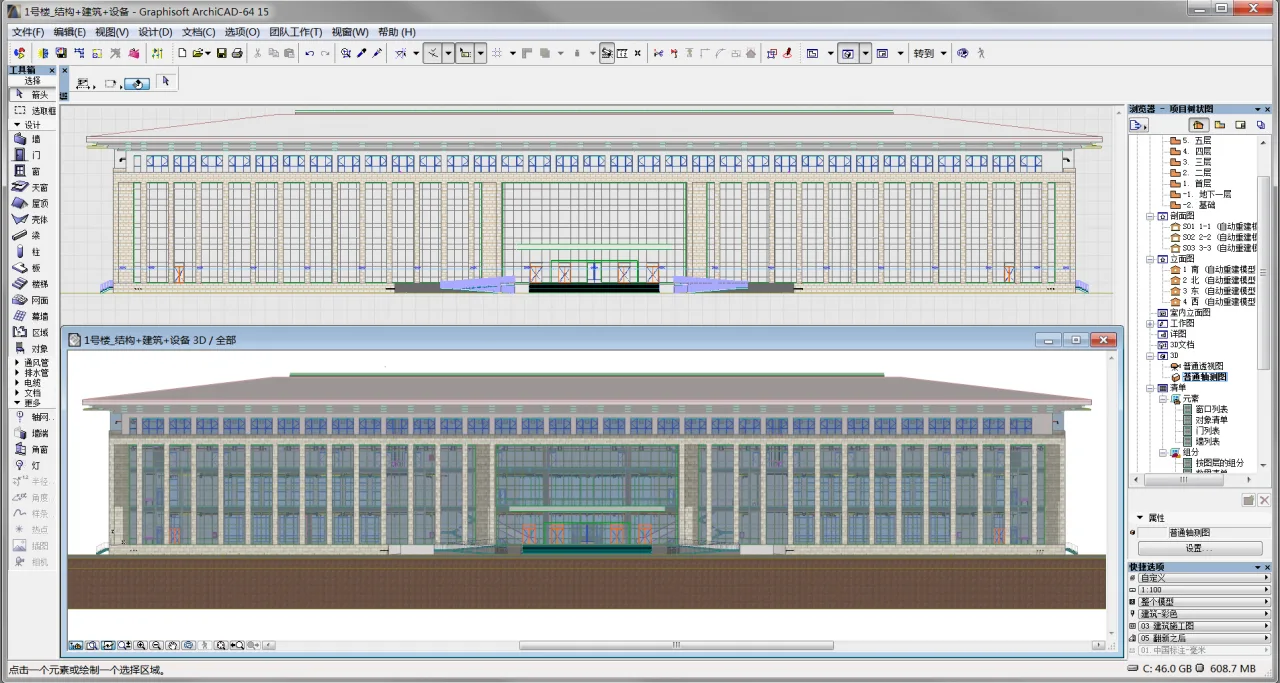

Architectural Elevations in ArchiCAD
By comparing different views, we can adjust the facade wall materials and colors efficiently.

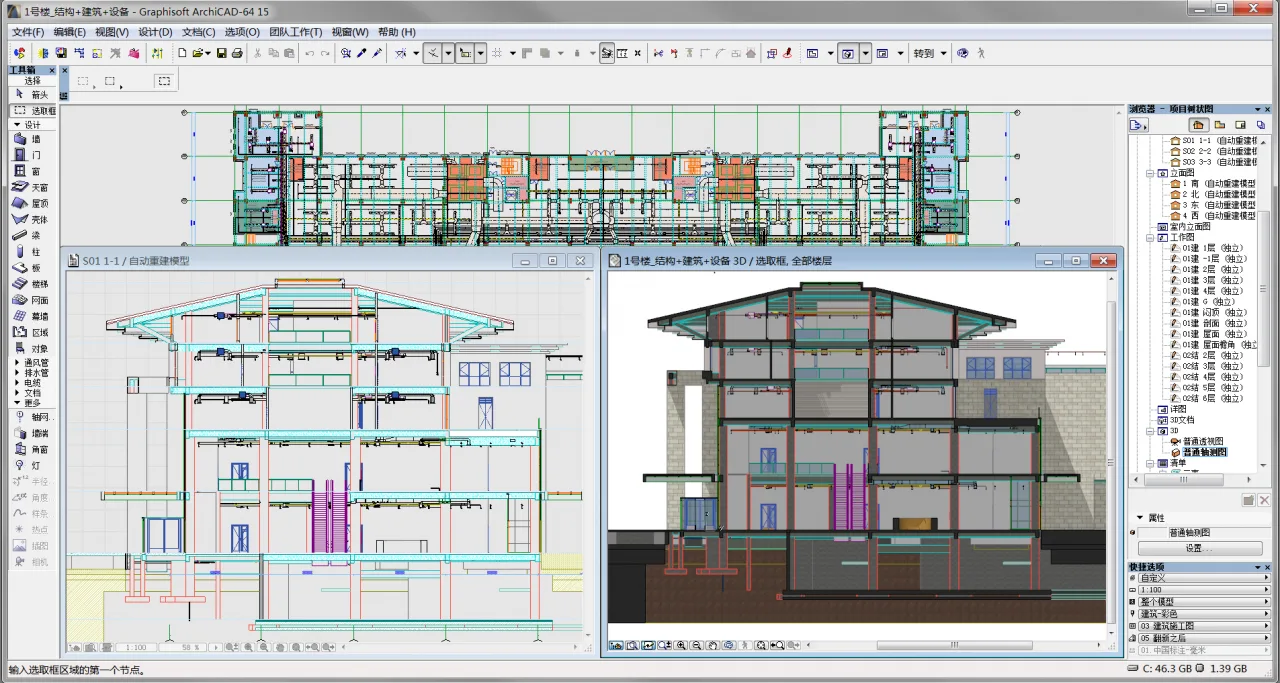

Section View in ArchiCAD
Real-time visualization enables us to assess impacts across various disciplines and modify interior spaces by switching views.

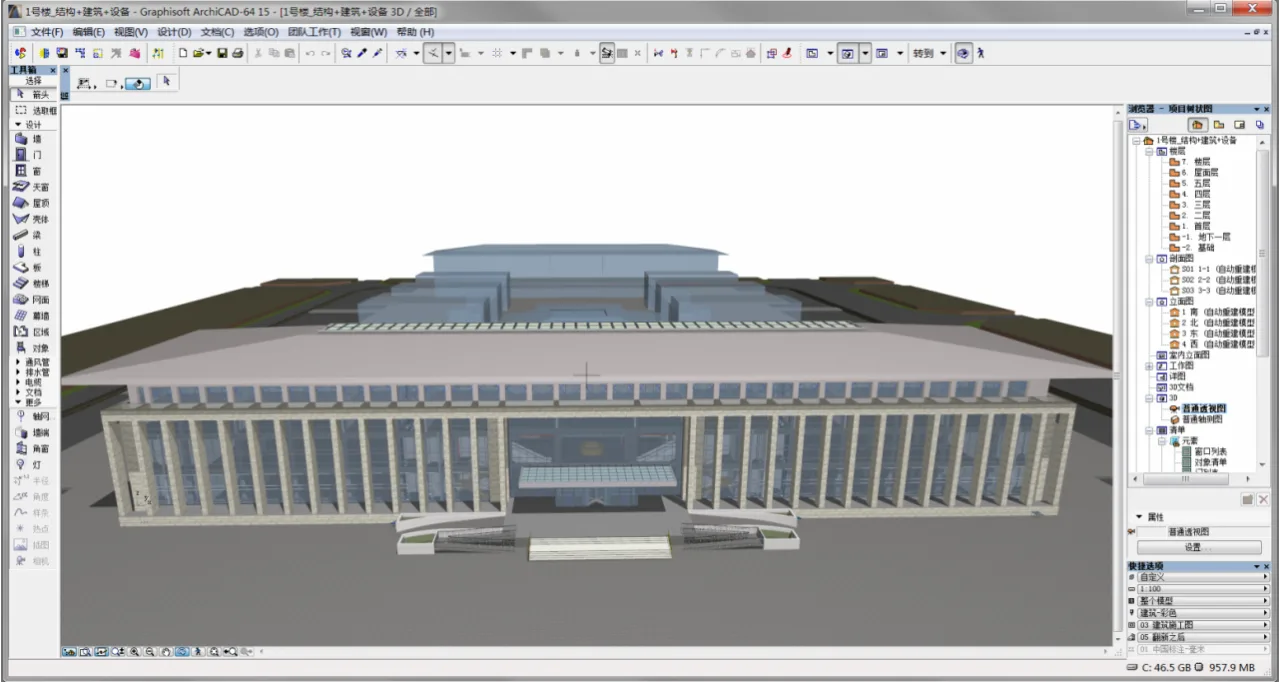

3D Views in ArchiCAD
The overall design concept can be explored thoroughly through 3D visualization.

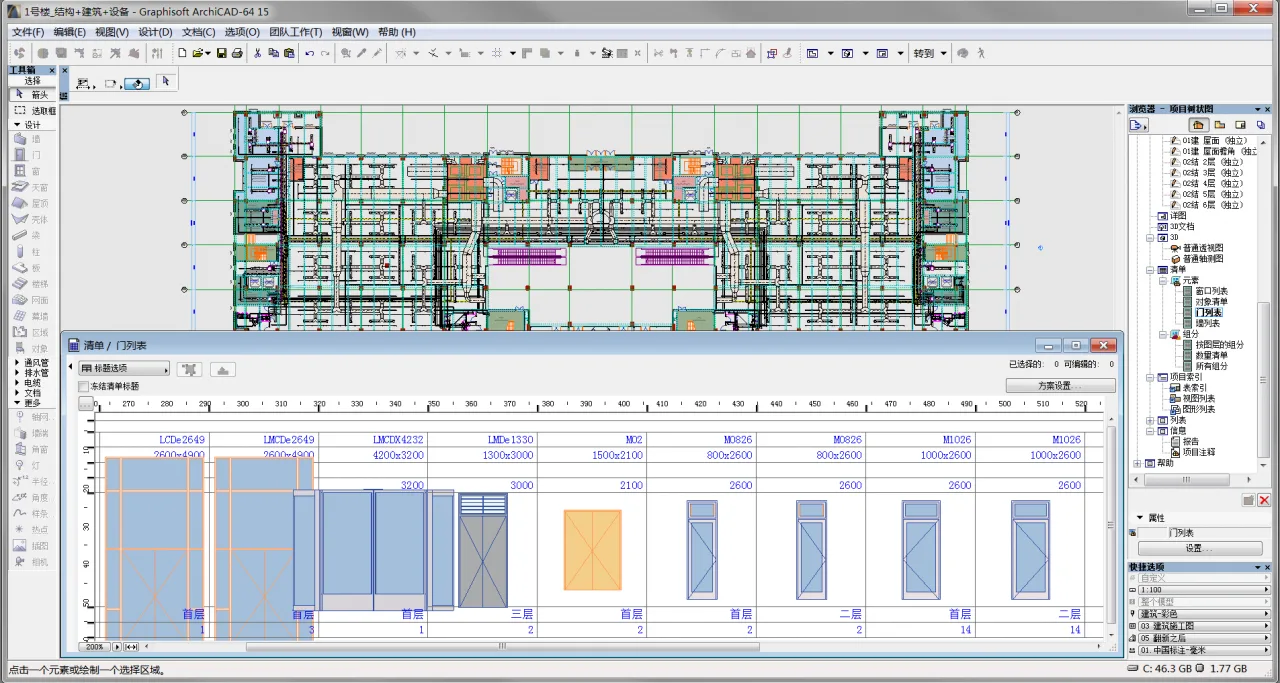

Door and Window Schedule in ArchiCAD
The BIM model facilitates viewing and uniformly adjusting door and window styles directly within the schedule.

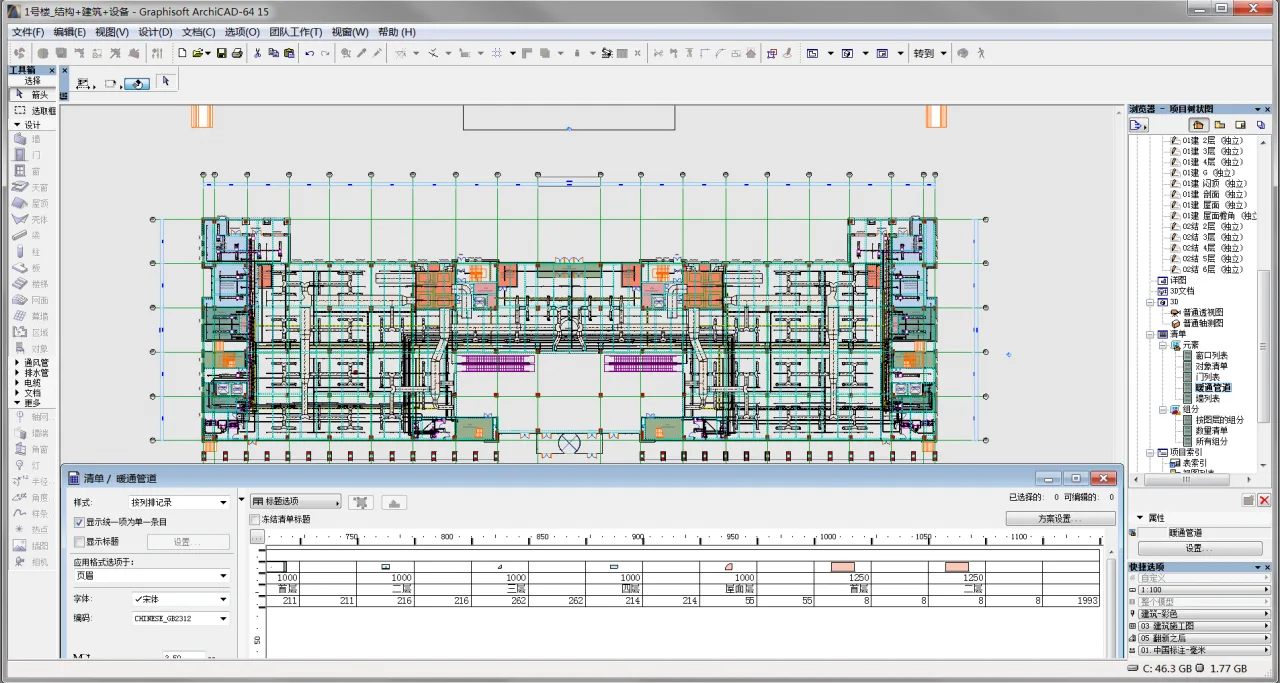

Door and Window Schedule in ArchiCAD
Using the BIM model, we verify the number of bends in HVAC fittings to provide accurate data for budgeting and construction teams.

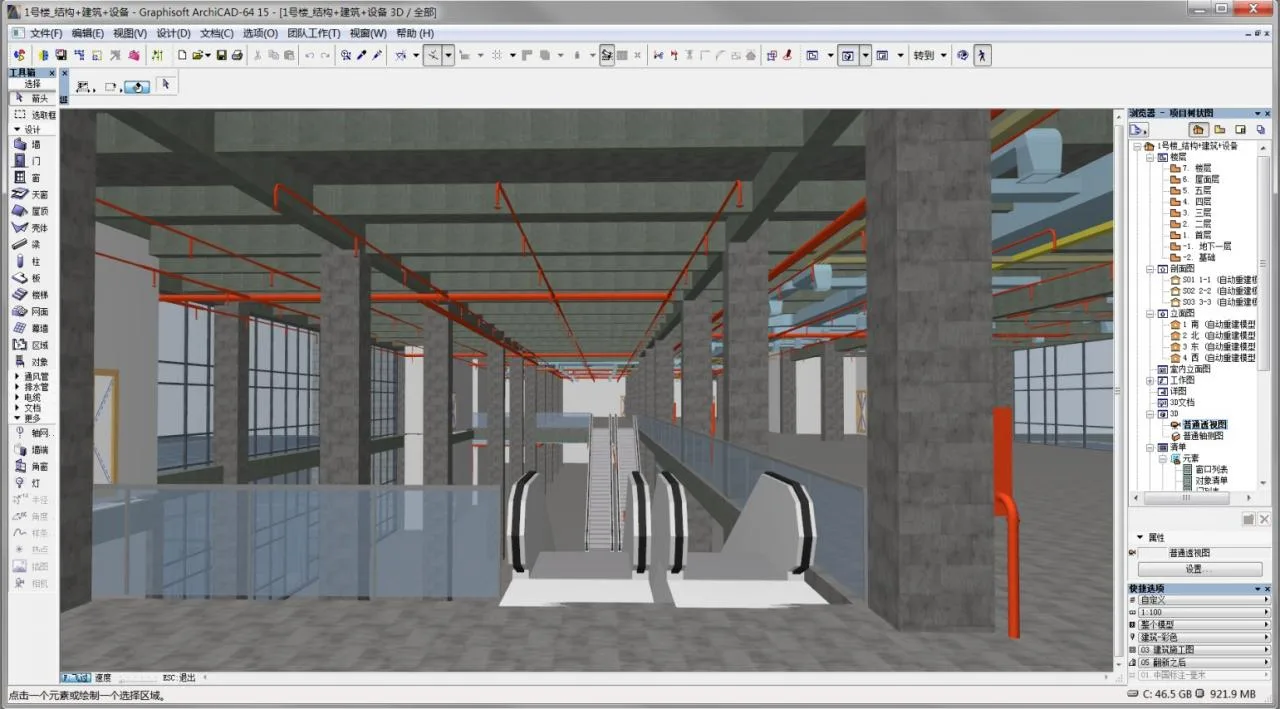

Interior Space Walkthrough
Through roaming mode, users can enter the building interiors and experience the spatial design effects in detail.

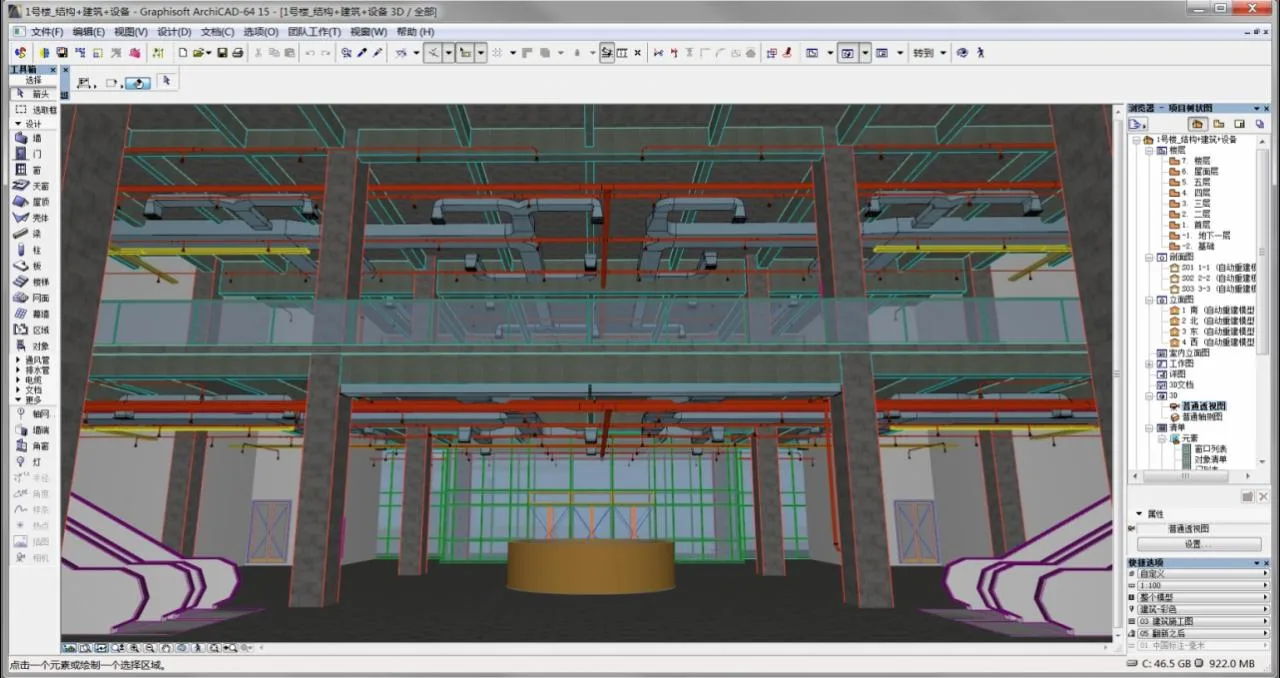

Interior Space Walkthrough
Roaming also allows observation of how equipment levels affect floor heights within the building.

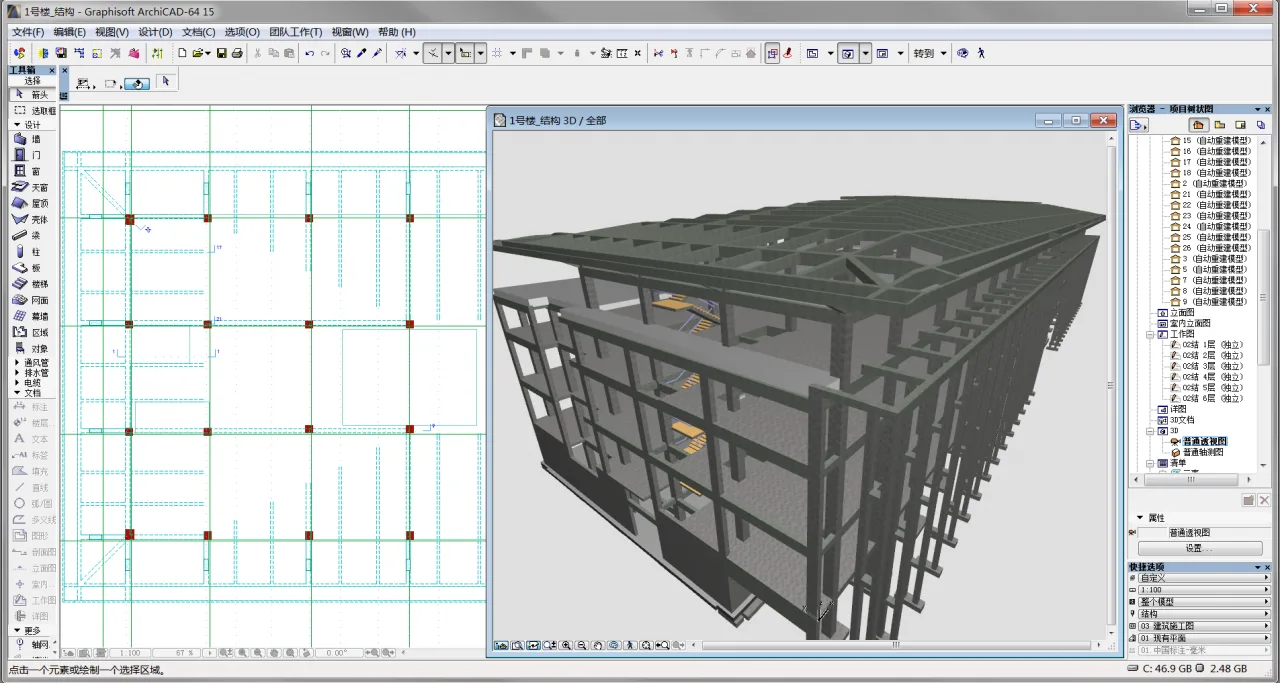

Structural Models in ArchiCAD
By examining load-bearing components in the structural model, we identify potential obstructions caused by beams over the roof drainage ditch and plan the layout of rainwater pipes accordingly.

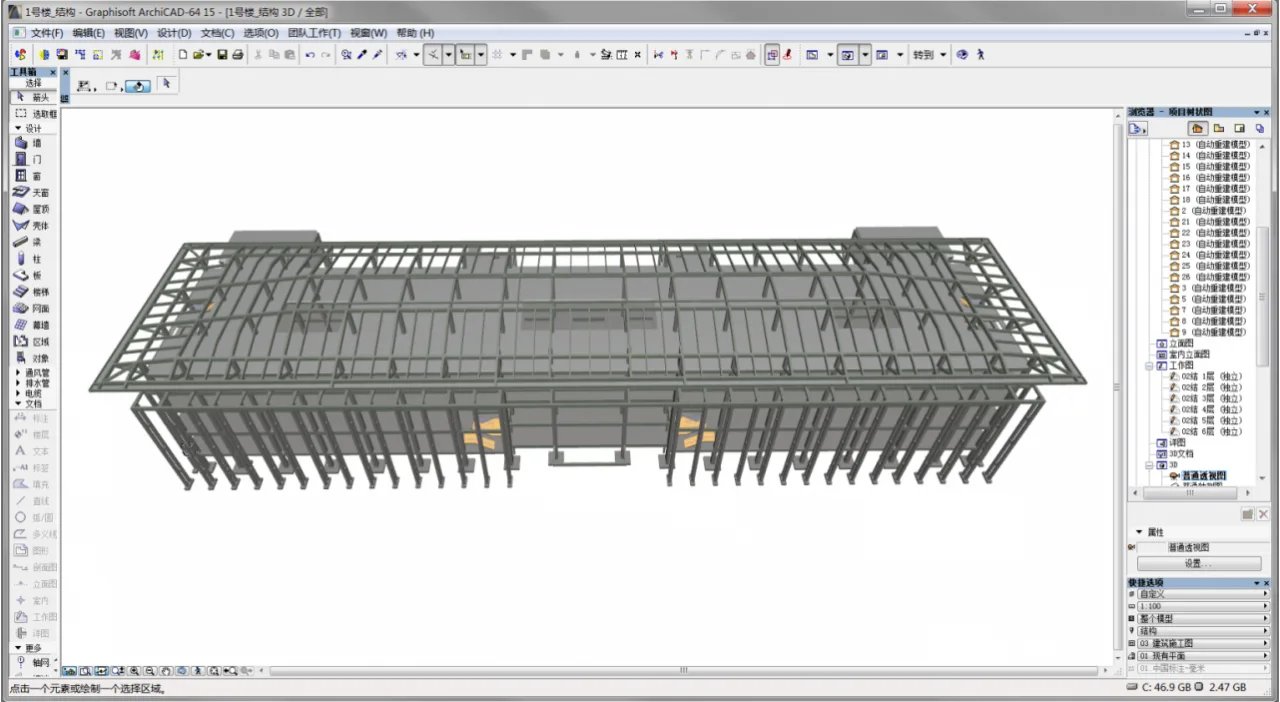

Structural Models in ArchiCAD
Analysis of the structural model enables calculations of beam elevations at the junction of roofs with varying slopes, as well as determining the height of drainage ditches.

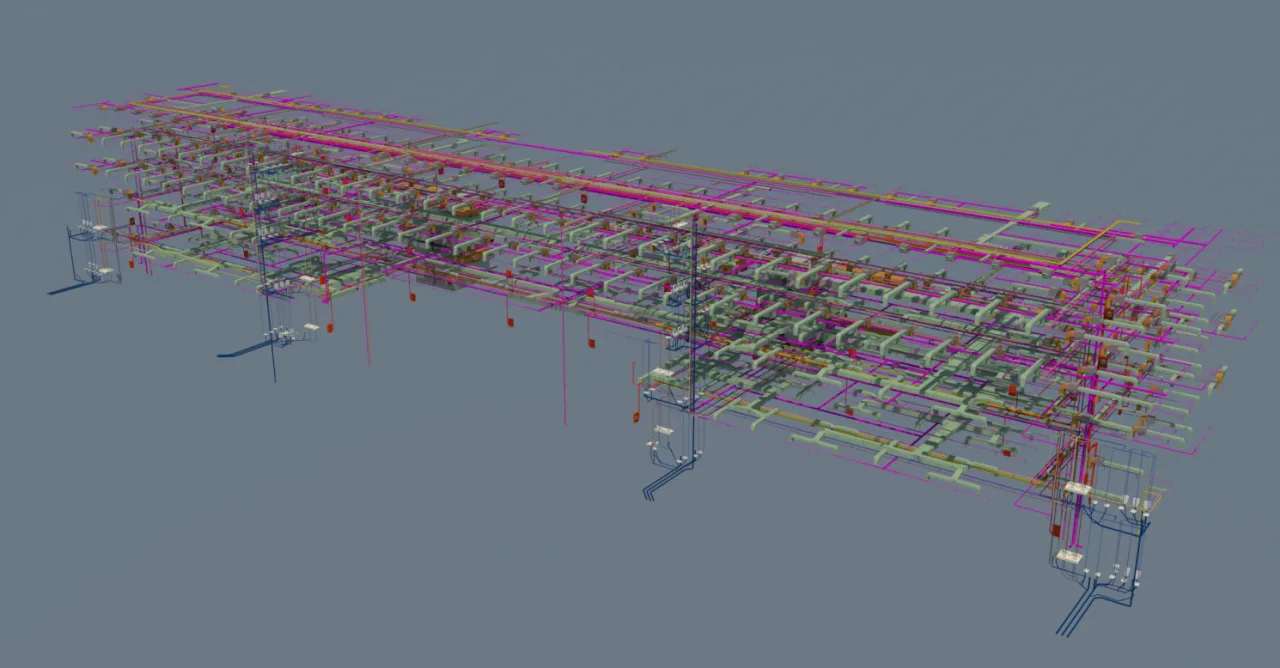

MEP: Integrated Equipment Model

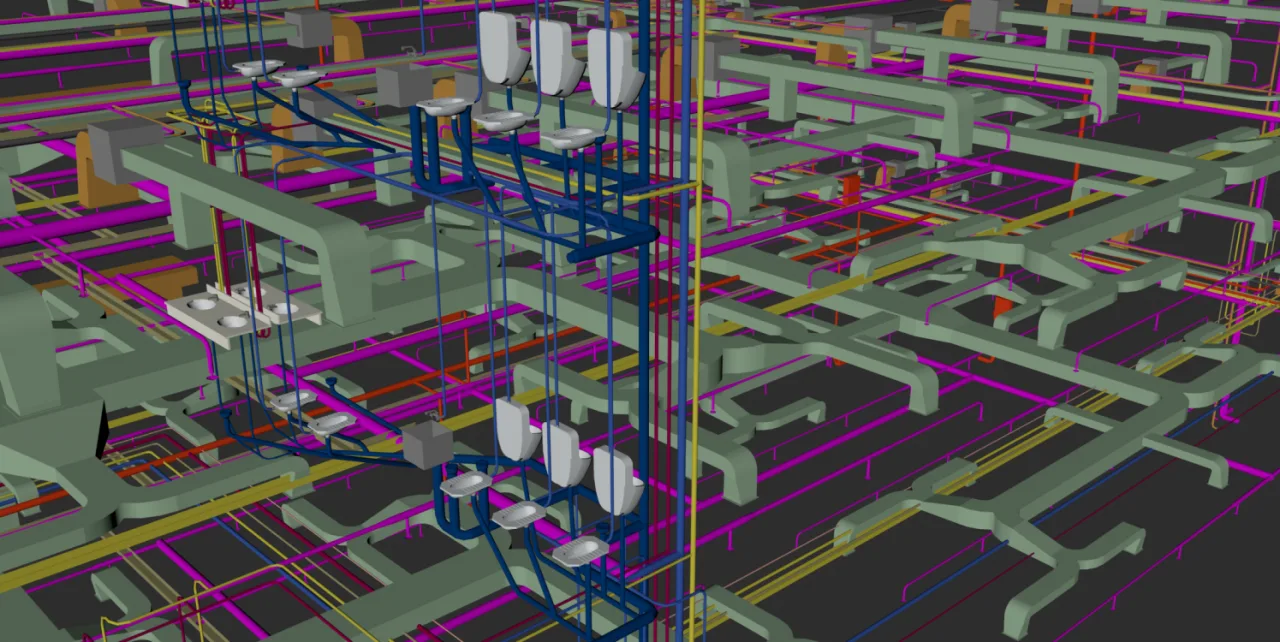

MEP: Detailed Equipment Model

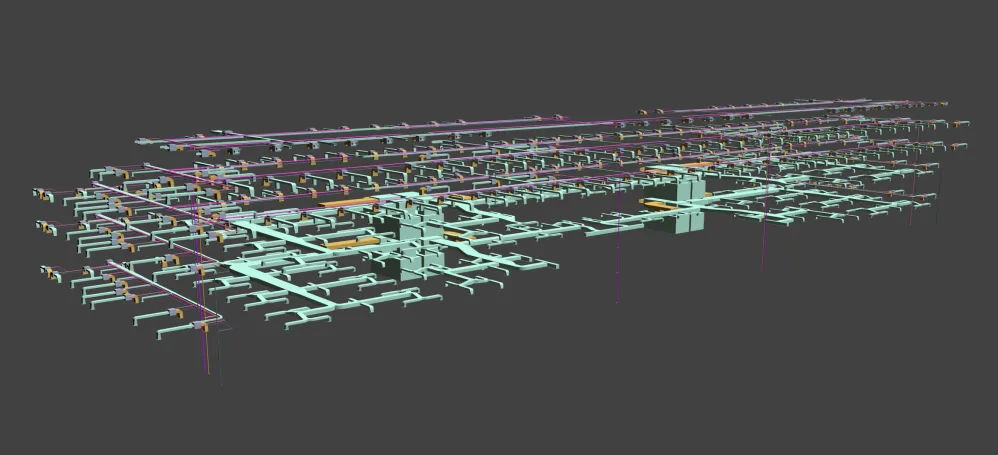

Integrated HVAC Model

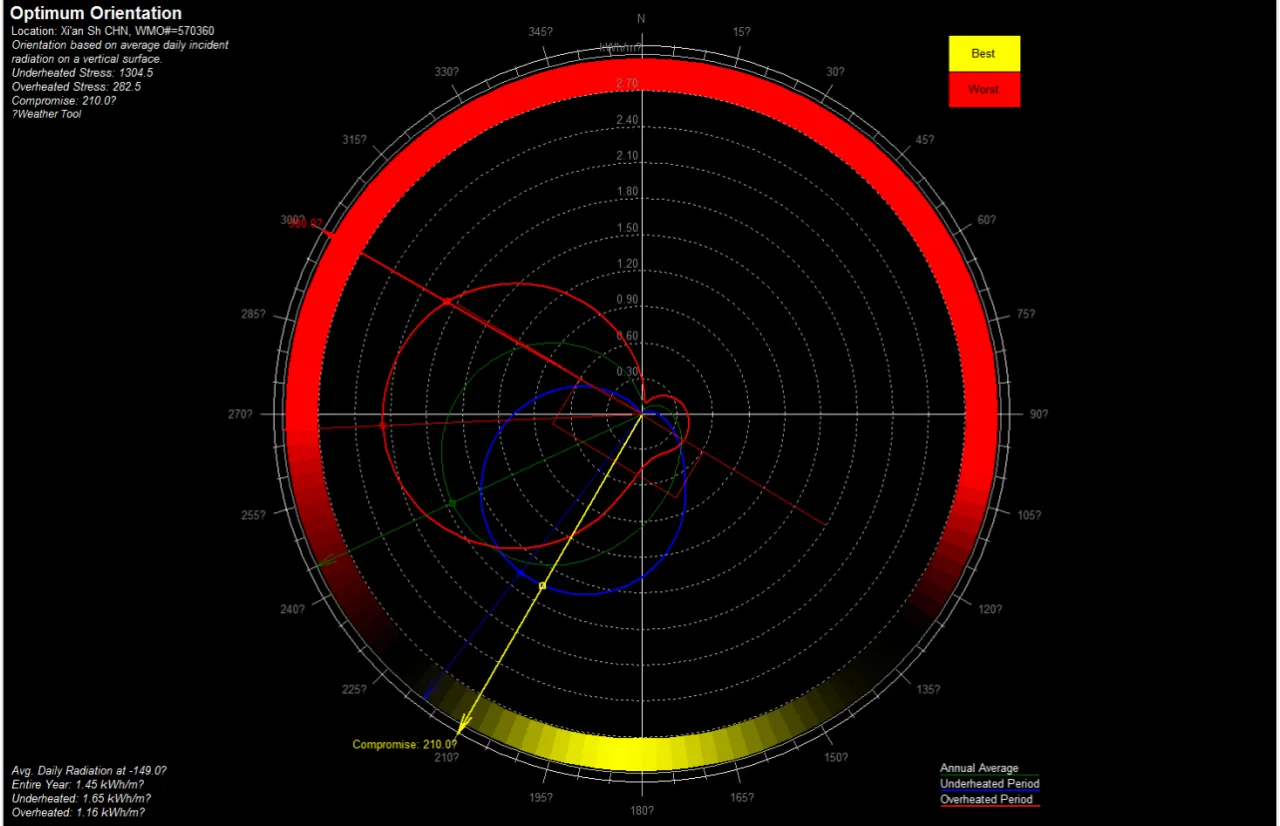

Orientation Analysis Using Climate Data in Early Planning Stages

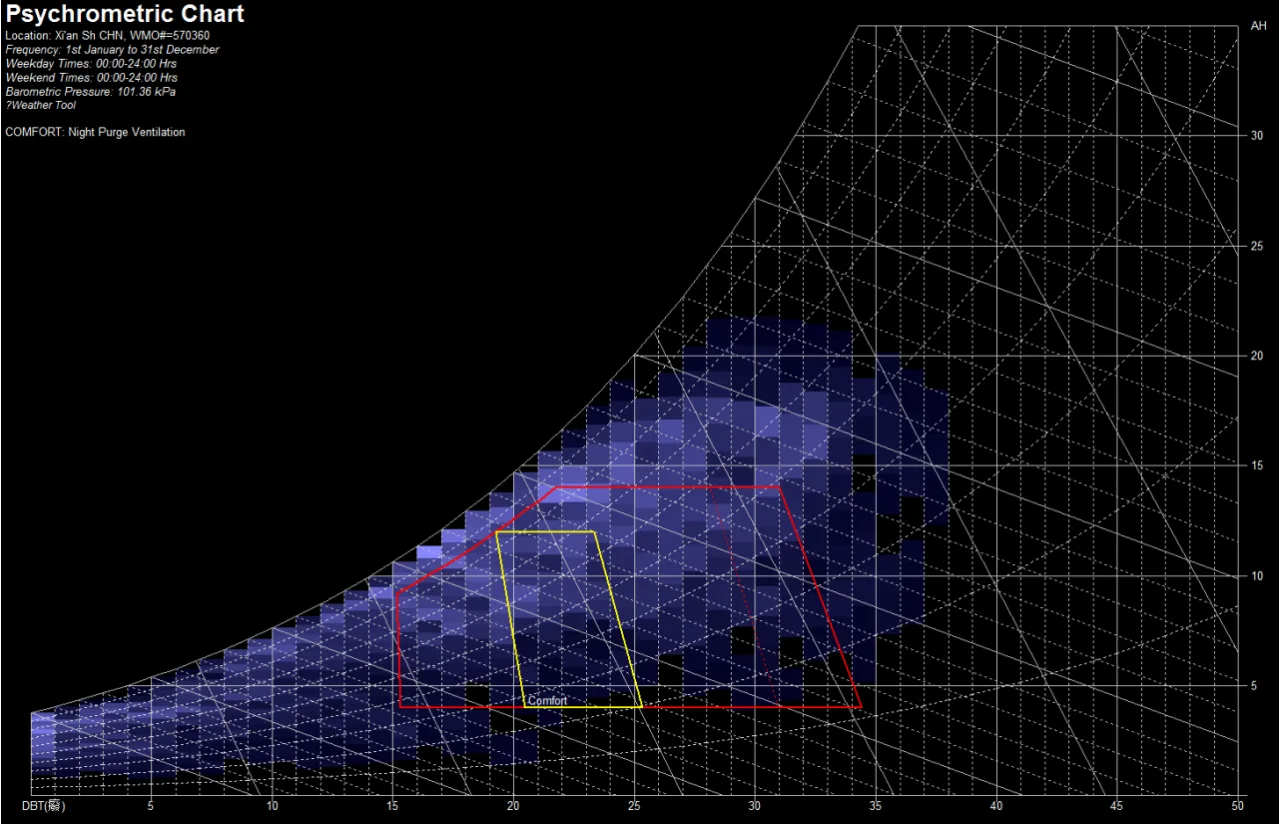

Exploring Passive Heating Strategies During Initial Planning

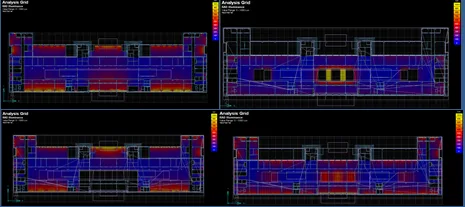

Based on the analysis of daylighting illuminance ratios and daylight coefficients for each floor, the natural daylighting standard for the main rooms of Fengdong City Plaza Building 1 has reached approximately 75%, complying with Articles 5.2.6, 5.2.11, and 5.2.15 of the Green Building Evaluation Standards.
