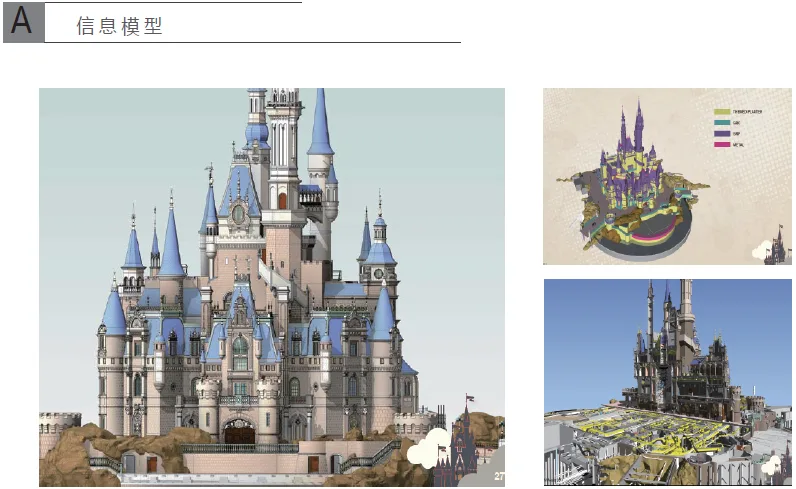

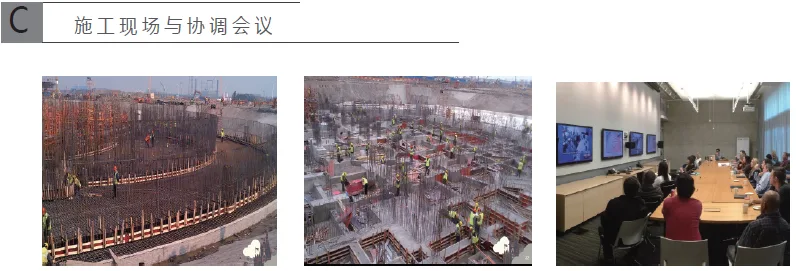

The Shanghai Disney Fantasy Fairy Tale Castle, the tallest and largest Disney castle in the world, is currently under intense construction. BIM technology has been extensively applied throughout this project, earning it the 2014 AIA TAP Award in the United States.

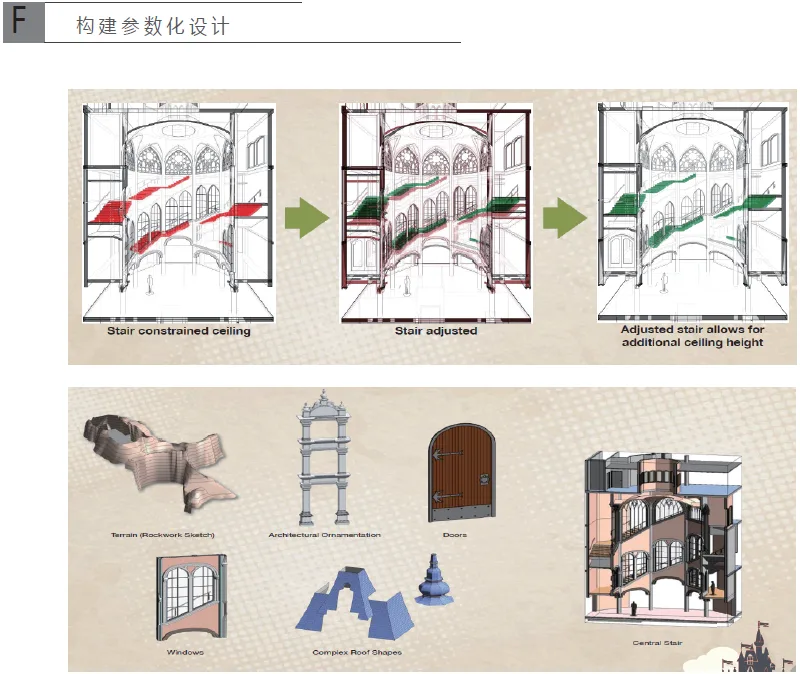

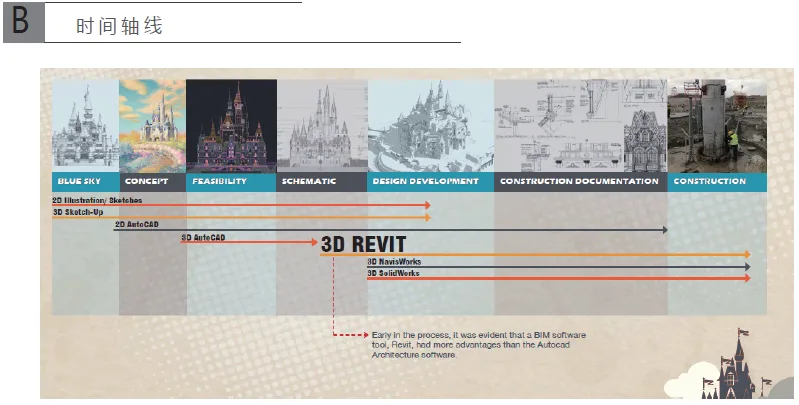

Model storage and transmission between the American and Shanghai teams were managed using BUZZSAW. The initial design model was created with 3D AutoCAD. However, after identifying some limitations with the software, the team transitioned to using Revit. Additionally, a BIM “Surge Team” was established to assist with the parametric design of components.
While the building model was developed in Revit, structural and MEP designs continued to use AutoCAD. To facilitate seamless information transfer between Revit and AutoCAD AD, the team developed custom scripts tailored to this purpose.

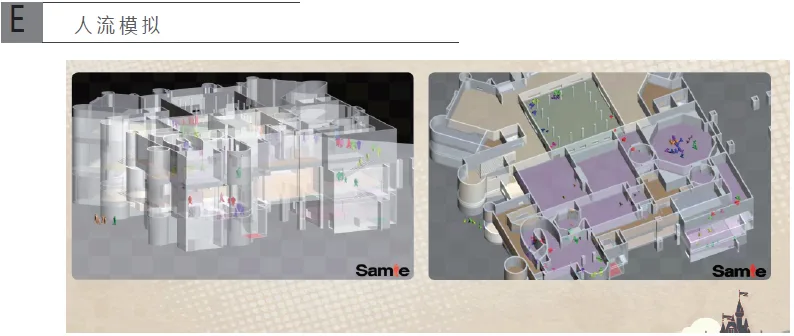

Working closely with park management, the team employed the models to analyze pedestrian flow, accurately calculating real-time foot traffic within the building. This data was then used to optimize the design for improved visitor experience.

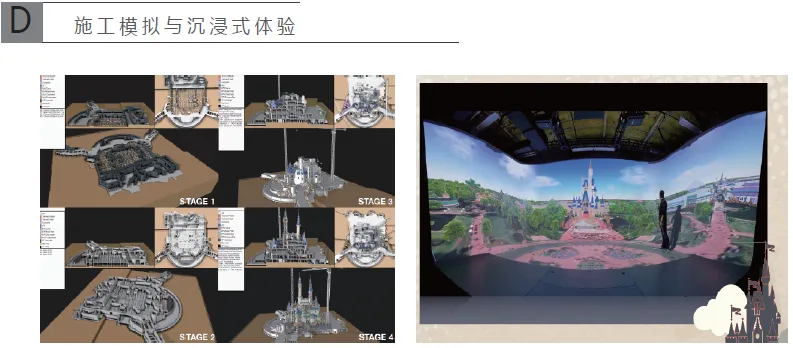

The project also featured “The DISH,” a 3D immersive experience projection that allows visitors to feel as though they are part of a real scene.
The project architect reflected on the experience, stating: “This has been the most challenging project of my career, involving numerous disciplines and intricate details. I can hardly imagine meeting the schedule and budget requirements without a comprehensive and flexible model.”
Many team members contributed significantly to the project’s success, often working behind the scenes as unsung heroes. We honor their efforts and plan to invite them to share their experiences in our upcoming micro lecture series. Stay tuned for more updates.
