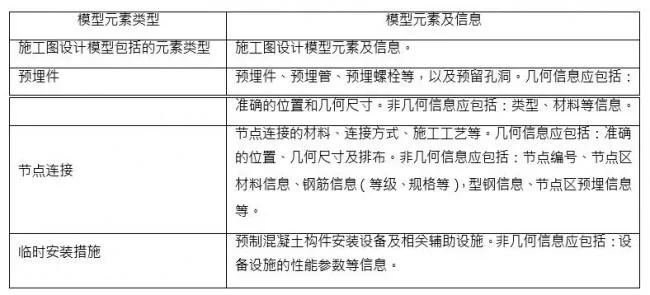

The detailed design model of prefabricated concrete structures should encompass more than just the elements found in construction drawing design models. It must also include components such as embedded parts, reserved openings, connection nodes, and temporary installation measures. The level of detail should adhere to the specifications outlined in the table below.
