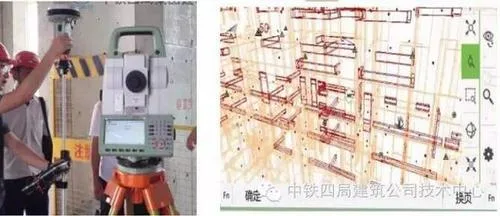

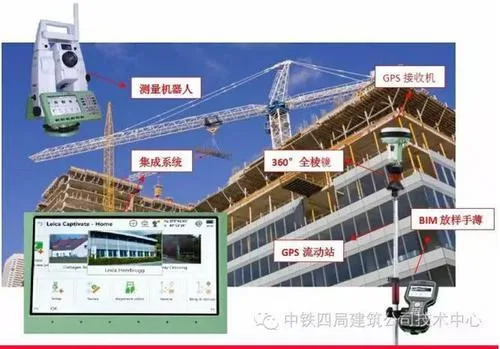

1. Basic Components of the BIM Measurement System
2. Workflow

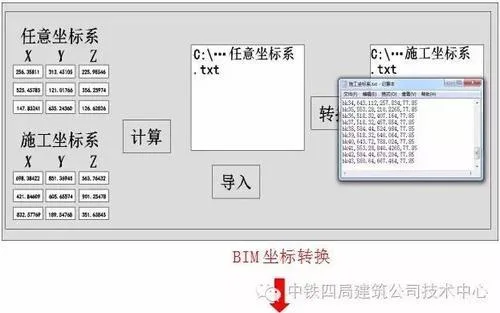

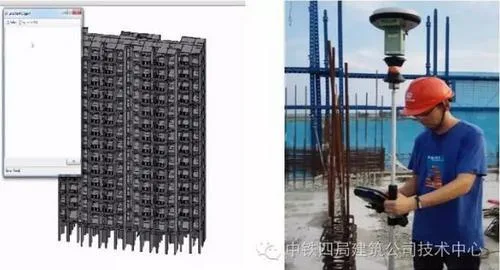

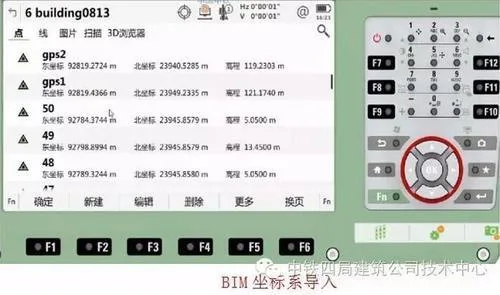

1. Preparation of Data

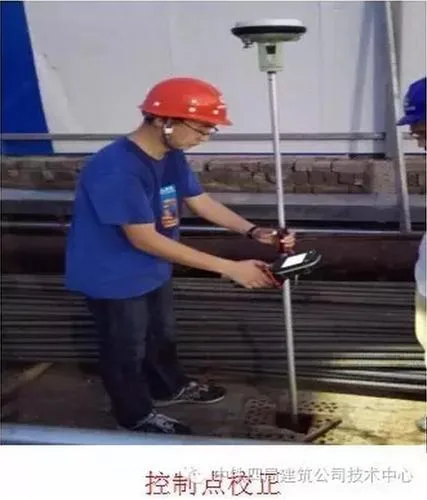

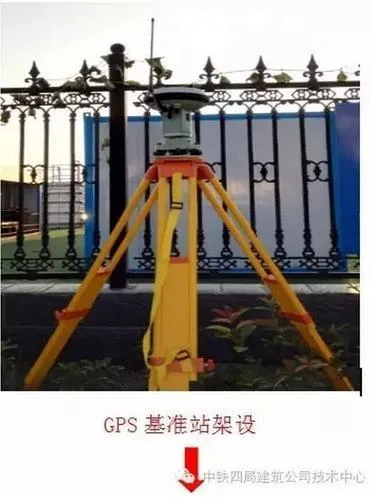

2. Control Point Calibration

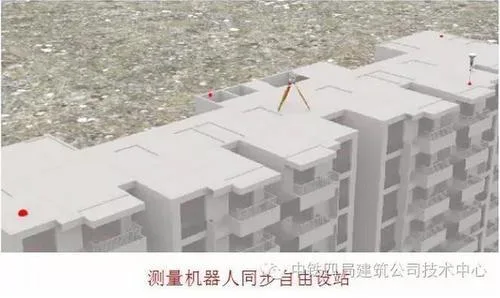

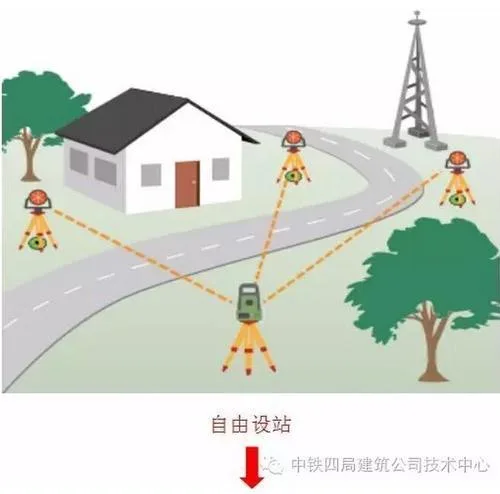

3. Free Station Setup

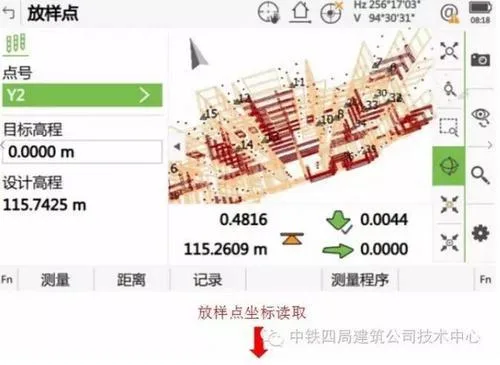

4. Automated Layout
3. Advantages
Advantage 1: This system enables three-dimensional spatial positioning for high-rise building coordinates, effectively preventing error accumulation. It enhances both the accuracy and efficiency of construction surveying, allowing synchronized operations between humans and robots.
Advantage 2: It simplifies and automates the measurement of high-rise building axes, detailed BIM model structures, and layout tasks. Additionally, it facilitates paperless measurement operations, streamlining the entire process.
Advantage 3: The system supports mutual verification and comparison between BIM models and the actual building entities, ensuring greater consistency and quality control.
