Abstract The comprehensive electromechanical drawings for the underground second floor of the commercial section of the Guanghua Road Galaxy SOHO2 office building (Guanghua Road SOHO2) include deliverables such as a Revit model, a Navisworks clash detection report, and a walkthrough video.
1. Project Participants
Construction Unit: China Construction First Engineering Bureau Fifth Construction Company
BIM Technology Service Provider: Beijing Tianji Obi Building Information Consulting Co., Ltd
2. Project Scale
The SOHO2 project, designed and constructed by the Fifth Construction Company of China Construction First Engineering Bureau, covers the comprehensive mechanical and electrical drawings for the underground second floor of the commercial section of the Guanghua Road SOHO2 office building, measuring 200 meters by 75 meters.

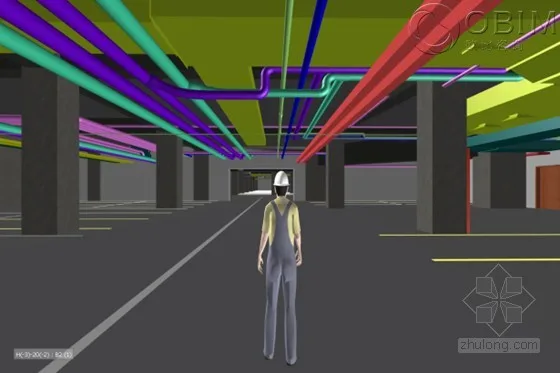

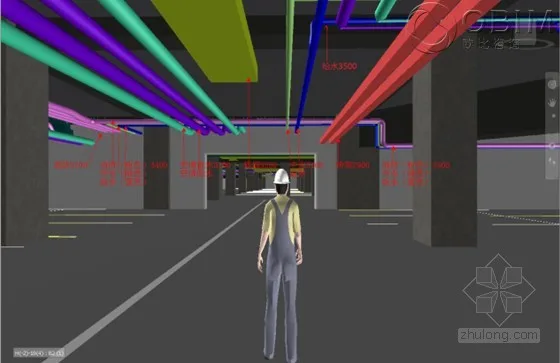

Deliverables include the Revit model, Navisworks clash detection report, and a walkthrough video.

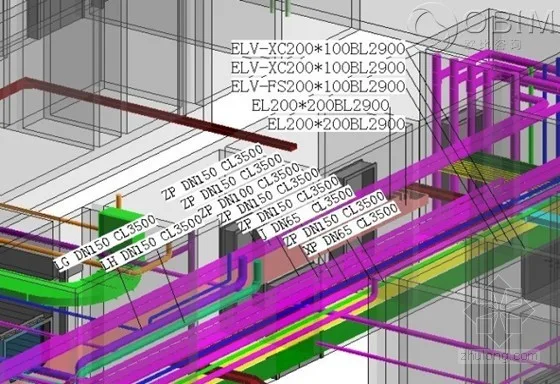

The models include HVAC, bathroom, fire protection, and electrical bridge disciplines, providing a full professional model integration.
