BIM Q&A: Identifying the Eaves Family Category in Revit

BIM Q&A | Which Family Category Does the Eaves Belong to in Revit?

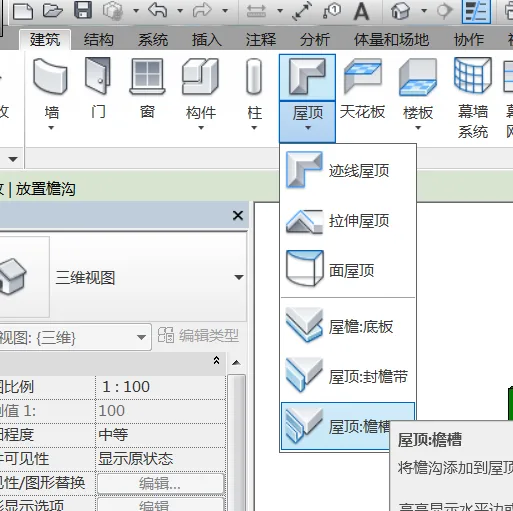

In Revit, you can draw the eaves directly within your project. This is done using the Roof: Gutter tool, which can be found under the Roof dropdown menu within the Architecture tab.
