BIM Q&A | How to Include Bolt and Liuding Quantities in Material Lists Generated by Tekla Component Drawings?

BIM Q&A | How to Include Bolt and Rivet Quantities in Tekla Component Drawings Material Lists

Why do bolts and rivets appear on the compiler but are missing from the material list?

This issue typically stems from the template structure, specifically whether the relationship between rows is parallel or hierarchical. To resolve this, you should create a sub-row for the component beneath the main component row, then add a bolt sub-row under this component sub-row. Enter the bolt quantities and related data within this bolt sub-row.

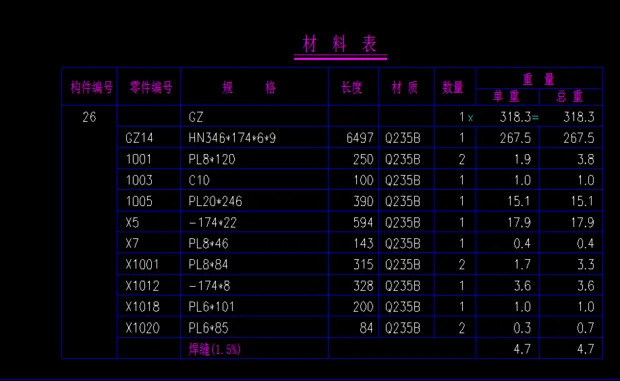

The following diagram illustrates the proper template structure:
