Wuhu LNG Pressure Regulating Station Project | North China Municipal Institute BIM Case Study

[AC Case] China Municipal North China Institute | Wuhu Liquefied Natural Gas Pressure Regulating Station Project | Municipal BIM Case

Owner: Wuhu Zhongran Urban Gas Development Co., Ltd

Location: Expansion based on the North Gate Gasification Station, located in the suburbs of Wuhu, with an additional 14.5 acres of newly acquired land.

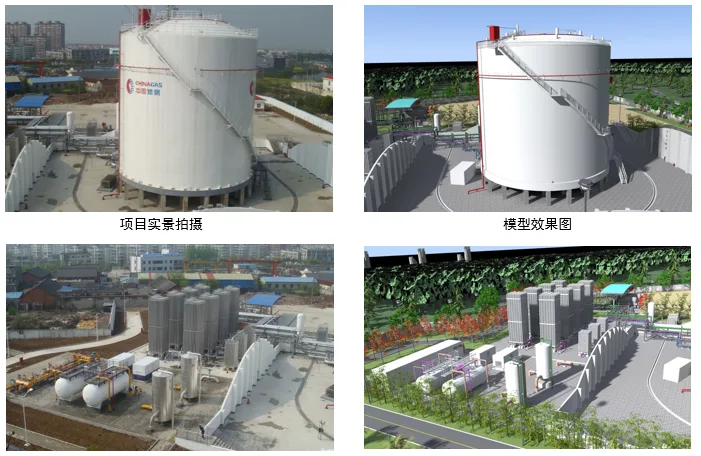

Status: Completed

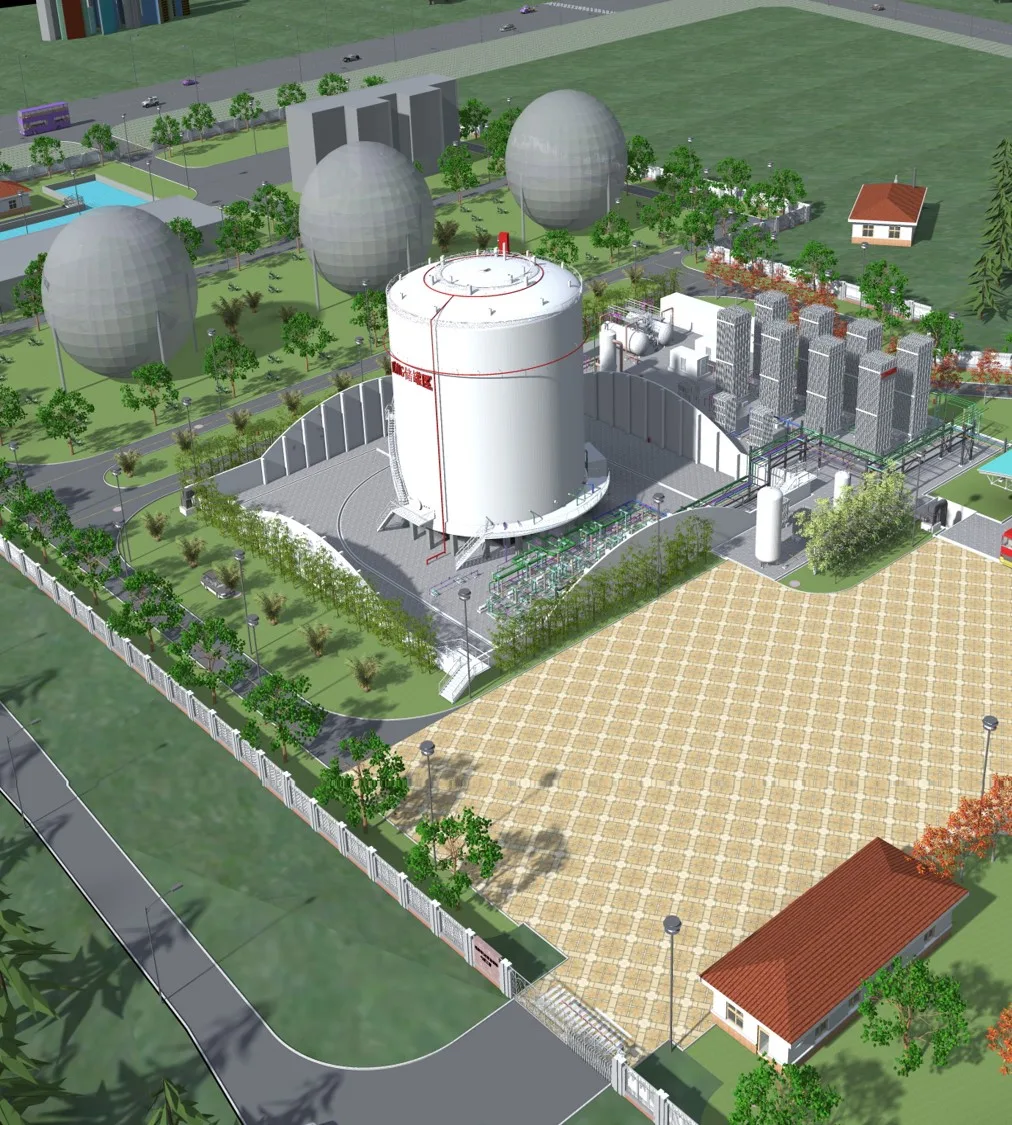

Project Scope: LNG gasification station featuring a 4,500 m³ storage tank and a gas supply capacity of 30,000 Nm³/h.

Project Goal: To address winter peak gas supply shortages and balance the fluctuations between low and high gas demand during winter seasons.

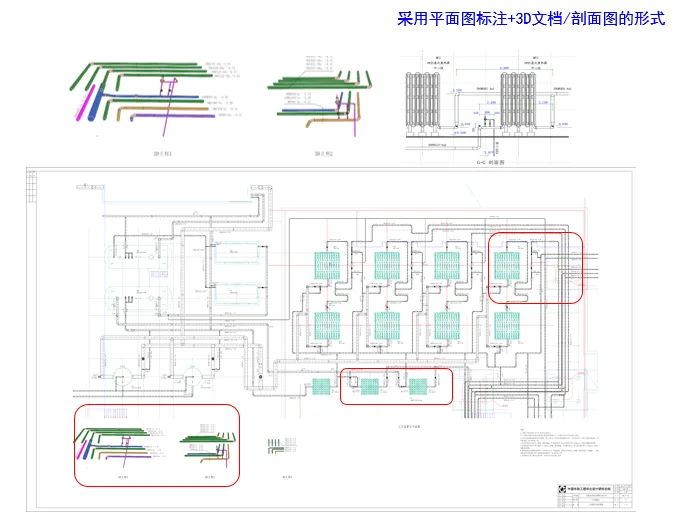

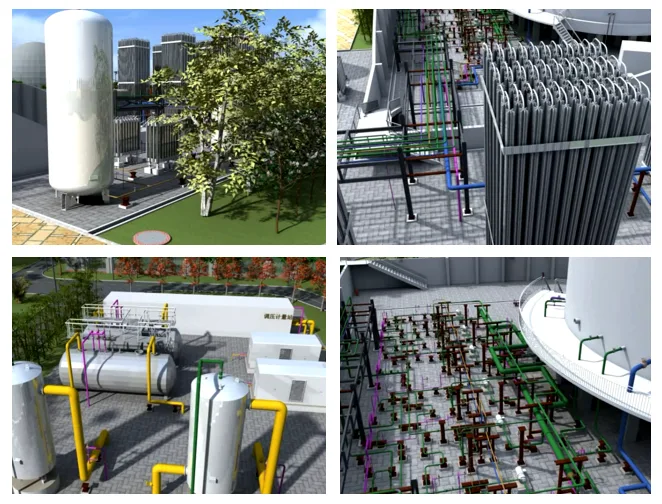

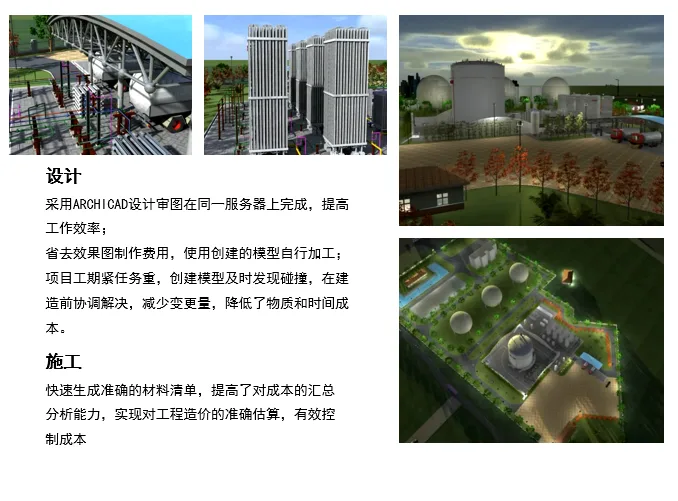

This project utilizes ARCHICAD for BIM design to reduce pipeline clashes and connection errors during the design phase. It also provides accurate quantity takeoffs and supports on-site construction as well as pipeline equipment installation guidance.
