Chengdu International Automobile City is situated within the Yikong High-Tech Industrial Park in Longquanyi District, Chengdu. The project covers a planned land area of 77,796.17 square meters, with a total construction area of 201,810.92 square meters.

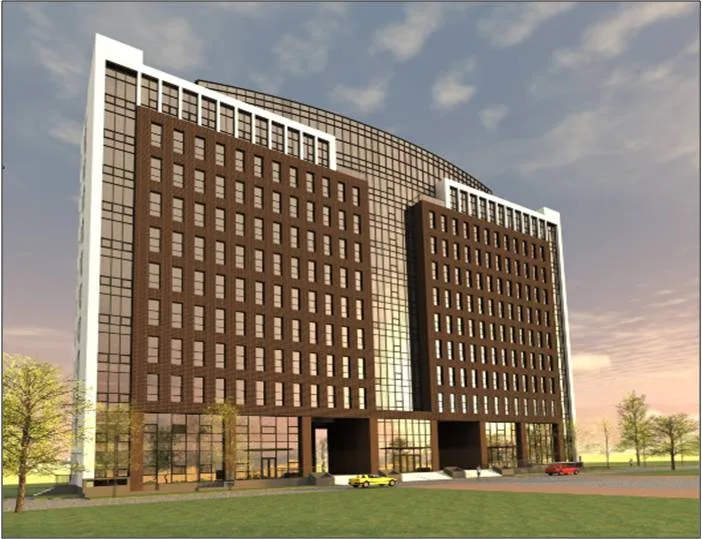

Rendering of the individual project

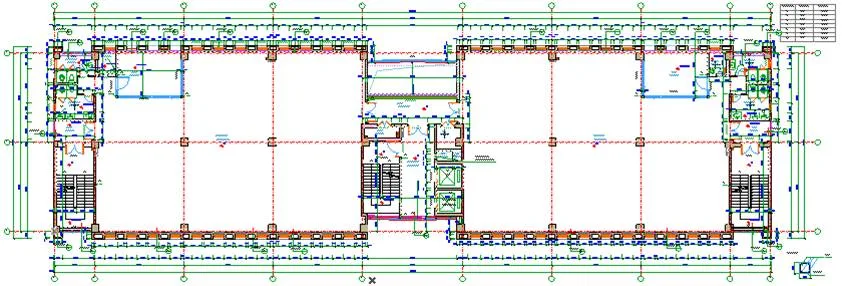

Standard floor plan
Using 3D models to facilitate communication among various disciplines helps reduce coordination time effectively.

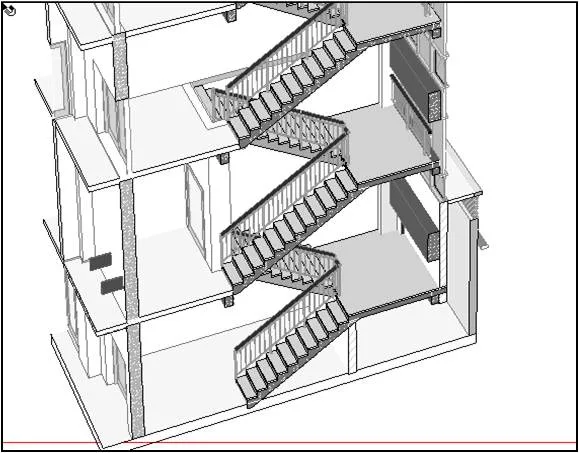

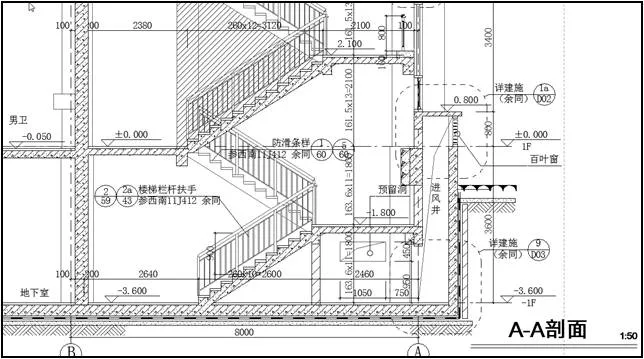

Staircases and wall samples are automatically generated from ArchiCAD models, enhancing design accuracy. For example, perspective views of the staircase are placed alongside plans and sections, providing clear guidance for construction.
MEP Coordination and Review to Enhance Design Quality

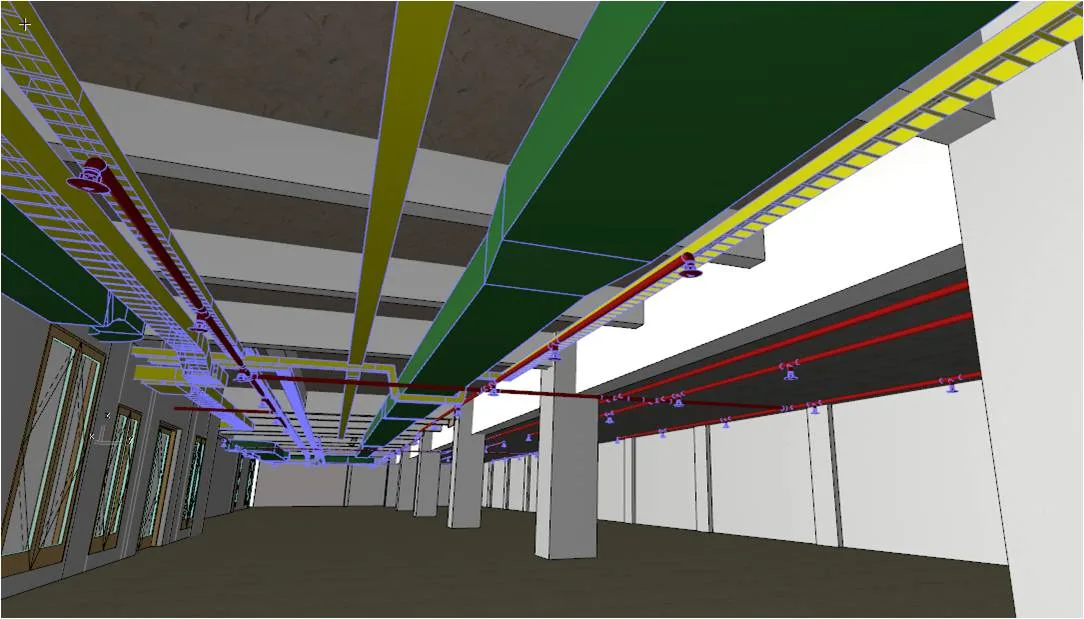

The MEP coordination phase integrates 3D models from multiple disciplines—including structural and equipment systems—into a single model. Virtual reality is employed to identify omissions, resolve clashes in plans and spatial layouts, and address clearance issues, thereby improving overall design quality.

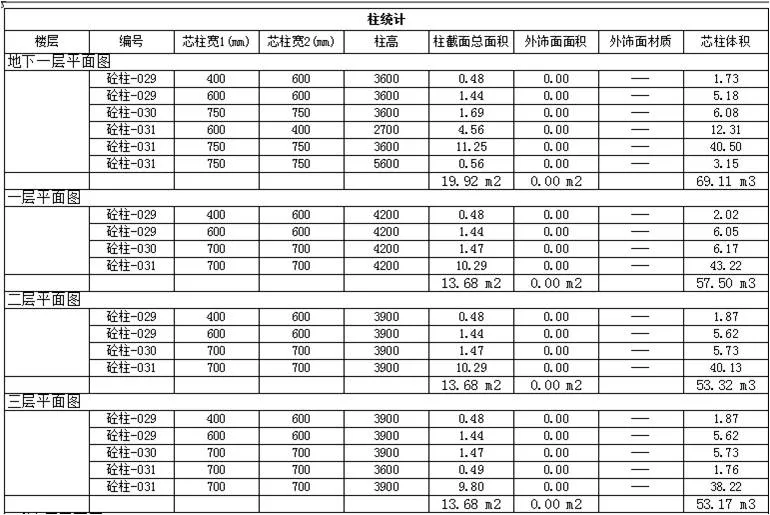

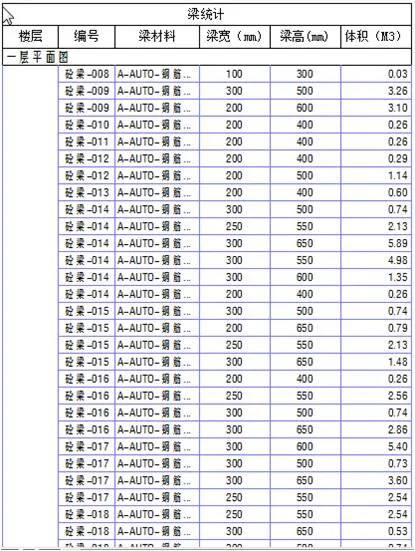

Automated List Generation Based on the BIM Model
