Guangzhou KXC-J2-1 Poly Real Estate Headquarters Office Park Development

1. Location: KXC-J2-1 plot, situated in the eastern part of the central area of Guangzhou Science City.

2. Area: The total construction area covers 29,933.76 square meters, with a building footprint of 3,351.41 square meters. The building consists of 14 floors above ground and 2 basement levels.

3. BIM Completion Scope: Architecture, structure, water supply and drainage, electrical (cable trays), and HVAC systems.

4. Model Detail Level: LOD300.

5. Design Stage: Construction drawings.

6. Visual Content:

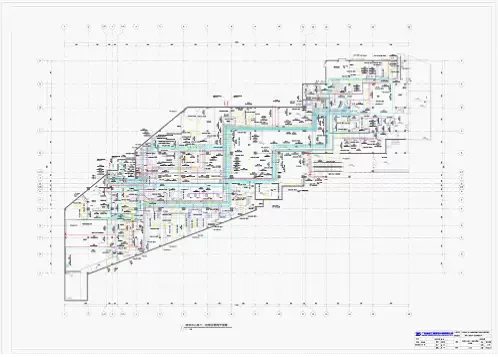

Integrated pipeline layout of the first basement floor

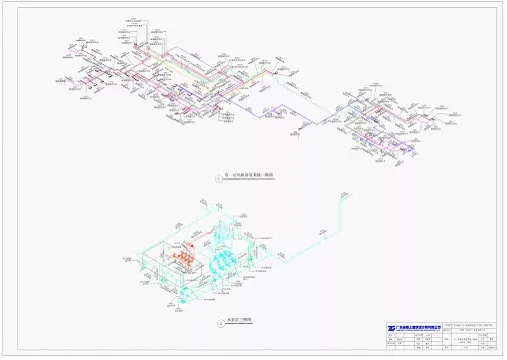

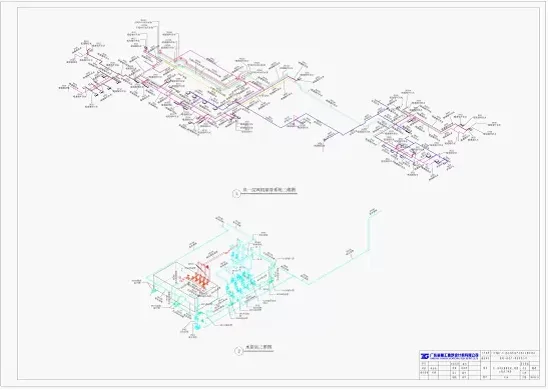

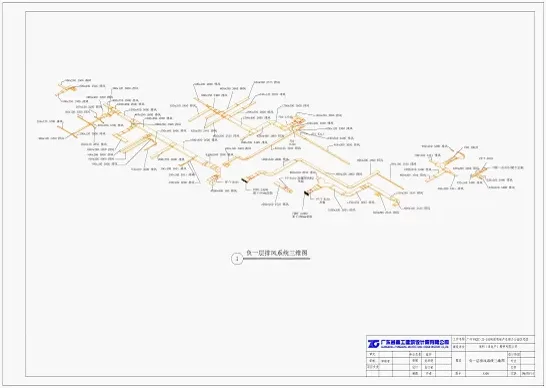

3D axonometric view of basement pipelines

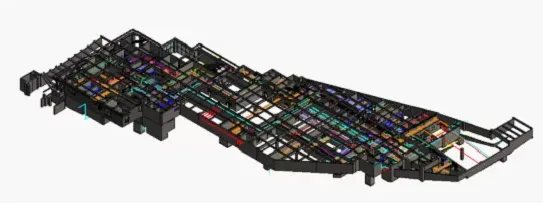

Panoramic overview of the basement

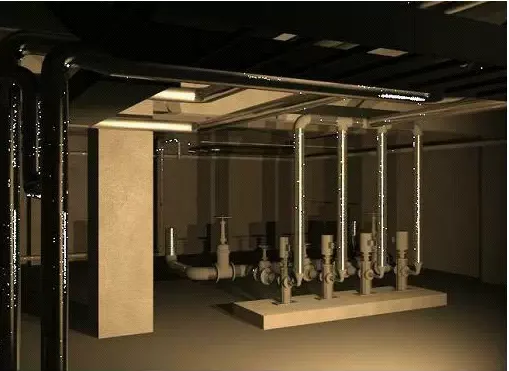

Rendering of the water pump room

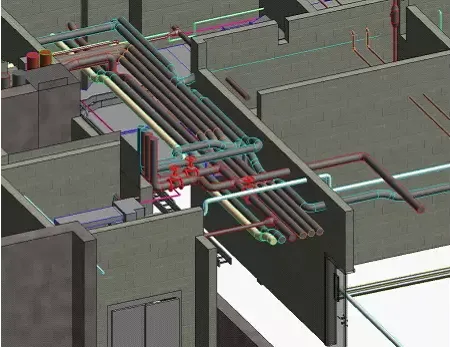

Rendering of corridor pipelines

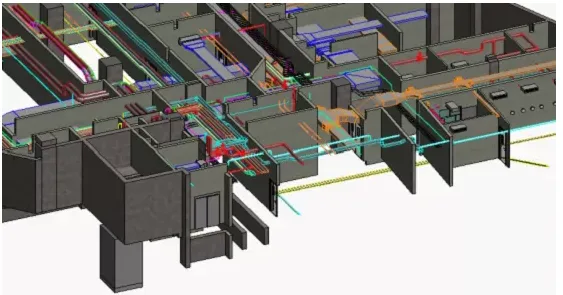

Corridor pipeline visualization
