BIM Implementation in the Wanda Chengdu Commercial Complex Project

 The Chengdu Wanda City Project is situated in the Binjiang New District of the Dujiangyan Irrigation Project, covering an area of 5,900 mu. This comprehensive development includes outdoor theme parks, large-scale stage shows, Wanda Plaza, resort hotel clusters, lakeside bar streets, schools, and residential areas. With a total investment of 55 billion yuan, it marks Wanda Group’s tenth major cultural and tourism project across China, following ventures in Wuhan, Changbai Mountain, Xishuangbanna, Harbin, Nanchang, Hefei, Qingdao, Wuxi, and Guangzhou.

Practical Application of EVALUATIONBIM Technology On-Site

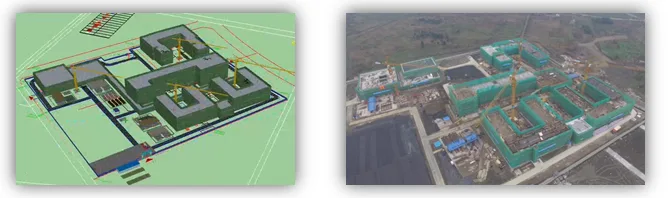

1. Site Layout Planning: Using Guanglian Da 3D site layout software, we provided on-site layout planning solutions. This approach addresses issues such as slow drafting, lack of visual clarity, frequent adjustments, and environmental, fire, and safety hazards stemming from insufficient design standards.

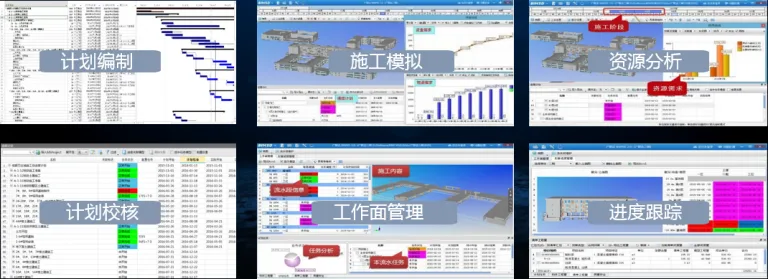

2. Construction Simulation and Progress Tracking: Based on schedule and flow segmentation, construction simulations were conducted within the model to optimize and validate plans. Progress tracking was performed by comparing on-site photos with the BIM model.



3. On-Site BIM Briefings: Utilizing the slicing function of 5D software, complex nodes were sectioned into three-dimensional visual disclosures. This method resolved traditional challenges such as communication difficulties, low efficiency, and incomplete information sharing, transforming briefings from mere formalities into effective tools.

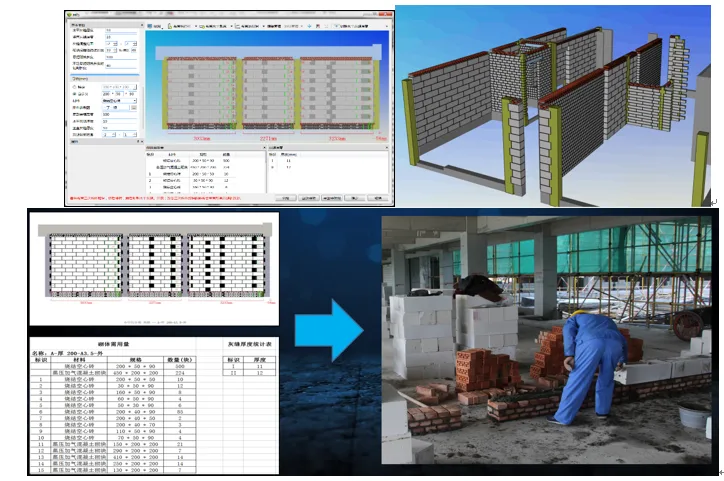

4. BIM Brick Layout: Project technicians refined the model using Guanglian Da BIM5d software for brick layout, guiding on-site construction with a 3D model. The BIM brick layout model was used to export the required quantity and detailed specifications for masonry per phase. Material managers supplied materials based on these reports, strictly controlling the total number of bricks on site. Layout plans were posted at masonry work surfaces, facilitating material allocation and minimizing waste. This process enhanced the quality of secondary structural construction.

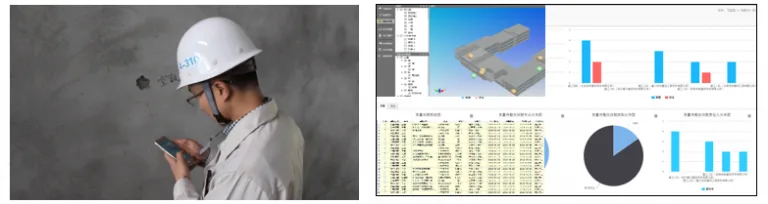

5. Quality and Safety Monitoring with Three Ends and One Cloud Application: Using BIM5d mobile devices, quality and safety issues were tracked and recorded through photos, audio, and text. The associated models helped relevant personnel intuitively manage these issues. Information synchronized between mobile and desktop via the server, displaying real-time site conditions within the model as document thumbnails for effective tracking.

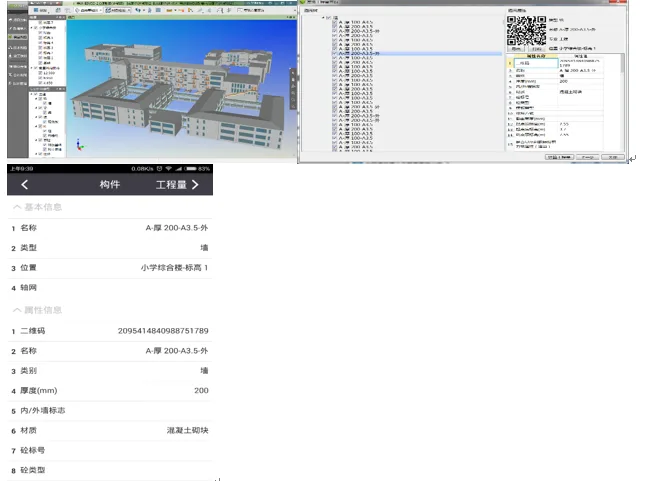

6. Component QR Code Application: Component QR codes were generated directly through 5D software. On-site scanning of these QR codes allowed instant access to component information, improving traceability and management.



BIM Technology and Cost Control

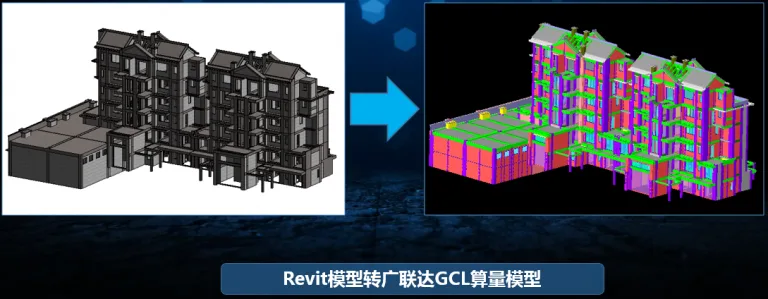

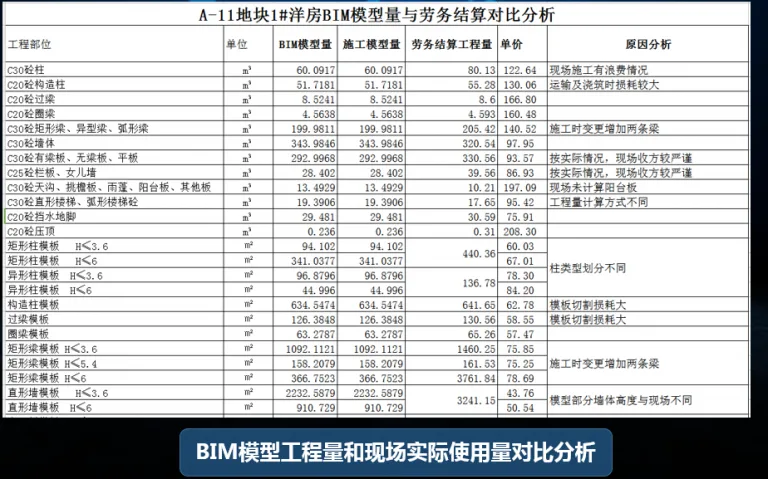

1. Quantity Verification: The BIM model was imported into Guanglian Da’s civil engineering calculation software for engineering verification. Deviations were identified and analyzed to understand their causes.

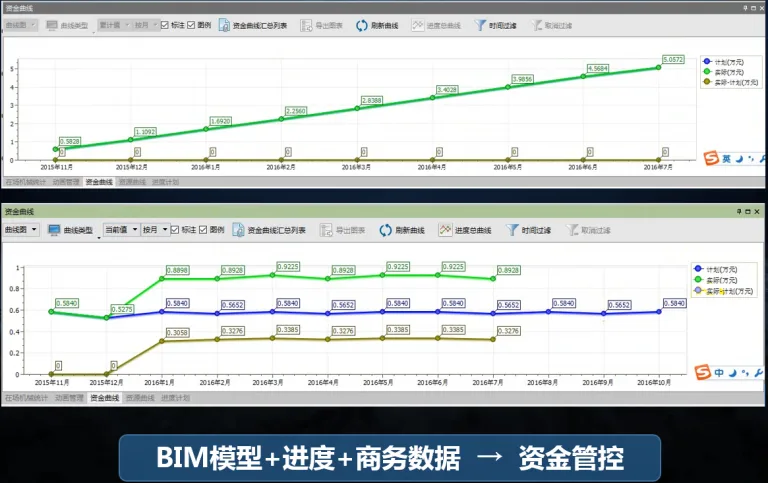

2. Fund Curve Simulation: Funding curves were generated using the BIM5d platform by integrating models, project progress, and business data. This visual representation of the project’s funding helped with efficient fund allocation.

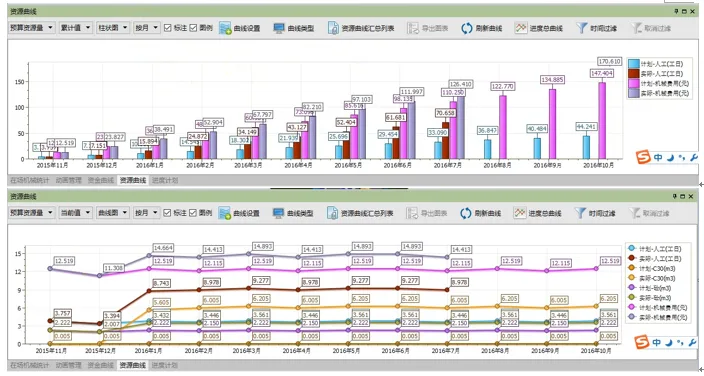

3. Resource Curve Simulation: Resource curves were created on the BIM5d platform using models, progress, and business data. This facilitated reasonable material procurement, advance planning of material deliveries, and optimization of the construction schedule.



Summary

This project significantly reduced unnecessary on-site rework through the application of BIM technology, enhancing visualization of construction activities. Particularly in quality and safety management, evidence-based and visual archiving were achieved. From a business perspective, quantity verification identified causes of material overuse, effectively reducing project costs.

User Evaluation

EVALUATION: Only practical features can truly support project implementation and contribute to refined project management!
