As the name implies, the greatest advantage of collaborative design is collaboration itself. Whether it involves multiple specialties with multiple participants, a single specialty with several contributors, or even just one person, it qualifies as collaborative design because it centers on real-time updates and precise data transmission.

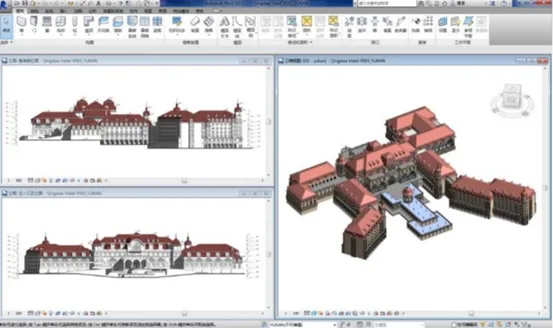

Figure 1: Revit Work Interface of Qingdao Silver Beach Resort Hotel
The project covers a total construction area of 69,000 square meters, including 44,000 square meters above ground and 25,000 square meters underground. The base area spans 15,000 square meters, with a plot ratio of 0.80 and a coverage rate of 27%. The building rises to 34 meters in height, featuring 400 guest rooms (including key rooms) and 127 parking spaces.
Due to Qingdao’s historical background as a former German colony, the hotel’s design predominantly reflects German architectural style. Traditional European-style buildings often incorporate intricate line foot decorations on their exteriors. The challenge in this design lies not only in the layout but also in the detailed exterior elements. Moreover, the design schedule was limited to just one week. Under conventional design practices, meeting this tight deadline would have been extremely difficult.
Figure 2: Revit German Component Family of Qingdao Silver Beach Resort Hotel

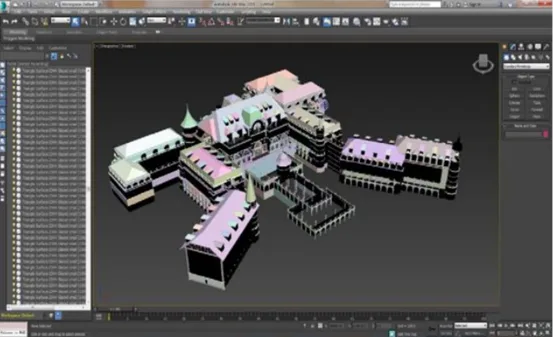

Figure 3: 3Dmax Interface of Qingdao Silver Beach Resort Hotel
Two architects collaborated on this project using Revit’s central file mode, dividing responsibilities between public areas and guest rooms. To fully showcase the German style and ensure stylistic consistency, they developed multiple German-style component families for shared use. Additionally, Revit models were directly imported into 3Dmax for rendering. This approach not only preserved all material information but also eliminated the need for traditional modeling processes by rendering companies.
Given the tight design timeline, this workflow provided strong support for the project’s smooth and high-quality completion.
