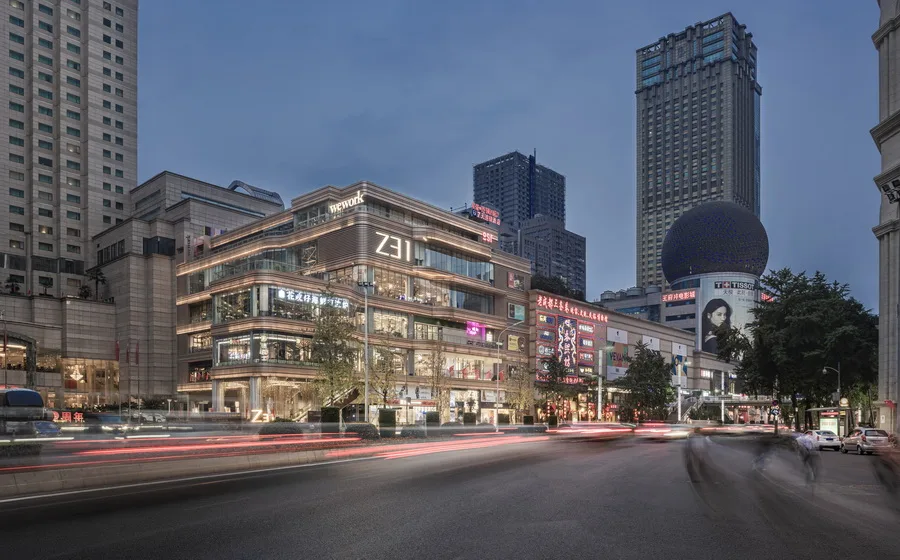

△ Architectural night view
The Z31 renovation project is situated in the heart of the old city’s commercial district at 31 Zongfu Road, Jinjiang District, Chengdu. It borders the bustling Chunxi Road and the Taikoo Li shopping area.

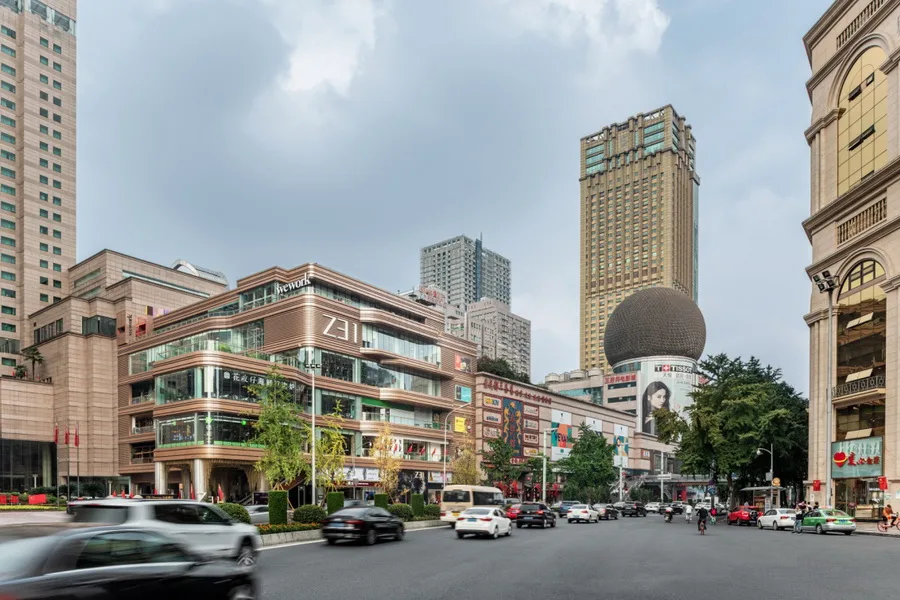

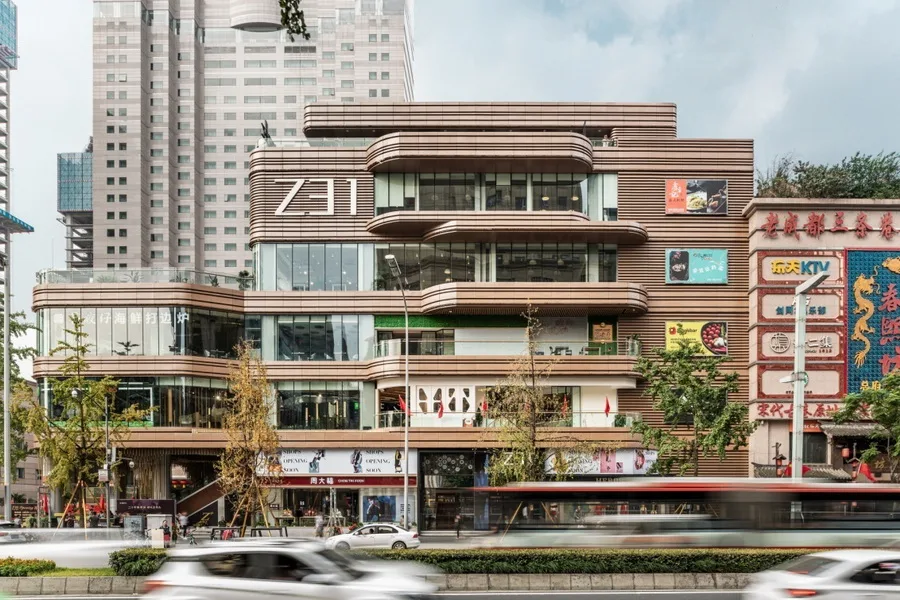

△ View after renovation

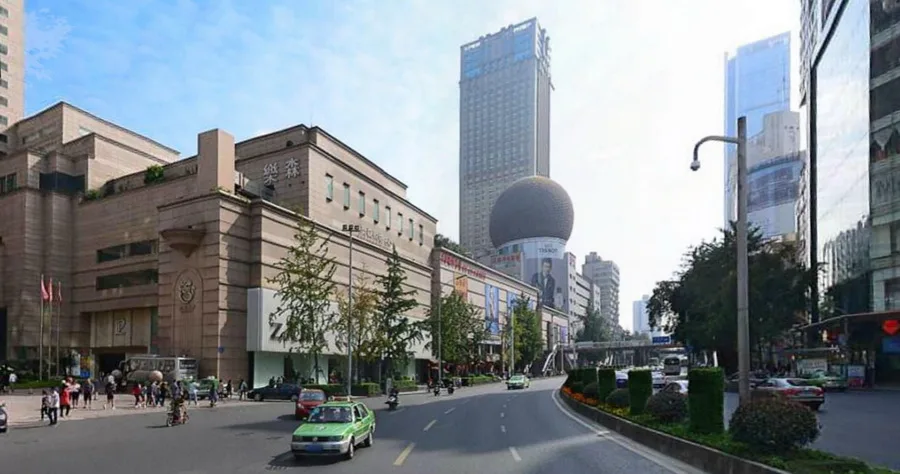

View before renovation
This project was honored with the Silver Award for “International Commercial Renovation” at the 2020 London Design Awards.

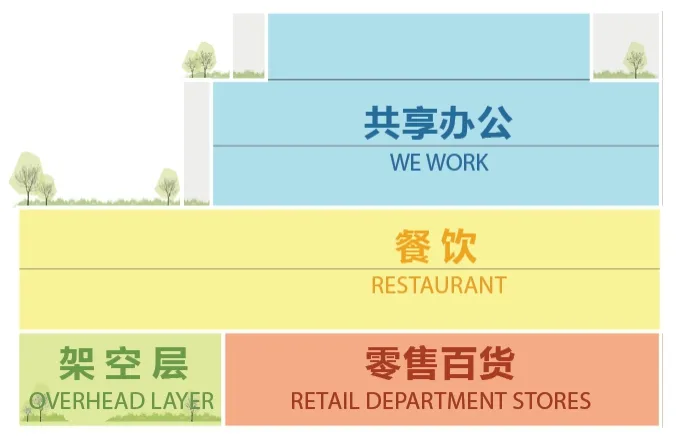

△ Analysis chart
△ Realistic front view

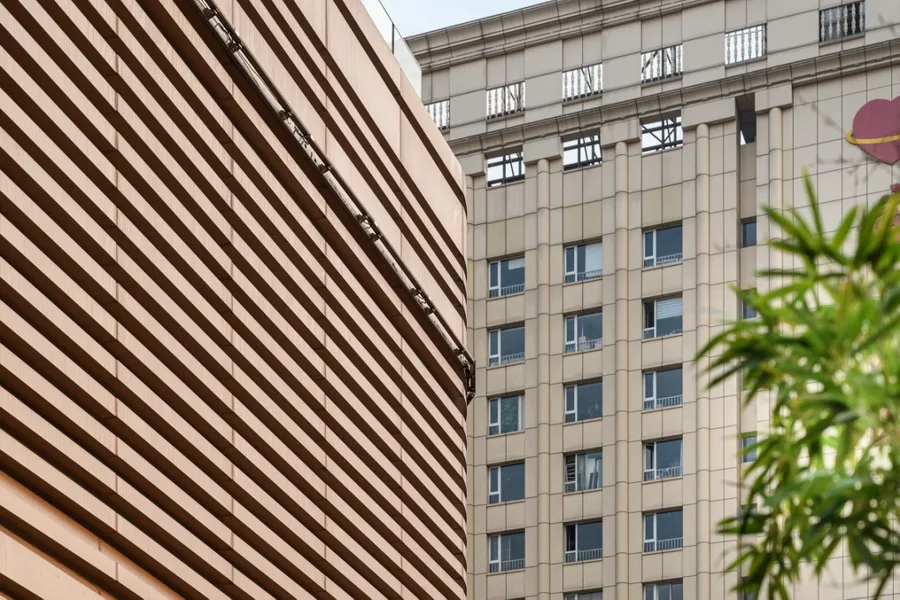

The design integrates the commercial signage and facade, adding an exterior terrace and landscaped flower pool to create a lively, eco-friendly, and minimalist architectural form. The facade features light yellow aluminum panels that harmonize with neighboring buildings, respecting the overall aesthetic of Zongfu Road’s commercial core. Inspired by the original building’s horizontal light and dark stone pattern, the facade incorporates decorative horizontal lines of varying widths through standardized grooves, delivering a sleek and modern appearance.

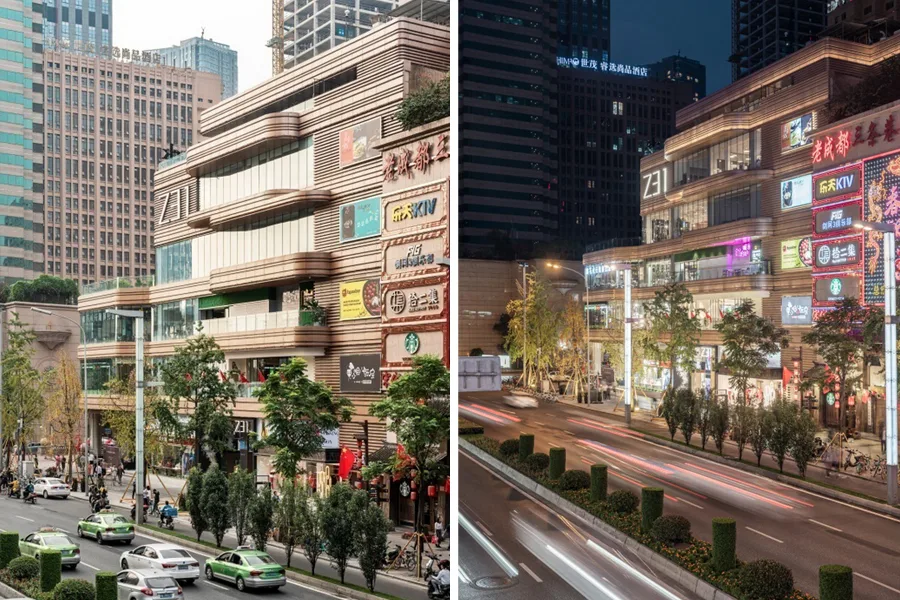

Daytime scene (left) and nighttime scene (right)

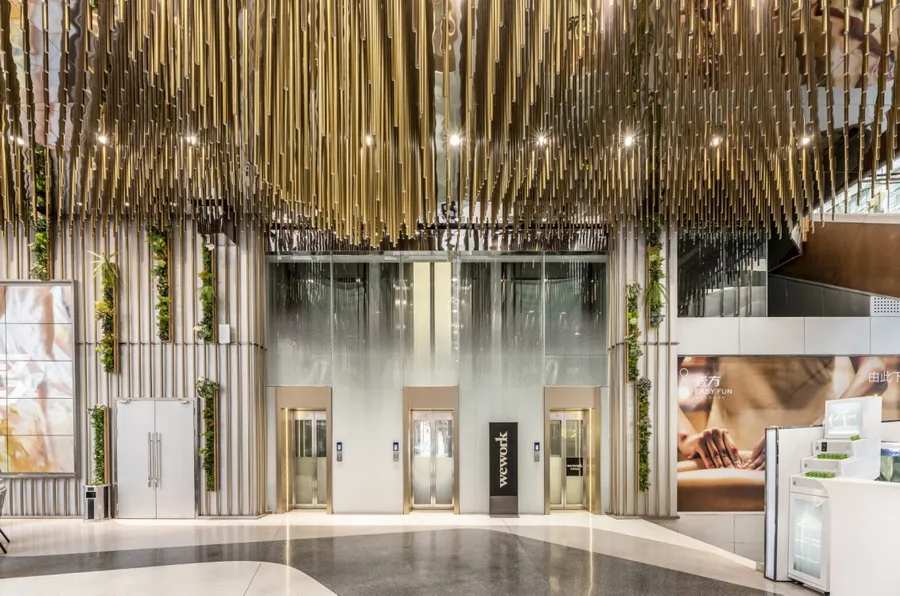

△ Overhead elevator hall

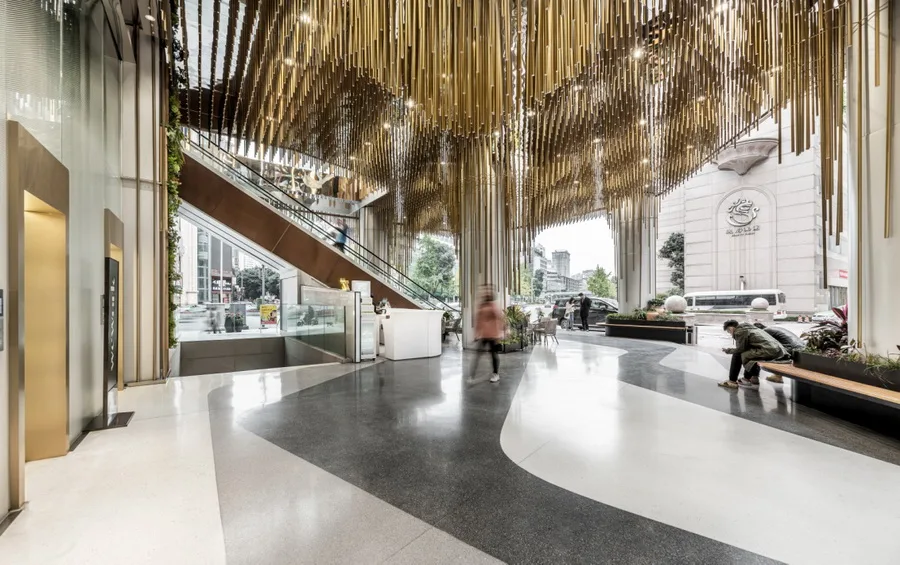

The elevated public floor, designed in harmony with the building’s architecture, serves as the main entrance hub for the podium’s commercial complex and a vibrant stage for urban youth activities. The retail department on the first floor features a pedestrian walkway adjacent to the main road, while the dining area on the second floor is easily accessible via an escalator from the elevated level. The shared office space and dining on the fourth floor, including WE WORK, are accessible by an elevated elevator.

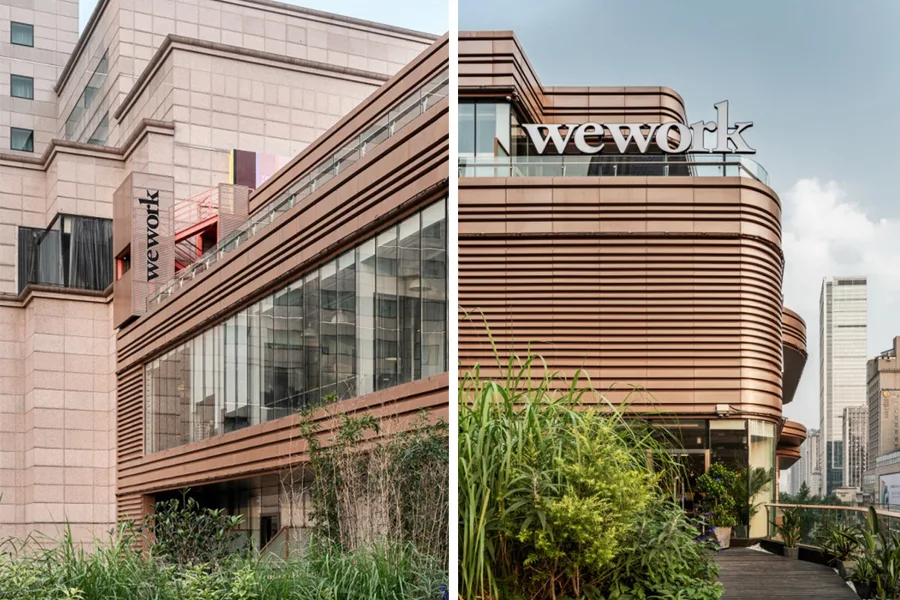

△ WE WORK Shared Office Landscape Terrace

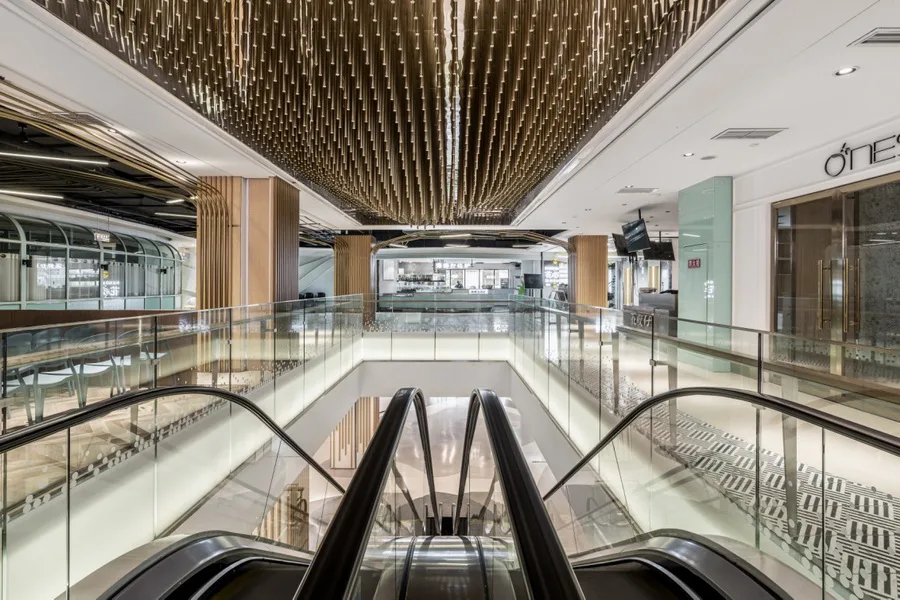

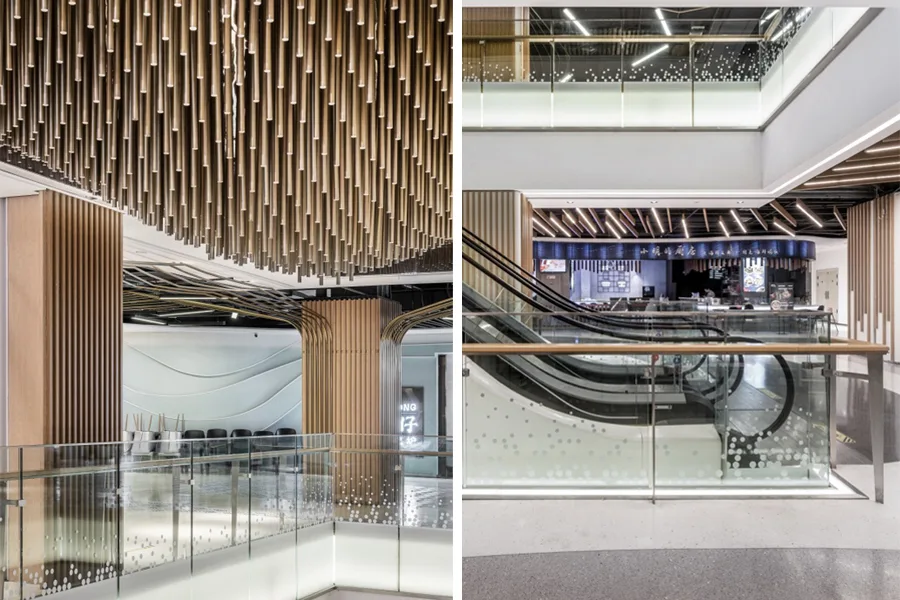

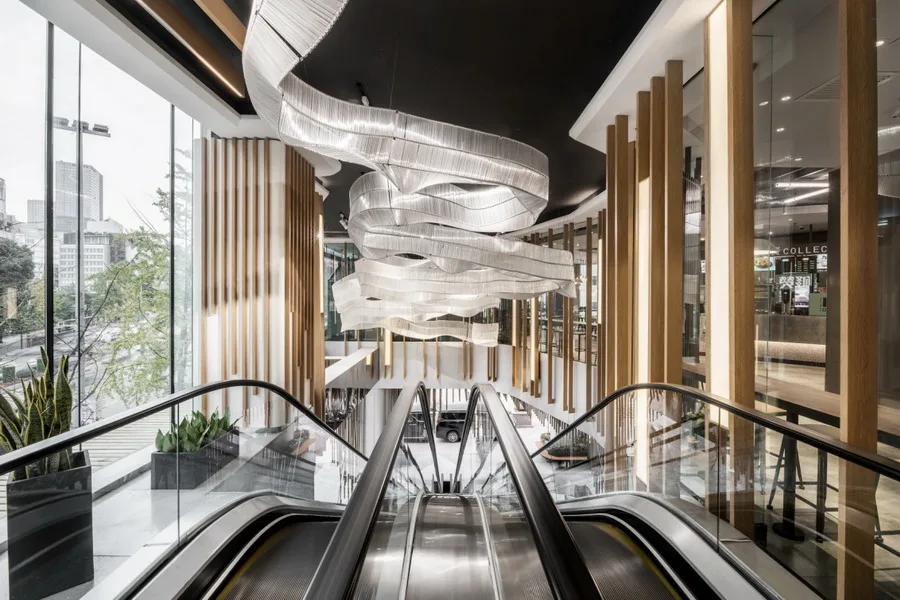

Automatic escalators will be installed between the second and third floors in the dining area, utilizing the existing atrium space.
Design Drawings

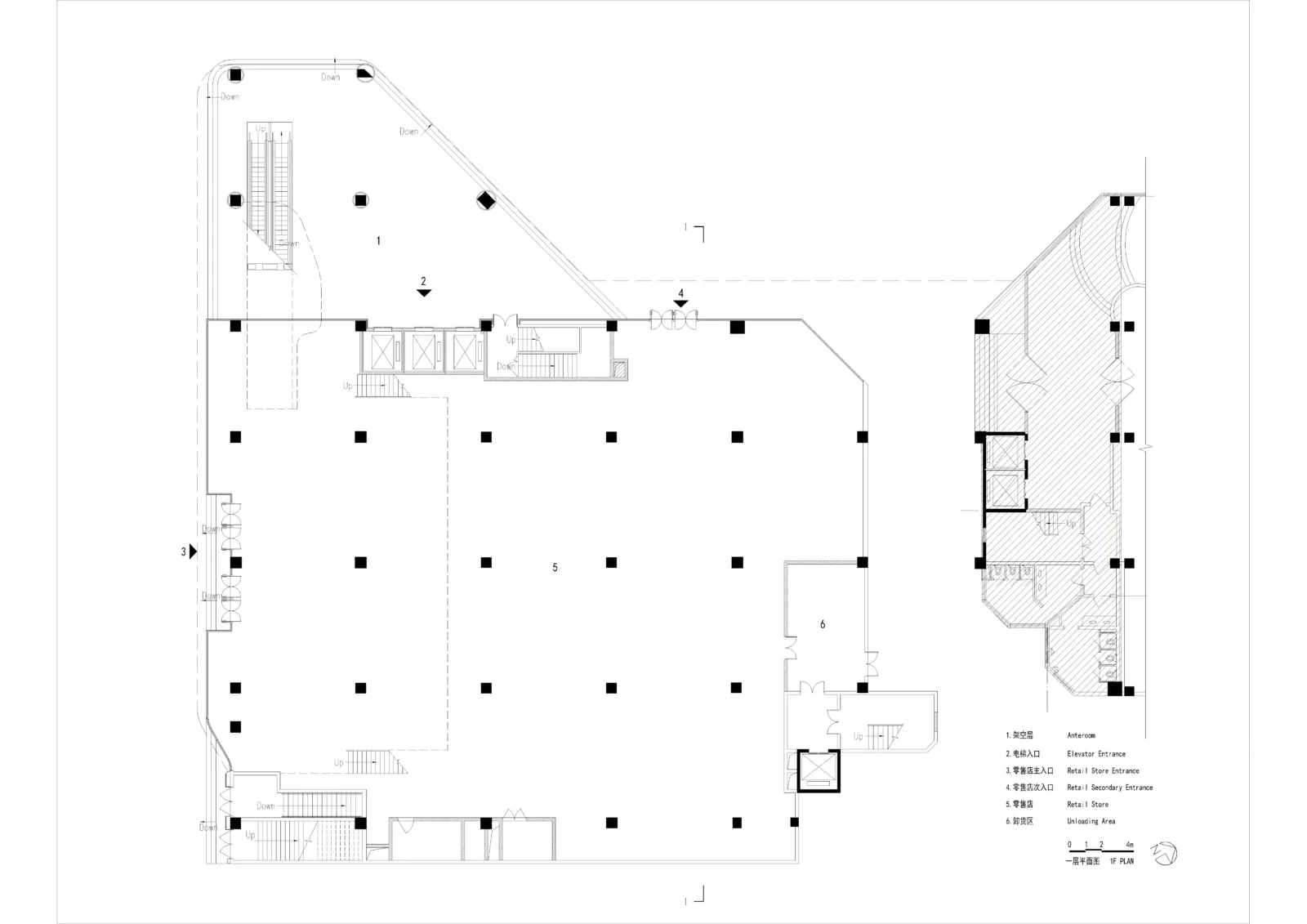

△ First floor plan

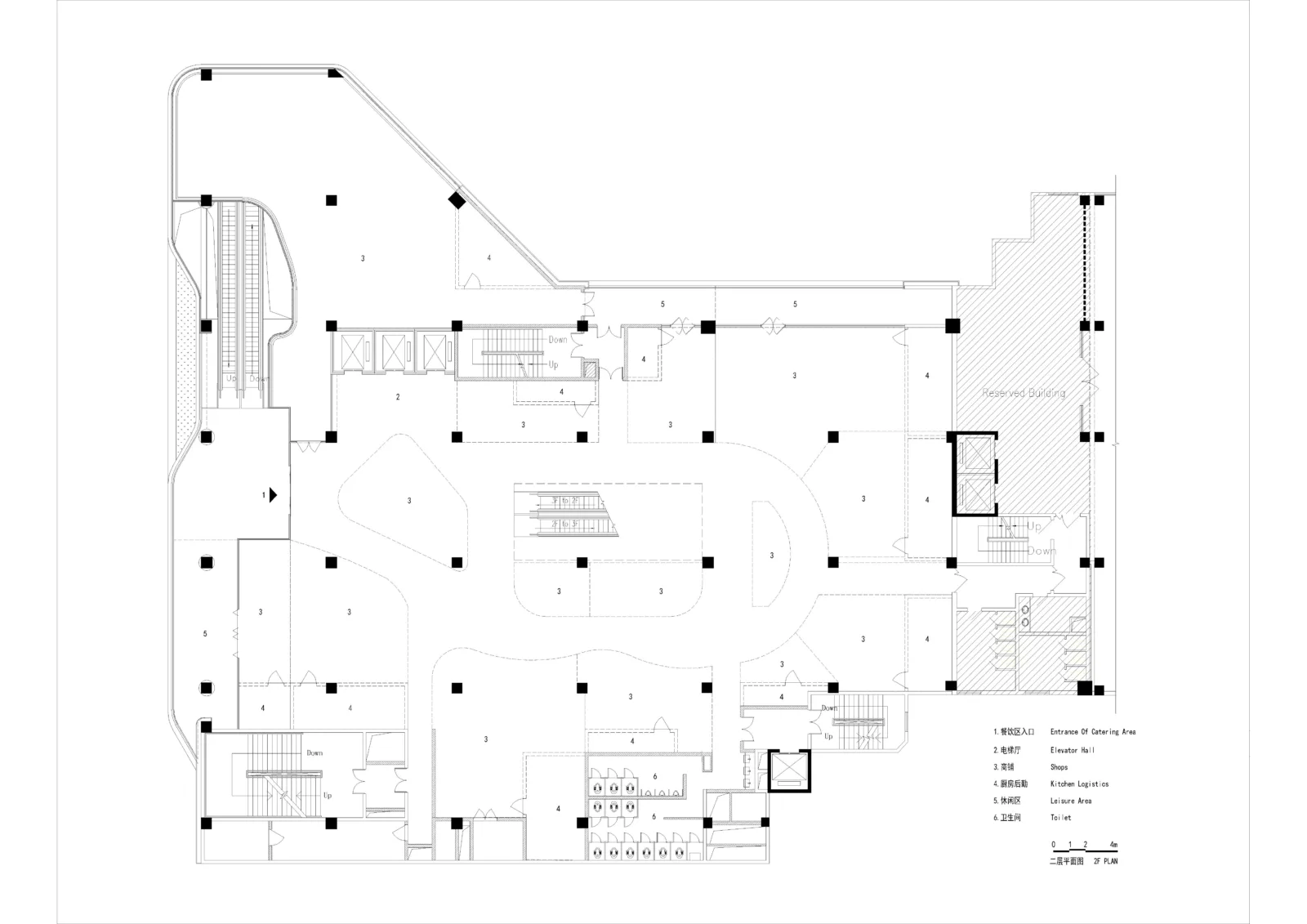

△ Second floor plan

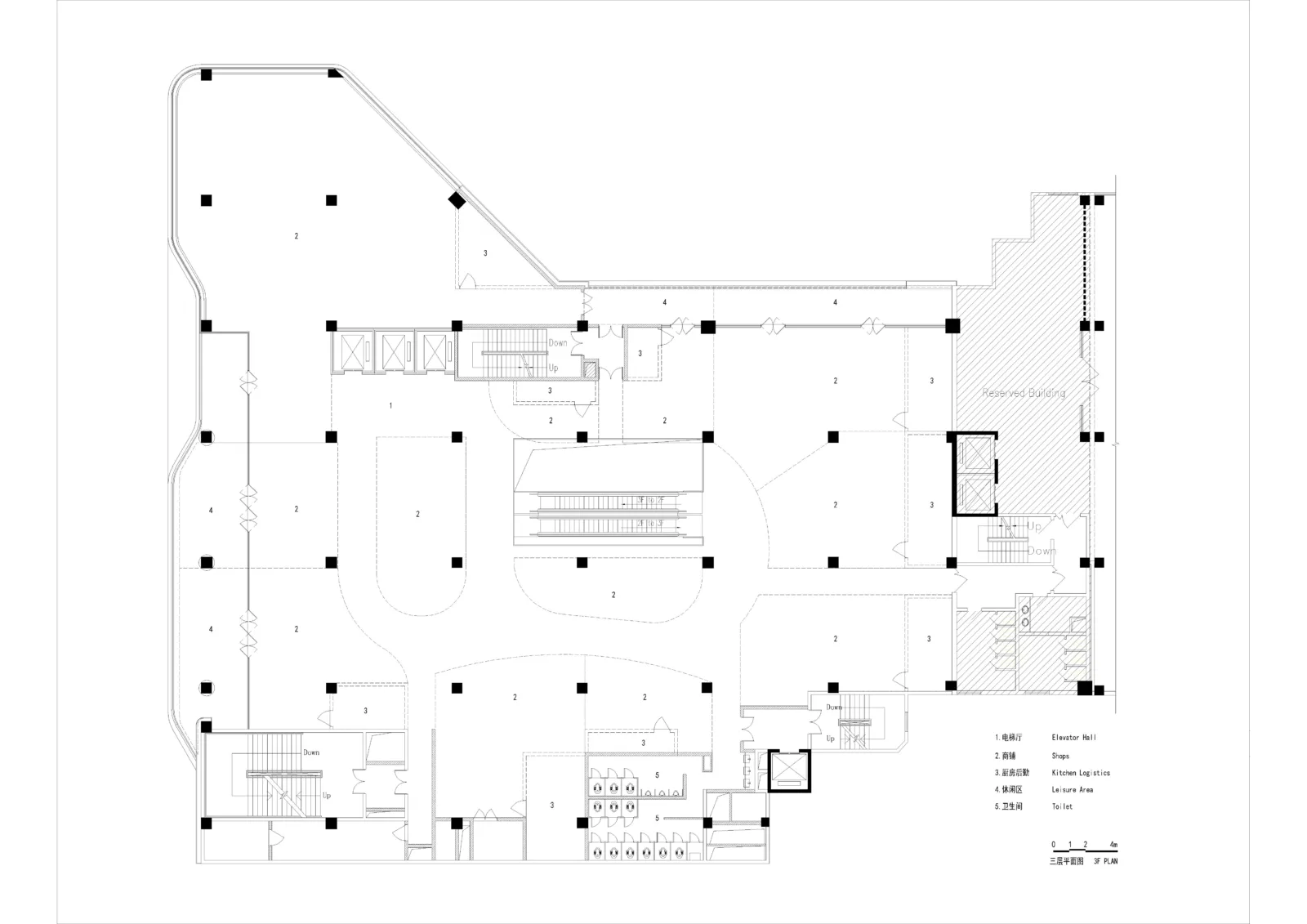

△ Third floor plan

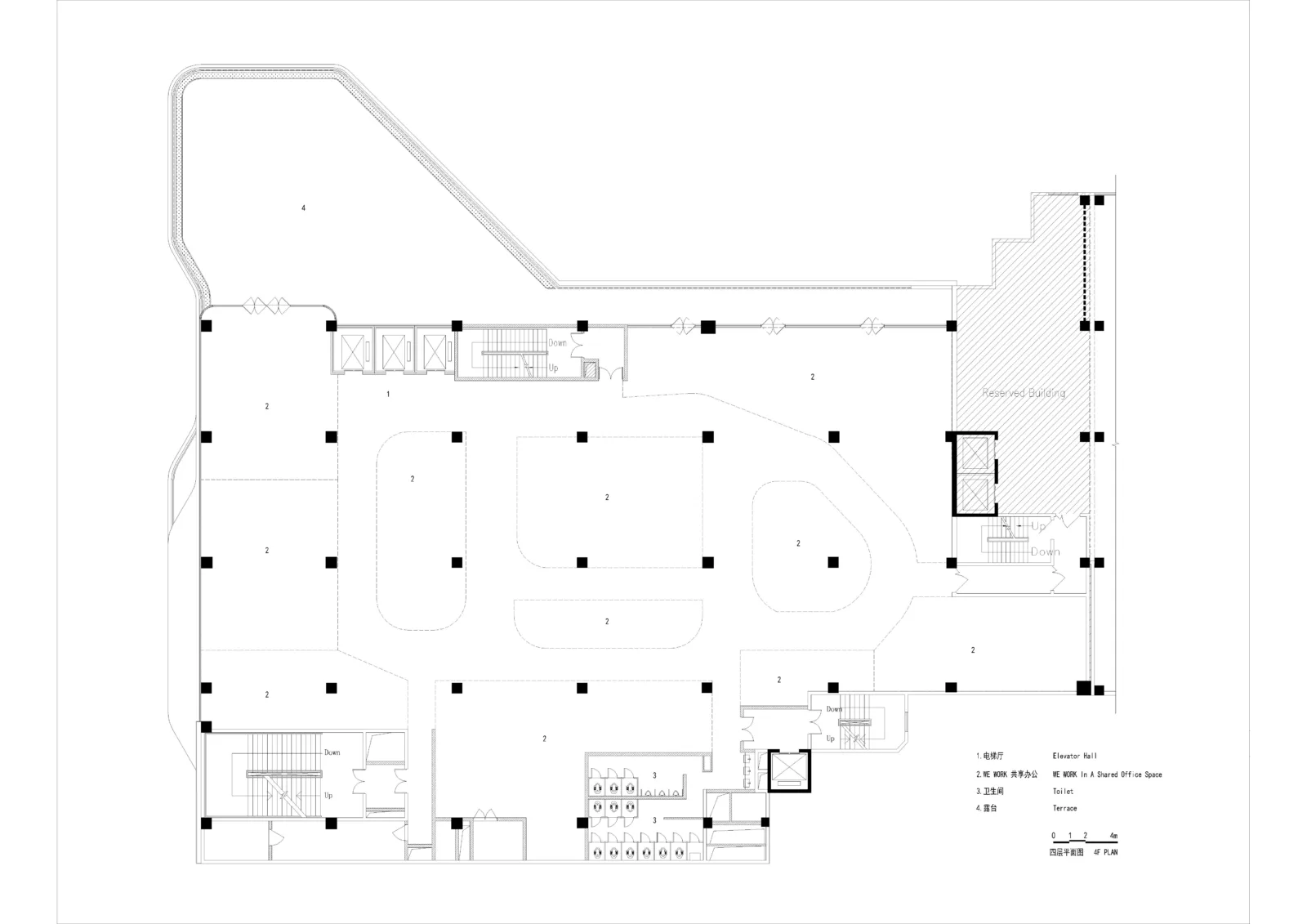

△ Fourth floor plan

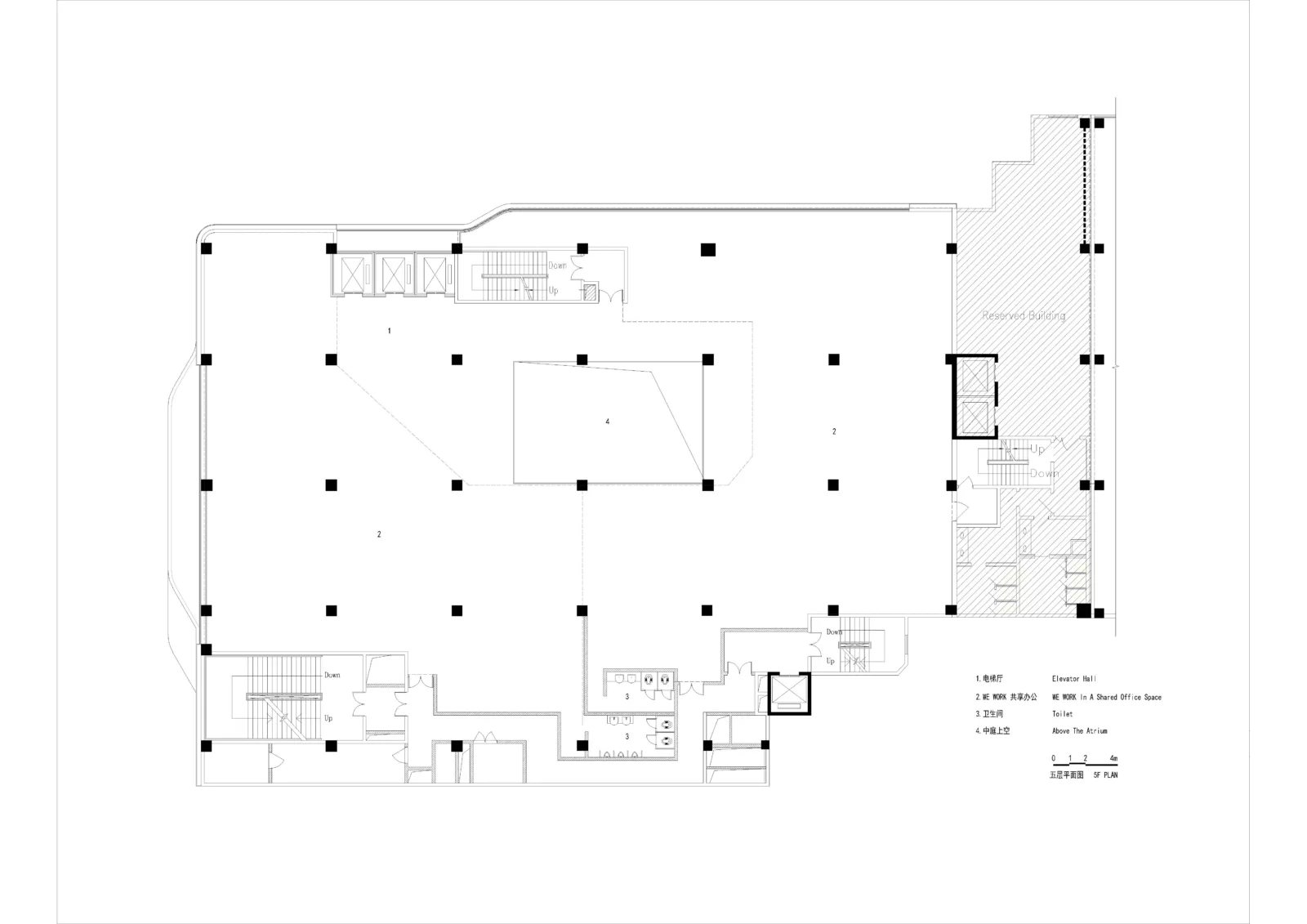

△ Fifth floor plan

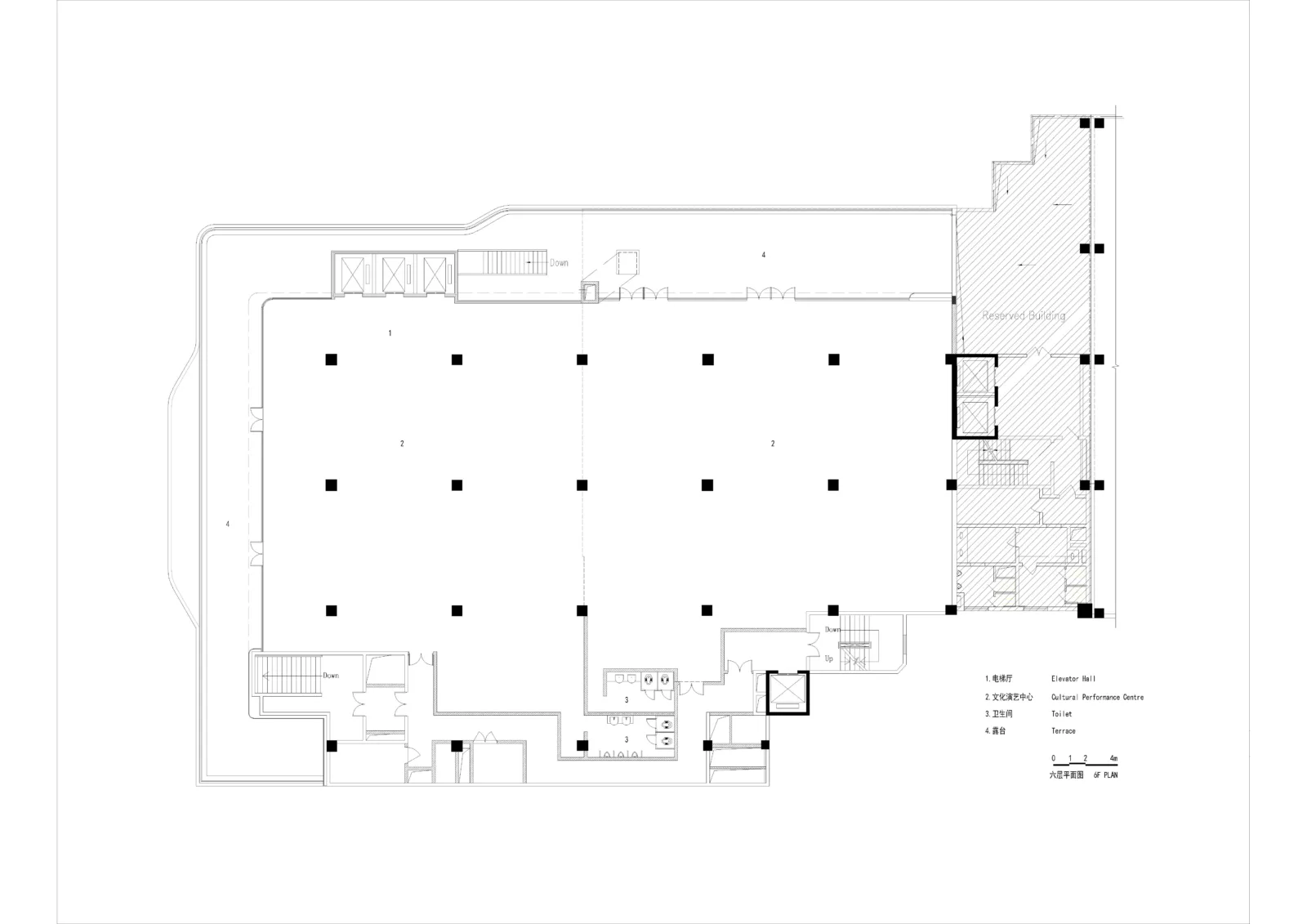

△ Sixth floor plan

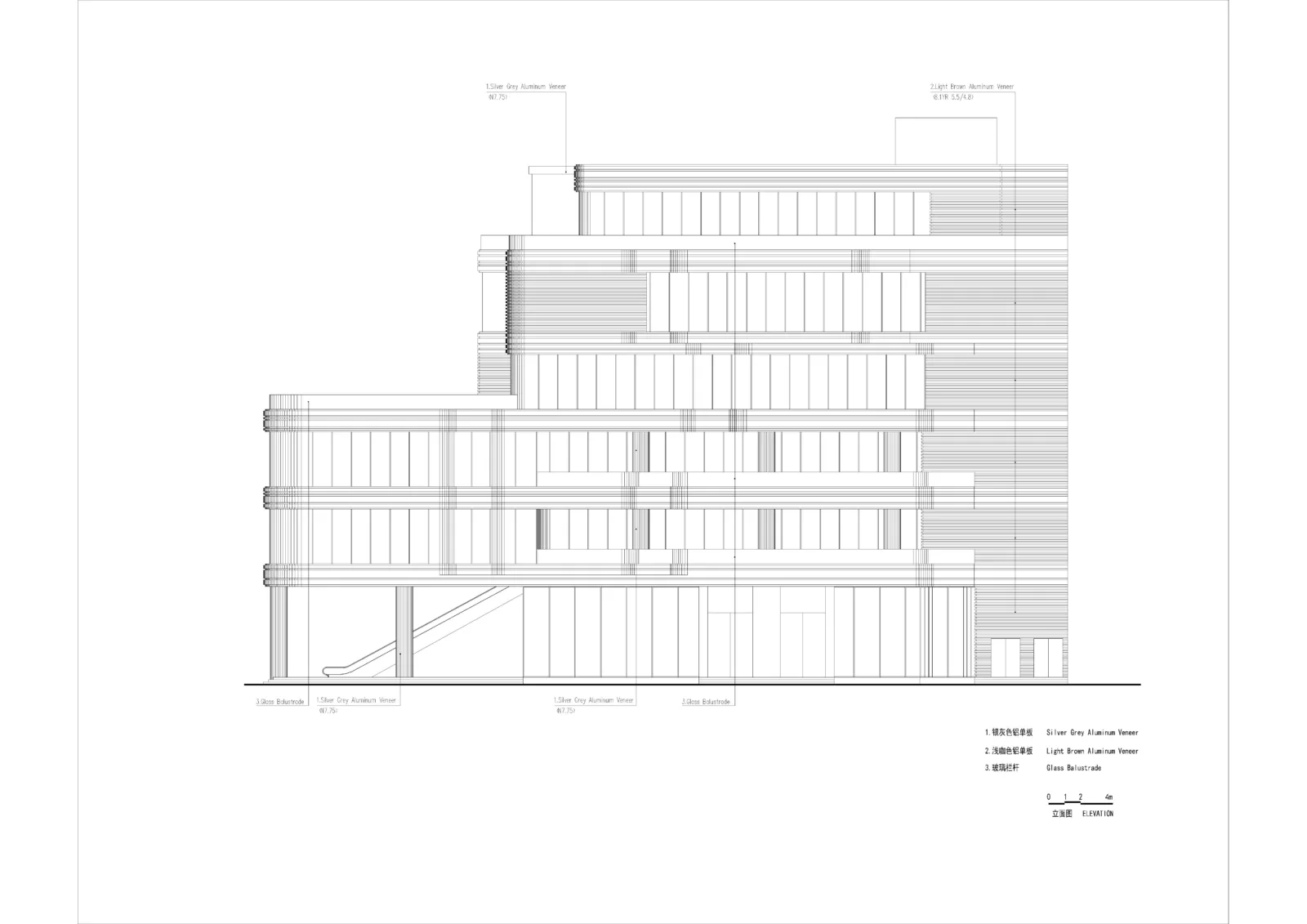

△ Elevation drawing

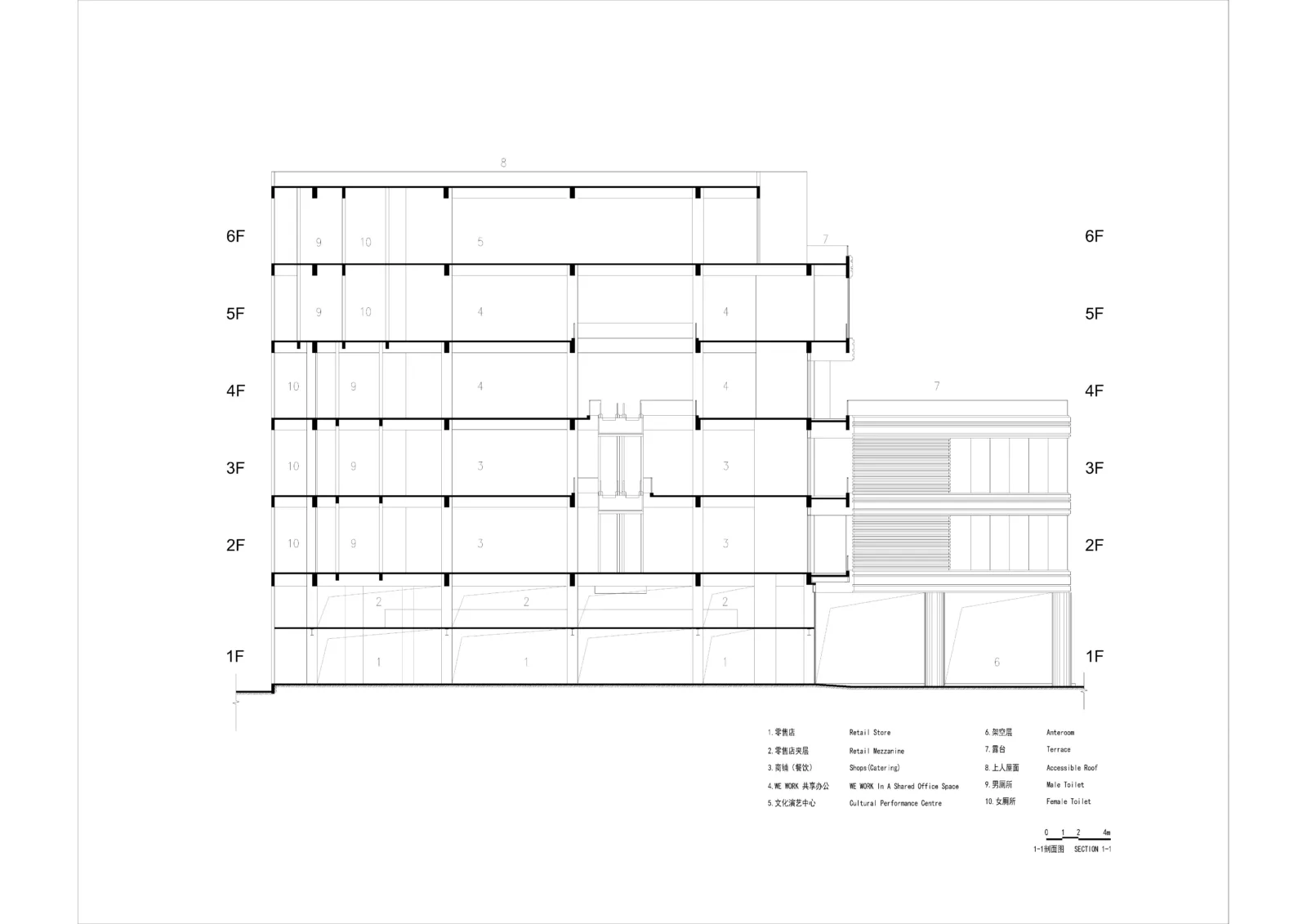

△ Section diagram
Project Information
Project Type: Building Renovation
Location: 31 Zongfu Road, Jinjiang District, Chengdu, China
Principal Designer: Wang Chuan
Design Team: Yi Wei, Teng Shujie, Yu Shunchao
Current Company: Hanjia Design Group Co., Ltd., Southwest Branch, Fourth Construction Institute
Building Area: 12,018.16 square meters
Project Year: 2019
Architectural Photographer: Deng Ke
Main Material: Aluminum Panels
Contact Email: __AI_S_SC0__
Project Owner: Chengdu Hesheng Commercial Management Co., Ltd
