BIM Q&A | How to Arrange Stirrups and Additional Stirrups in GBZ Columns of BIM Guanglian Da
How should stirrups and additional stirrups be arranged in the GBZ columns of the BIM 2-in-1 Guanglian Da? Specifically, how do you organize hoop reinforcement and supplementary hoop reinforcement within these columns?

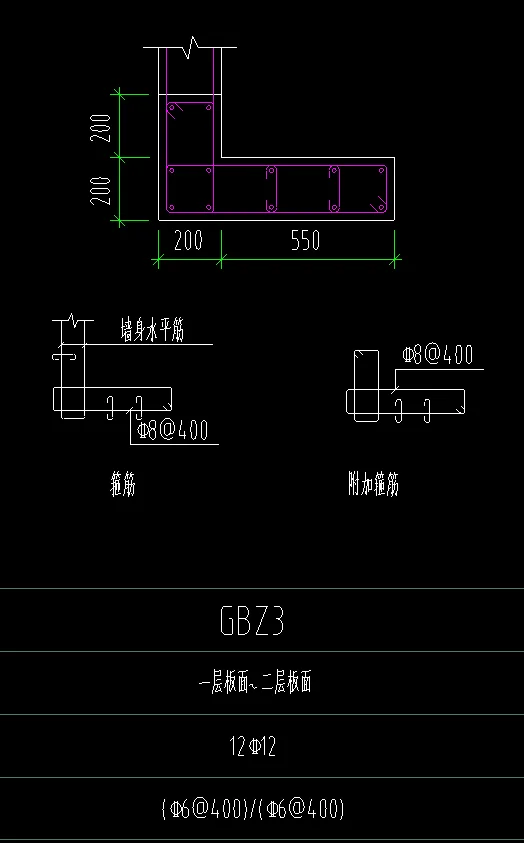

This design clearly adds unnecessary details that serve no practical purpose and are not unique. The concept of ‘additional stirrups’ in constructing edge components seems to be a self-invented notion. Moreover, the image shows a diameter of 8 mm, while the table lists a diameter of 6 mm—this inconsistency is problematic.
Including the horizontal distribution reinforcement in the volumetric reinforcement ratio here is inappropriate. Instead, the design should use full-height hoops of Φ8 spaced at 150 mm (or 200 mm). There is no such thing as ‘additional reinforcement’ in this context.
