BIM Q&A: Why Does Revit Sometimes Show Incomplete Facades?

BIM Q&A | Why Does Revit Show an Incomplete Facade?

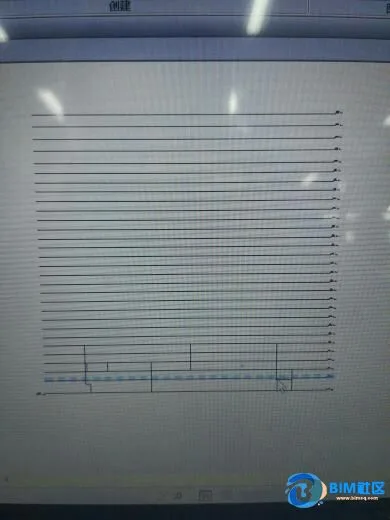

Why does Revit display an incomplete facade as shown in the image below? Only a few elevations at the bottom appear, even though the building’s upper portion is clad with wood.

This issue is usually caused by incorrect view range or filter settings within Revit.
