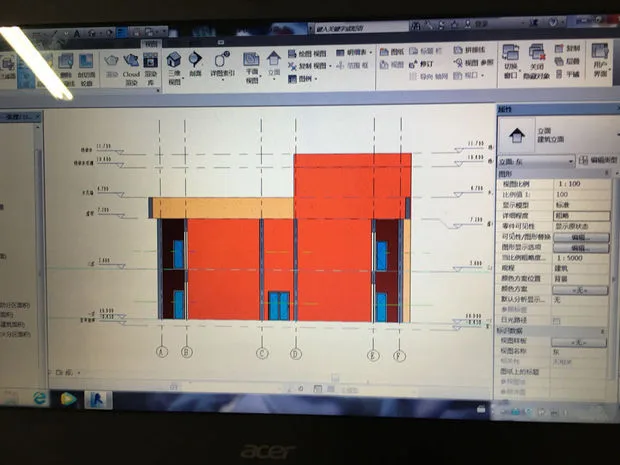

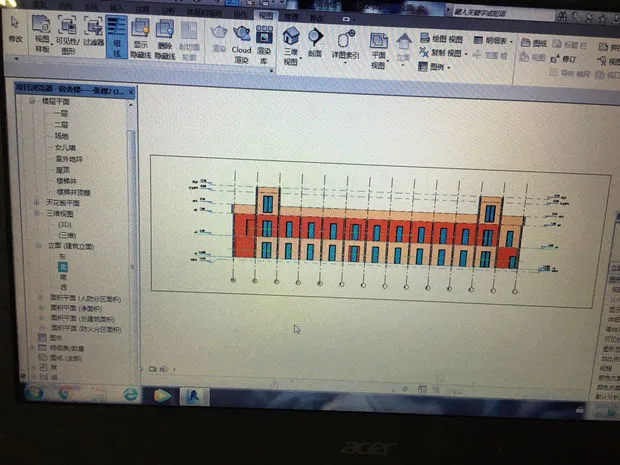

BIM Q&A | What about Revit? I notice that the north and east sides of my elevation display sectional views, including the area outside the north side.
To adjust this, go to the Properties panel and select the Clip View option along with the Section Box. This will display a box surrounding your model. You can use the arrows on this box to slice through the model, allowing you to view its interior sections.
