BIM Q&A | Revit Surface?

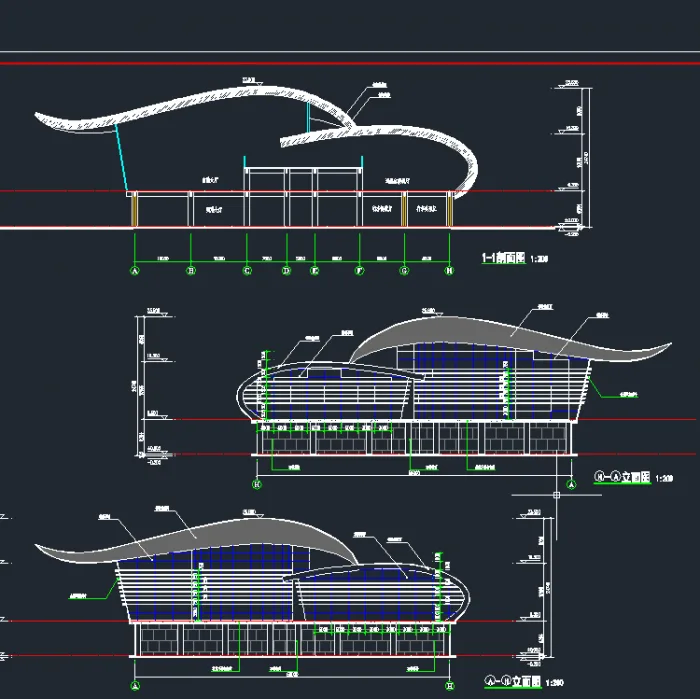

Could anyone share some advice? Currently, I’m selecting lines and manually adjusting the relative XYZ coordinates of each point, but the results are not very satisfactory. I would appreciate any suggestions on how to create this complex surface more effectively.

Here is my own rendering. It’s not perfect yet, and the curve on the top plate lacks any inflection points.
