BIM Q&A | How to Avoid Getting Stuck When Converting CATIA Models to Engineering Drawings

BIM Q&A | Is There an Issue with Freezing When Converting CATIA Models to Engineering Drawings?

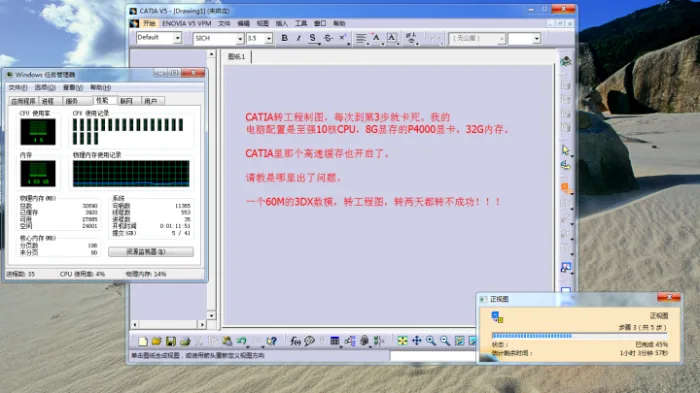

I am attempting to convert a 3DX digital model, approximately 60MB in size, into an engineering drawing. However, the process consistently freezes during the last three steps. When checking the resource manager, I noticed that one or more threads of CNEXT.EXE are stuck waiting for network I/O to complete.

My system specifications are as follows:
CPU: Xeon 2630V4
Memory: 32GB
Graphics Card: P4000 with 8GB of video memory

I would appreciate any advice or solutions from the knowledgeable community here on Zhihu. Thank you!
