MEP designers often need to adjust pipes to fit various layouts based on specific project requirements. Manual adjustments can be time-consuming and prone to errors. To address this, the alignment pipeline tool enables users to precisely and efficiently align pipes according to the desired arrangement.

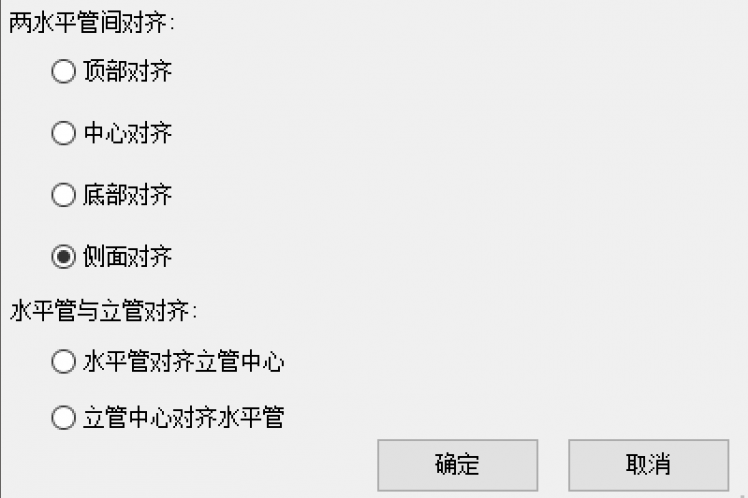

This tool offers four alignment options:
- Center alignment: Align the pipeline to the center of the reference pipe.
- Edge alignment: Align the pipeline to the edge of the reference pipe.
- Top alignment: Align the pipeline to the top surface of the reference pipe.
- Bottom alignment: Align the pipeline to the bottom surface of the reference pipe.
