BIM Plugin: Download Autodesk Steel Connections for Revit Steel Structure Nodes

To load the connection type in your project, you must first install the Steel Structure Node plugin.

Here’s how to use it:

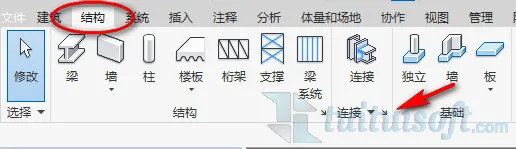

1. Click the arrow in the Connections panel under the Structure tab.

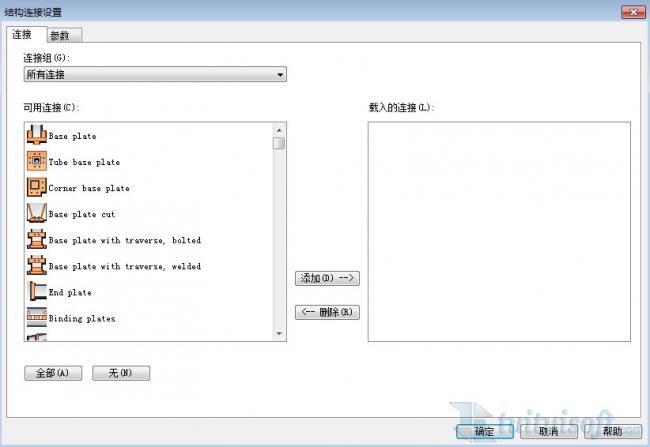

2. Select the desired connection type from the pop-up settings window.

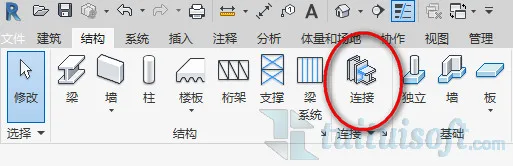

3. To place the connection, first click on the connection option under the Structure tab.

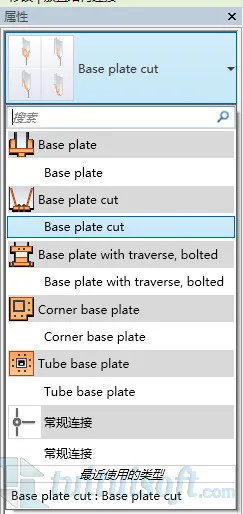

4. Next, in the Instance Properties panel, select the node, then choose the element you want to connect.
