Download BeePC: Advanced BIM Plugin for Intelligent Prefabricated Design in Revit

Update on September 30, 2018: The latest version is V1.2.2843, supporting Revit 2016, 2017, and 2018. For detailed update information, please click here.

Update on October 11, 2018: The latest version is V1.2.2949, compatible with Revit 2016, 2017, and 2018.

New Features and Improvements:

1. Added explanatory text for each component BOM table. When exported to Excel, explanatory notes will appear in the footer during printing.

For specific update details, please check here.

About BeePC Software

BeePC is currently the leading assembly-based intelligent BIM deepening software developed on the Revit platform in China. It integrates built-in specifications and drawings, guiding users through assembly-based deepening design during modeling.

Main Features

The software offers:

• Visual operation and foolproof modeling
• Intelligent numbering
• One-click drawing generation
• Automatic creation of component detail lists including steel bar shapes and sizes
• One-click factory BOM table generation

Additional user-friendly and efficient functions will continue to be added, assisting users in learning assembly, BIM+PC modeling, and streamlined drawing output.

Trial Instructions

1. Supports Revit versions 2016 through 2019.
2. Currently includes prefabricated panels, beams, stairs, columns, shear inner walls, and sandwich shear outer wall components.
3. One computer is tied to one account.
4. After download, users can register an account using their phone number for a 15-day free trial (requires internet connection). Upon expiration, users can extend the trial by completing personal information or publishing papers on forums and websites. Please contact Wanwu Technology staff for details.

Main Functional Modules

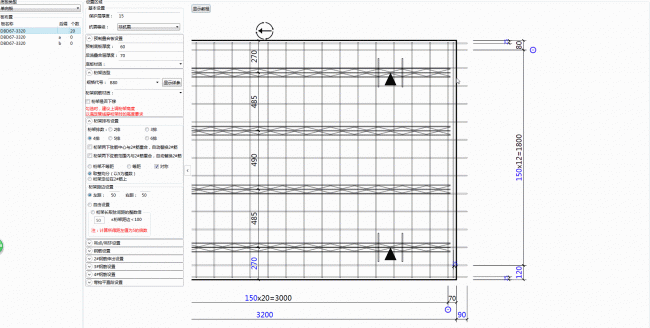

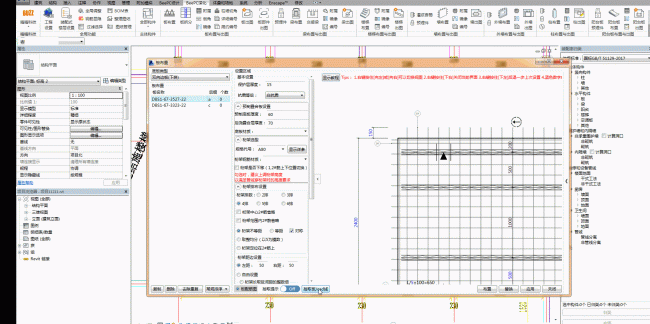

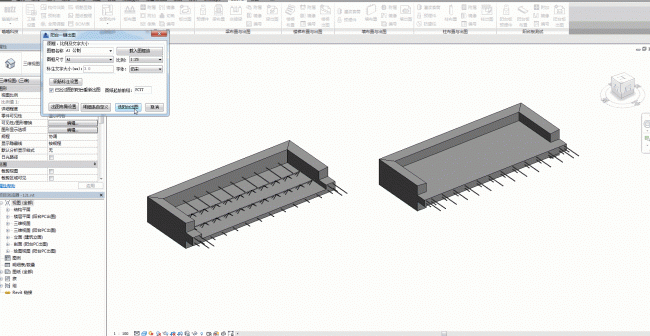

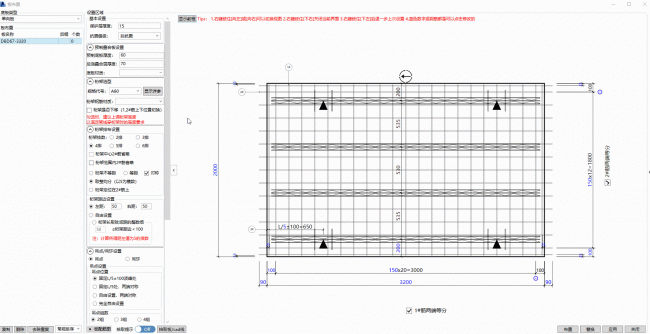

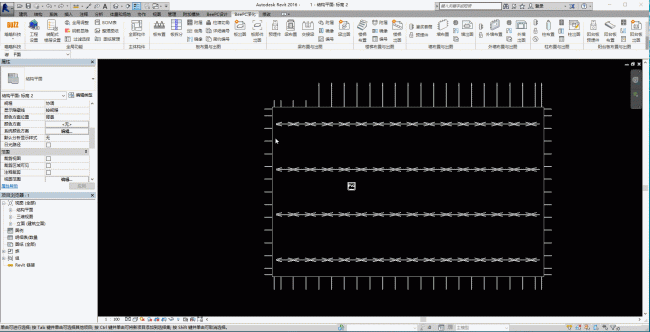

1. Laminated Board

• Import CAD base lines and Revit system boards to automatically create composite panels.
• Intelligent splitting and batch generation of laminated panels.
• Batch corner cutting and automatic steel bar cutting.
• Support for openings and reinforcement bars, with flexible truss settings.
• Multiple numbering methods to satisfy diverse requirements.

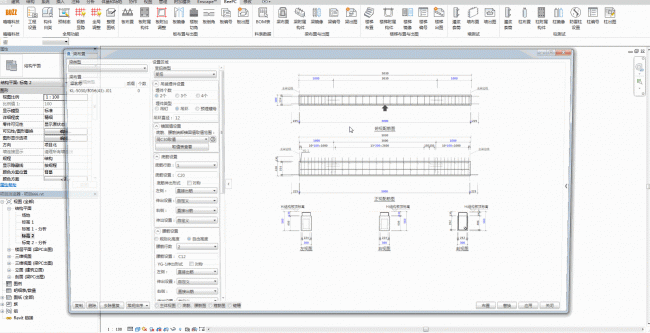

2. Composite Beam

• Flexible steel bar settings.
• Precise positioning of any steel bar with space avoidance support.
• Supports multiple keyway types to fulfill project requirements.
• Supports primary and secondary beam handover settings.
• Pre-embedded conduit and pipeline opening positioning layout.
• Easy statistics for hanging nails, lifting rings, and embedded nuts.

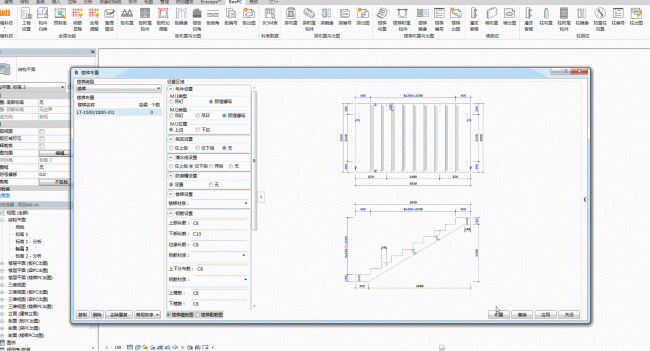

3. Prefabricated Staircase

• Built-in parametric families allow modeling and reinforcement in one step.
• Flexible settings for picking ears, hanging parts, anti-slip grooves, and drip lines.
• Color and material customization for components and reinforcement.
• Flexible switching and arrangement of top and side embedded parts.
• Open and flexible parameters for embedded parts.

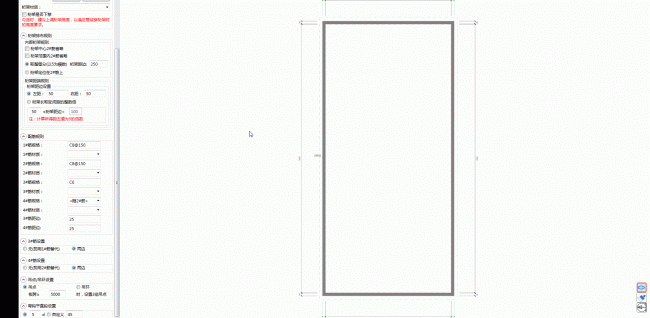

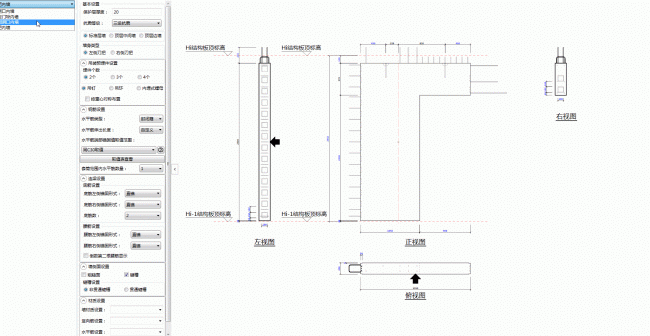

4. Prefabricated Wall

• Four types of interior wall forms with interface linkage switching, managed within a single family.
• Reinforcement logic with series connection and batch modification for improved modeling efficiency.
• Supports wire boxes, openings, embedded nuts, and perforation settings.
• Point changes, software reclassification, and one-click quick numbering.
• Multiple numbering styles and sequences with flexible selection.

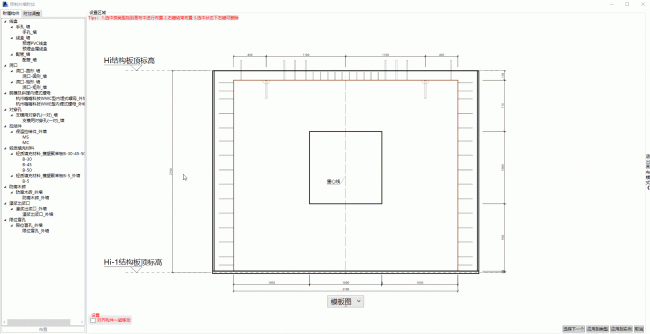

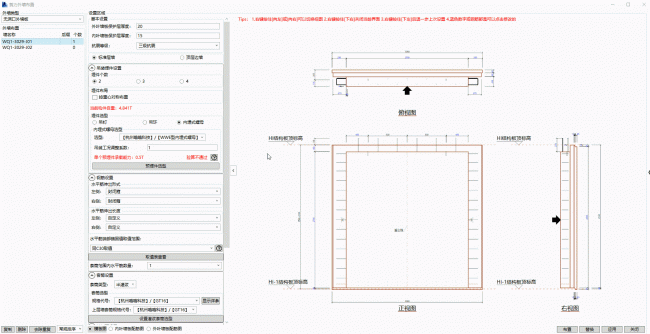

5. Sandwich Exterior Wall Module

• Multiple canvas interface switching with flexible parameter adjustments.
• Straight reinforcement at connecting beams with 1:6 bending free settings.
• Horizontal bars separated on both sides for controlled output, meeting design requirements.
• Supports flexible settings such as insulation ties and lightweight filling materials.
• Allows openings in the outer blade plate and reinforcement bar settings for holes.

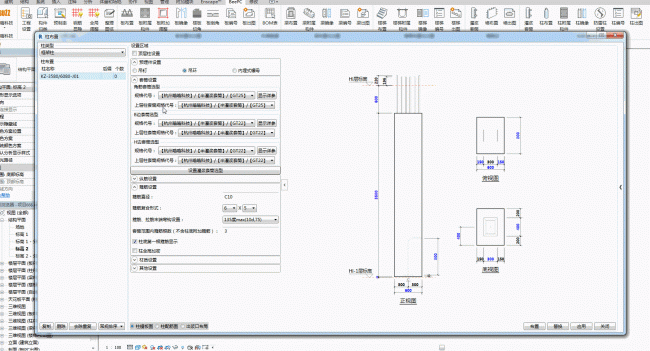

6. Prefabricated Columns

• Flexible selection of grouting sleeves with parameter modification and model linkage.
• Flexible selection of column embedded parts with parameter modification and model linkage.
• Multi-sided switching of wire boxes and embedded nuts for precise positioning.
• Intelligent layout of outlets and grouting ports, with manual adjustment for individual pipes.
• Pre-embedded parts selected based on load, with timely feedback and adjustments.

7. Balcony Board

• Three types of balconies with free switching between left and right edge sealing.
• Various steel bar types with adjustable bending hook forms.
• Supports layout of embedded railings, openings, and wire boxes.
• Arrangement of various additional steel bars.
• Embedded parts support parameter adjustments.

8. BeePC Design Series Features

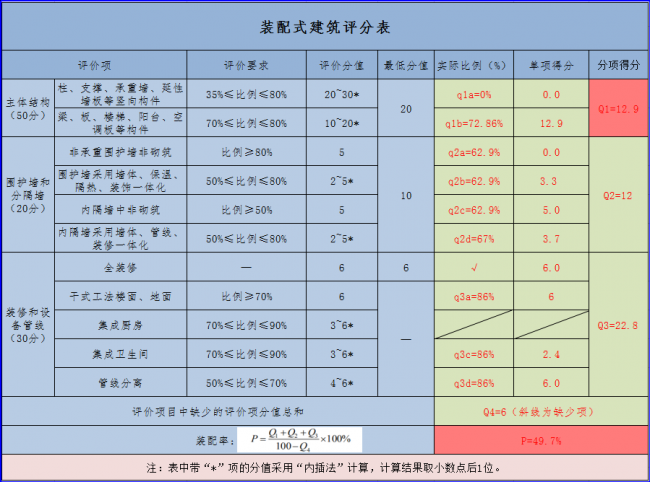

The software supports the national standard GB/T 51129-2017 and is gradually integrating assembly rate calculations for regions including Zhejiang Province, Hunan Province, Chongqing City, Anhui Province, Shanghai, Jiangsu, Ningbo, and others.

Combined with a “filtering selection” feature, it allows more convenient batch classification of components. Selected components display necessary parameter information for assembly rate calculations and can be adjusted for specific results.
