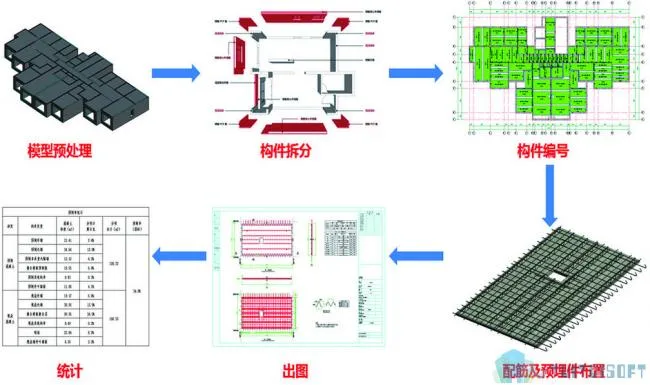

Hongye Prefabricated Building Design Software integrates domestic prefabrication standards, drawings, and related regulations to streamline the design process. It enables quick disassembly, numbering, steel bar layout, embedded part arrangement, detailed drawing generation (including material lists), and real-time project prefabrication rate statistics. This suite of functions complies with design workflows, enhances design quality and efficiency, and empowers prefabricated building designers.
1. Intelligent Component Disassembly

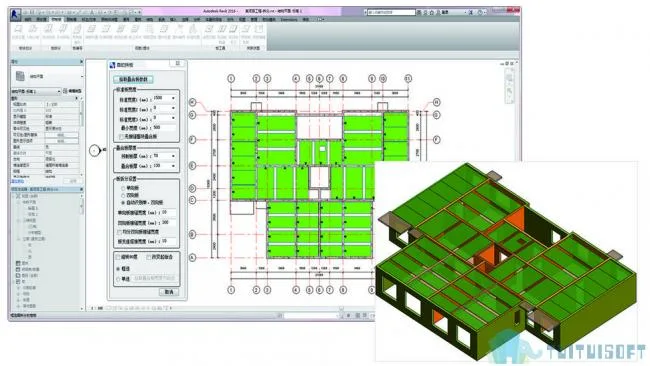

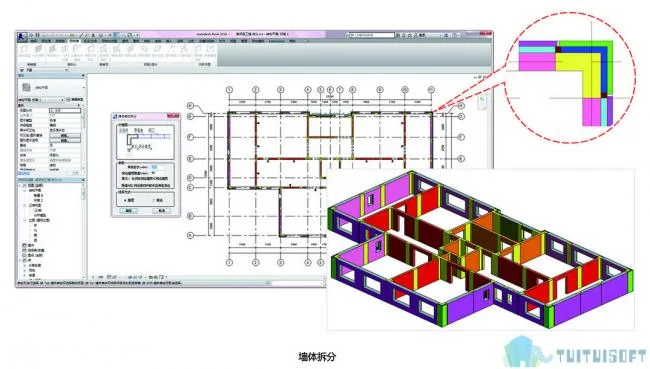

Disassembling prefabricated components is fundamental to designing prefabricated concrete structures. It forms the basis for standardization and modularization, impacting detailed component drawings, factory prefabrication, and critical metrics like project prefabrication and assembly rates. Hongye software incorporates well-researched splitting schemes and parameters derived from specifications and actual projects. It supports both rule-based batch splitting and flexible manual splitting. Different colors differentiate cast-in-place and prefabricated components across floors, assisting designers in visualizing and managing the workflow.
2. Parameterized Steel Bar Arrangement

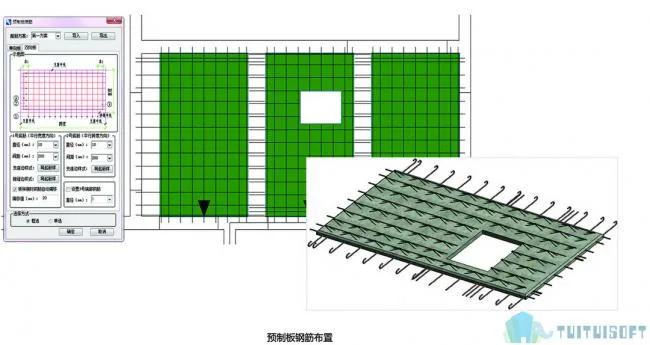

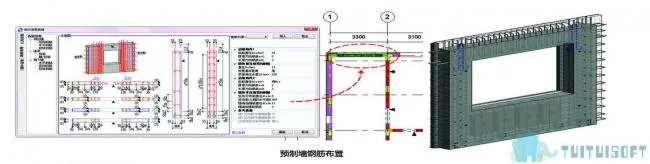

Prefabricated concrete structures require numerous drawings, with steel bars needing to be drawn individually for PC components. Rapid steel bar layout is crucial for design efficiency. Hongye software employs a parameterized approach based on detailed reinforcement rules for prefabricated components. Designers simply input reinforcement parameters through the interface, and the software automatically generates steel bar drawings. This method not only boosts efficiency but also aligns with domestic design practices. The software factors in specification requirements, structural design habits, steel bar avoidance, and style variations. Furthermore, reinforcement schemes can be saved as templates for reuse across projects or enterprises.
3. Embedded Parts Layout

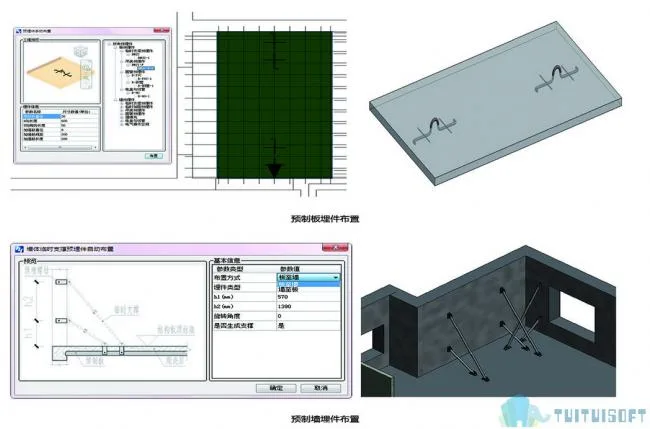

The software includes a library of commonly used embedded parts families, allowing parameterized dimension settings. It also supports new embedded parts types, such as lifting embedded parts specific to single prefabricated components, embedded parts at openings, electrical boxes, junction boxes, and diagonal supports linked to walls and slabs. For vertical components, grouting sleeve embedded parts are automatically generated based on reinforcement parameter rules, significantly improving design efficiency.
4. Automatic Generation of Detailed Prefabricated Component Drawings

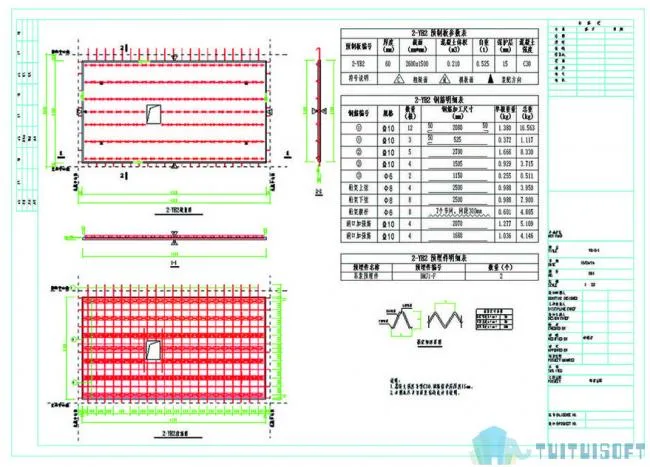

Prefabricated building design demands a large number of detailed component drawings. Hongye software features a one-click layout function that automatically generates these detailed drawings. It carefully considers horizontal and vertical cutting angles and other essential details. The drawings include formwork, reinforcement, cross-sections, component parameter tables, steel bar details, and embedded parts tables. This automation greatly reduces designers’ workload. Additionally, detailed drawings can be batch exported in “RVT” and “PDF” formats via the component library.
5. Real-Time Prefabrication Rate Statistics

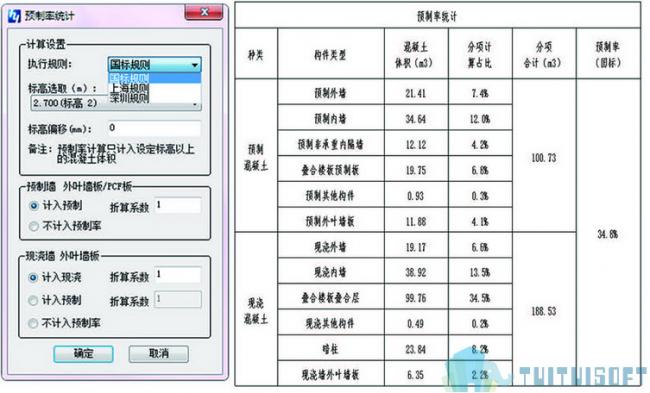

The prefabrication rate is a crucial metric for prefabricated projects. Hongye software automatically calculates the quantities of precast and cast-in-place concrete by embedding component attribute information. Users simply select local execution standards and calculation rules to obtain real-time prefabrication rates for current projects. The software supports statistics across various design stages.
