Software Introduction:

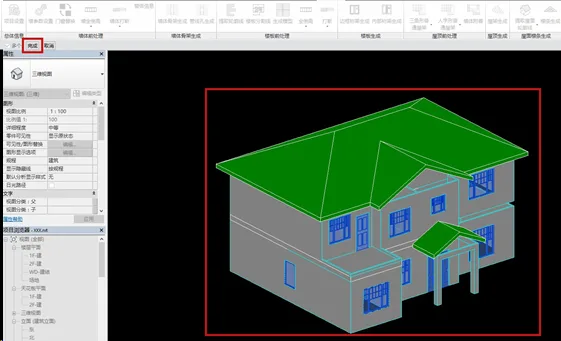

Chengxi Design Software is a professional tool for designing lightweight steel buildings, built on the internationally recognized BIM platform, Autodesk Revit. This software integrates the design processes of buildings, structures, plumbing, electrical systems, heating, as well as interior and exterior decoration through a 3D BIM interface.
The software efficiently generates output data such as construction drawings, calculation sheets, material lists, and processing files. These outputs can be directly linked to approval workflows, quotations, procurement, production, and construction stages without the need for repeated modeling, significantly boosting work efficiency.
With an extensive set of building product rules embedded, Chengxi Design Software enables users to create complex wall frames, floor trusses, roof trusses, and purlins with just a single click, freeing designers from tedious manual work. It also offers great flexibility, allowing designers to freely edit the structural framework to meet specific design requirements.
Incorporating the latest domestic standards for light steel buildings, the software automatically generates calculation sheets suitable for local drawing reviews and construction applications. It is primarily targeted at design institutes (experienced architects and structural engineers), engineering contractors, and equipment manufacturers.
Supporting Software:
- Software Platform: Revit 2017
- Operating System: Windows 7 or later
Main Features:

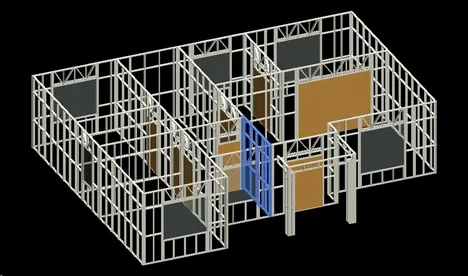

1. Wall Frame
2. Floor Slab
For more features and detailed instructions, please download the Chengxi Design Software (Trial Version) User Manual _V1.1.0.pdf.
