Butterfly is a powerful data visualization tool that allows you to create stunning charts and graphs with just a few clicks. This application offers two separate tools in its current version:
3D Room Map: Generate a 3D generic model from the room elements within your project.

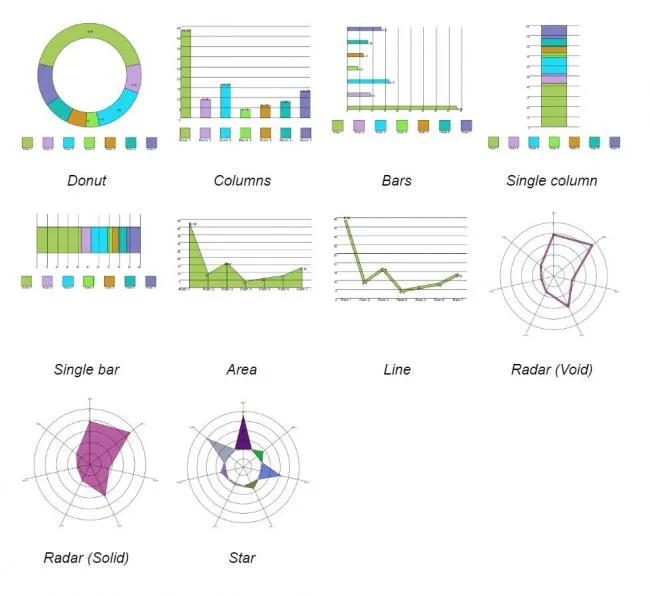

Chart: Create detailed charts directly from Revit schedules.
Note: This application uses a custom installer instead of the standard app store installer.
About This Version
Version 2.0 – June 10, 2019
In this update, we have added butterfly images to enhance the user experience.

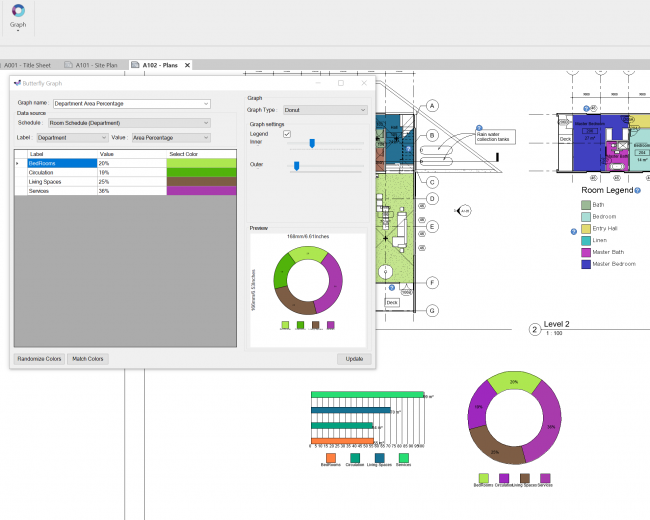

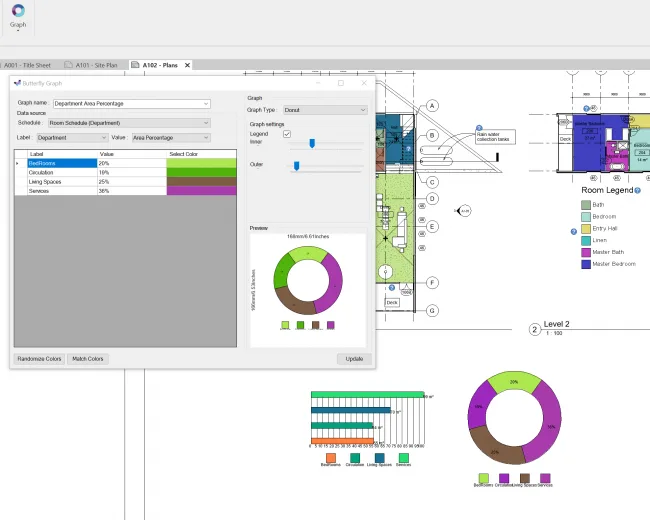

The graphic tool is a comprehensive data visualization solution that generates charts from Revit schedules. These charts are fully customizable and can be refreshed at any time, eliminating the need for additional software. With Butterfly, everything is done seamlessly within Revit!
