Description
Add web stiffeners to one or more I-beams by selecting the distance between either a single point or two points. Users can customize the spacing, offset, insertion position, insertion side, and the size of the reinforcement rib.
About this version
Version 1.0.2, March 9, 2019
Added support for Autodesk Revit 2020
Screenshots and videos

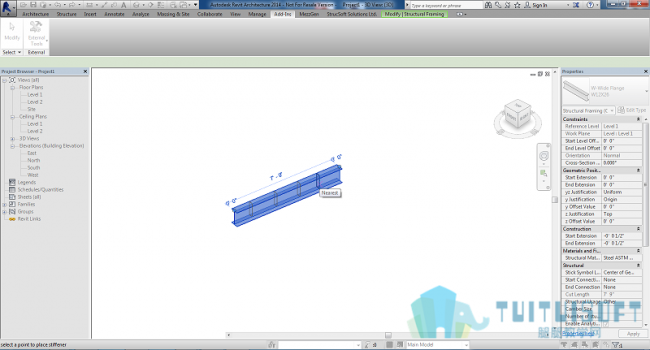

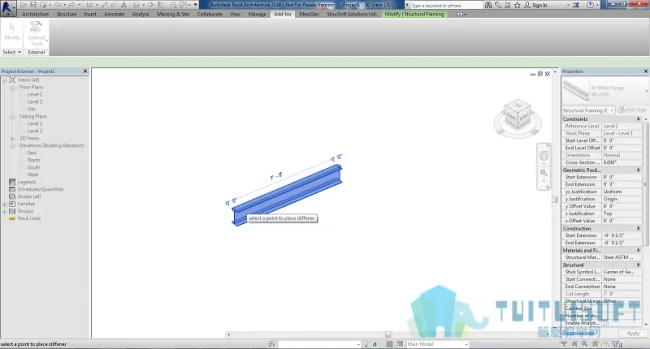

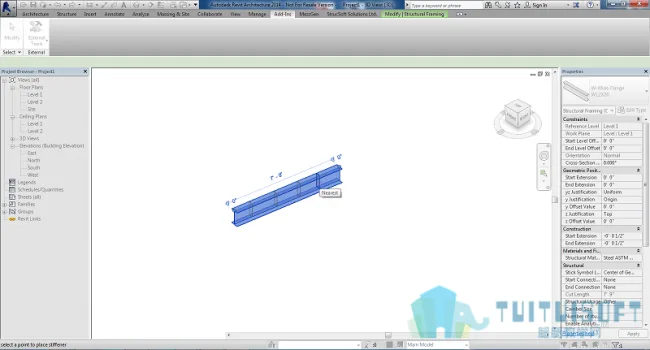

Select a point to place the reinforcing rib.

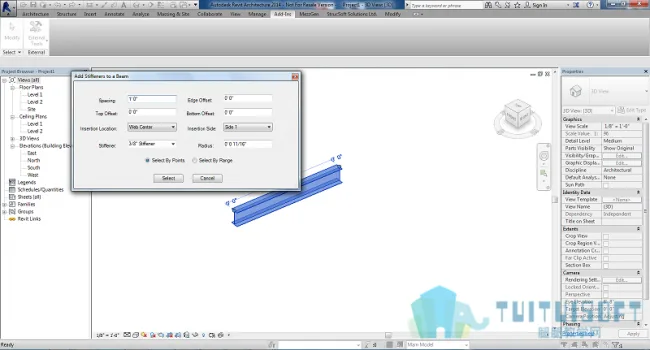

Adjust settings as needed. You can modify spacing, edge offset, and top/bottom offset. Specify the preferred insertion side, reinforcement size, and selection options.

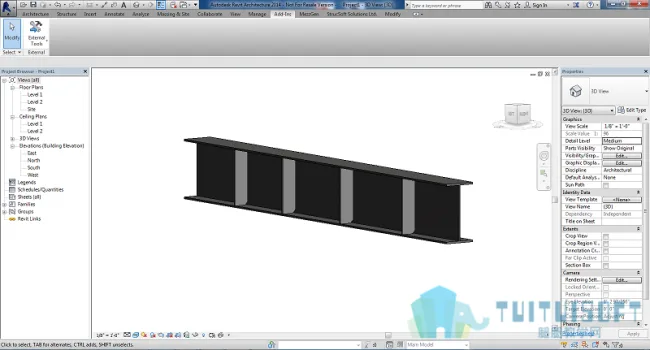

Here is the final result.
Configure your web reinforcement bars accordingly.
