Sichuan Post-Disaster Reconstruction: Xindeyang Railway Station Project

The new Deyang Station exemplifies organic and systematic integration between the station and the city. It treats the station square, station building, and yard as a unified whole, enhancing overall accessibility. The design concept is modern and holistic, adhering to the principles of functional guidance and smooth transportation. The goal is to create a harmonious, evolving, three-dimensional, and culturally significant building.

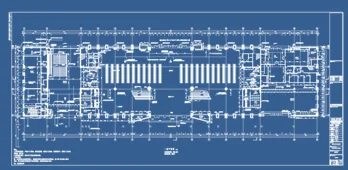

The accuracy of linking 2D drawings with BIM models

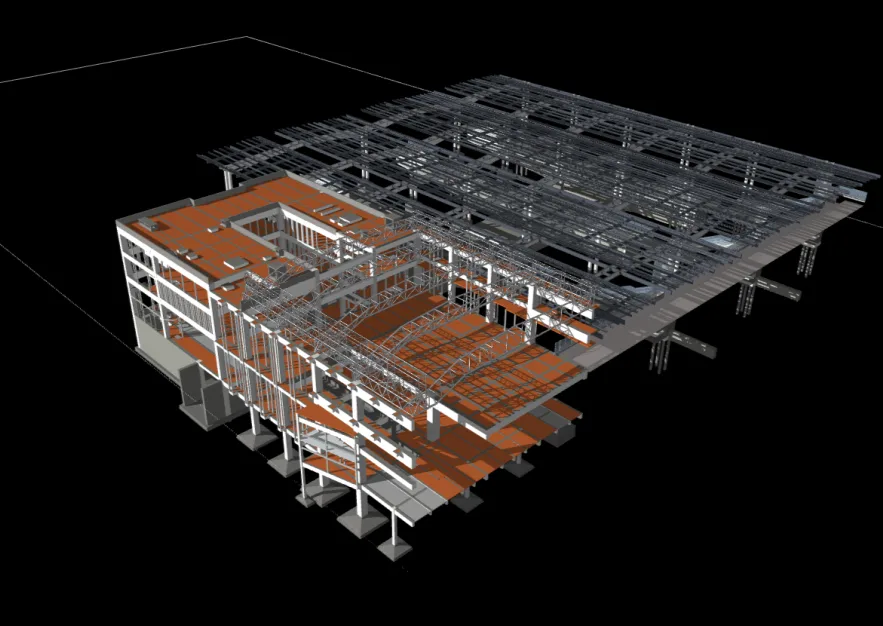

Deyang Railway Station I Structural Model

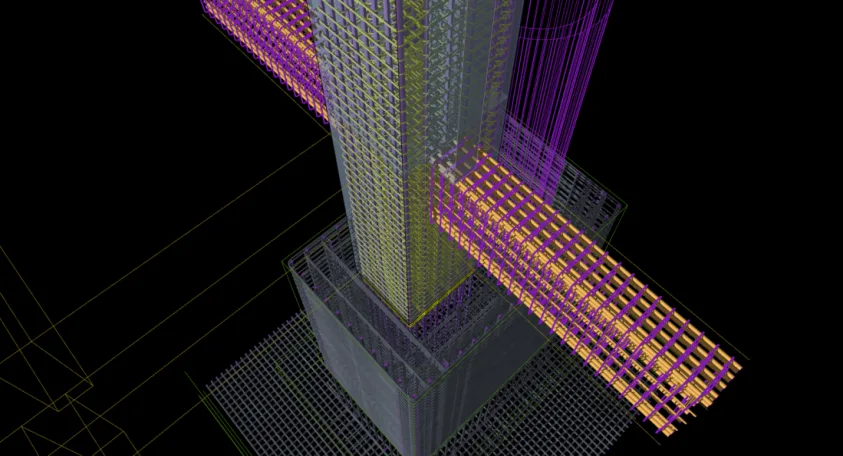

Deyang Railway Station I Structural Reinforcement Model

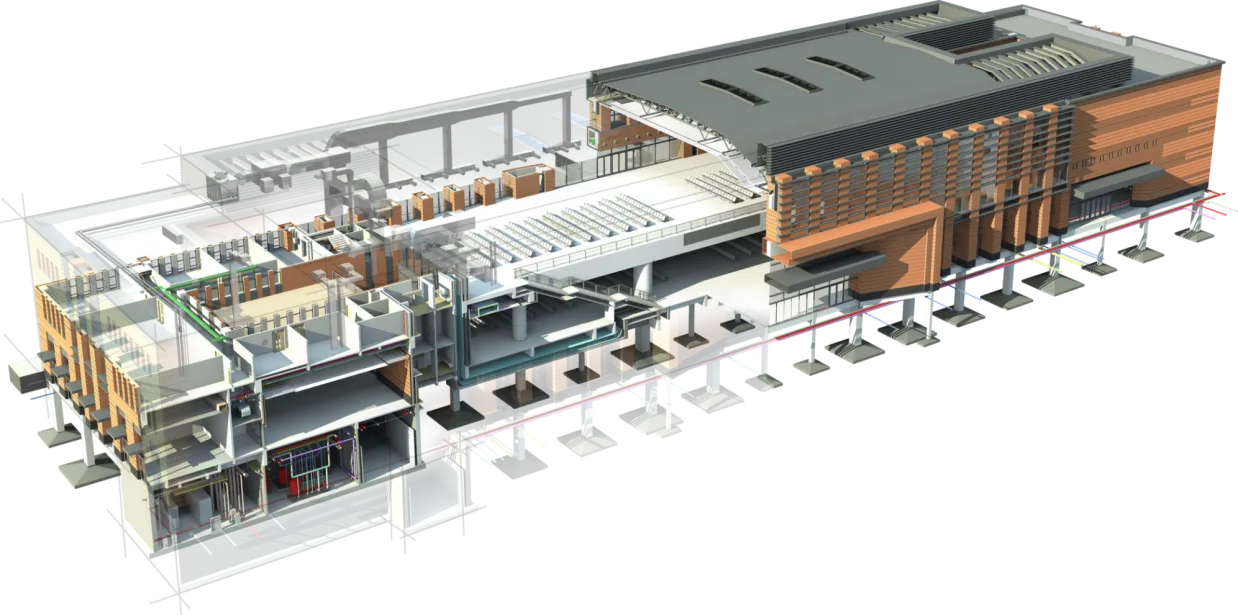

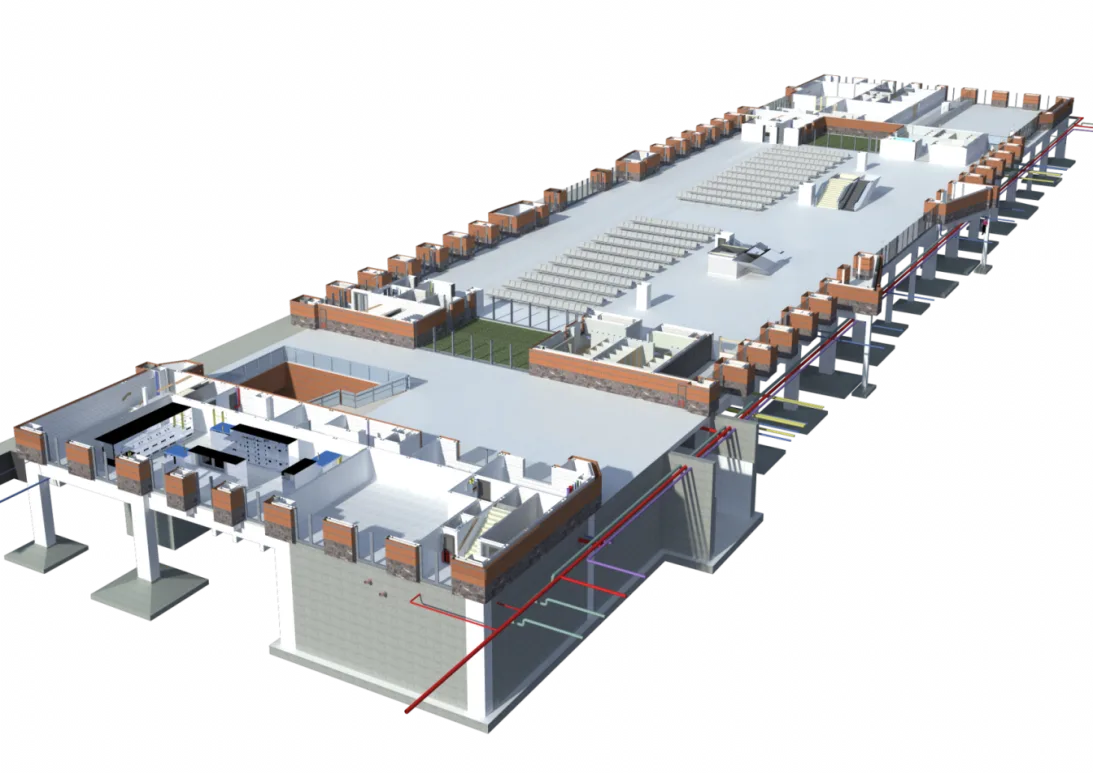

Deyang Railway Station I Comprehensive Cutting Model

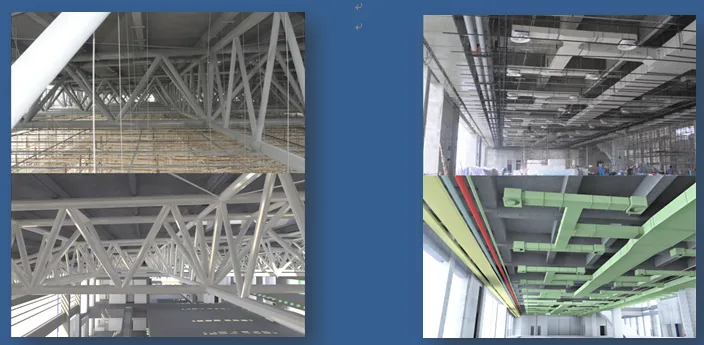

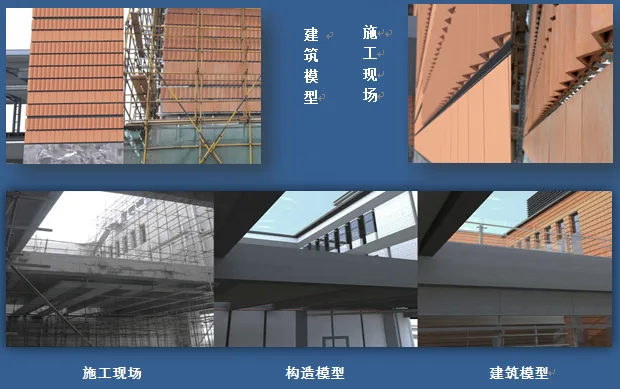

Comparison of Achievements at Deyang Railway Station I

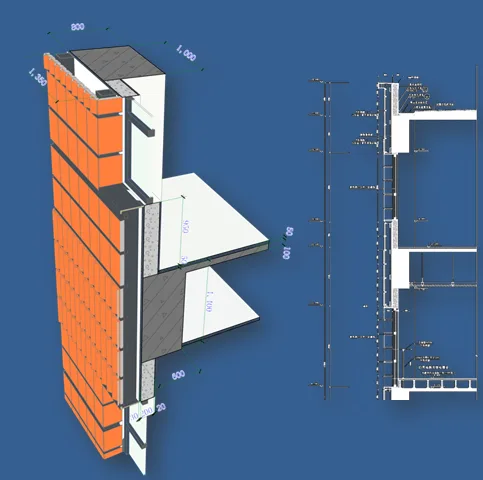

Deyang Railway Station I 3D Documentation

The 3D building information model created with ArchiCAD automatically generates all necessary documents and images. To improve design communication, the new 3D documentation feature allows any 3D view to serve as the basis for creating documents, including the addition of annotations, dimensions, and other 2D drawing elements.

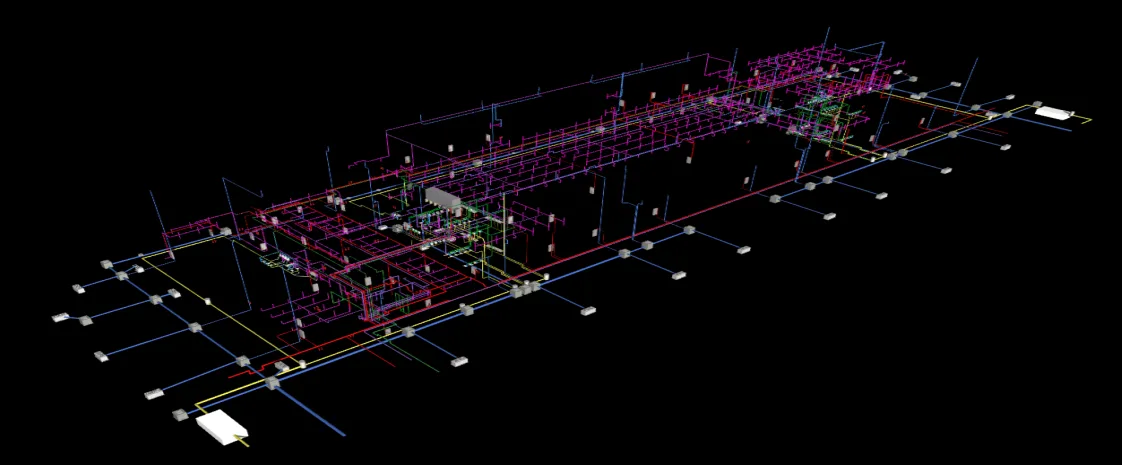

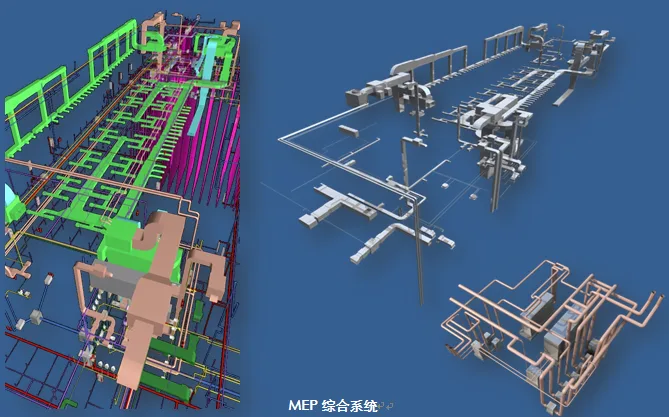

Deyang Railway Station MEP Equipment

MEP system

Fire hydrants, sprinklers, rainwater pipes, water supply, drainage, equipment

MEP system

GraphiSOFT MEP Modeler represents MEP components as integrated systems that can be managed uniformly, improving efficiency and consistency in creation and editing. When adding a new element to an existing MEP system, it automatically acquires the appropriate connection parameters such as shape, diameter, width, and height.

Deyang Railway Station MEP Collision Detection | Construction Site

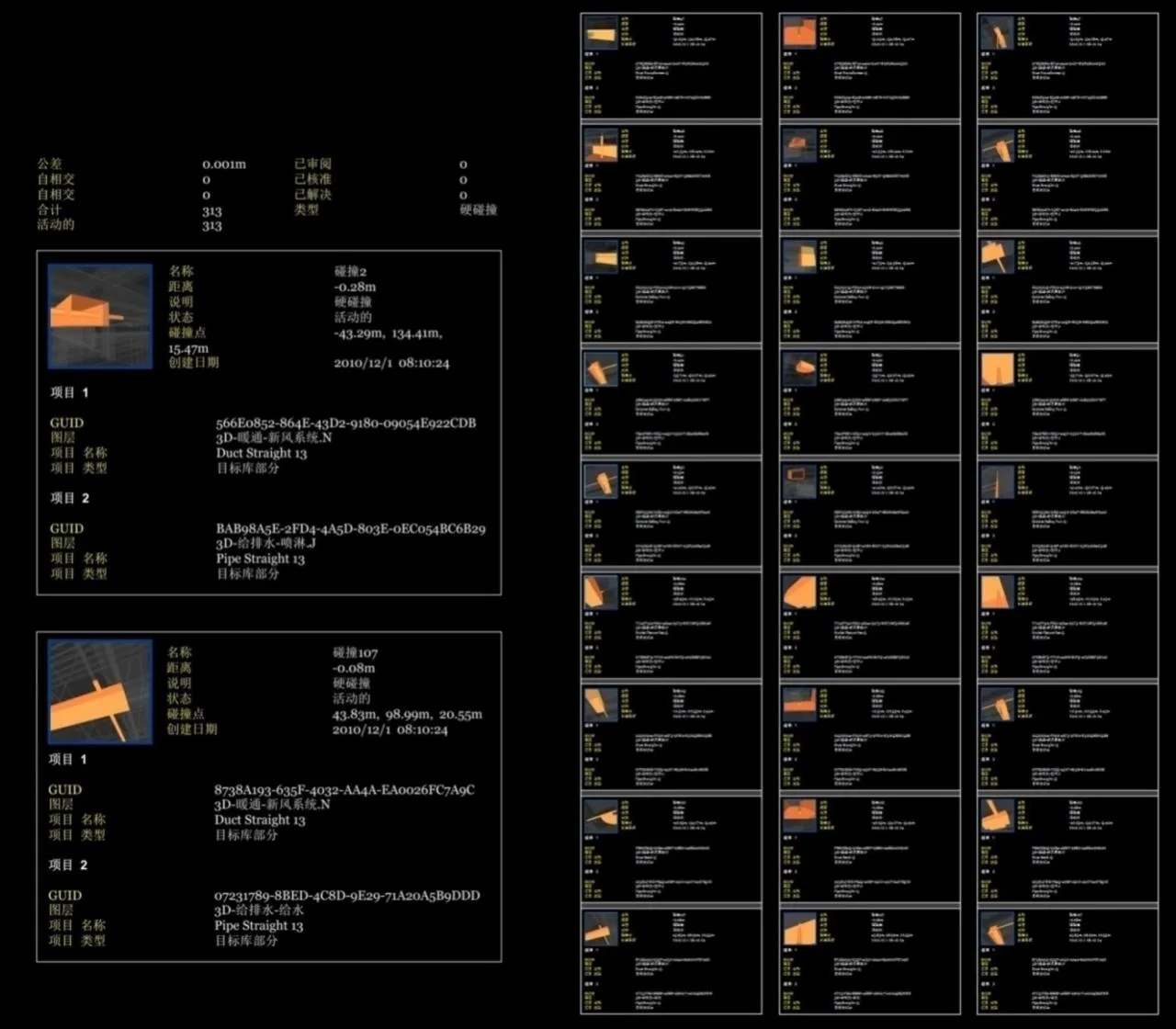

Automatic MEP collision detection report

GraphiSOFT MEP Modeler offers fully automated collision detection to verify conflicts between building structures and MEP pipe network designs.

Collaboration with Engineers

MEP systems can be directly imported into ArchiCAD from MagiCAD, DDS-CAD, Autodesk AutoCAD MEP (versions 2008/09/10), and Revit MEP (2010/2011/2012). The system recognizes and automatically converts these into ArchiCAD MEP elements.
