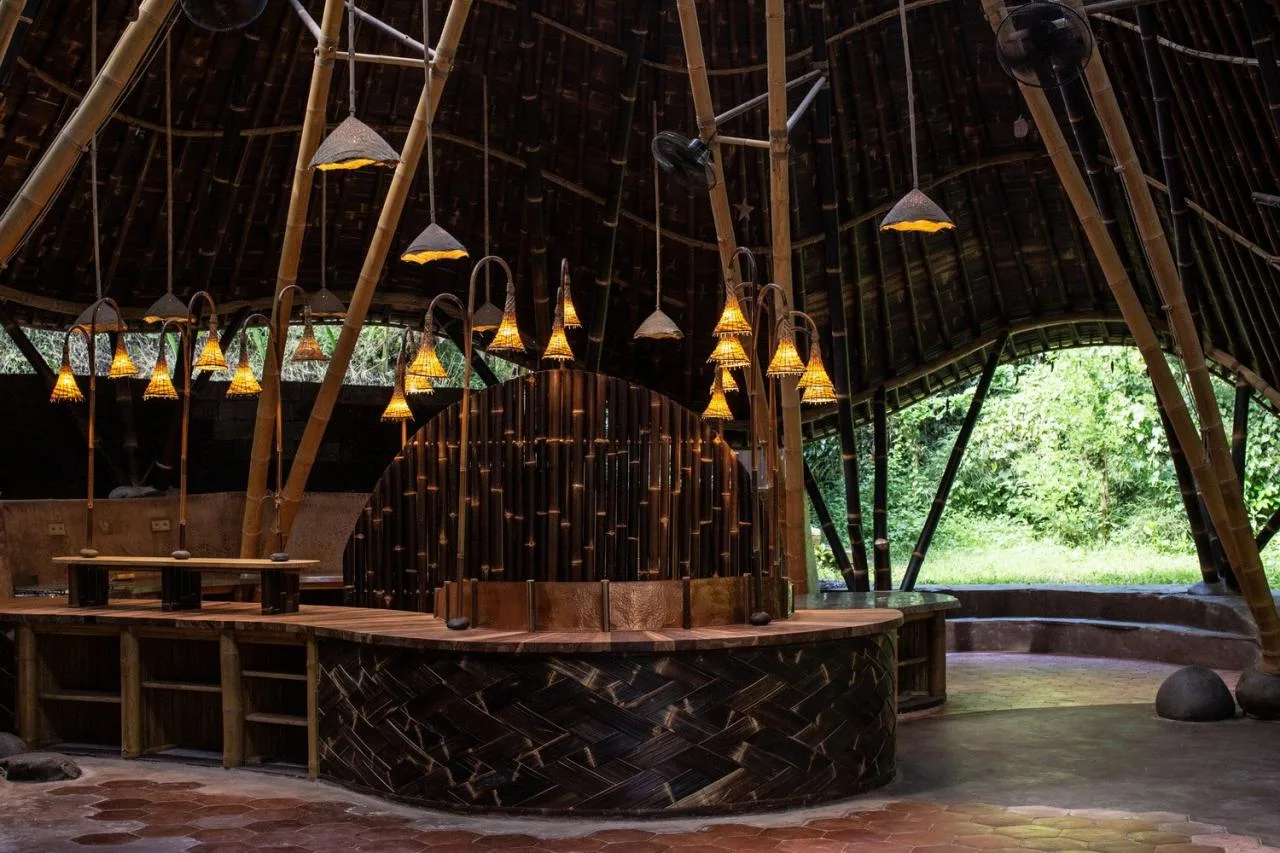

Dapur Naga is an experimental bamboo architectural project nestled in the lush tropical landscape of Bali. This distinctive structure functions as a shared kitchen and dining area, accommodating over 50 people. The site features a steep slope with three main elevation levels, while the owner requested a design that harmoniously blends with the natural surroundings.

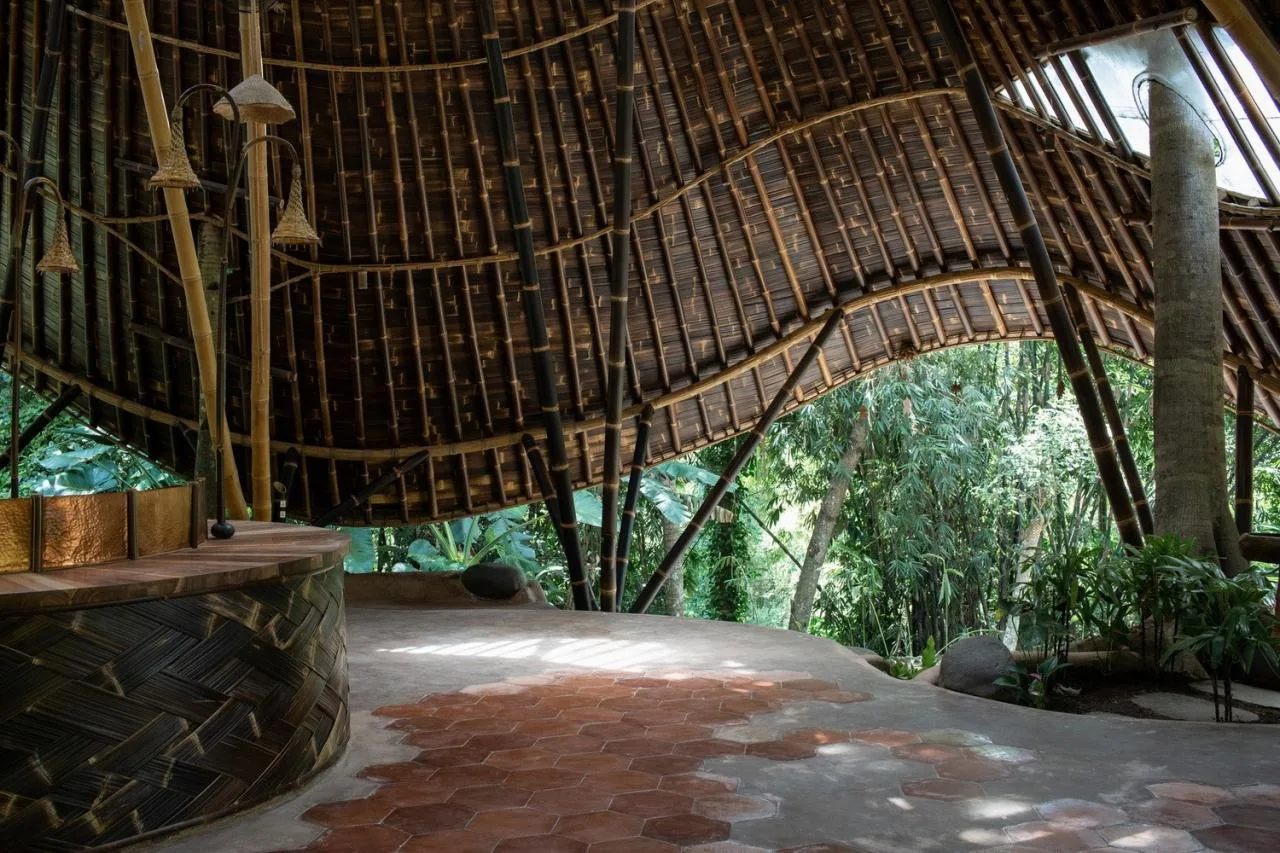

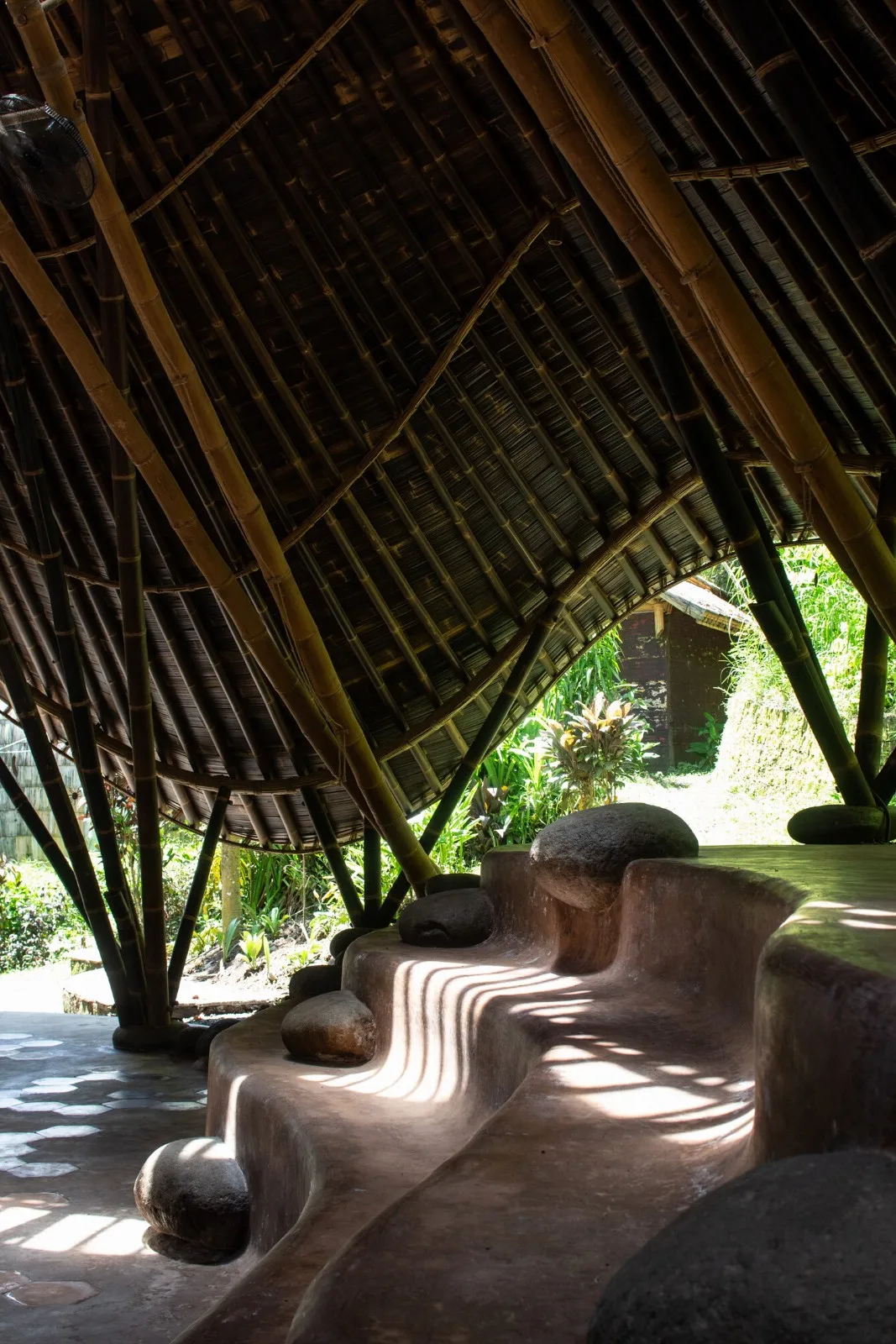

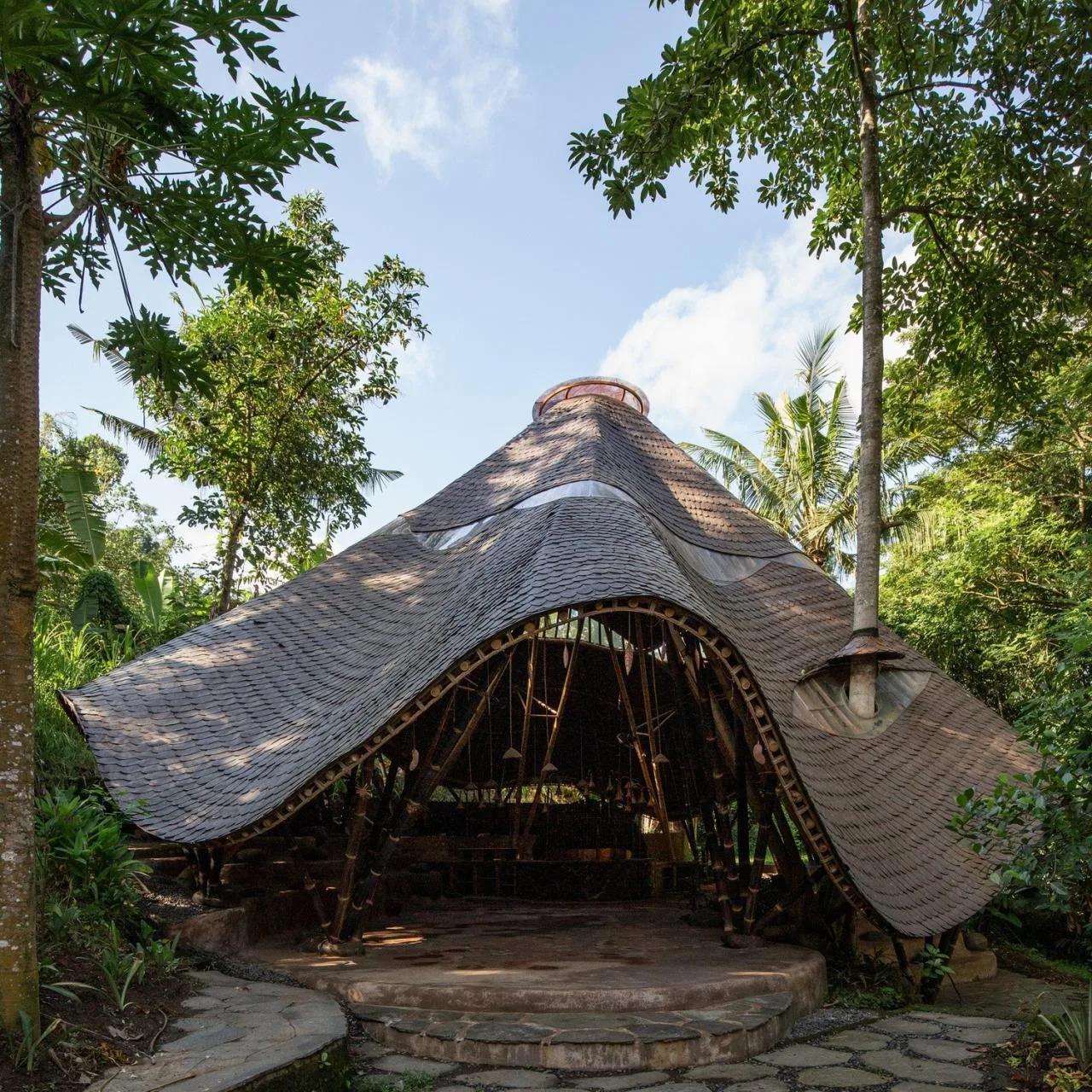

The core design inspiration for Dapur Naga comes from the graceful motion of a spinning Sophie skirt. This fluidity shapes the building’s wavy roof, which takes the form of a hyperbolic surface. The roof is meticulously crafted to capture captivating views and encourage natural ventilation, creating an open and inviting space beneath.

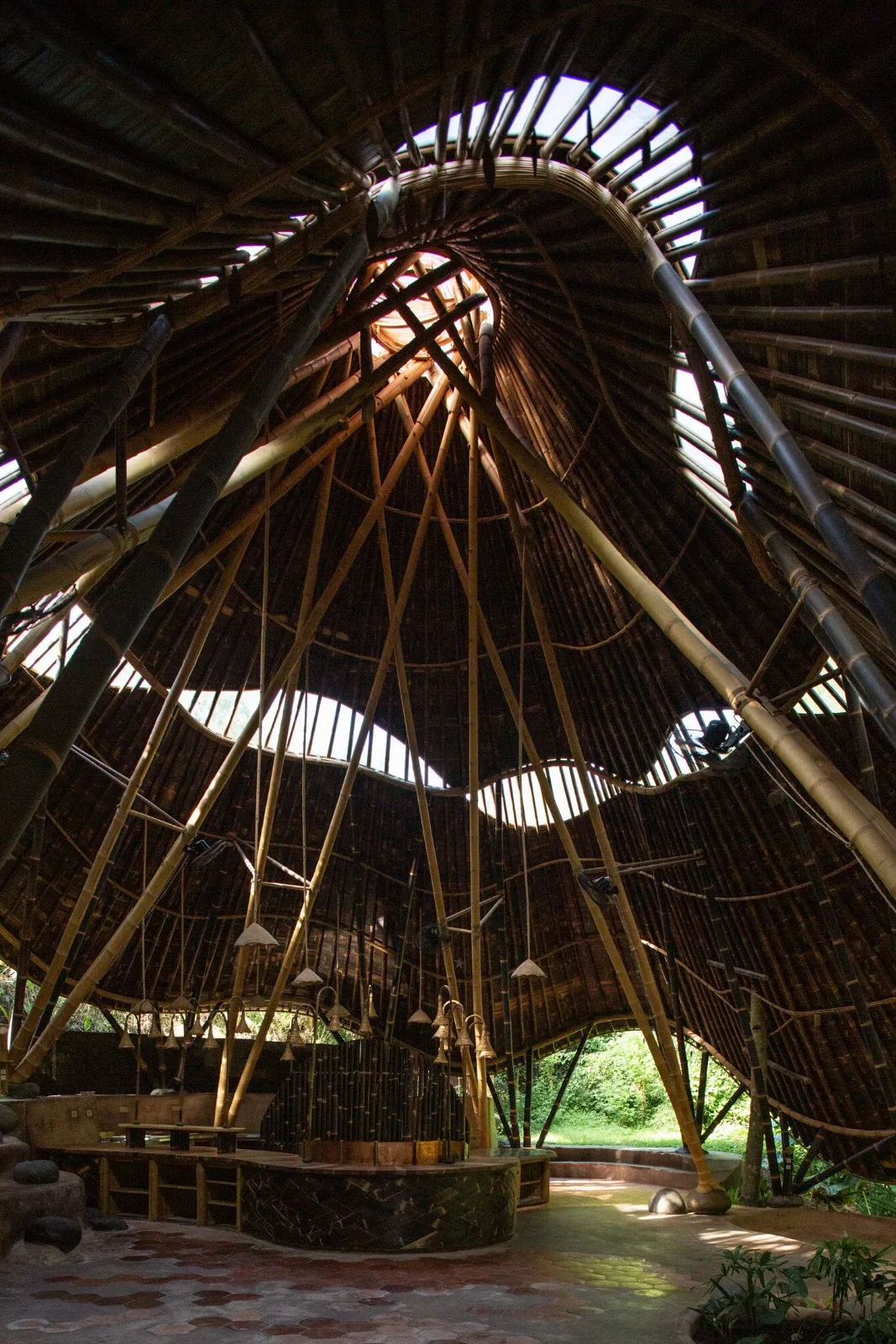

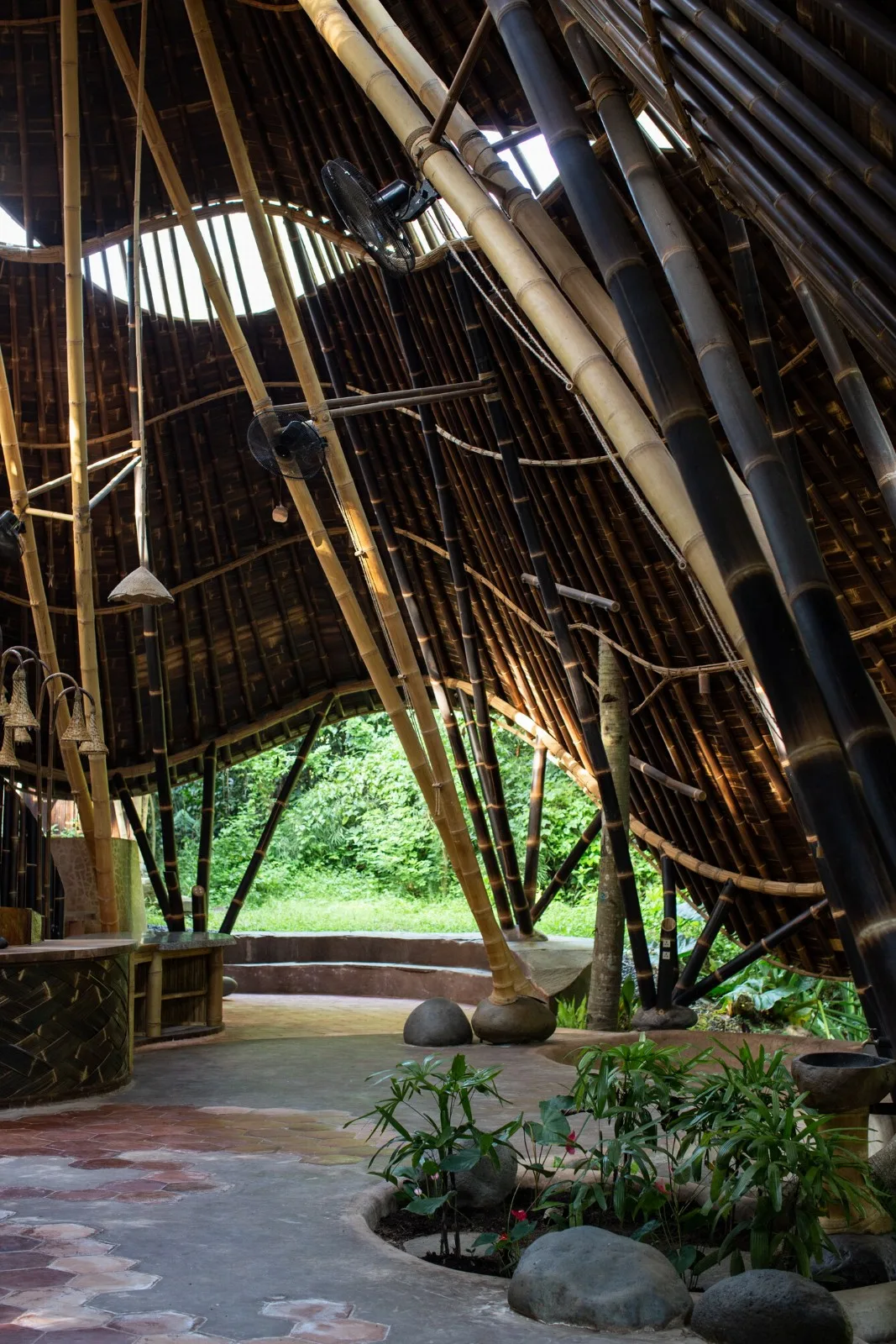

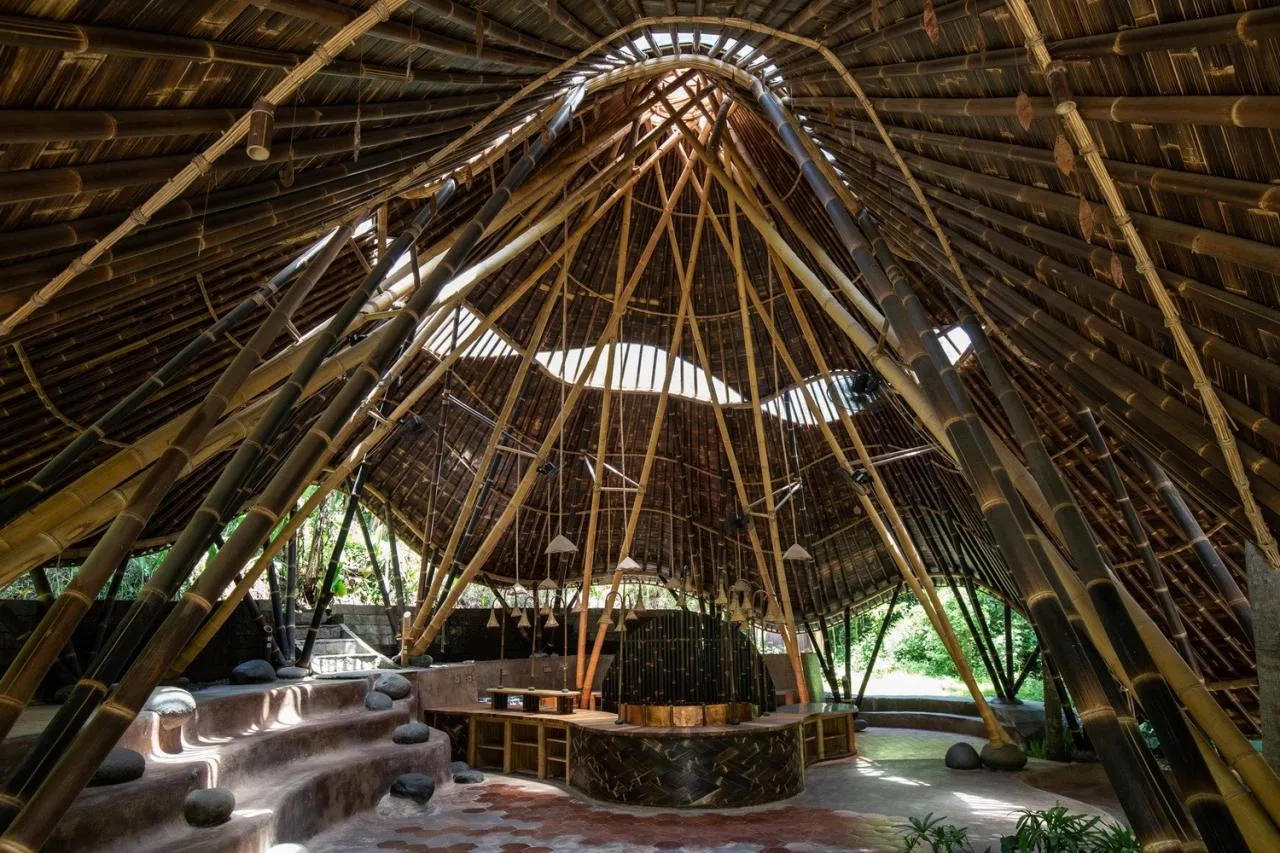

The roof is supported by fan-shaped columns and bundles of Lidi bamboo beams, ensuring both structural stability and smooth, flowing curves. At the center stands an inverted tower with a narrow neck and broad base, spanning multiple floors and following the natural contours of the site. These distinctive structural elements were first prototyped at full scale (1:1) to address engineering challenges before moving to large-scale construction.

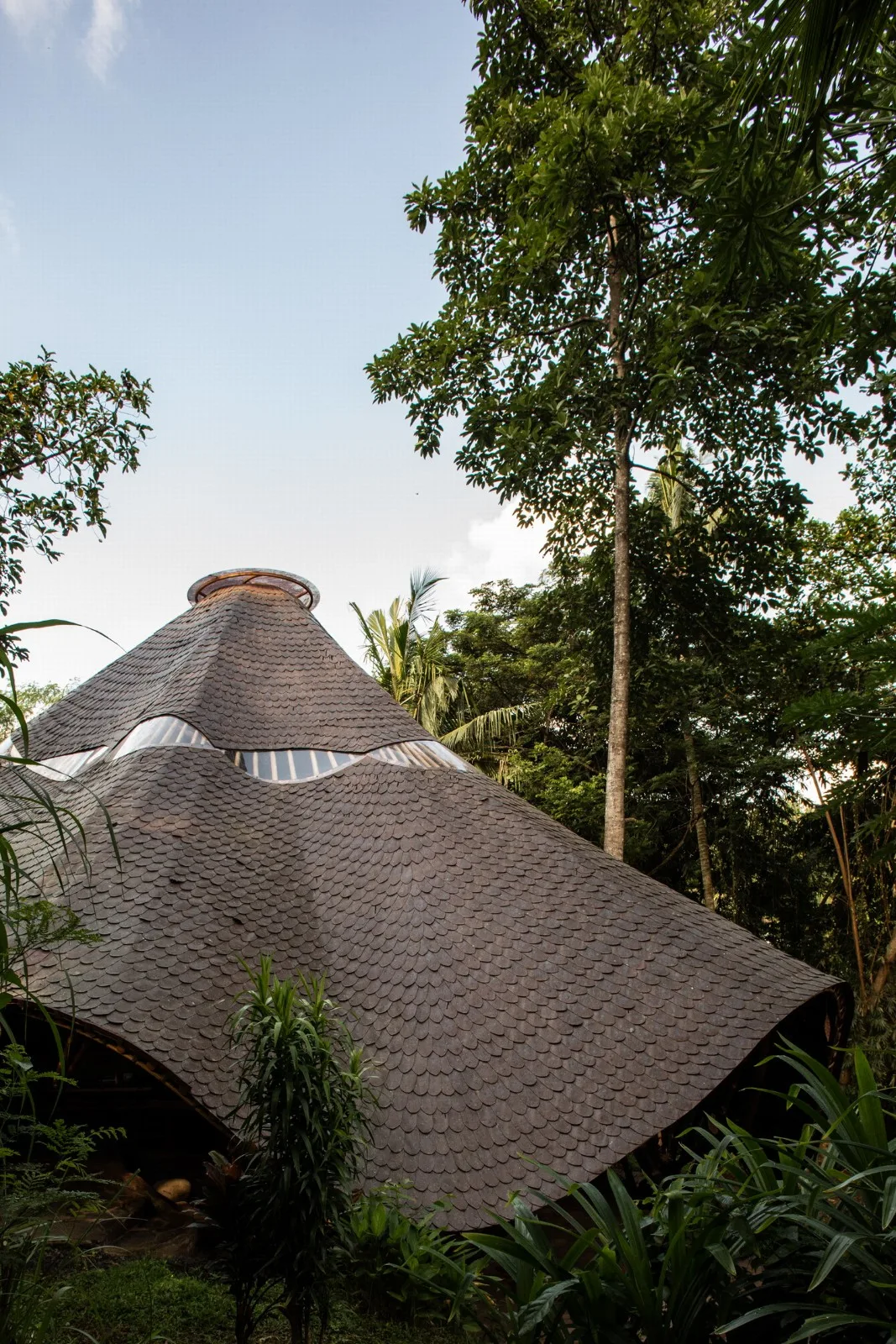

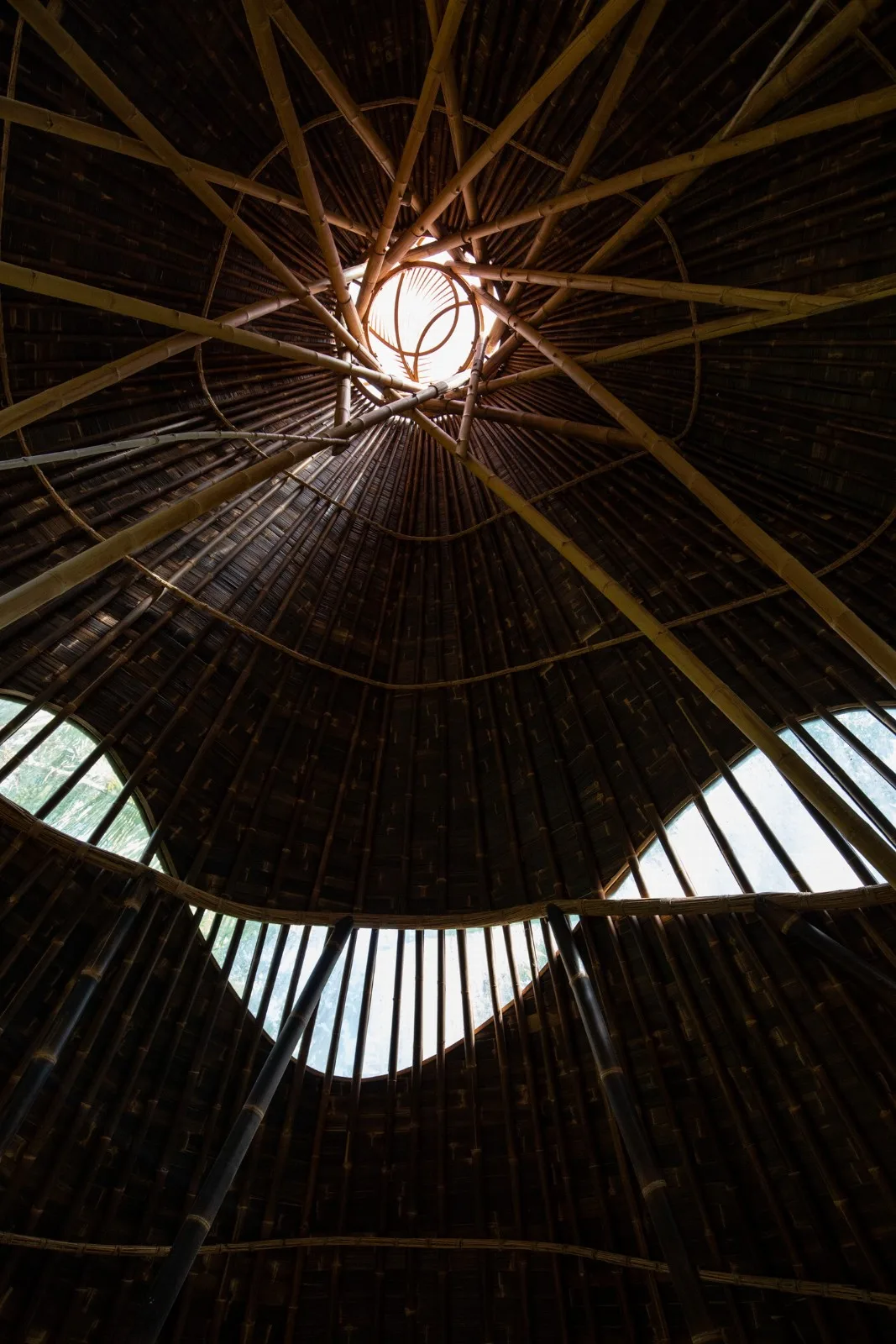

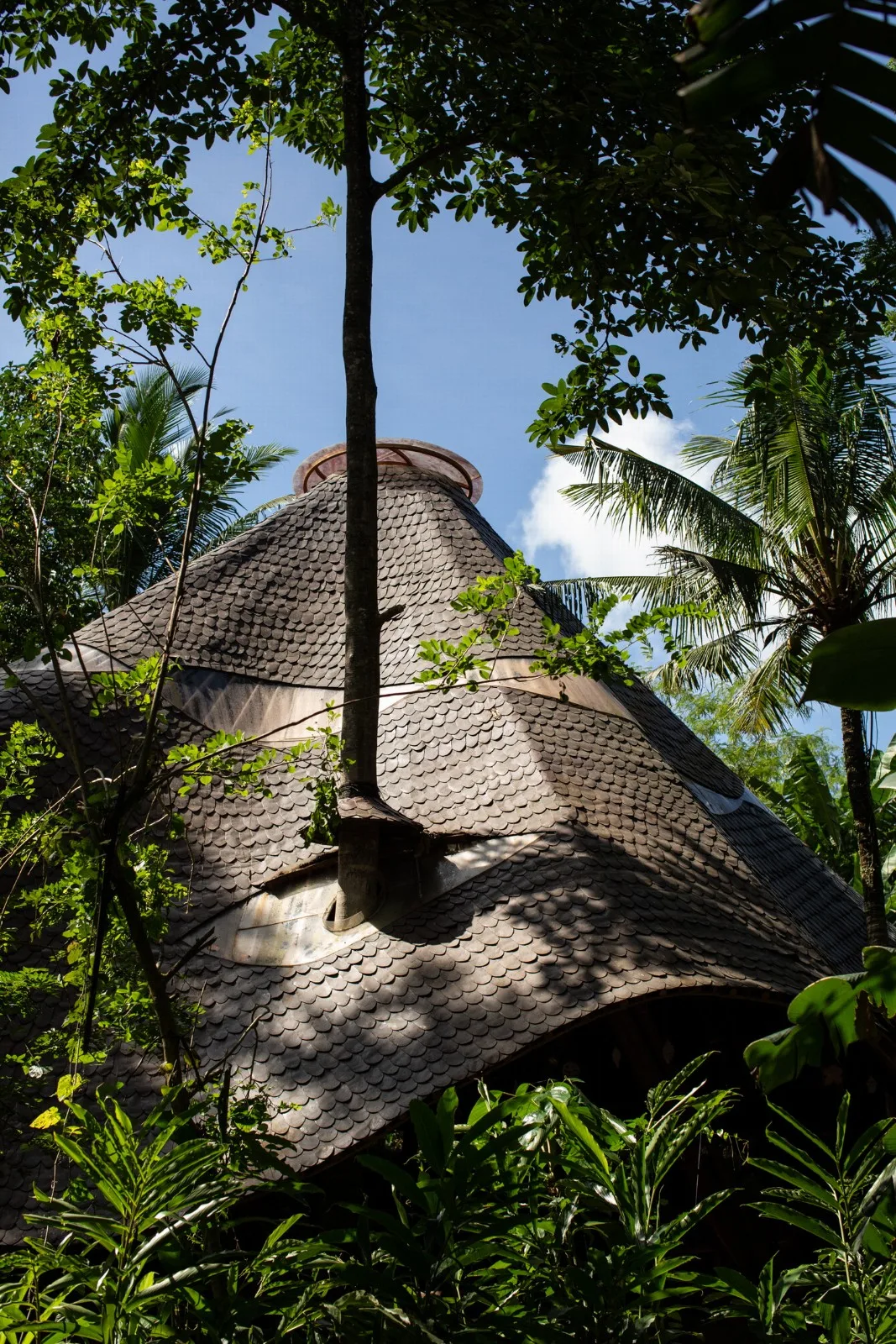

To protect the environment, the design preserves existing trees on the site. River stones were incorporated into the foundation to naturally integrate the building with its surroundings. The construction process involved close collaboration with local artisans, who handcrafted copper sheets that form the building’s striking curved roof. Transparent acrylic skylights punctuate the roof, allowing natural light to fill the interior and further connect the space with the natural environment.

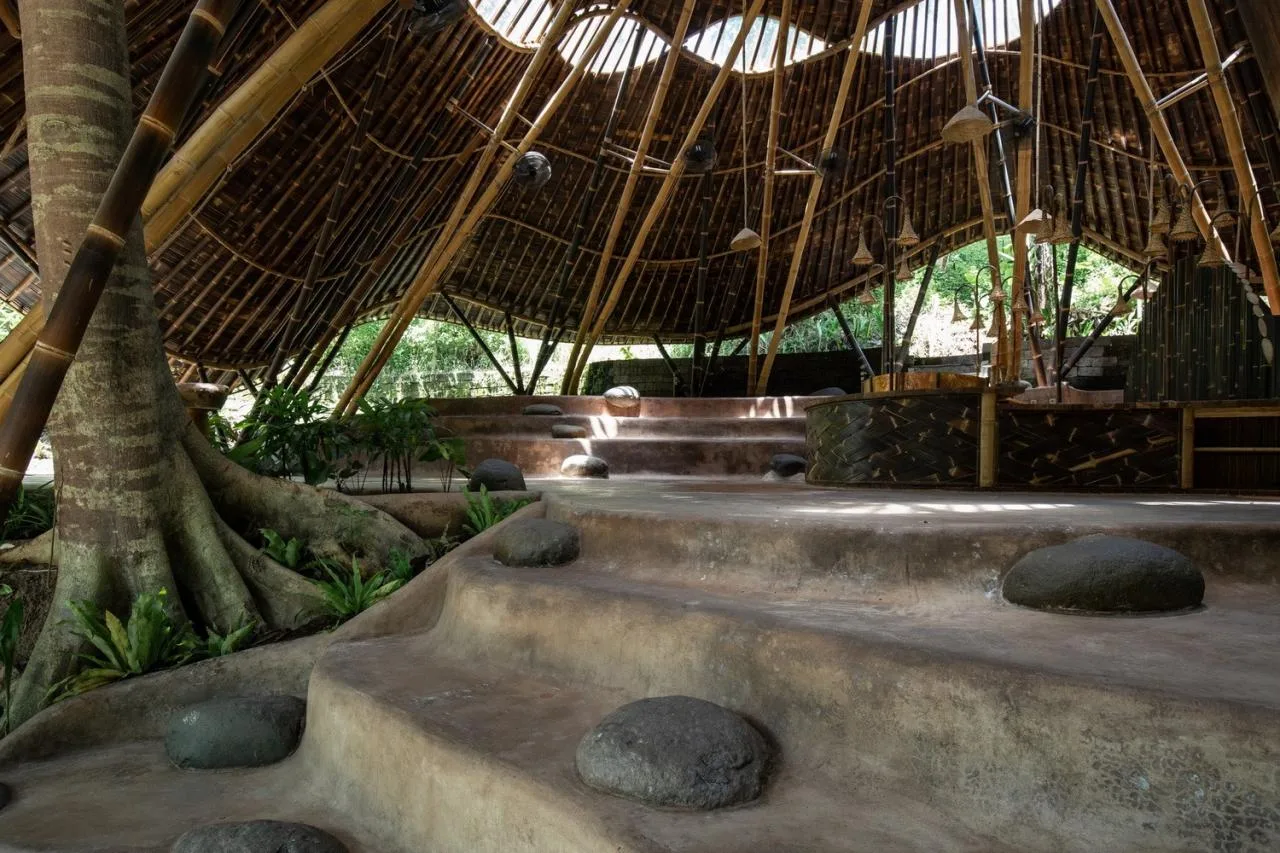

The project combines a variety of materials including lime, clay, Jimbaran stone, cement tiles, and clay tiles, resulting in a visually compelling effect that highlights craftsmanship and natural beauty.
Throughout the design and construction phases, Bamboo University offered courses that provided hands-on experience in bamboo building techniques—from shaping the roof to installing skylights. This collaborative, educational process became integral to the project’s development, adding a community-driven dimension to the architecture.
Dapur Naga stands as a testament to sustainable architecture, pushing the boundaries of bamboo construction while maintaining a close connection to the landscape. The final result is a vibrant space that merges innovation, craftsmanship, and the natural beauty of materials.
Project Drawings

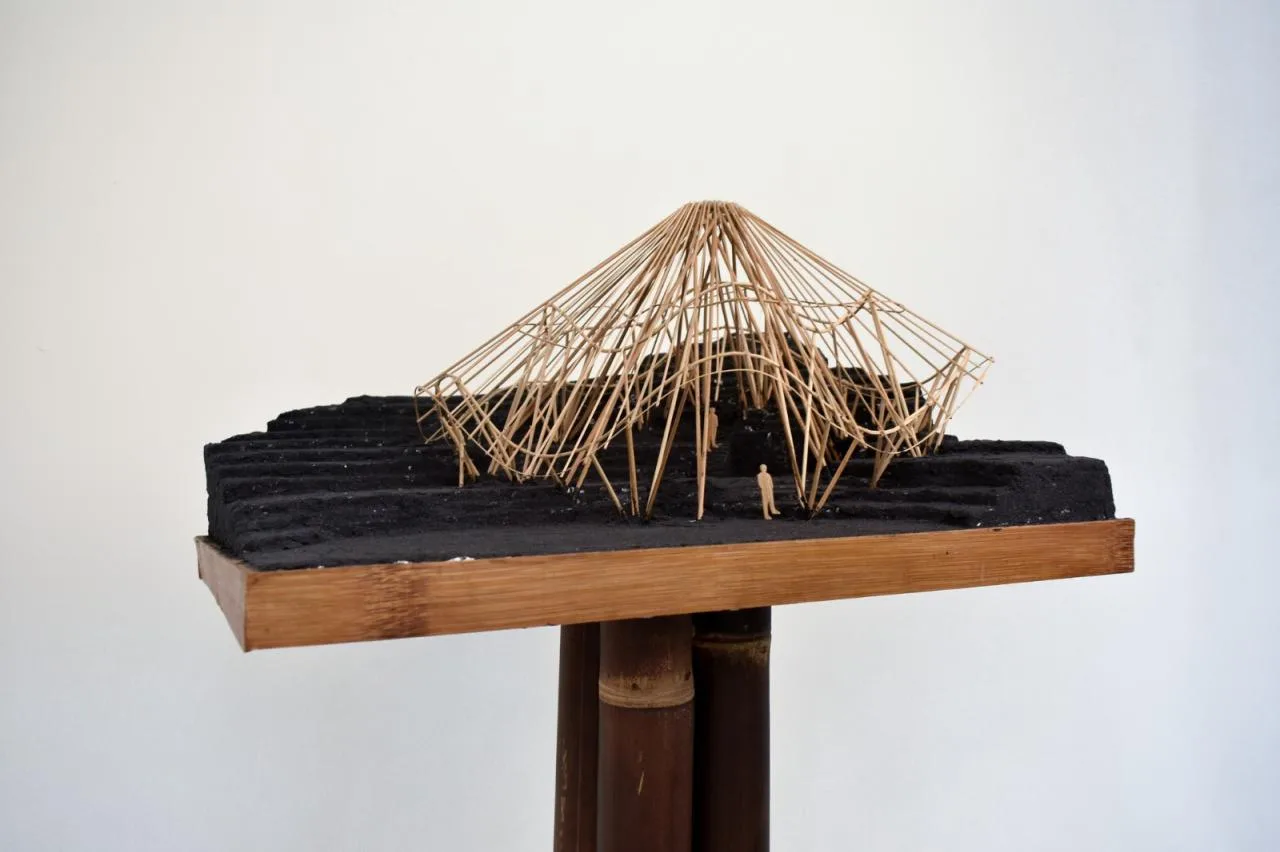

△ Model Diagram

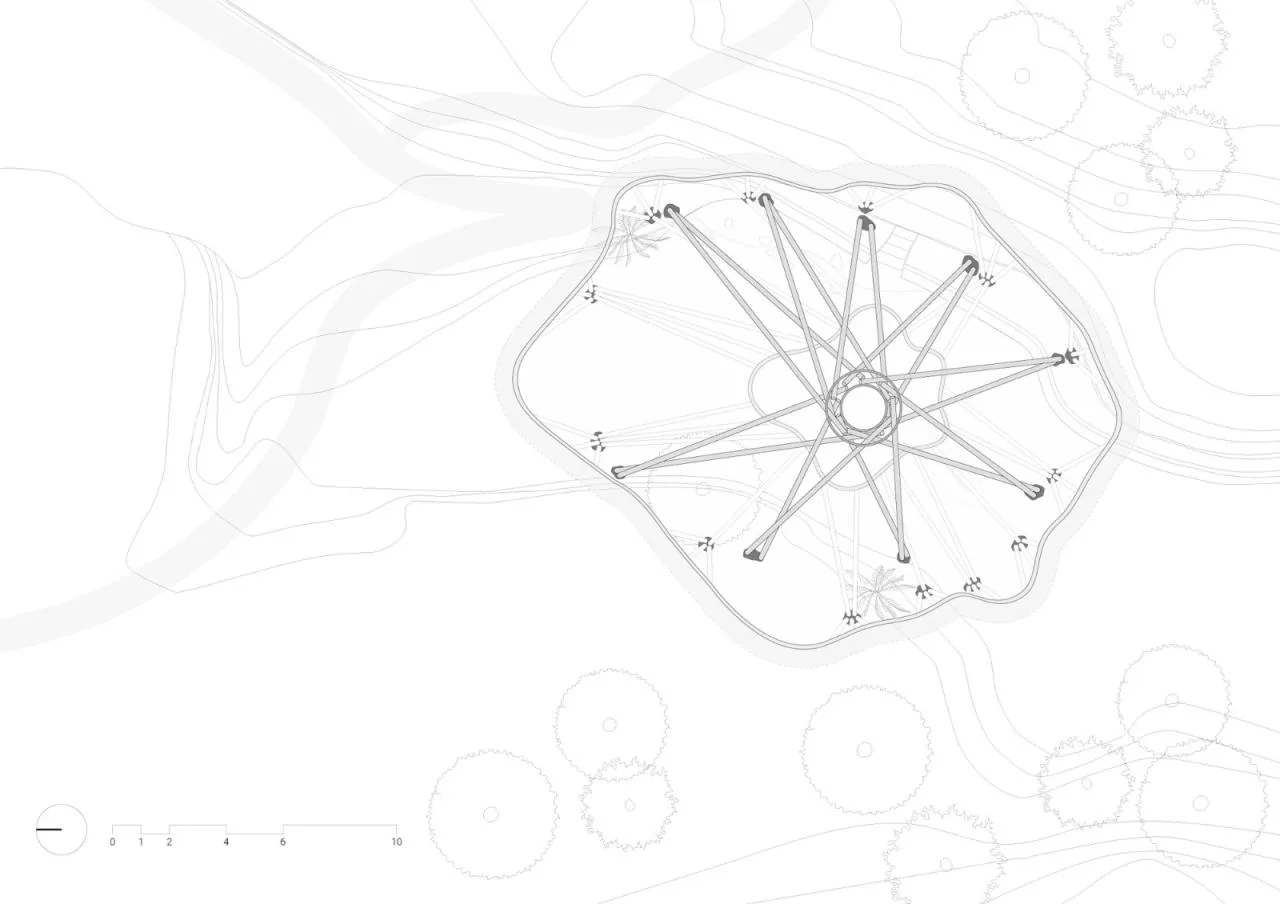

△ Plan View

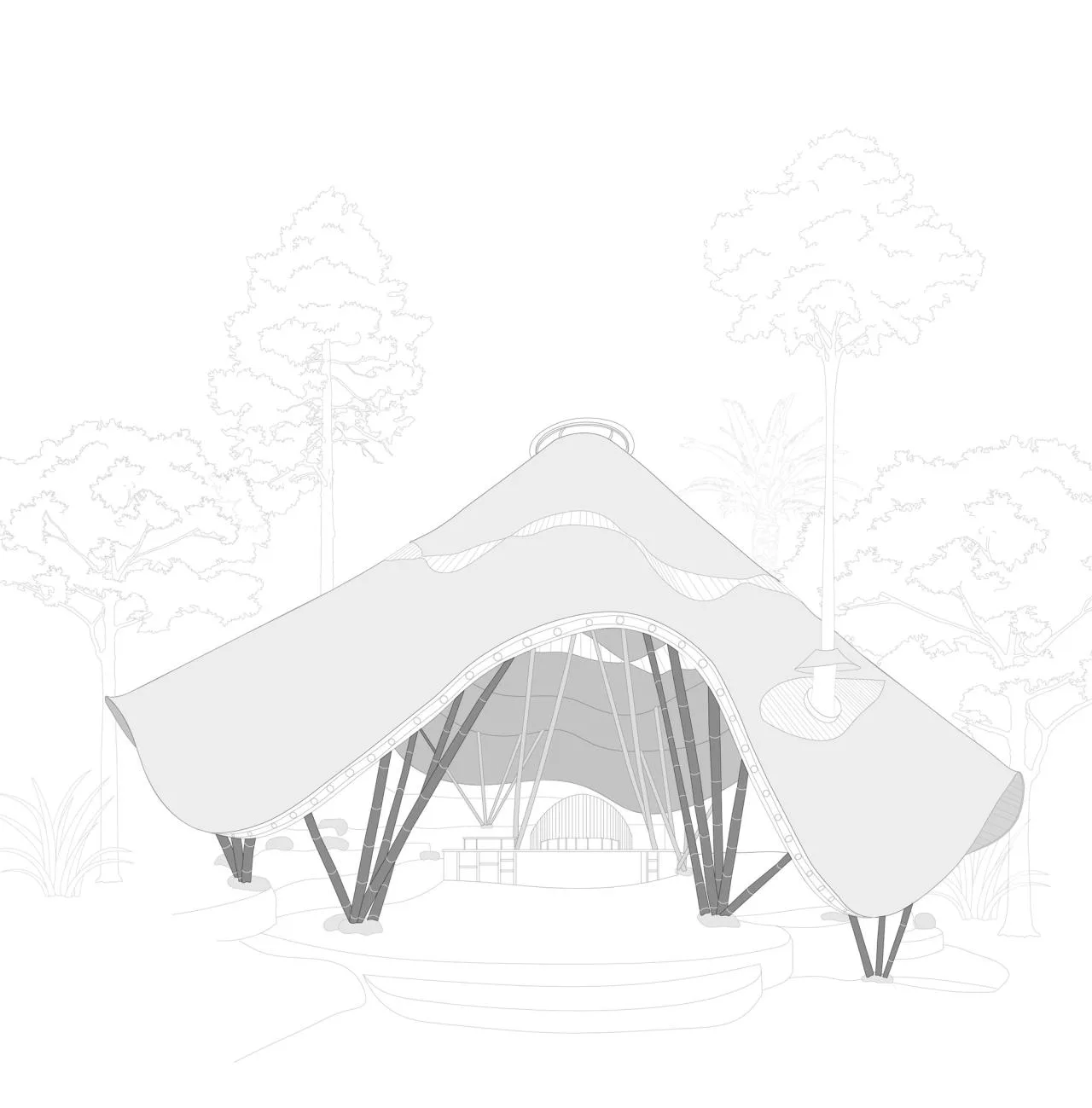

△ Elevation Drawing

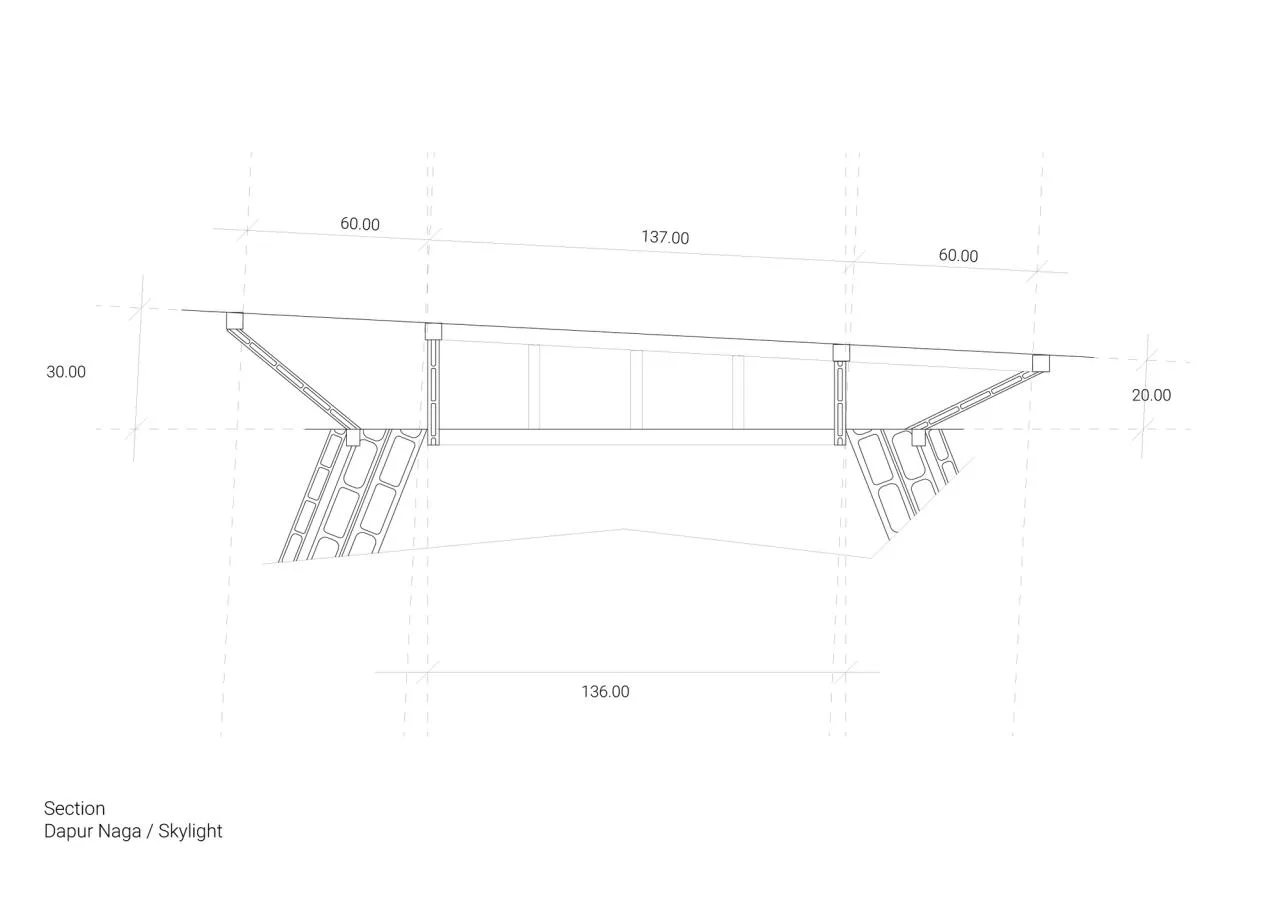

△ Section Diagram

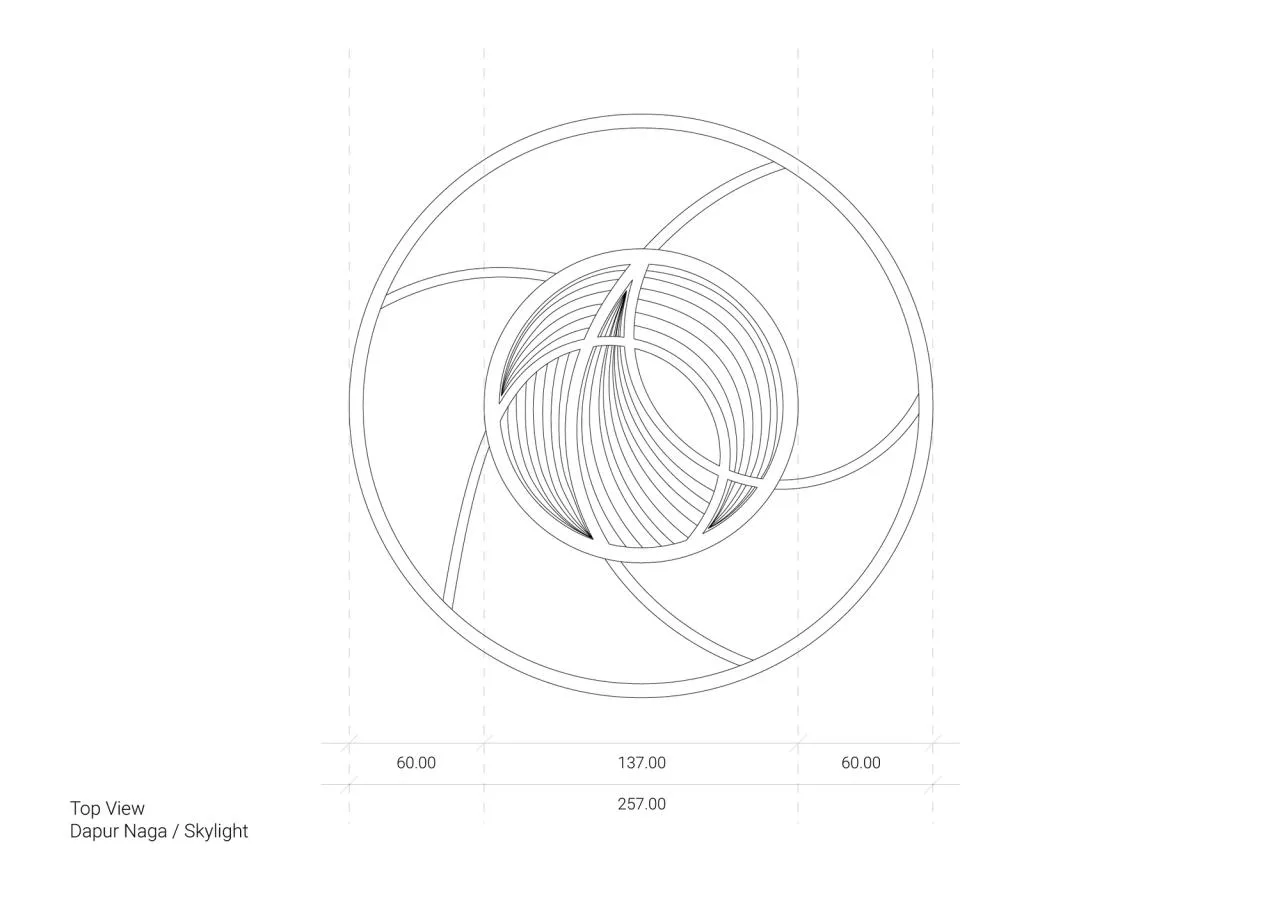

Top View
Project Information
Architect: Bamboo U
Area: 220 m²
Project Year: 2021
Photographer: Bamboo U
Main Creative Team: Sai Goutham
Lead Architects: Bamboo U – Orin Hardy and Jules De Laage; IBUKU – Elora Hardy
Structural Engineer: Neil Thomas
Location: Indonesia
