01 Project Background
The China Electronics Great Wall Science and Technology Park, located on Yuehai Street in Shenzhen’s Nanshan District, is undergoing an urban renewal project involving comprehensive renovation and selective demolition and reconstruction. This initiative focuses on upgrading industrial plants and staff canteens within the park. Situated along Shennan Avenue and adjacent to Shenzhen University, the park’s northern side houses a financial base. The area benefits from mature commercial facilities, a well-established road network, and convenient rail transit, fostering a thriving industrial atmosphere. However, due to industrial clustering, office spaces are densely packed, and vacancy rates are projected to rise.

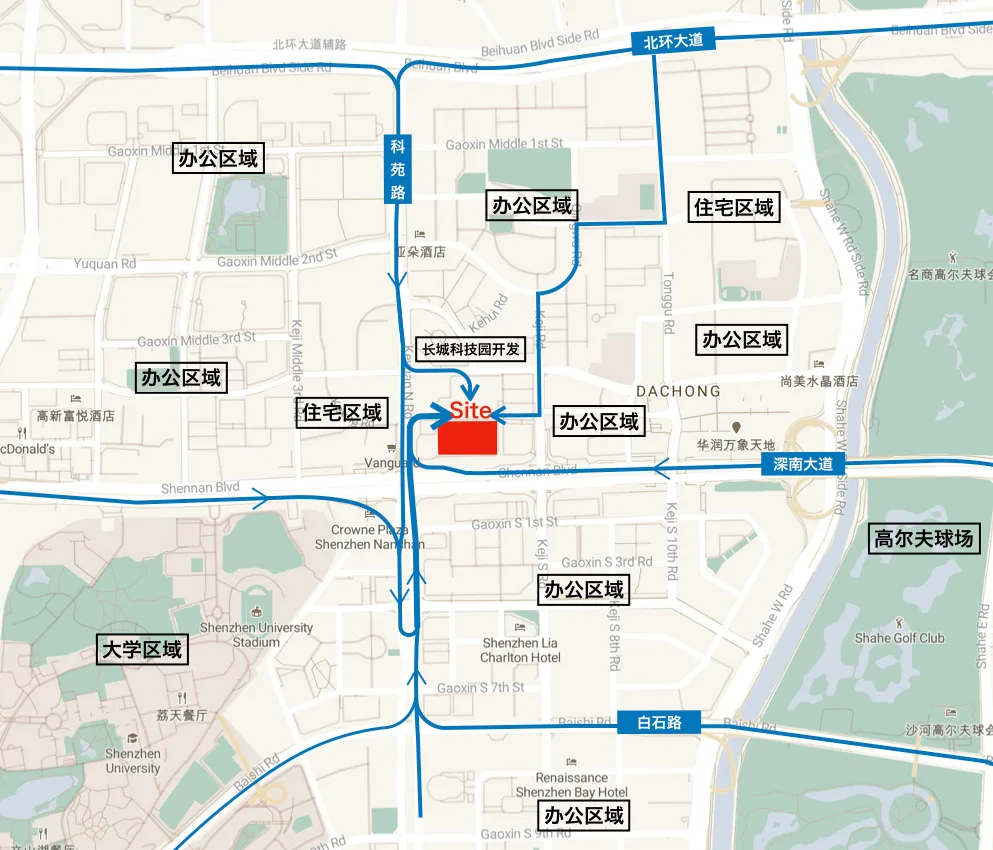

△ Project Location Map
CCD (Shanghai Dihui Real Estate Consulting Co., Ltd.) has introduced the concept of the “INNOSIS” project, combining Innovation and Oasis. By adapting and reusing the existing building, the project breathes new life into the site, creating a mixed-use community that integrates living, working, and recreational spaces. Unlike surrounding tech parks focused primarily on office work, this development fosters a lively residential atmosphere. Compared to large commercial complexes, it emphasizes innovation and entrepreneurship.
△ Project Positioning © CCD

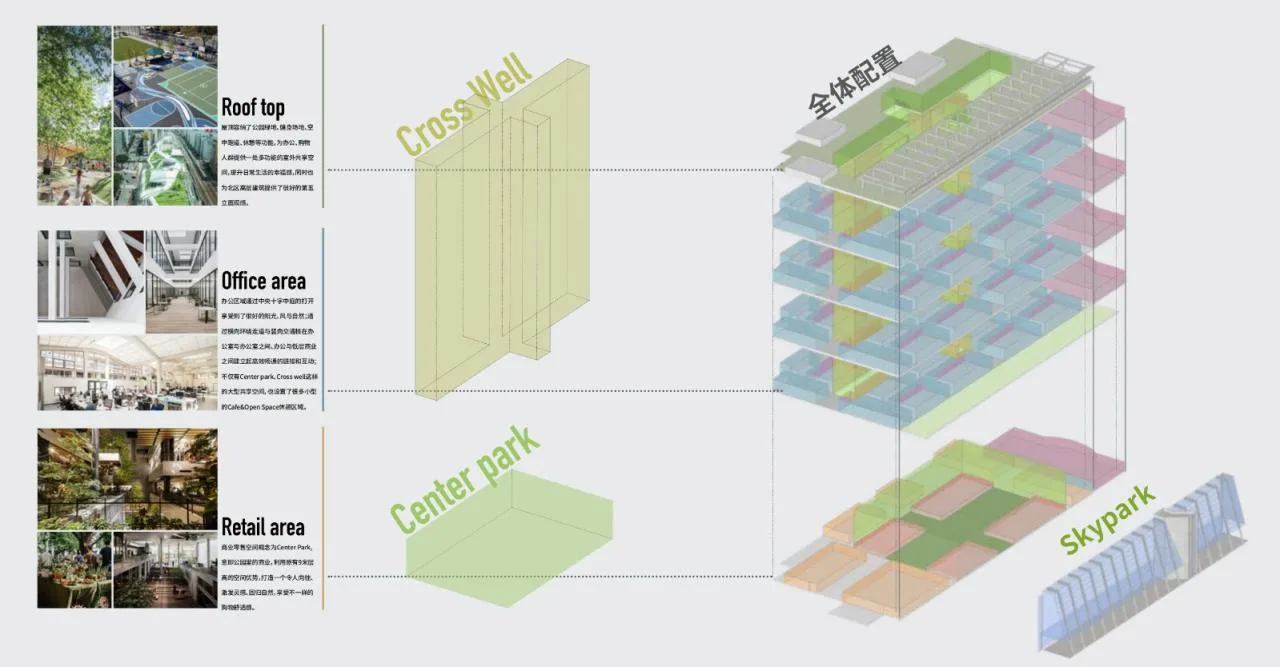

△ Functional Analysis Diagram
02 Design Concept
Parks symbolize relaxation, joy, and greenery; this “soft pleasure” from nature relieves daily stress, rejuvenates the senses, and enhances focus. Streets connect public spaces to the broader city, forming transportation networks and landscape axes. Building on the architectural spatial form, we conceptualize two primary design elements: the Central Park and the Cross Well.

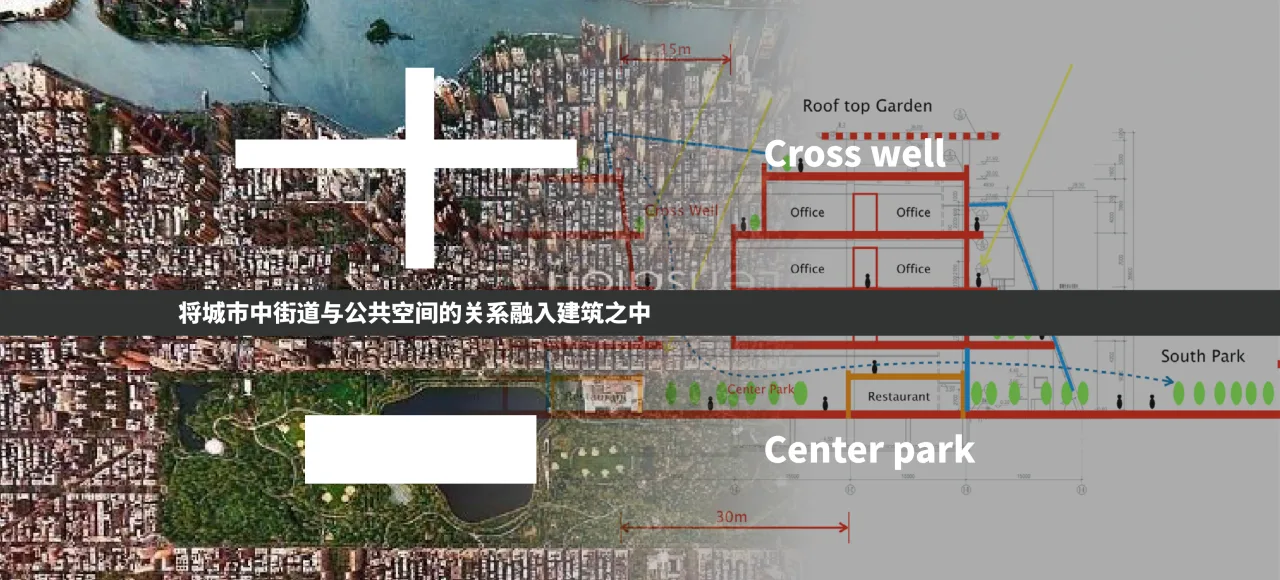

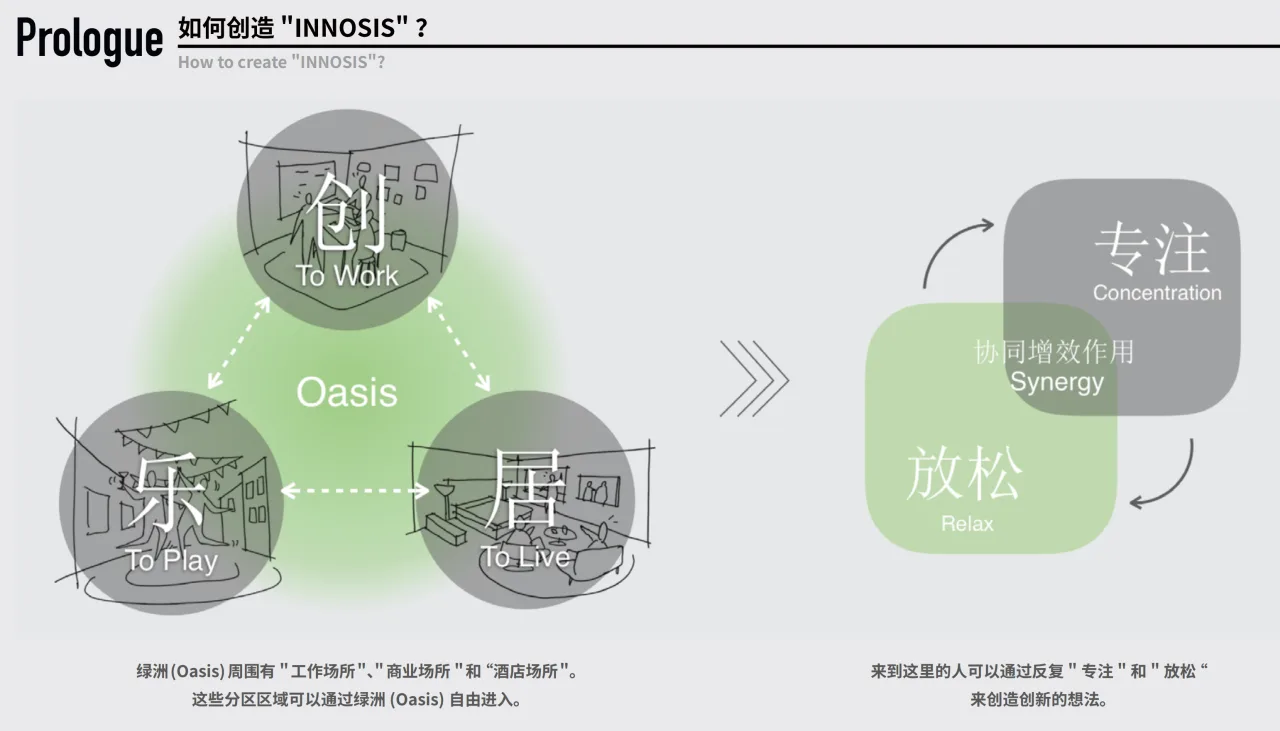

△ Design Concept
The design places offices, commercial spaces, and a hotel around an atrium, while the open Central Park serves as a vibrant, ecologically rich area. The narrow Cross Well creates a multi-level alleyway-like space, cultivating a mixed-use community flourishing within the park.
△ Design Concept
03 Breathing Buildings
Integrating Urban Green Spaces Indoors

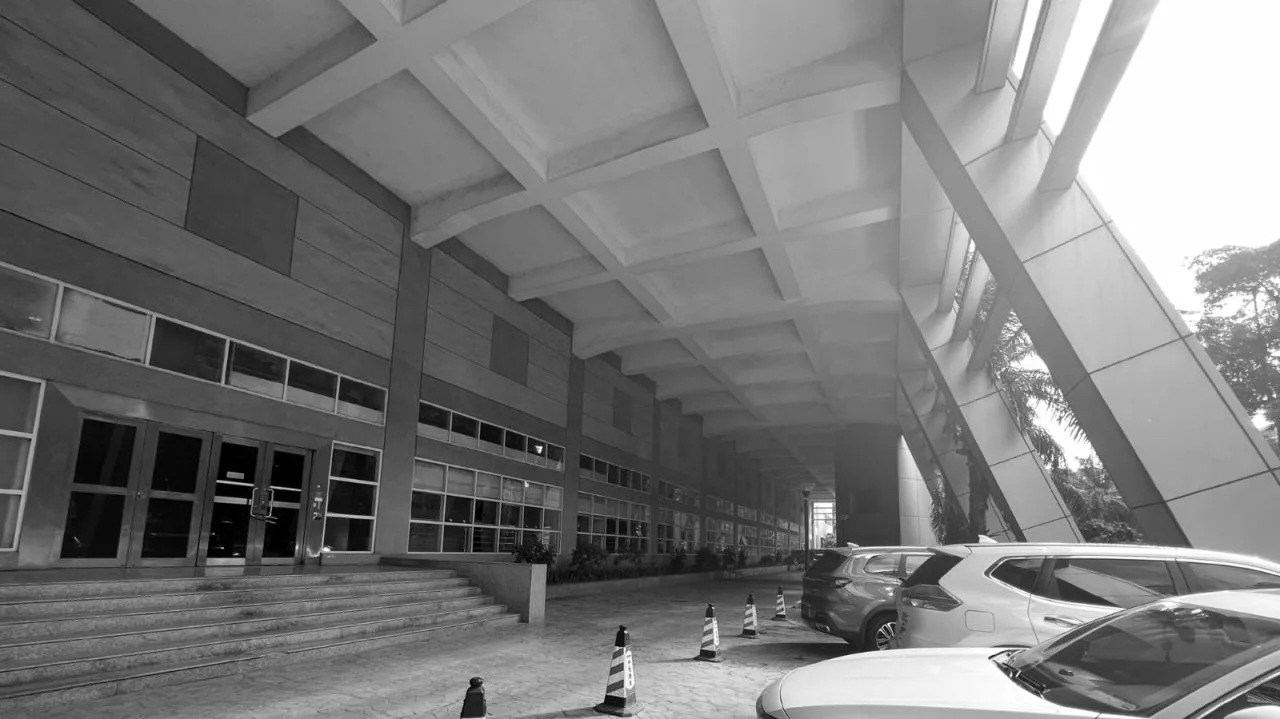

Tall trees on the southern edge of the site nearly obscure the building’s south facade, yet they hold significant ecological value. We opened up the southern area of the building, combining it with these mature trees to create a south-facing square park. The original architectural language of the south facade is preserved, with intelligent sunshade louvers added to reduce direct sunlight.

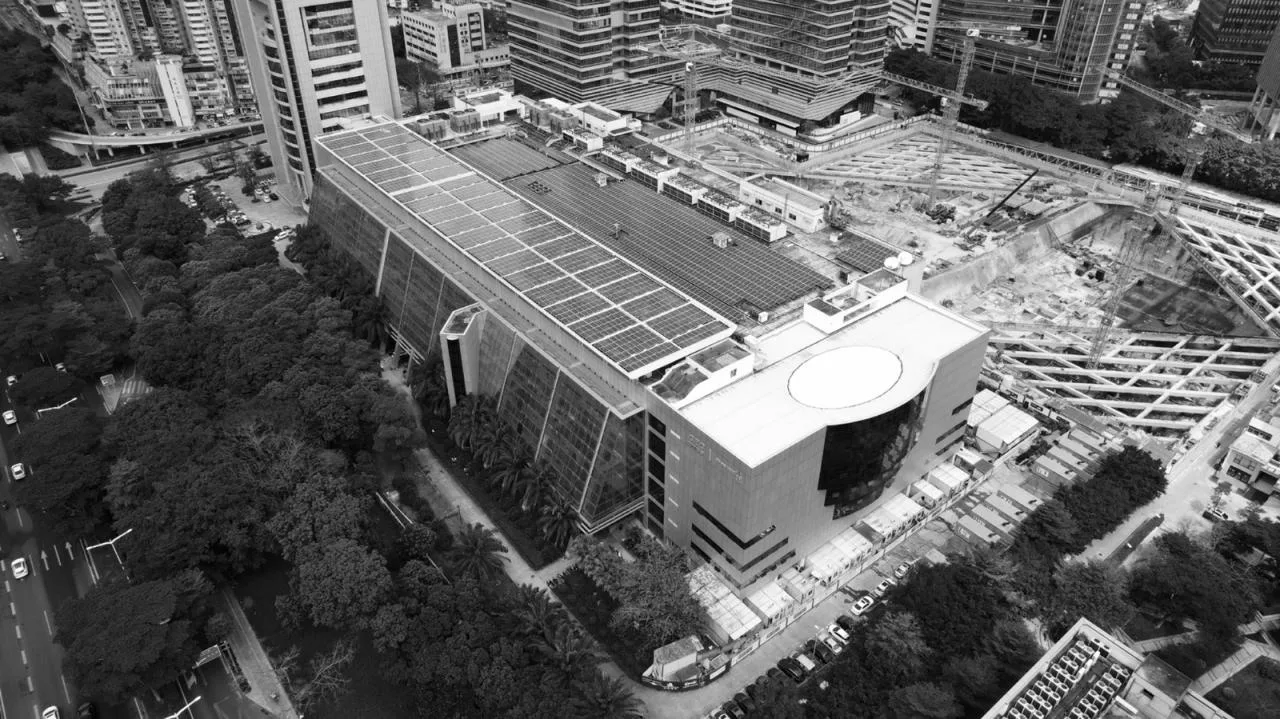

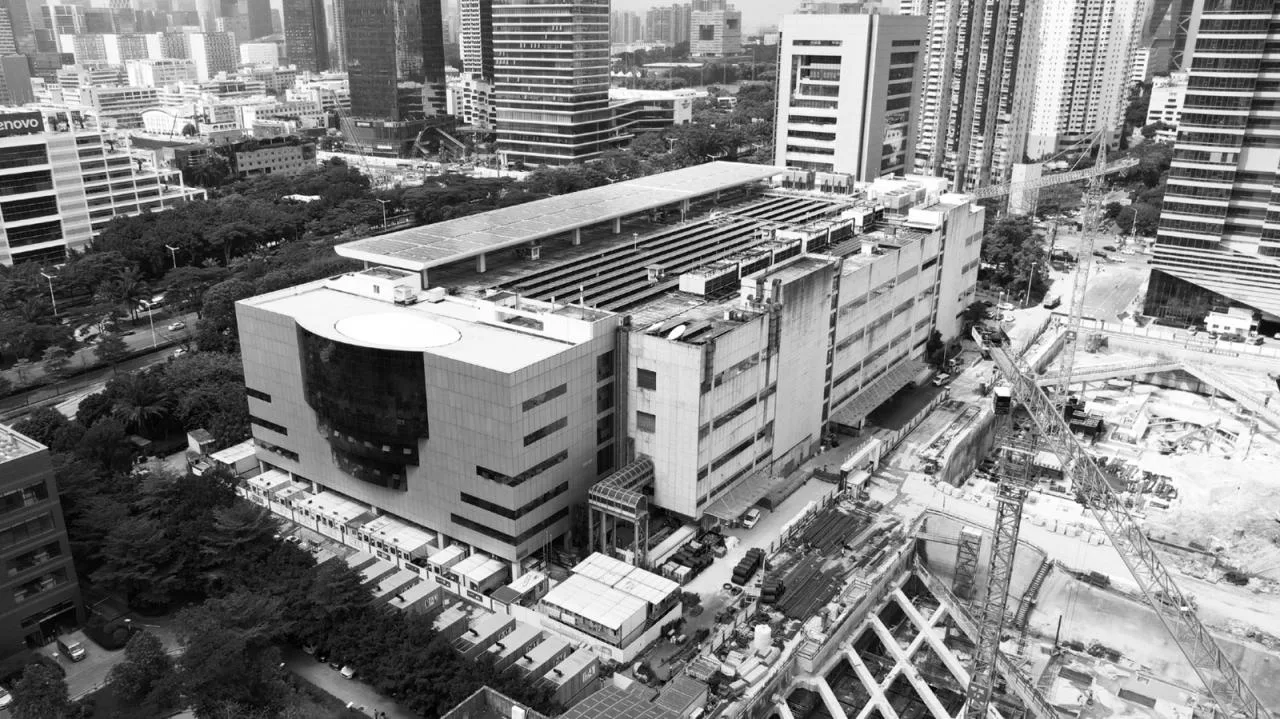

Bird’s-eye view comparison before and after renovation

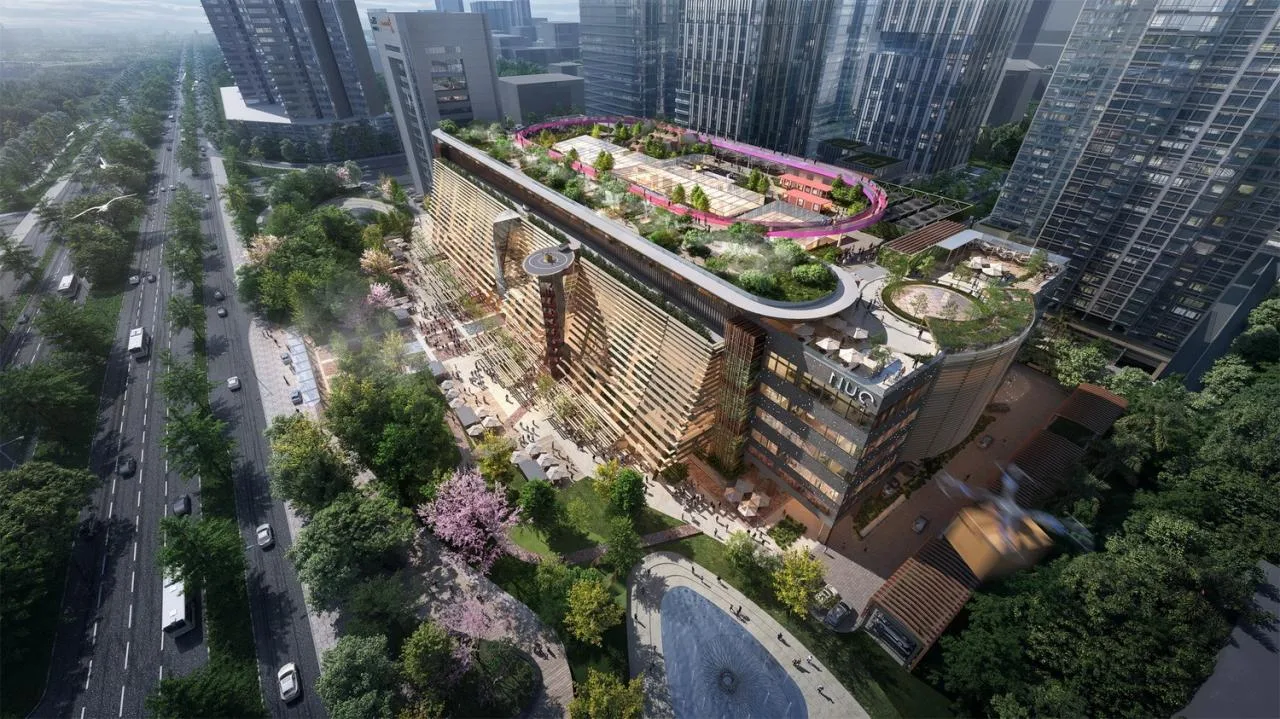

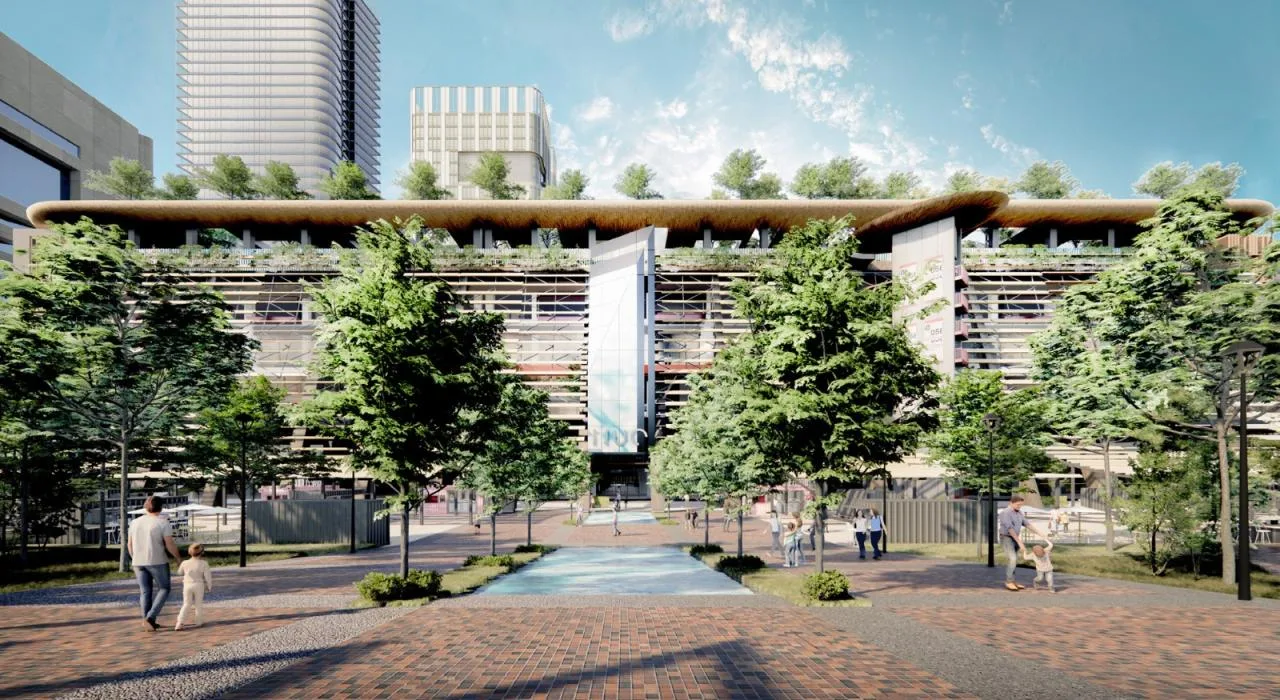

△ Rendering of the South Square after Renovation

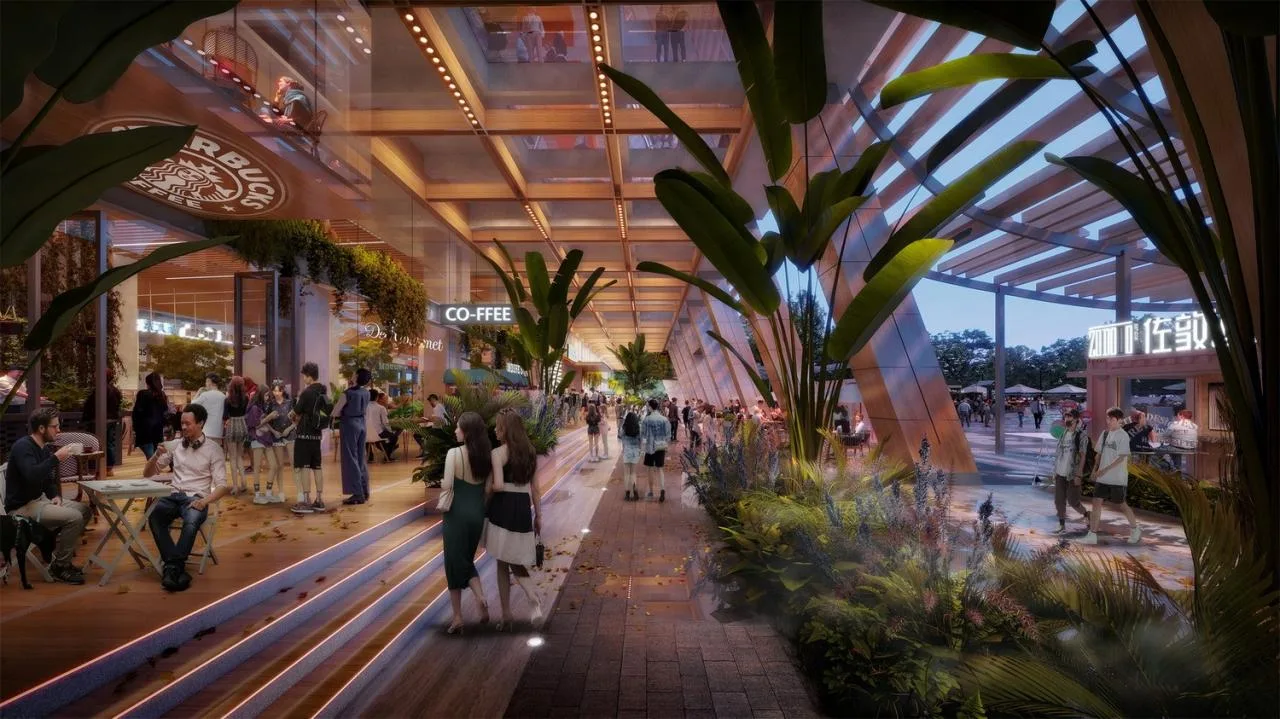

At the south main entrance, elevated outdoor spaces house numerous displays, creating a lively commercial block that complements the square park. This setup attracts external visitors and guides them into the interior, while fostering a social atmosphere full of life.
△ Bringing Greenery from the South Square Indoors

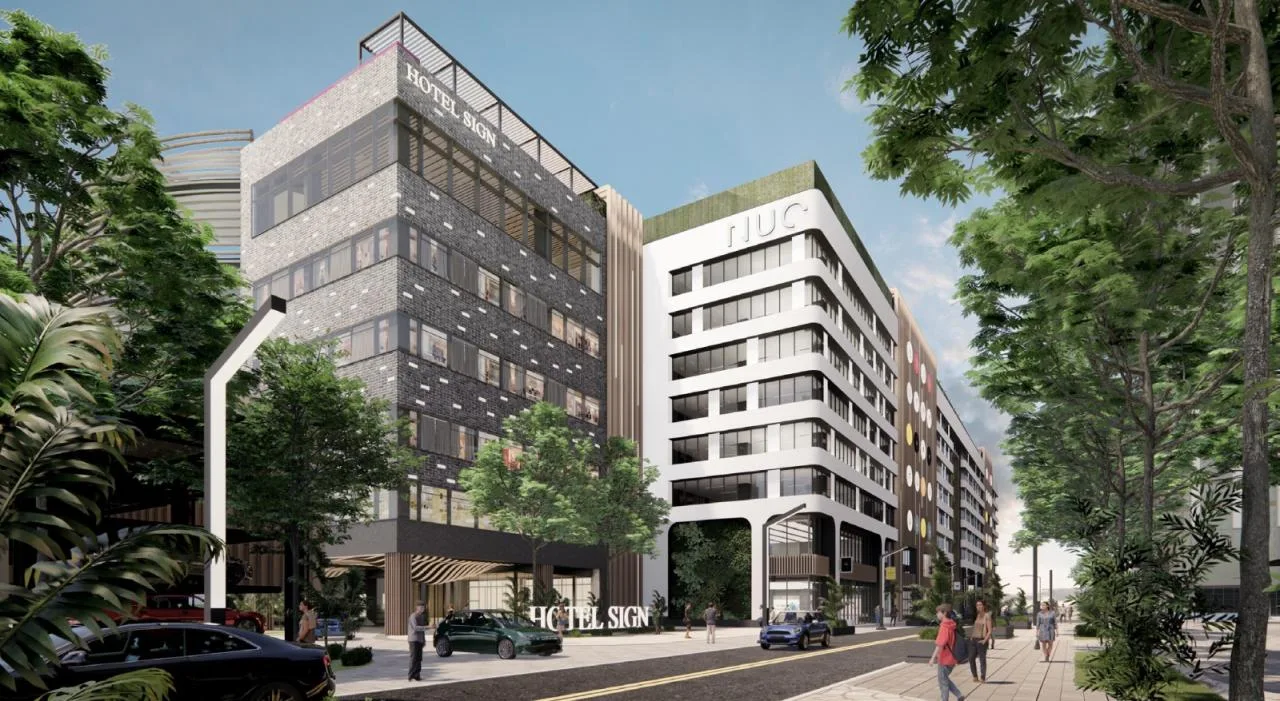

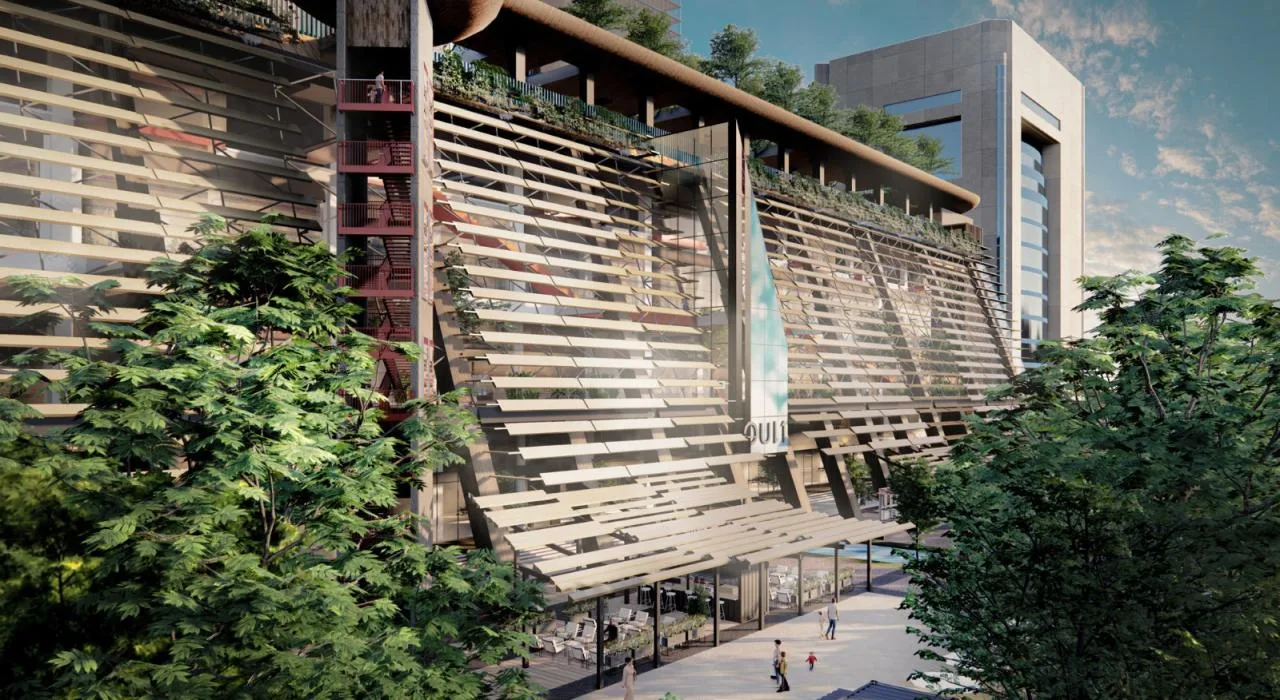

△ South Facade Rendering After Renovation
△ Rendering of the Outdoor Swing Area at the South Entrance Post-Renovation
Indoor Oasis

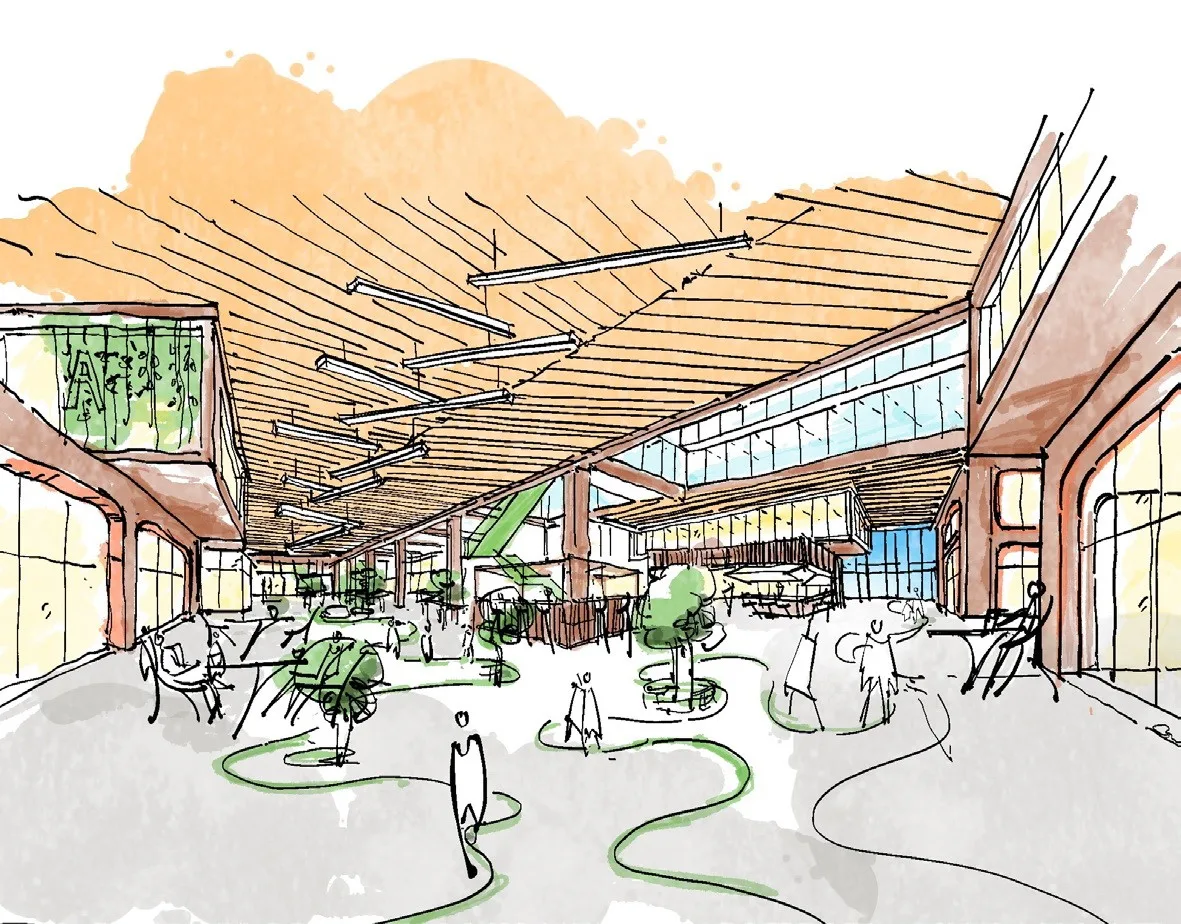

The original building’s high ceilings and expansive spans naturally lend themselves to creating an indoor oasis. Through careful spatial planning and design, we maximize the integration and interaction of lush greenery throughout the interior.
Inspired by the concept of Central Park as an open city space for relaxation, entertainment, and social interaction, we created a 9-meter-high indoor rainforest covering nearly 4,000 square meters. Surrounding this indoor park, the commercial spaces on the first floor feature flexible layouts and are lined with abundant greenery.

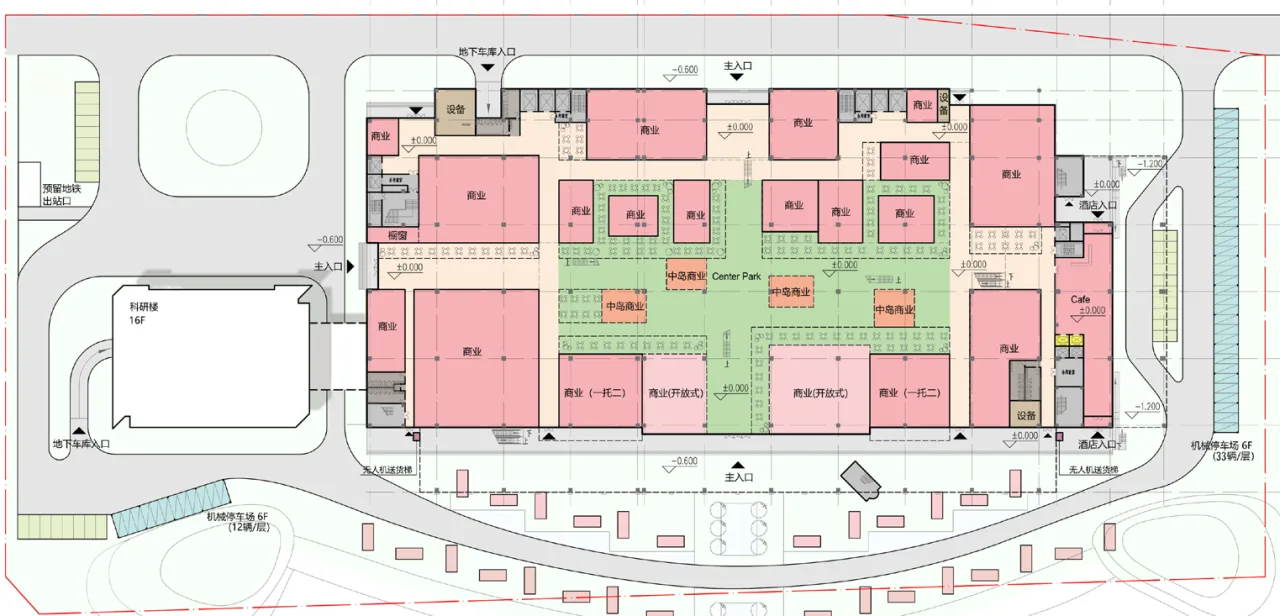

△ Hand-drawn Map of Central Park Commercial Area After Renovation

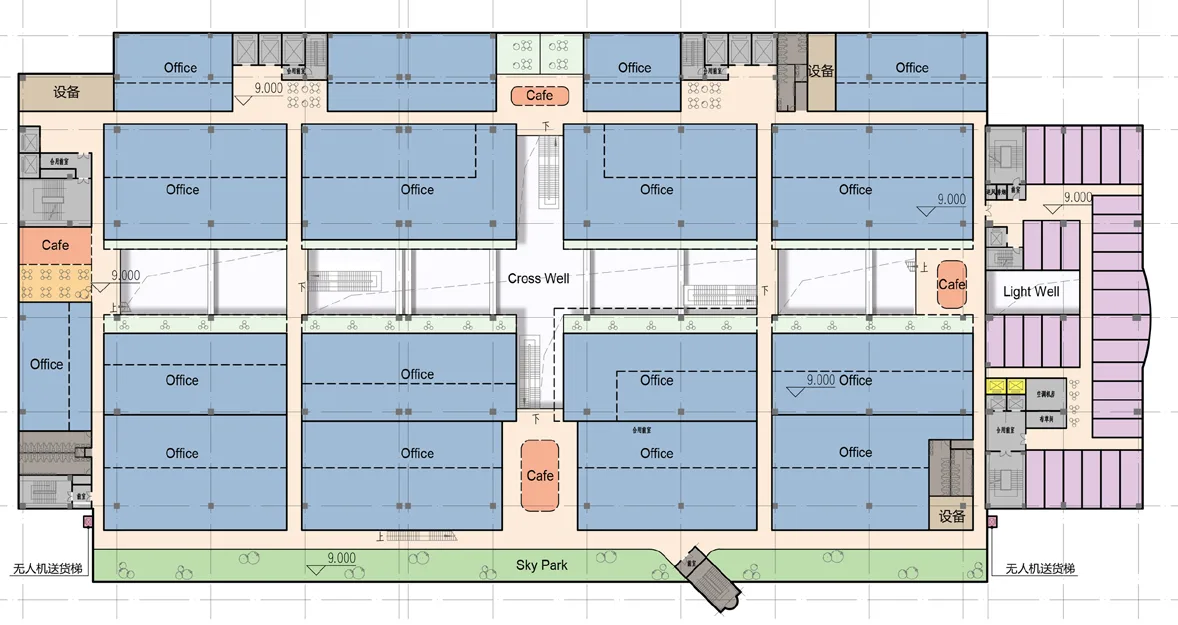

Cross Well is a key design element positioned at the center of the office area. It features a narrow, cross-shaped courtyard that provides ample natural light and ventilation. A dedicated terrace encircles the office spaces adjacent to the atrium, introducing vertical greenery to the environment.

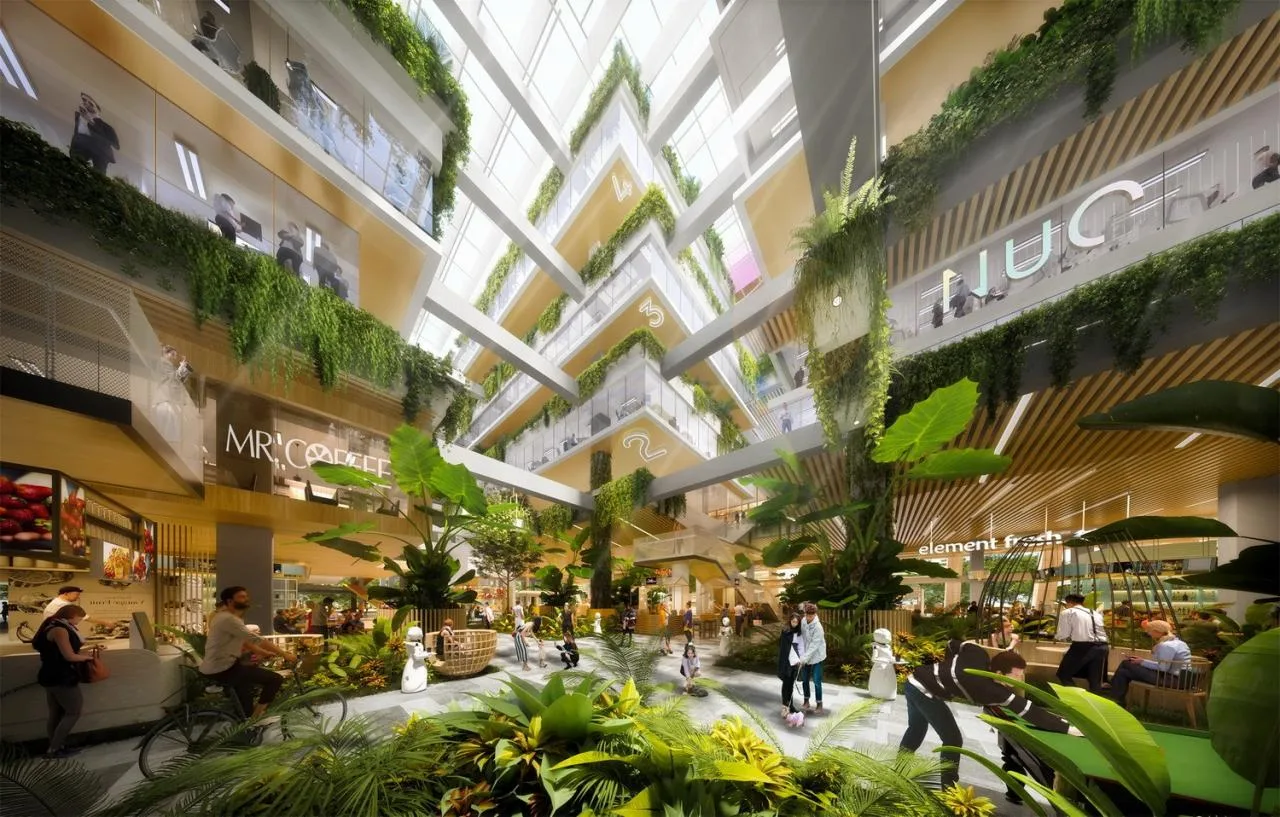

△ Rendering of the Renovated Atrium
Small courtyards at the east and west ends of the Cross Well create a distinctive environment. Vertical staircases efficiently connect office areas with commercial platforms on the mezzanine level. Variously sized box-shaped spaces protrude toward the atrium, enriching the façade’s texture.

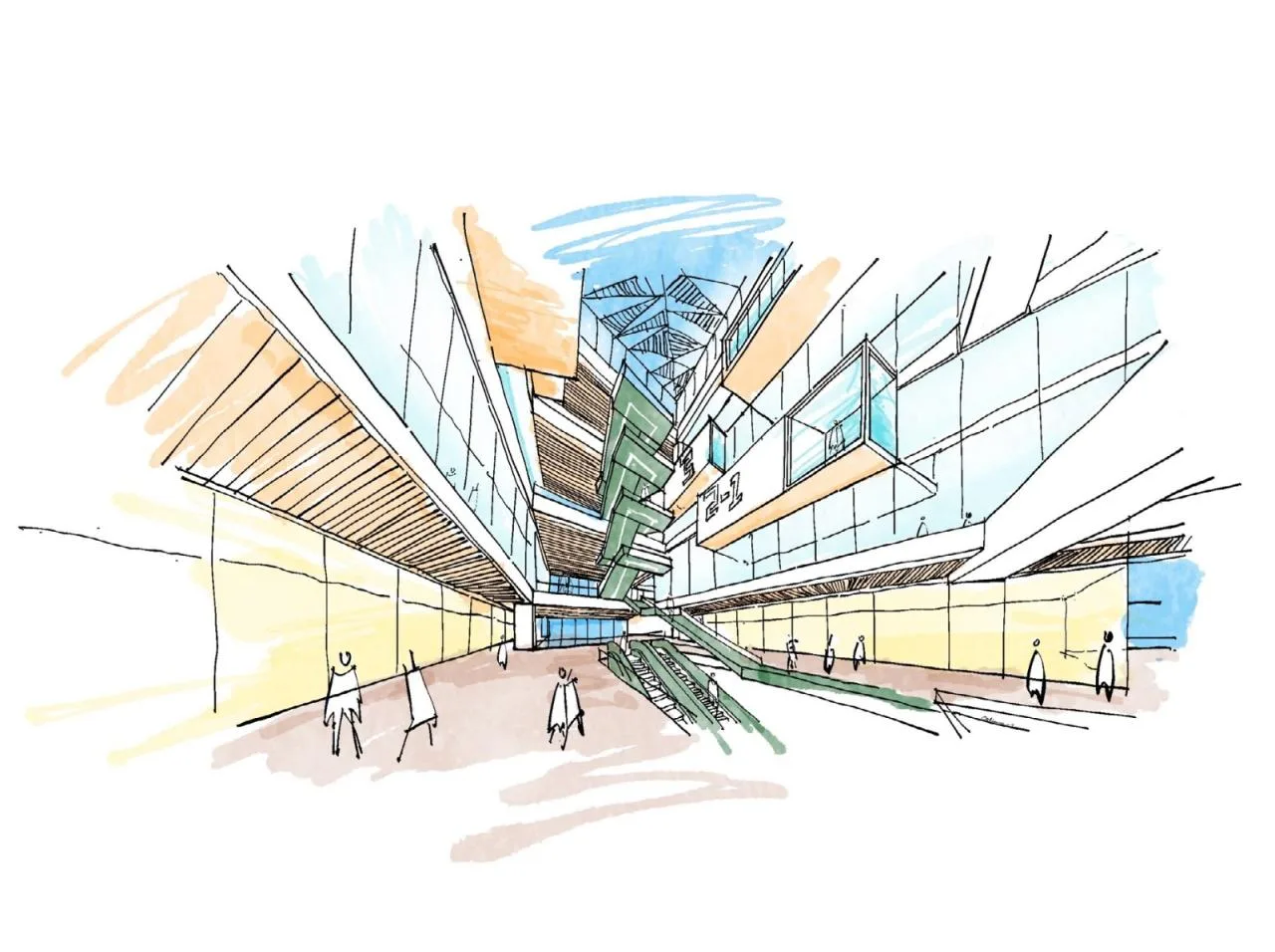

△ Hand-drawn Drawing of the Atrium Ends of the Cross Well After Renovation
Rooftop Garden

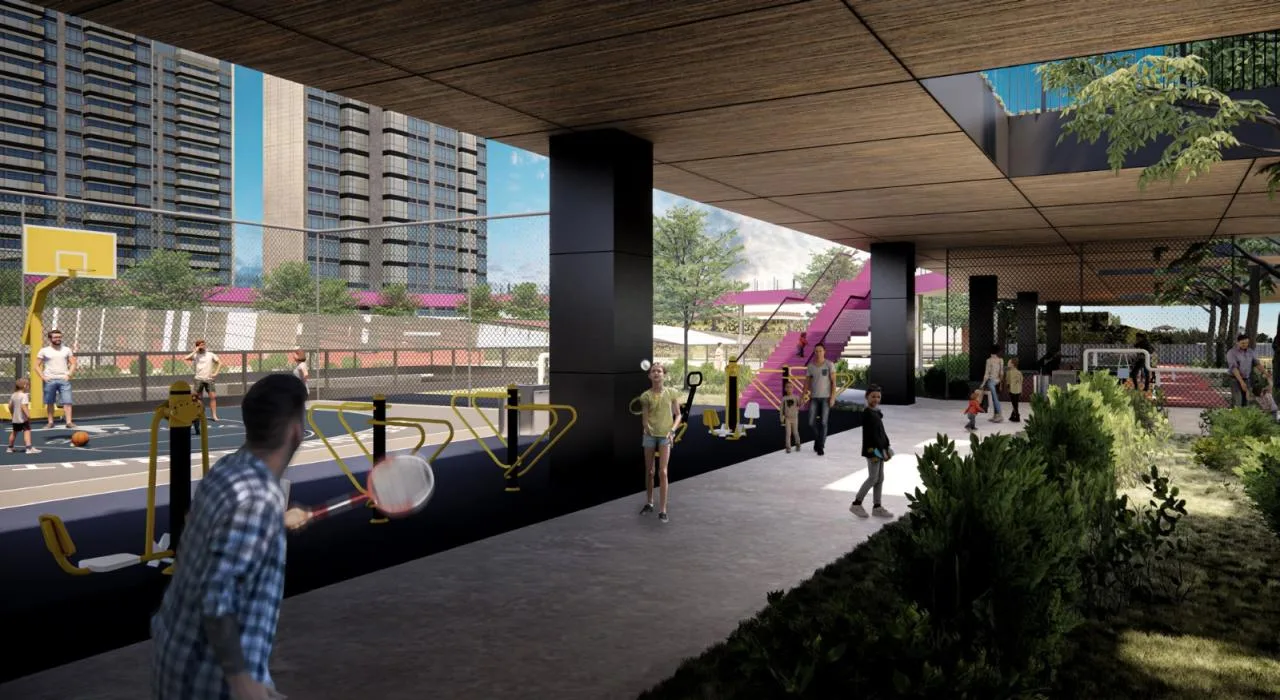

The rooftop garden serves as a sports-focused park that retains existing solar panels and features a new circular track built on the current structure. It also includes sports amenities such as basketball courts and swimming pools, creating an elevated sports plaza that complements the indoor park and entrance square. This rooftop space is open to the entire community, enhancing the development’s vitality.

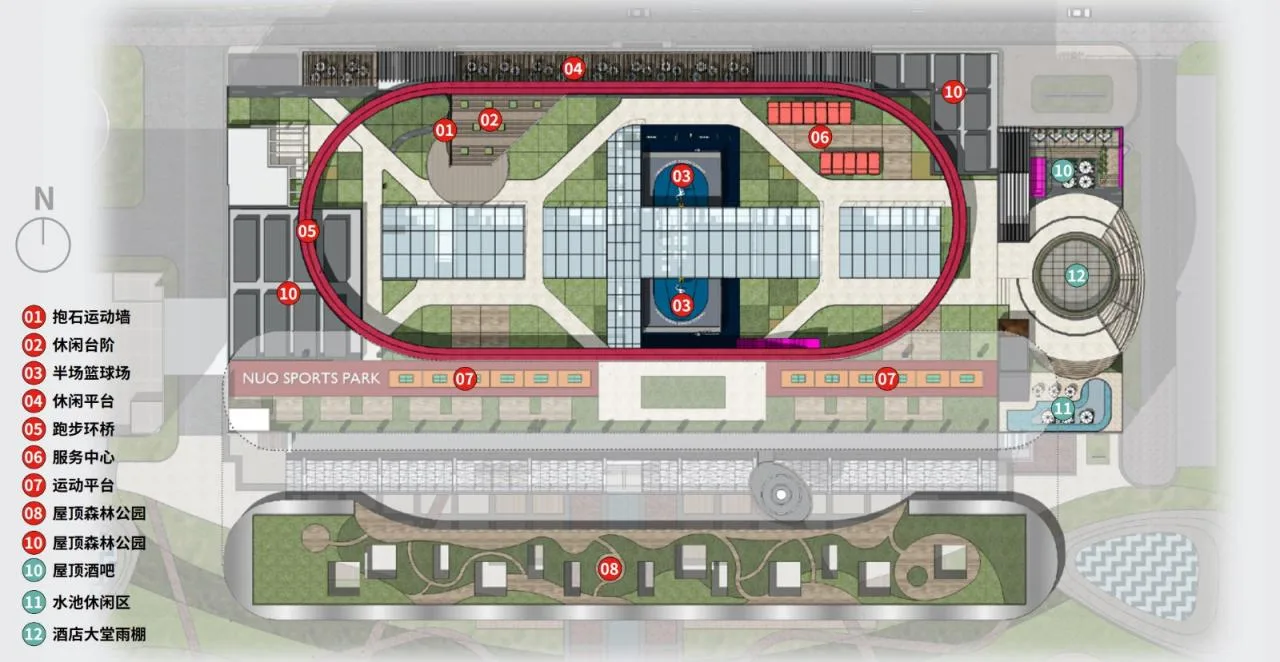

△ Plan of the Renovated Roof

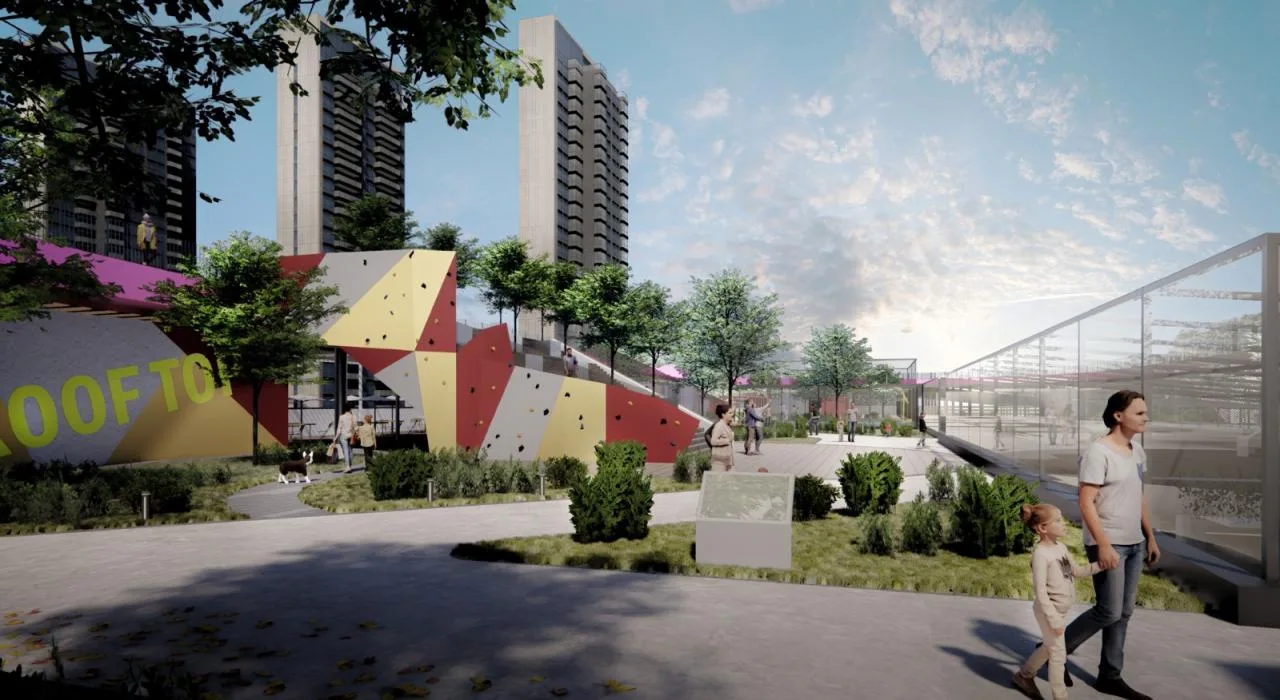

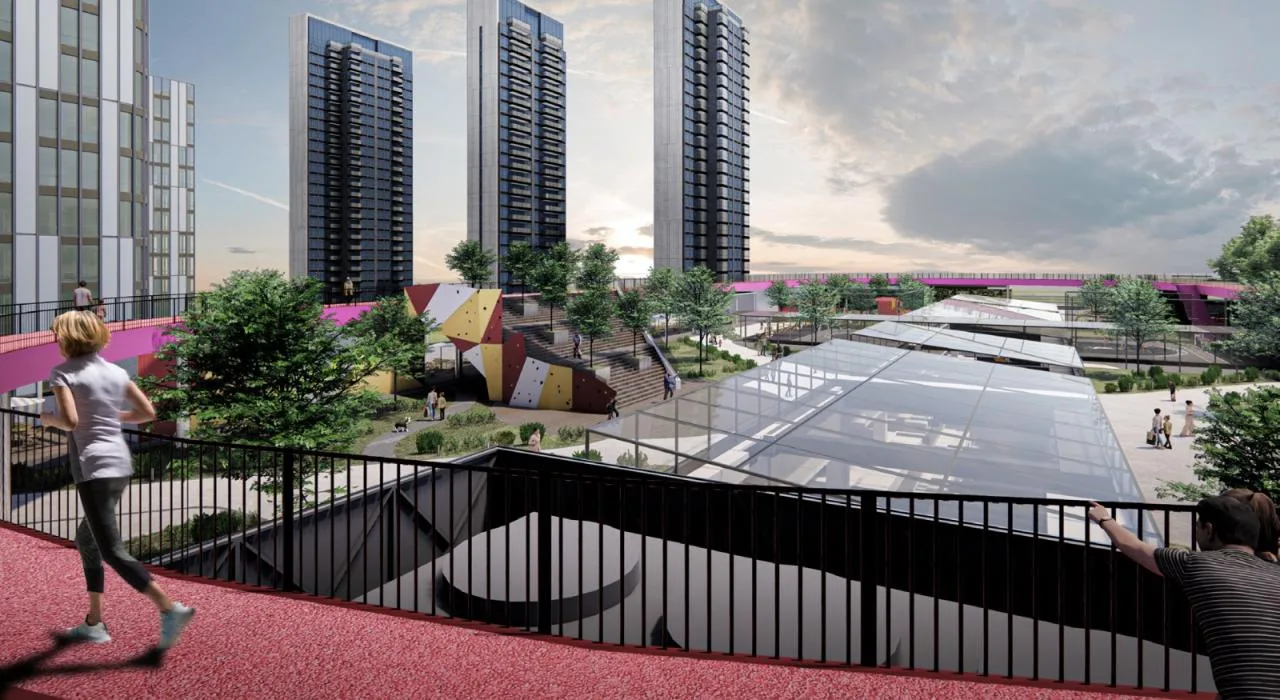

△ Rooftop Sports Park Rendering 1
△ Rooftop Sports Park Rendering 2
△ Rooftop Sports Park Rendering 3
04 Sustainable Design
Shenzhen’s tropical monsoon climate informs the sustainable design strategies implemented here. The factory-style space features a 30-meter-high atrium with an operable skylight. Environmentally friendly ceiling fans enhance ventilation, promoting natural cooling. Intelligent sunshade louvers on the south facade and the skylight reduce harsh sunlight and indoor temperatures, lowering energy consumption.

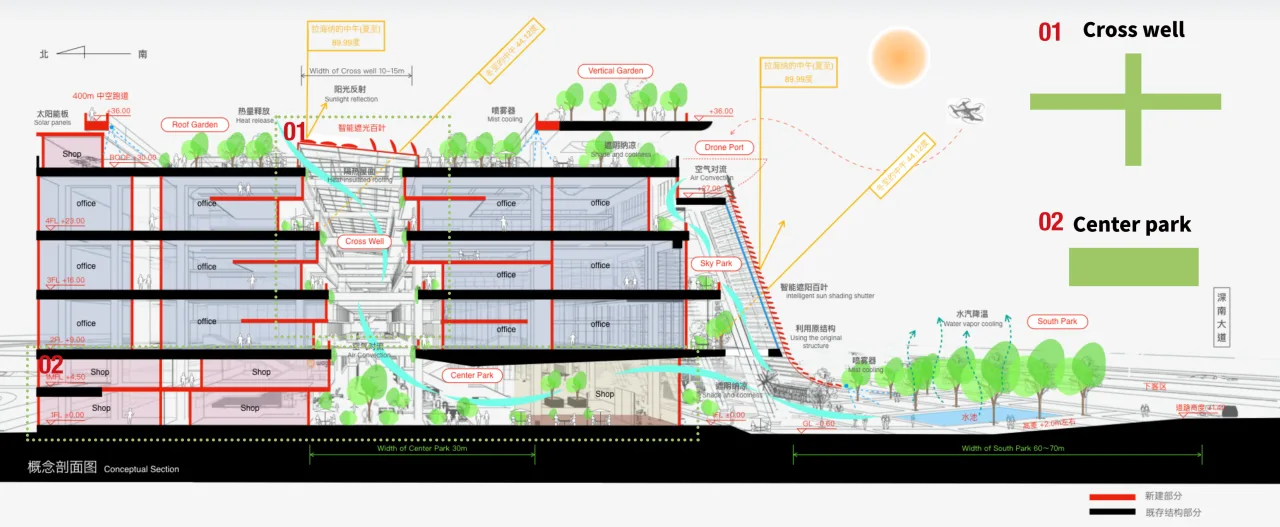

△ Sustainability Transformation Analysis Diagram
Using locally adaptable, low-maintenance plants reduces upkeep costs. Incorporating oxygen-producing plants that are active at night helps lower indoor carbon dioxide levels. Water features on the south square generate vapor that rises, creating gentle air circulation and a microclimate within the building to enhance natural ventilation.

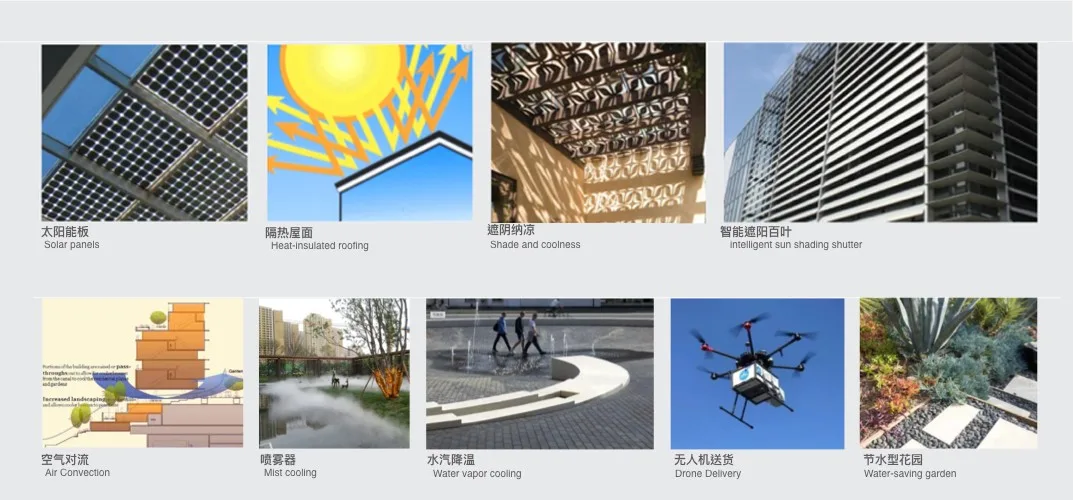

△ Sustainable Transformation Measures
As China’s youngest first-tier city with a robust economy and a modern high-tech industrial chain, Shenzhen supports innovative and sustainable regeneration. The renovation of the Great Wall Building in Nanshan Science and Technology Park embraces forward-thinking design principles and sustainability. The introduction of an indoor park allows occupants to alternate between focus and relaxation, alleviating stress common in traditional office environments. This improves office space quality and appeal while providing comprehensive cultural and recreational functions, thereby enhancing overall park service support.

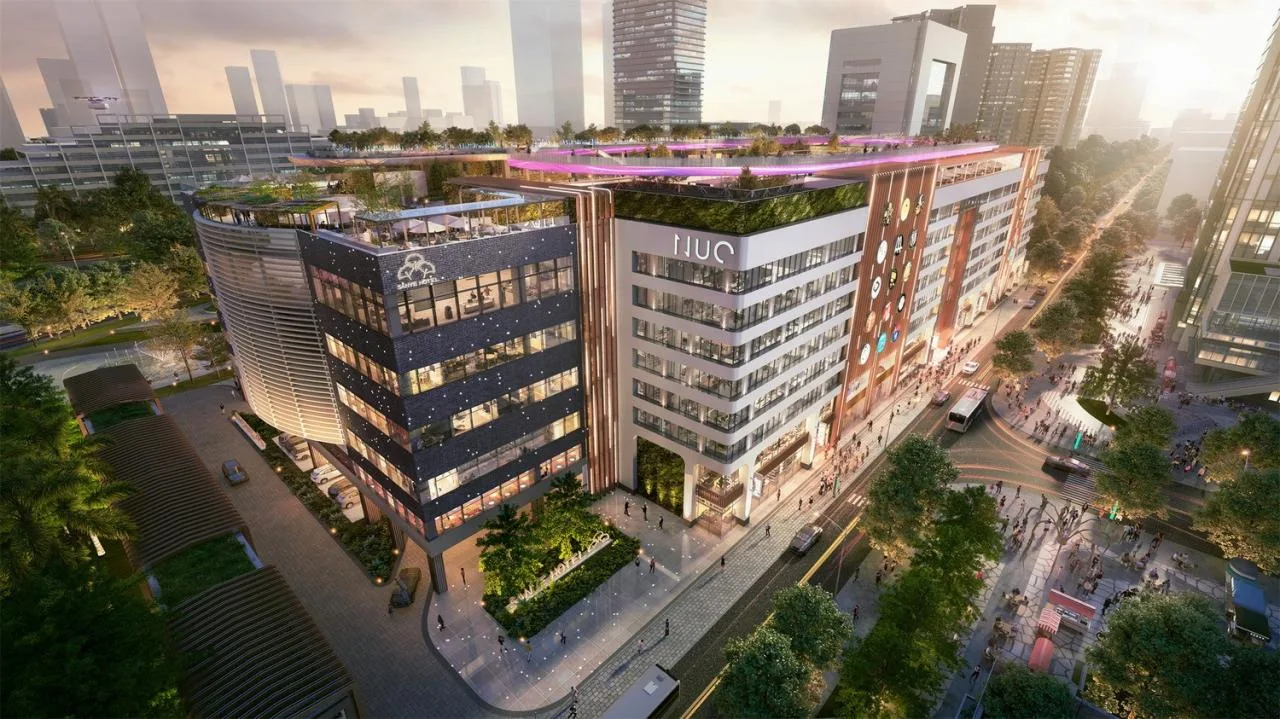

△ North Elevation Rendering After Renovation
Project Information
Project Name: Renovation of Great Wall Building in Nanshan Science and Technology Park, Shenzhen
Project Type: Architecture / Landscape / Indoor Public Area
Project Location: Shenzhen
Business Planning: CCD Shanghai Dihui Real Estate Consulting Co., Ltd
Design Firm: COLORFULL Yujing Design
Lead Architects: Zhao Zongyang, Ryosuke Ono
Design Team: Chuan Hefeng, Zhu Xiaokun, Zhang Fanxing, Qiu Siming
Status: Conceptual Design
Design Period: 2022
Building Area: 60,545 square meters
