This tutorial demonstrates how to use the Simlab Composer plugin to export Revit models as 3D PDFs. Based on practical testing, the conversion process is highly efficient. When viewing the PDF, there is minimal lag for small to medium-sized projects.

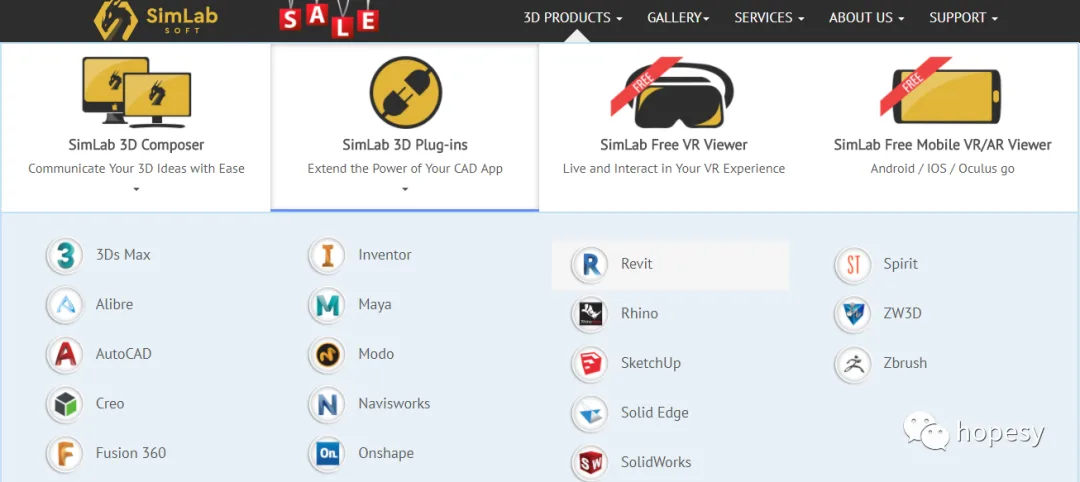

Step 1: Install the Simlab Composer plugin.

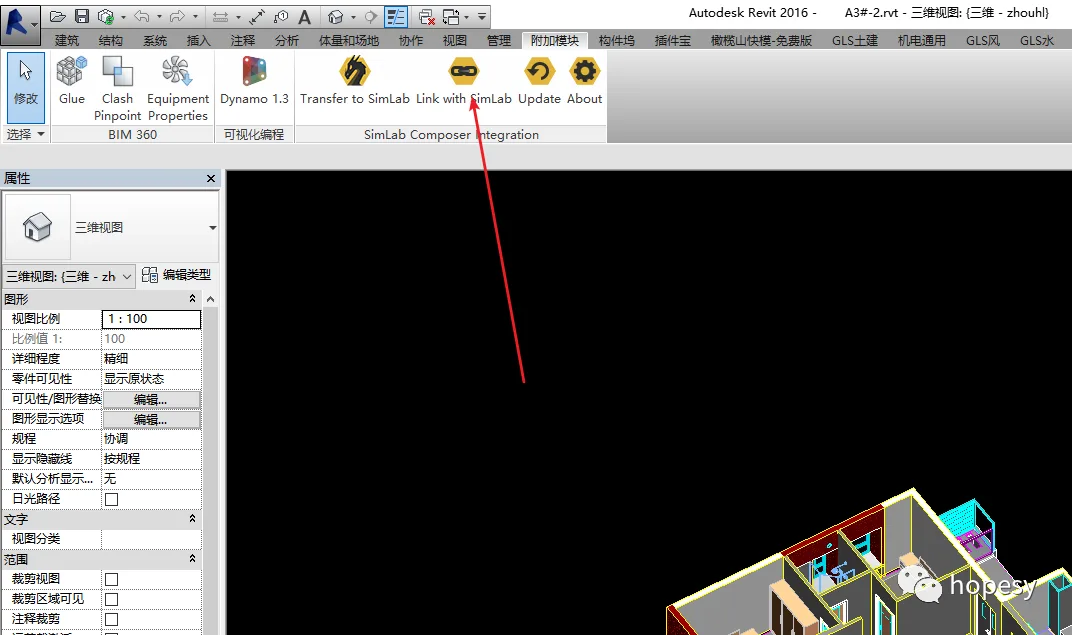

Step 2: Open your project in Revit, click on the plugin, and synchronize the model to Simlab Composer. Make sure you are in the 3D view, as the plugin will launch automatically.

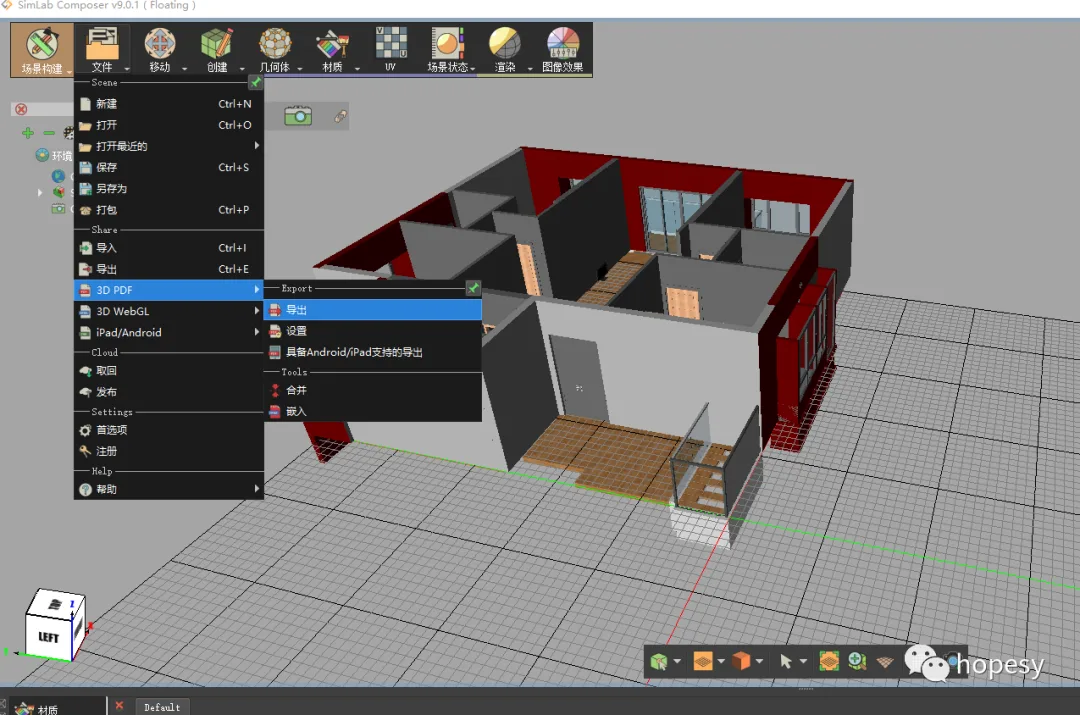

Step 3: In Simlab Composer, export the model as a 3D PDF.

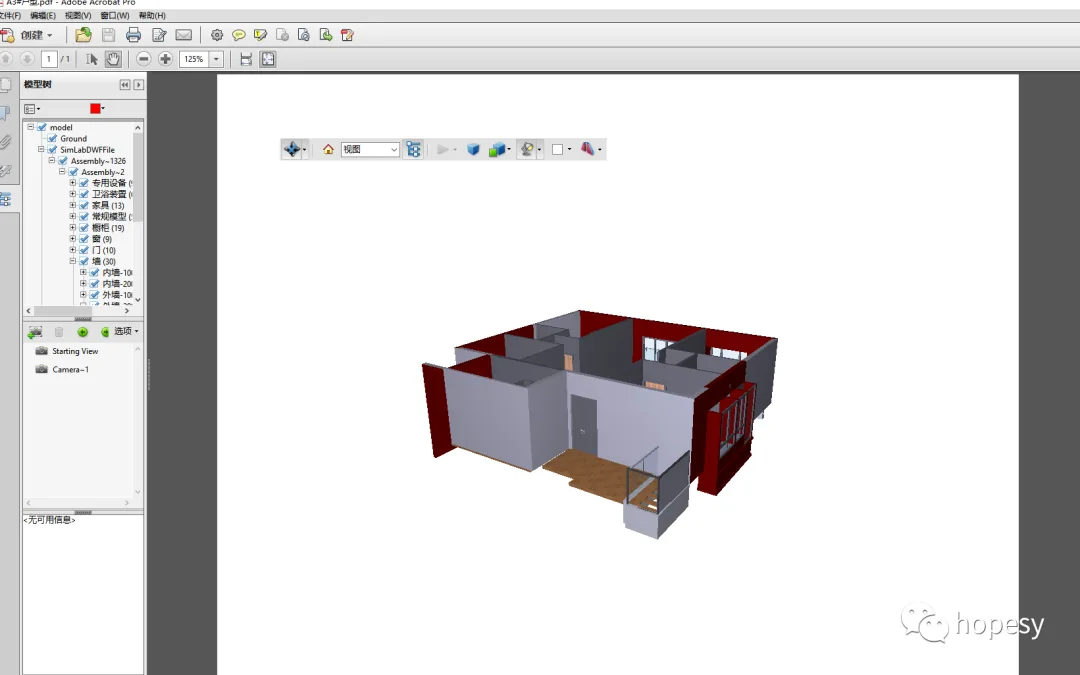

Step 4: Open and view the 3D model in Adobe Acrobat Pro.
