The Jojutla School project, designed by Alberto Kalach, was initiated as a response to the devastating 2017 earthquake in Mexico.
Following the disaster, the Alberto Kalach Architectural Firm identified numerous school building collapses. They began developing a prototype design aimed at providing a resilient and practical solution for similar future events.

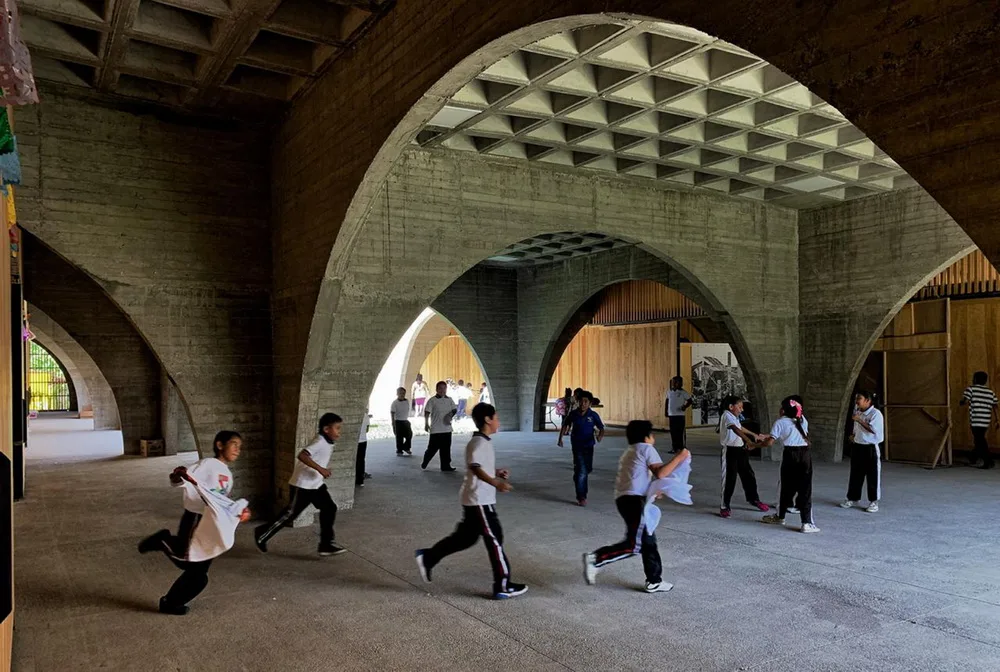

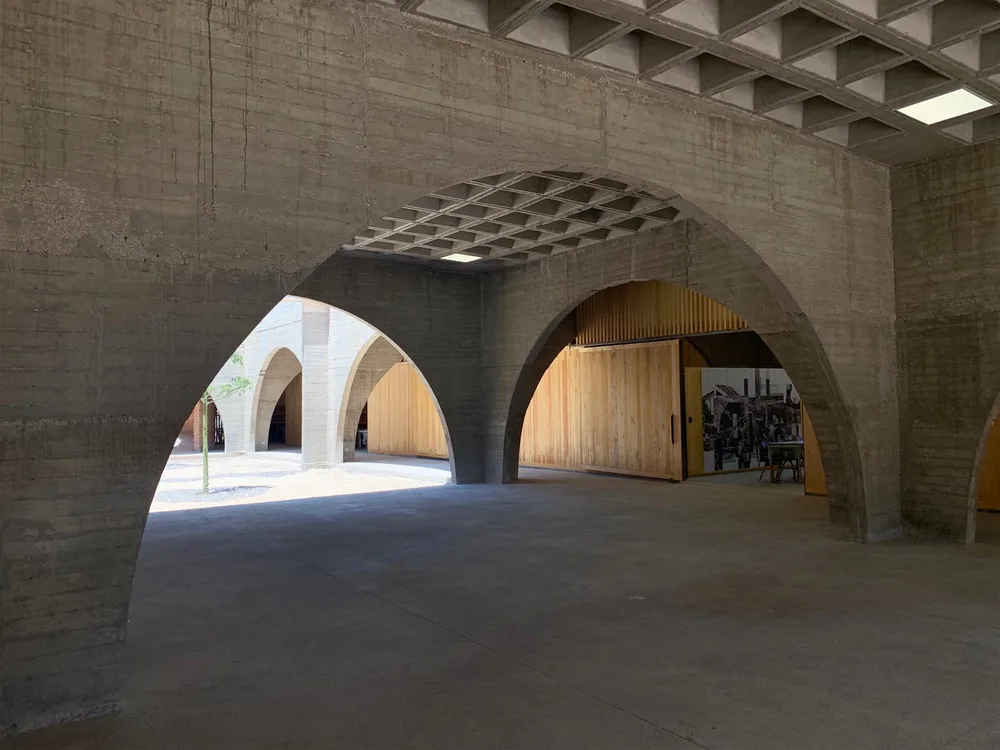

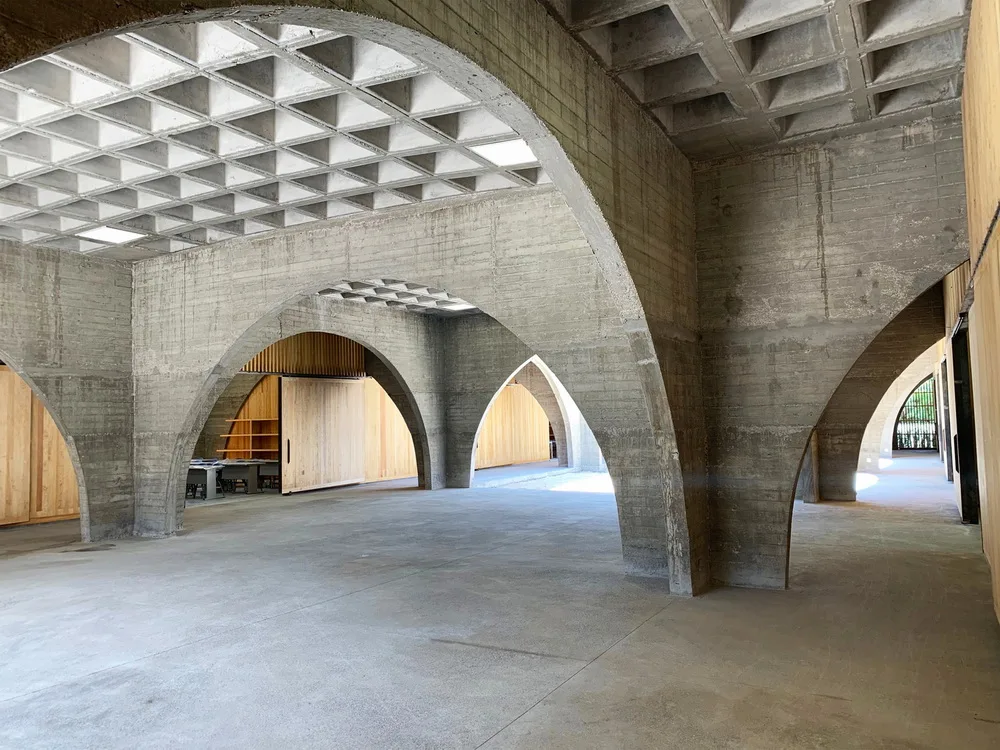

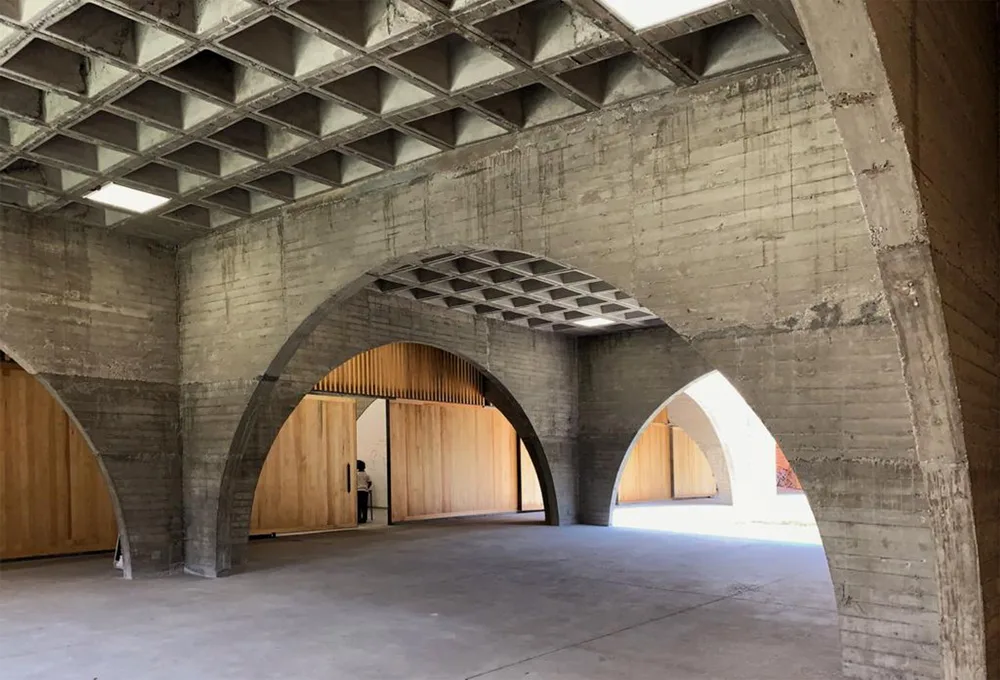

The main structural solution involves two-directional arch forms combined with concrete slabs, offering both rigidity and durability.
Concrete was chosen for its strength and practicality, making it an ideal building material. The design encourages smooth circulation, creating flexible, multi-functional spaces that accommodate diverse activities.

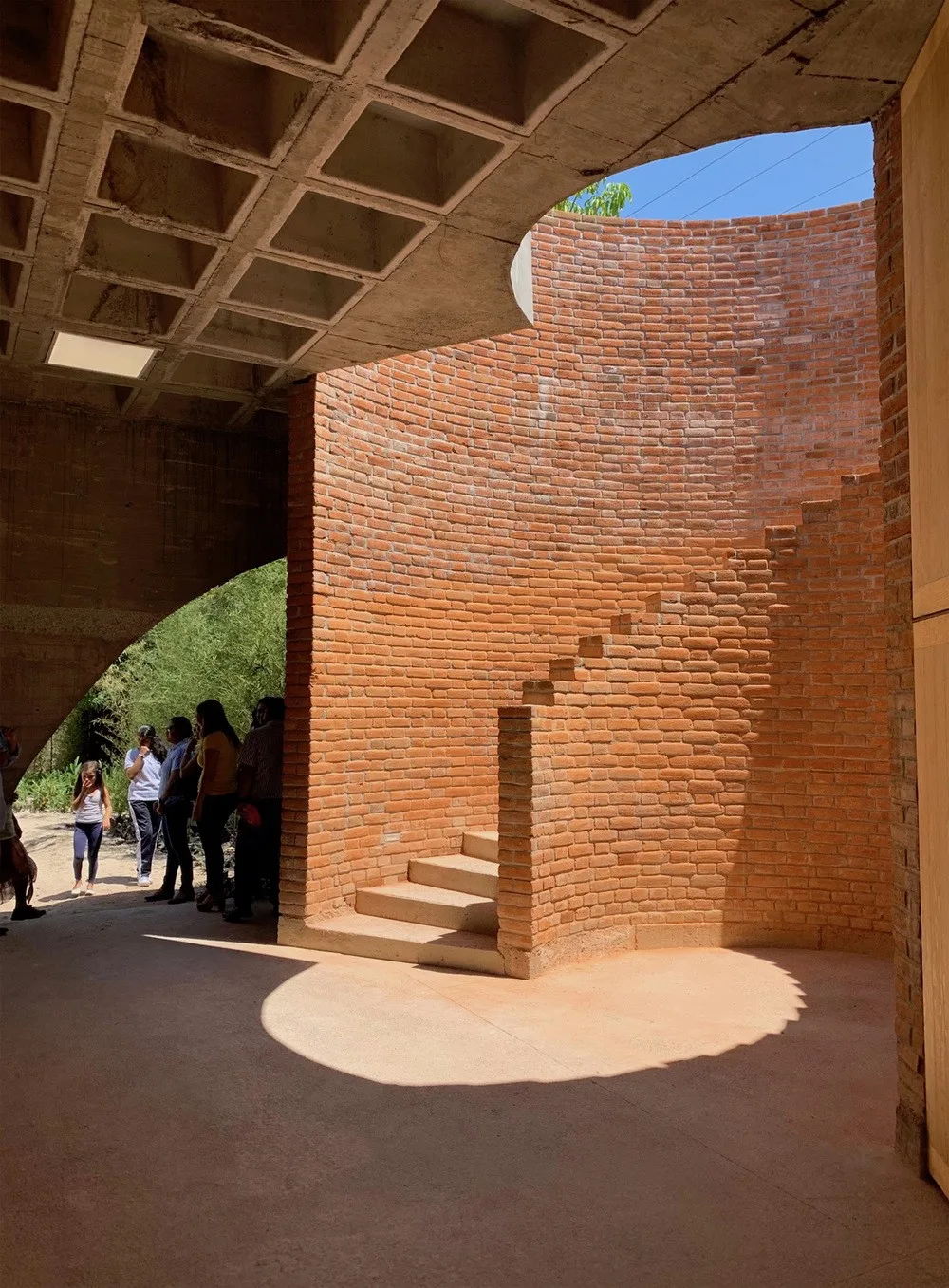

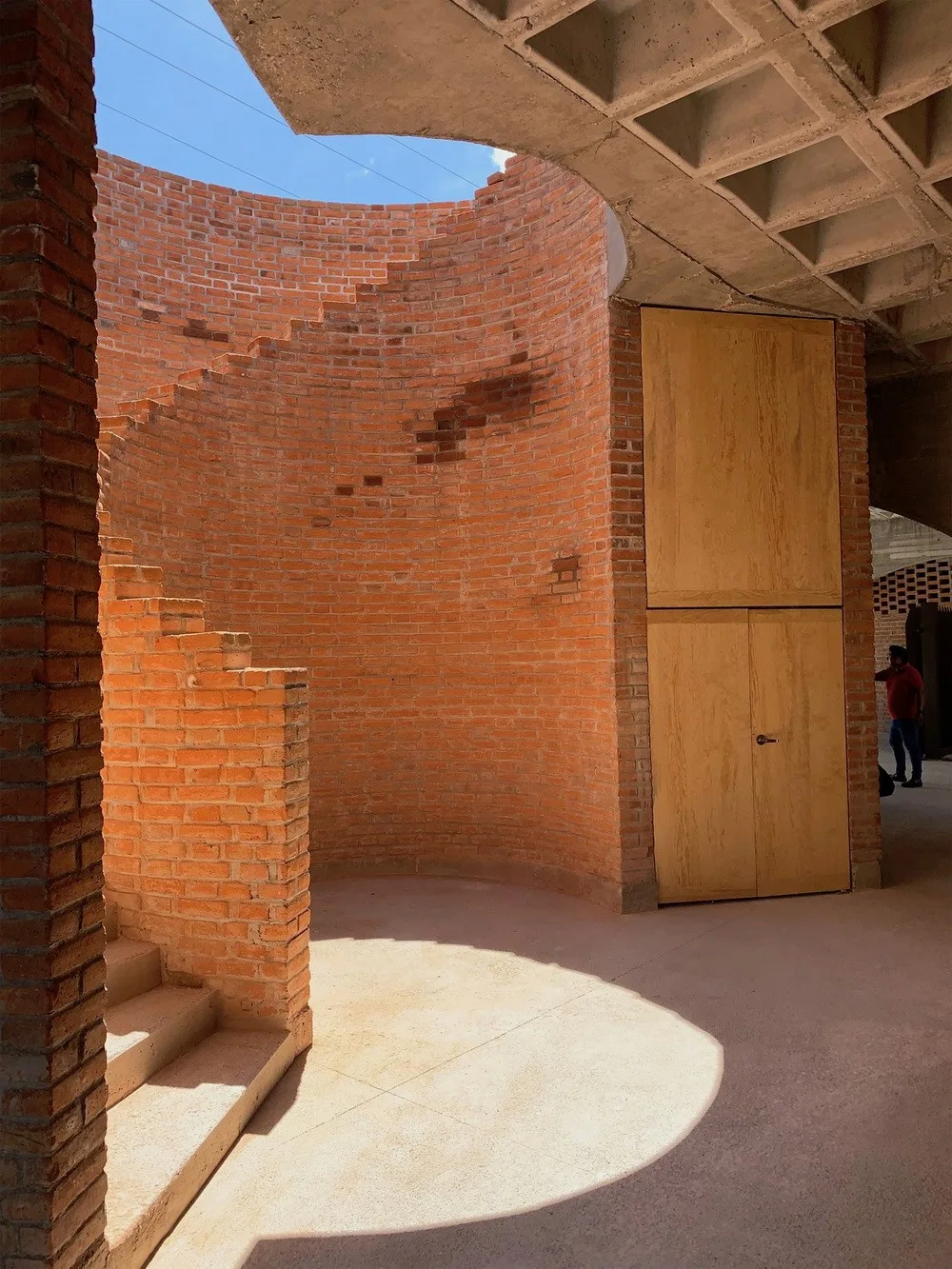

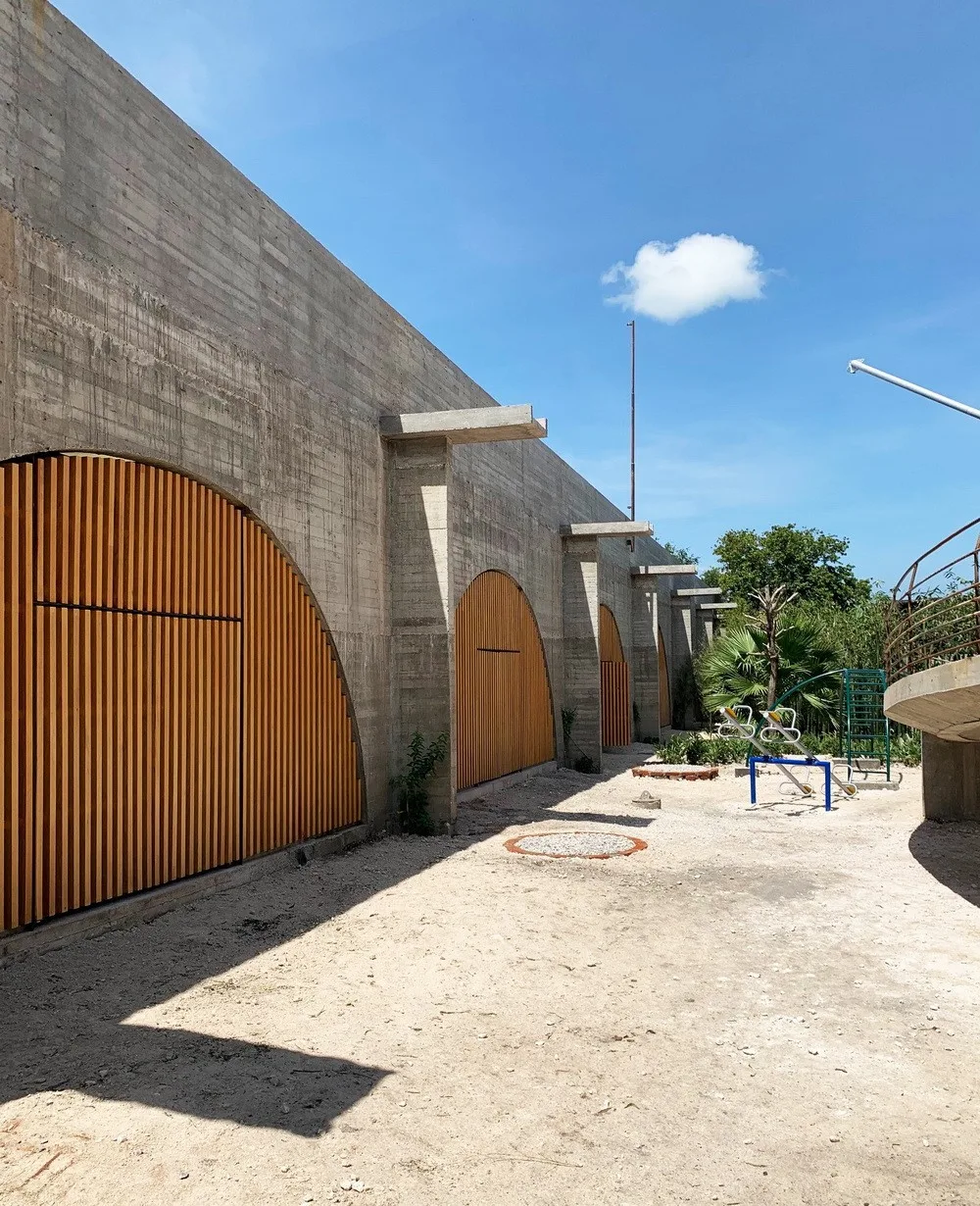

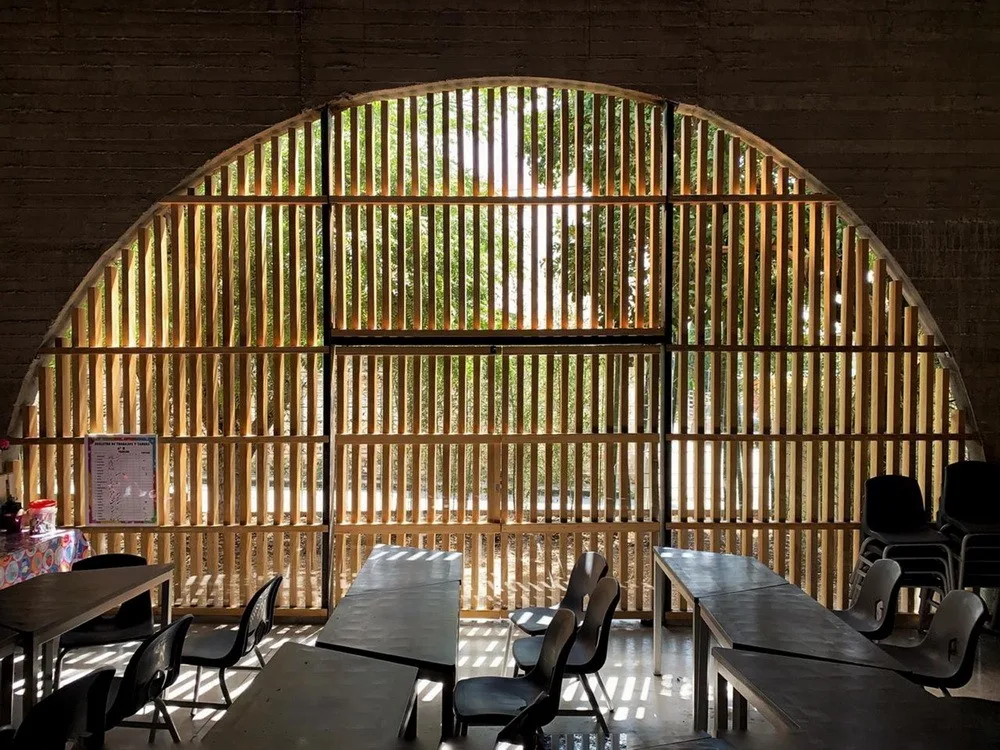

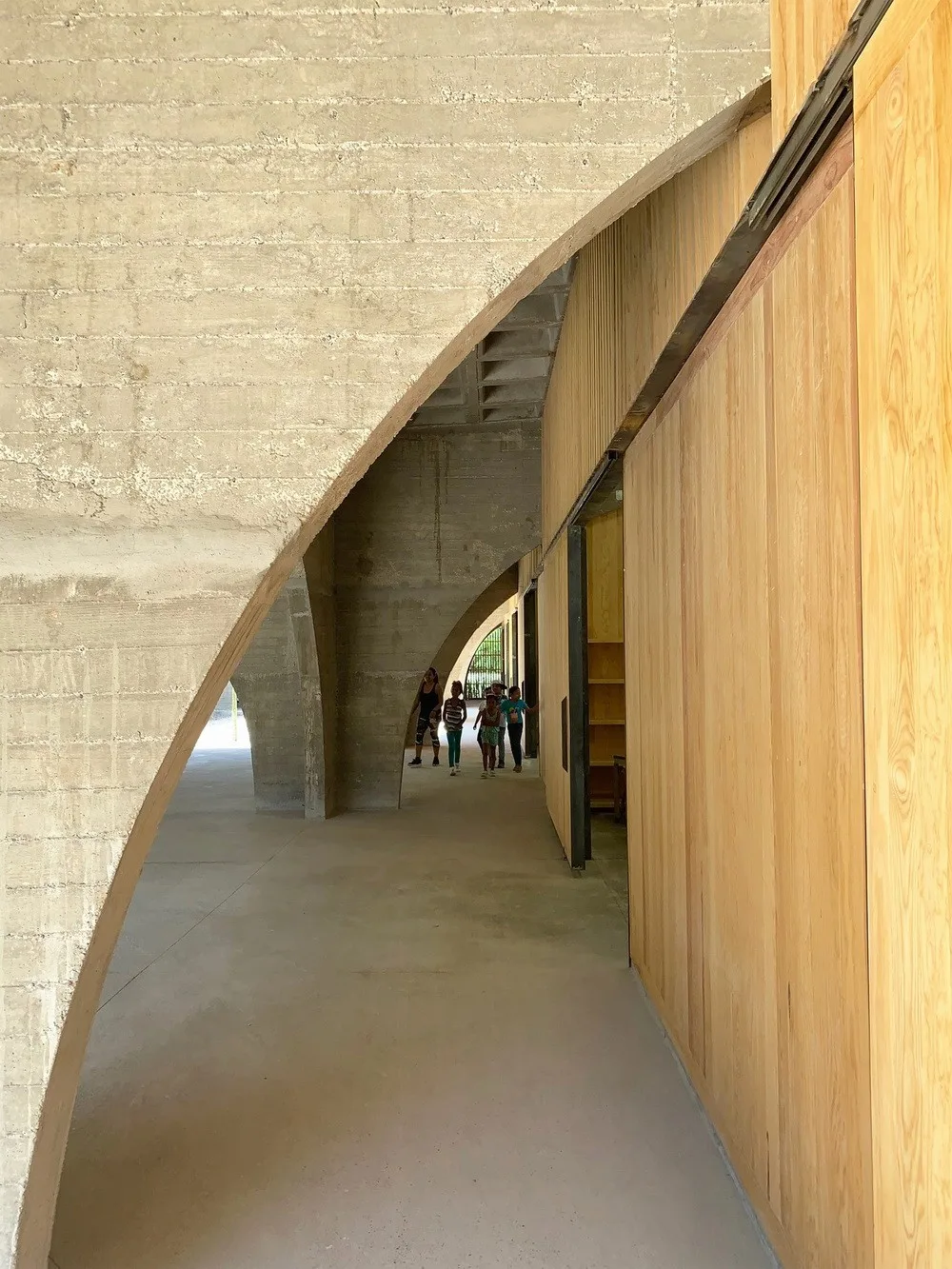

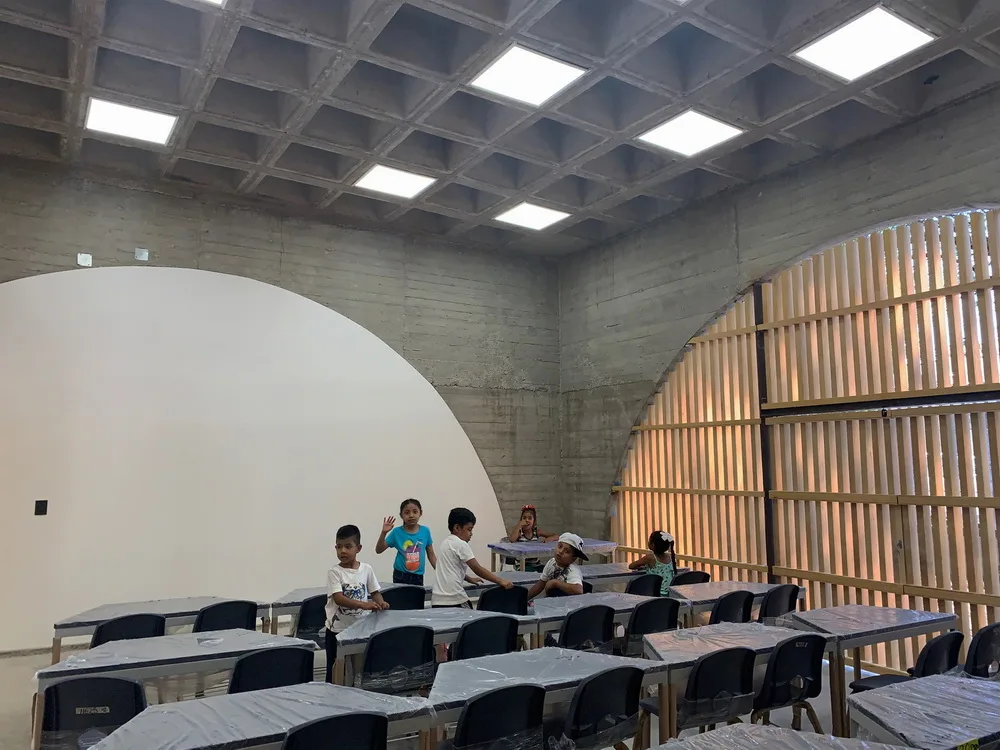

The project also integrates wooden doors, beams, and grid support systems alongside the concrete structure. The ceiling’s height and the spiral-shaped vertical flow lines facilitate a cross-ventilation system, enhancing natural airflow that benefits both occupants and the environment.
The overall layout consists of 13 classrooms, a cafeteria, and an office area.

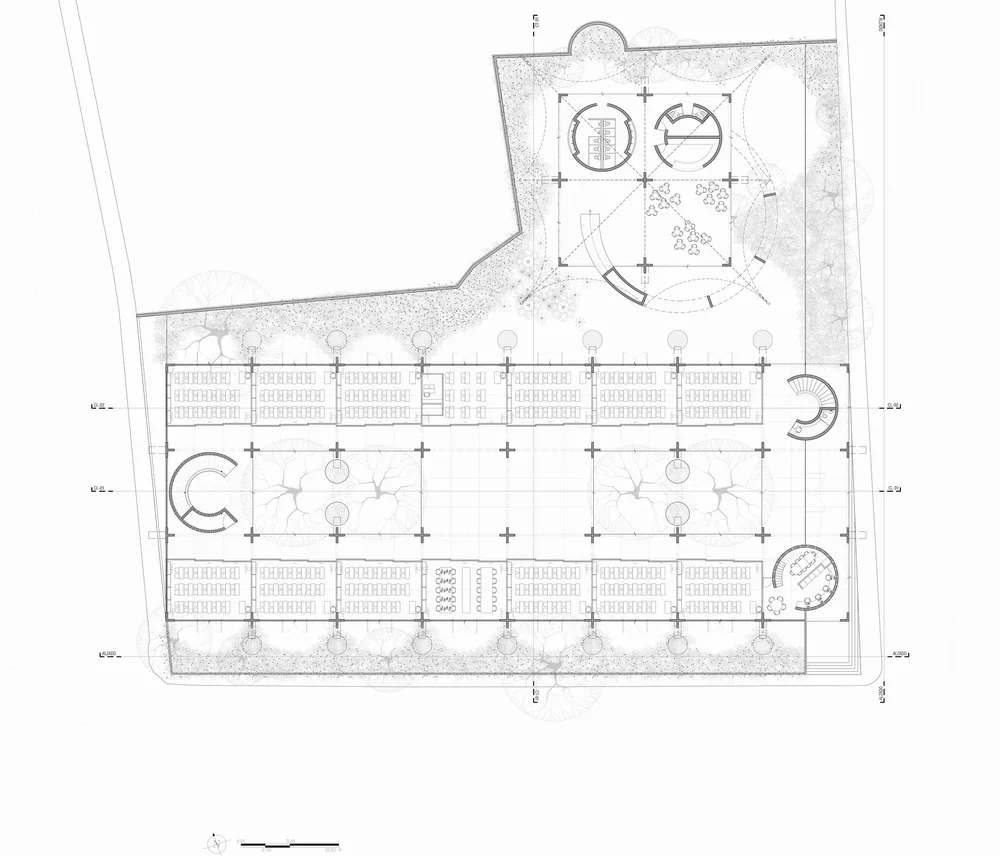

△ First-floor plan

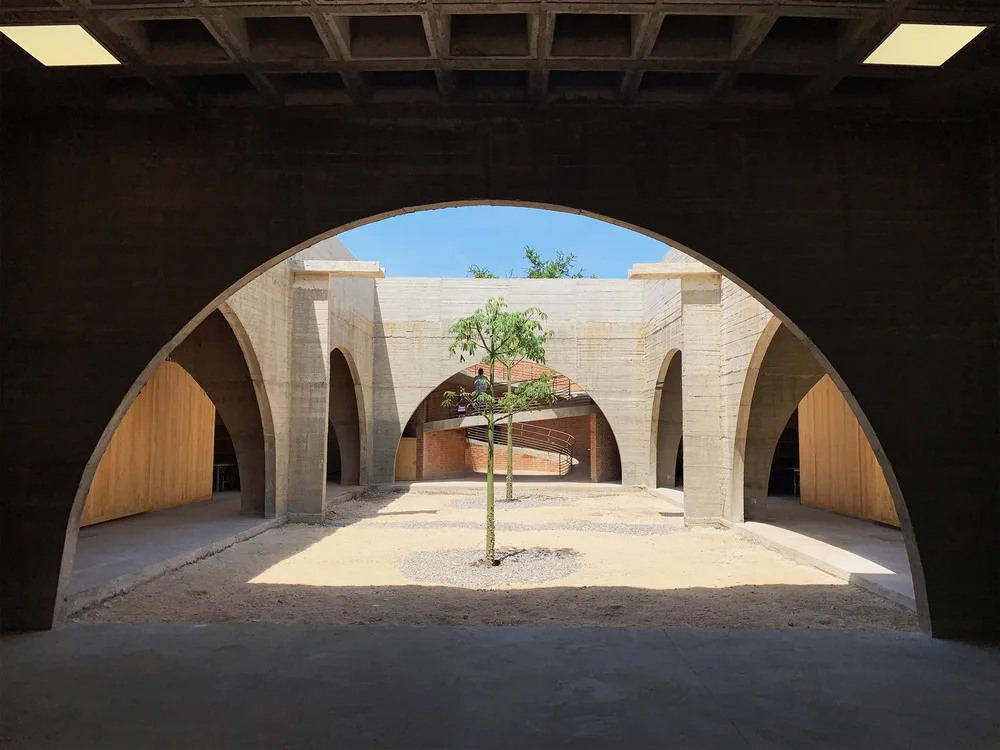

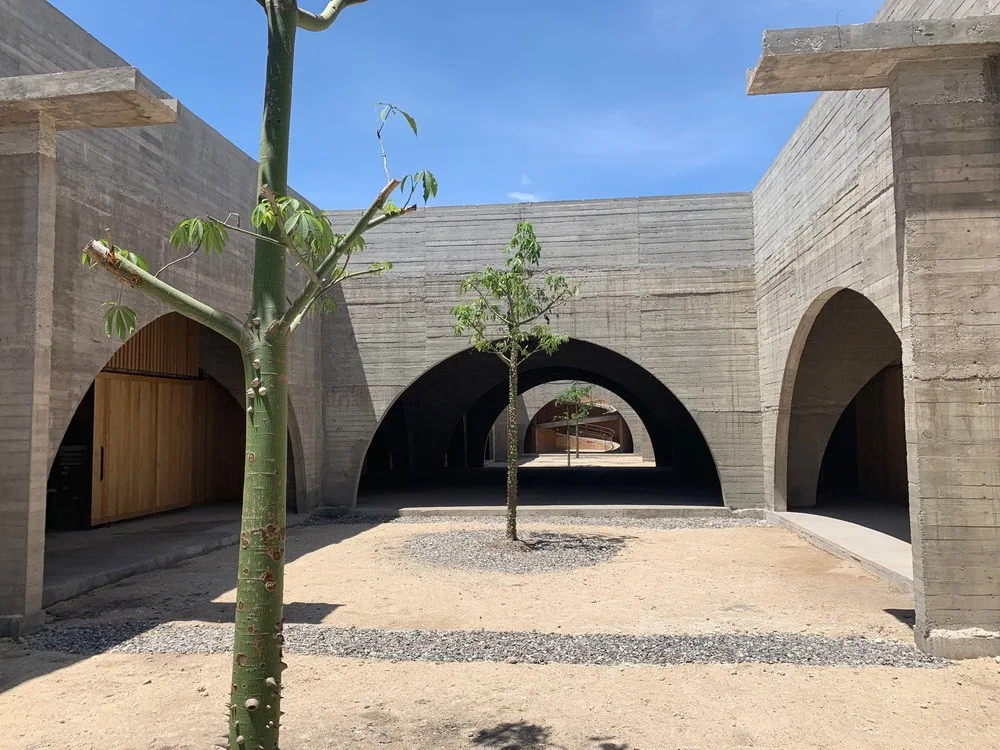

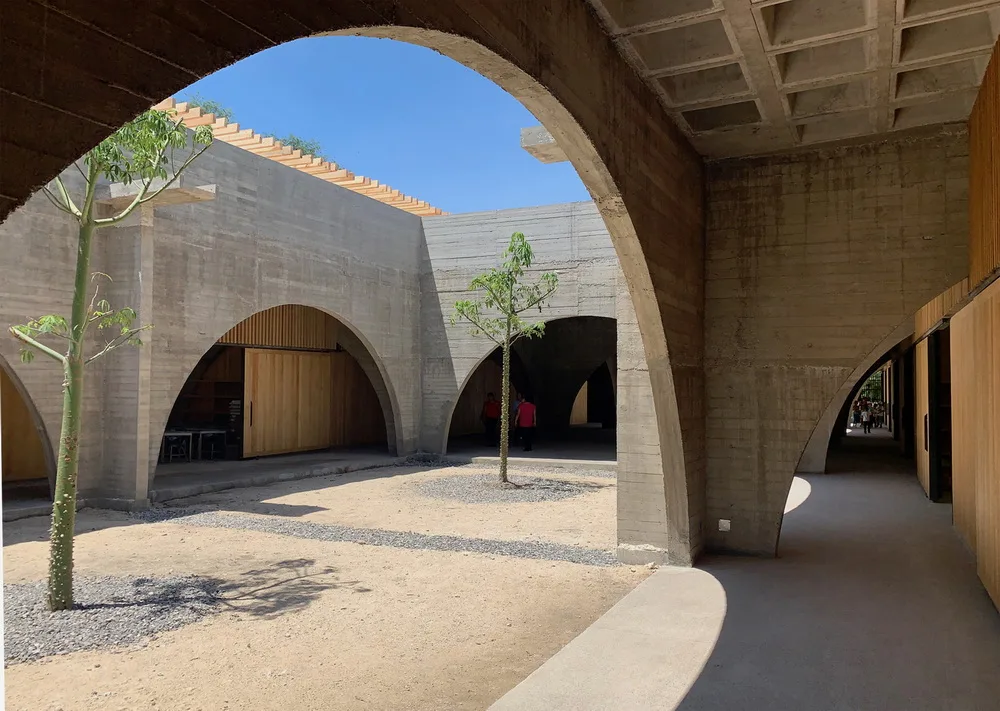

The design preserves the original sites of two neighboring schools and merges their previously separate blocks to create an open internal courtyard. This courtyard balances silence and natural light, offering a peaceful, contemplative environment.
Technical Drawings

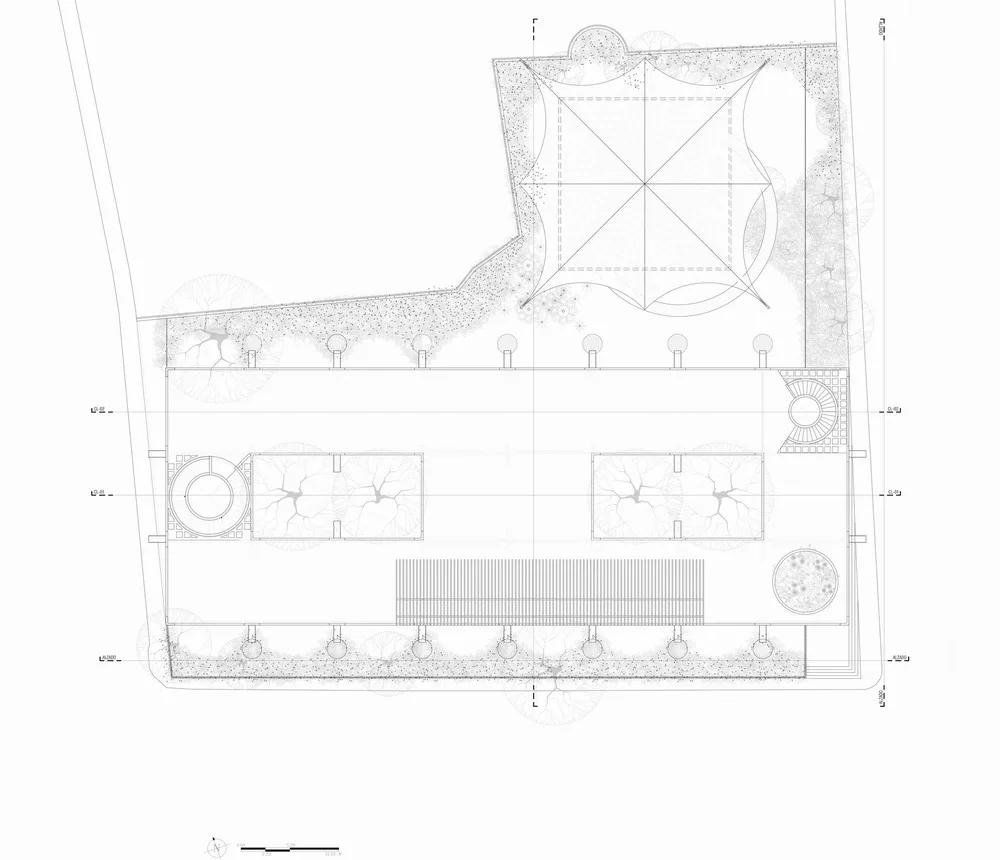

△ Roof Plan

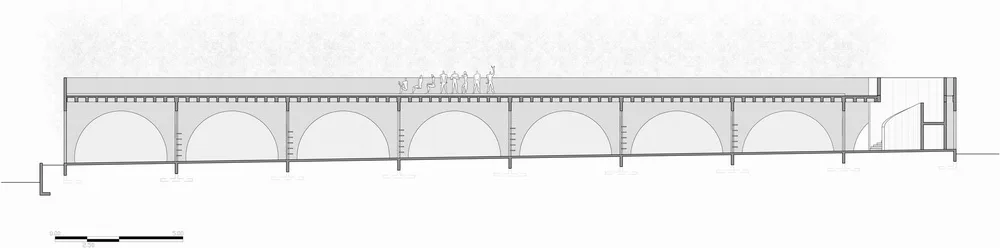

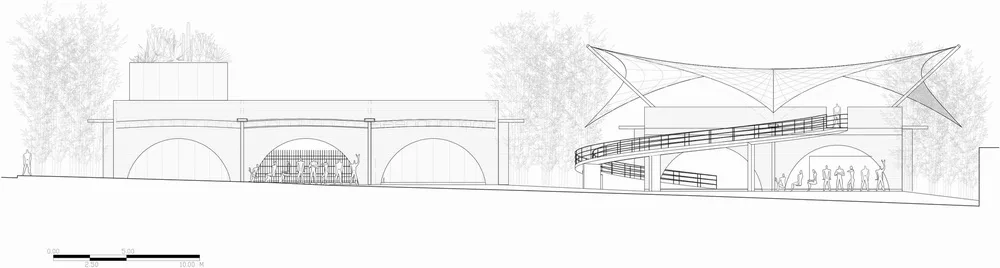

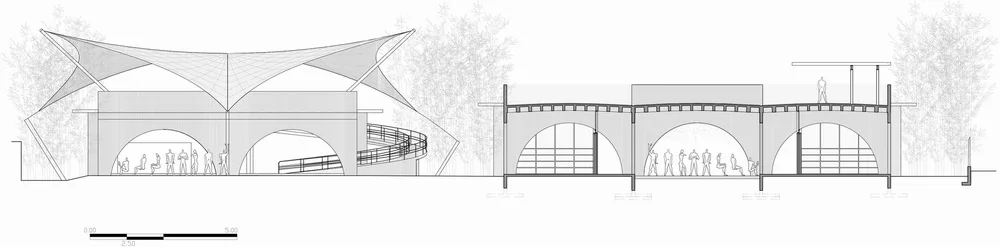

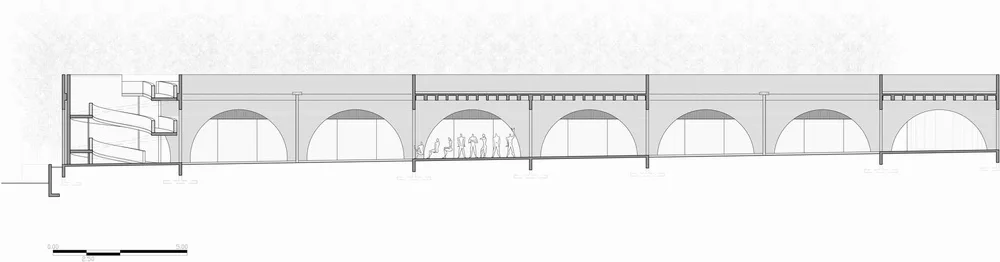

△ Section Diagram
△ Section Diagram
△ Section Diagram
△ Section Diagram
△ Section Diagram
Project Information
Architectural Design: Roberto Silva, Taller de Arquitectura X / Alberto Kalach
Area: 2,900 m²
Year: 2019
Lead Designer: Alberto Kalach
Design Team: Roberto Silva
