The Cadiz block, characterized by its orthogonal layout and the unique setting of a rectangular peninsula, holds a distinctive position within Antwerp’s historic district. The spatial planning emphasizes Antwerp’s architectural style by extending the traditional orthogonal block pattern towards the dock area.
This project respects the architectural style of the existing buildings on site. The demolition phase allowed for the creation of a comprehensive block exceeding 100m by 100m in size.
The design adheres to strict planning regulations, which significantly influenced the scheme. These include optimizing the use of the city’s directional layout and promoting an open block concept. The building’s ground floor integrates diverse urban functions such as retail shops, supermarkets, restaurants, bars, offices, and a senior activity center.
The podium is limited to three floors, while the four residential sections are built to the maximum allowable height. An underground parking garage replaces the above-ground facilities of the nearby customs building. Additionally, the building incorporates green spaces within its public areas, enhancing the living environment. The facade openings contribute to the building’s sense of transparency.
Project Drawings
▲ Site Plan

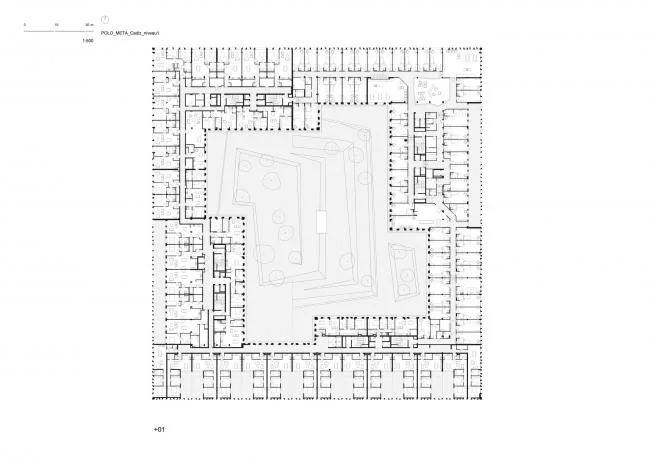

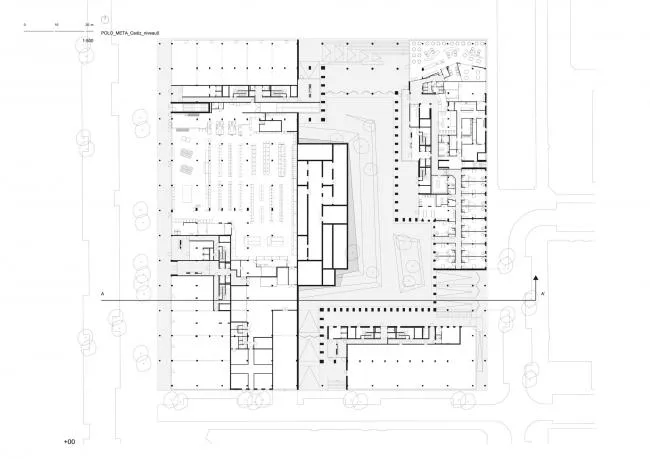

▲ First Floor Plan

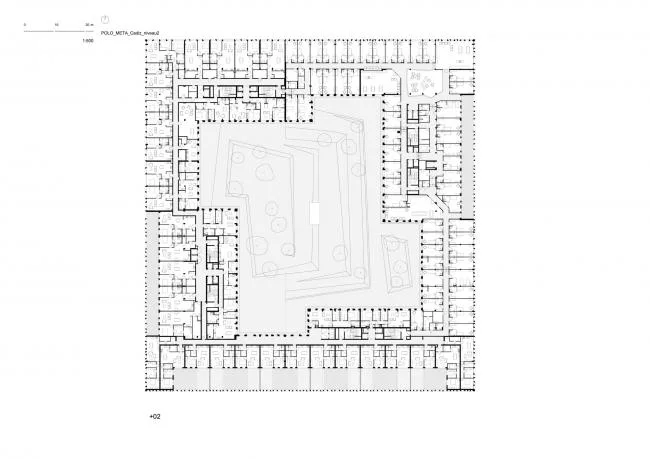

▲ Second Floor Plan
▲ Third Floor Plan
▲ Fifth Floor Plan
▲ Ninth Floor Plan
▲ South Elevation View
▲ Sectional View
Project Information
Architectural Firms: META architectuurbureau, POLO architects
Location: Kattendijkdok Ostkaai, Antwerp, Belgium
Category: Mixed-use Buildings
Design Team: Niklaas Deboutte, Eric Soors, Philip Mathieu, Bert Goetvinck, Duco Uytenhaak, Willem Baalbergen, Sebastiaan Wouters, Mauro Poponcini, Patrick Lootens, Jascha Rondou, Jef Van Loock, Jens Verley
Building Area: 41,535 m²
Year of Completion: 2016
Photography by: Stijn Bollaert
Manufacturers: RENSON, Schuco, Vande Moortel, AGC, Soprema, Heli (BIM training)
Clients: Cores Development, Builprom, Westhoek
General Contractor: thv Kattendijkdok Besix and Vanhout
