The local coordinate system of an adaptive point can be accessed through a lookup. By modifying this local coordinate system, you can directly adjust the transform of the point.

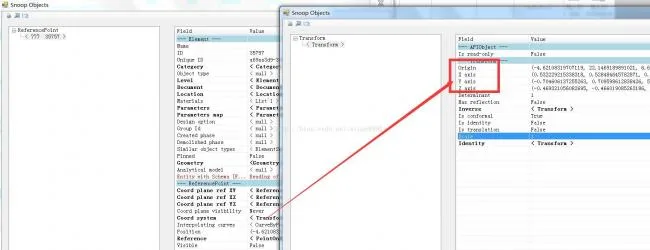

The specific orientations of the x-axis, y-axis, and z-axis are illustrated in Figure 1.
The rotation of the adaptive point occurs around the x-axis, which represents the tangent direction of the line.
