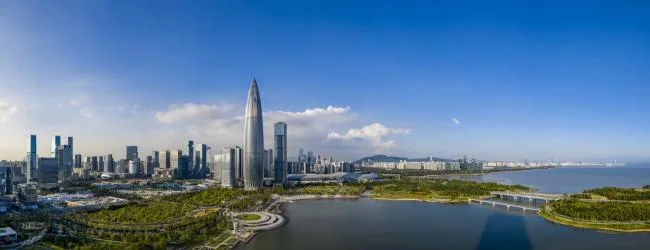

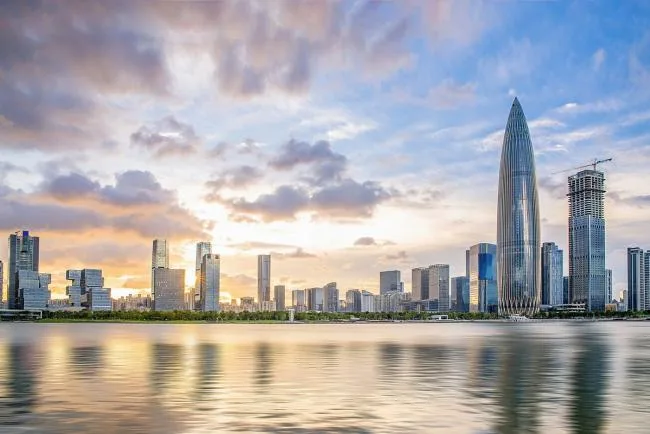

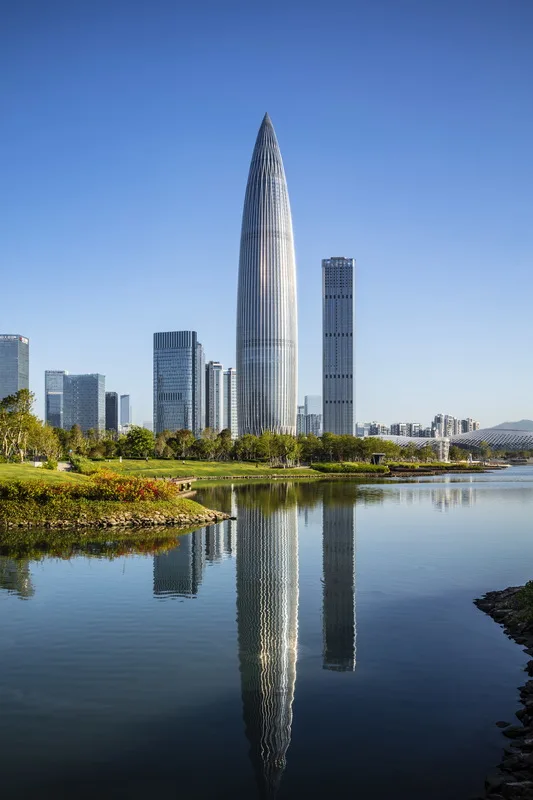

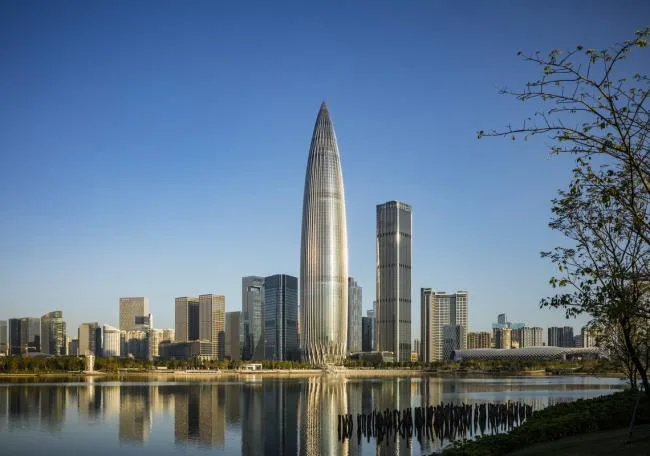

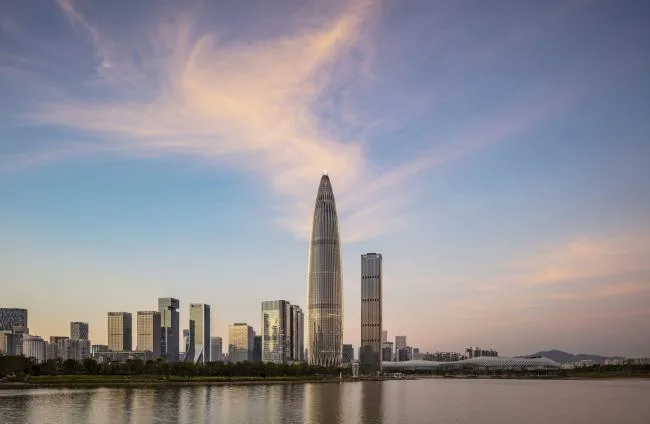

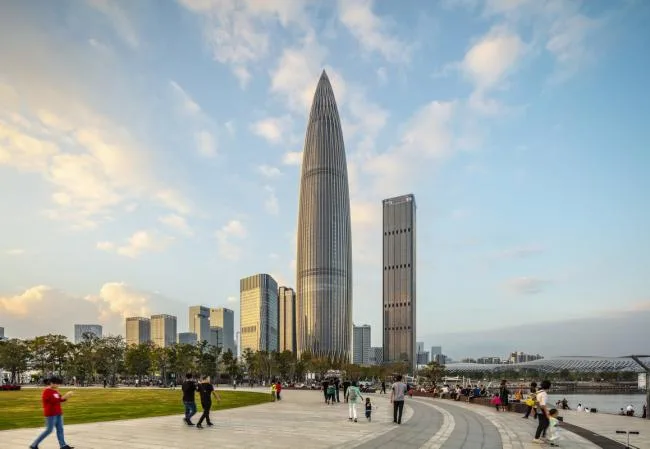

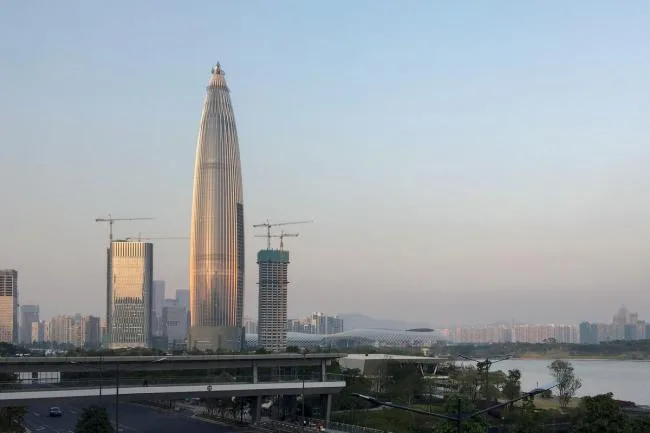

The China Resources Building, designed by KPF, officially opened on December 18th, showcasing a cutting-edge BIM architectural style. This 400-meter tall tower stands proudly in Shenzhen Bay’s thriving Houhai Business District, introducing a fresh urban aesthetic to Shenzhen through its innovative structural design and precise geometric form.

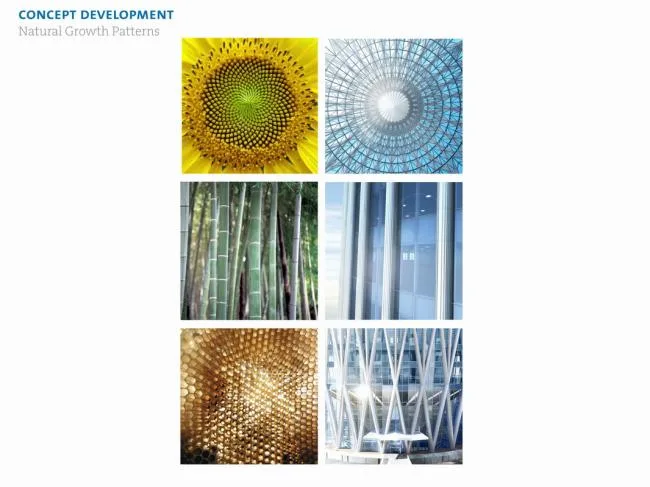

Conceptual analysis diagram
The design draws inspiration from the natural form of bamboo shoots, symbolizing limitless vitality, steady growth, progress, and breakthroughs. Additionally, the building’s outer circular shape and inner square, combined with its radial symmetry, reflect Eastern cultural principles of “square and radius.”

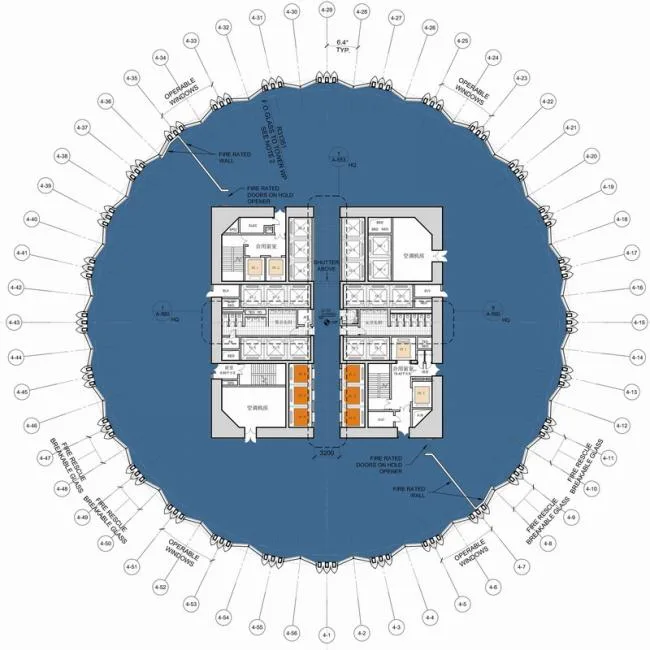

The building’s structure features a dense steel column frame paired with a concrete core tube, enabling an open floor plan free of interior columns. The tower’s circular floor plan embraces radial symmetry, supported by 56 columns spaced between 2.4 and 3.8 meters apart, with outer widths ranging from 30 to 40 centimeters. Floor diameters vary from 60 meters at the base, expanding to 68 meters at the midsection, and tapering to 35 meters at the top.

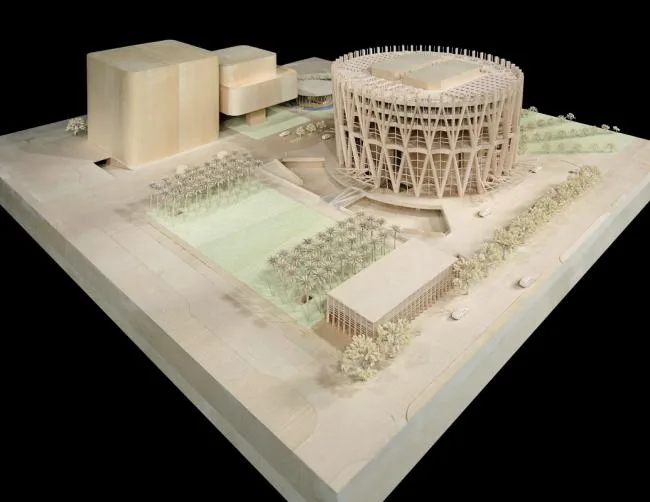

Model
Sectional view

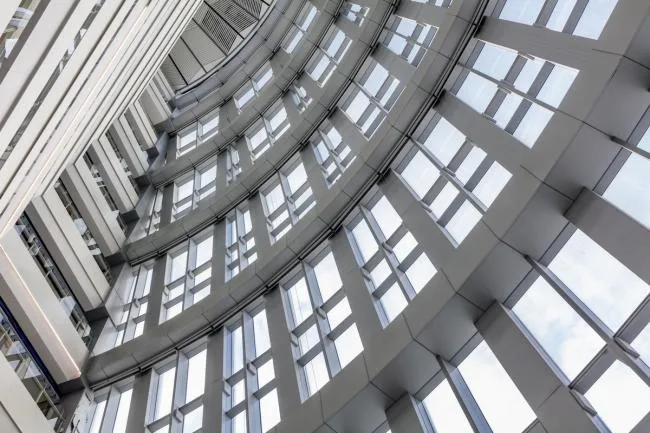

The open floor plan eliminates pillars in public office and leisure areas, allowing for 360-degree natural light through the glass curtain walls. Occupants enjoy panoramic views of Shenzhen Bay, including the sea, lake, park, and golf course.
Model

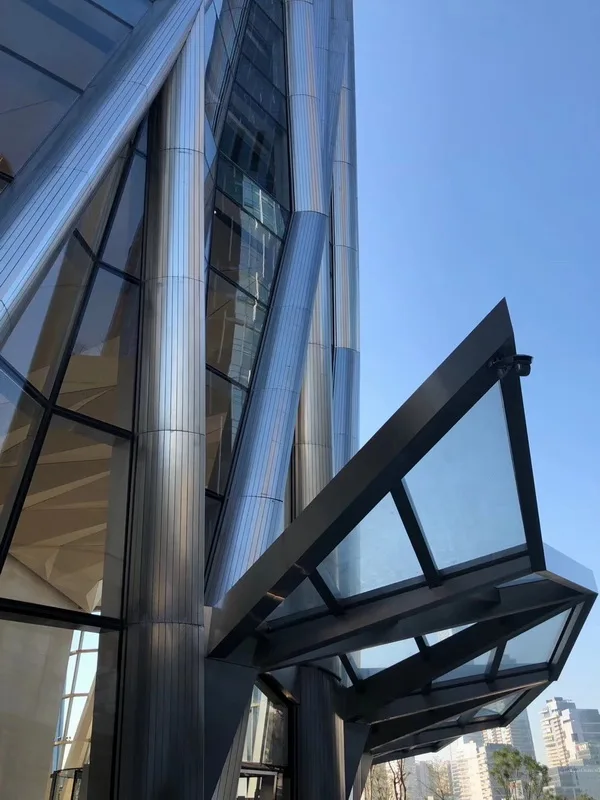

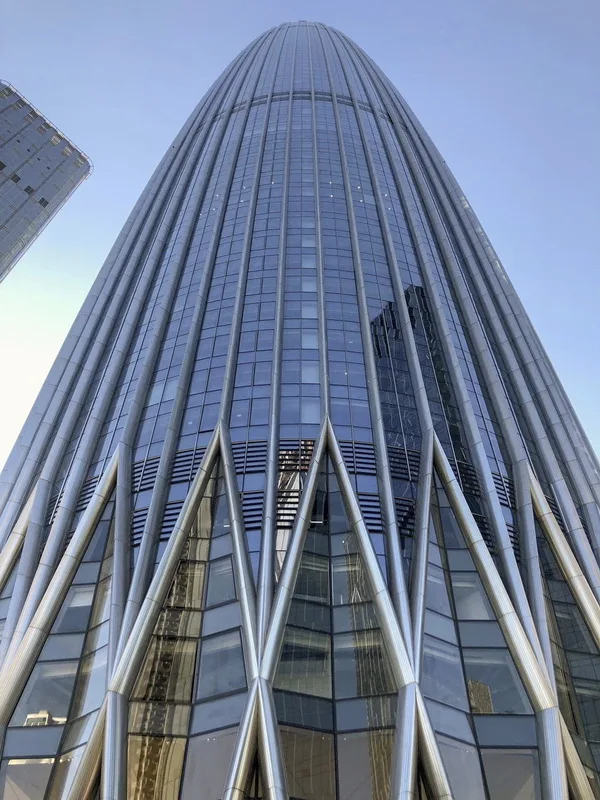

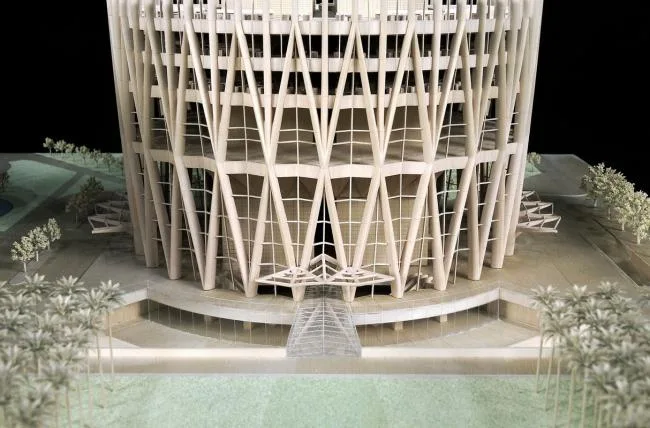

At the base and top of the building, 56 columns converge and intersect to form 28 columns. The building’s bottom and top are adorned with multifaceted triangular glass panels, giving it a sculptural aesthetic. The angled grid columns on the facade converge at the first floor, creating a series of precisely positioned lower-level entrances.

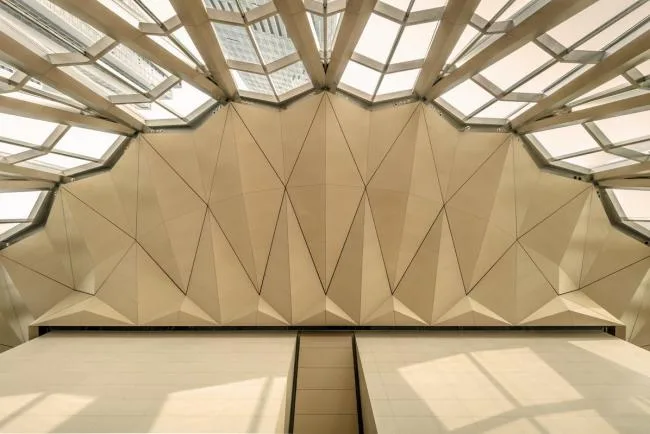

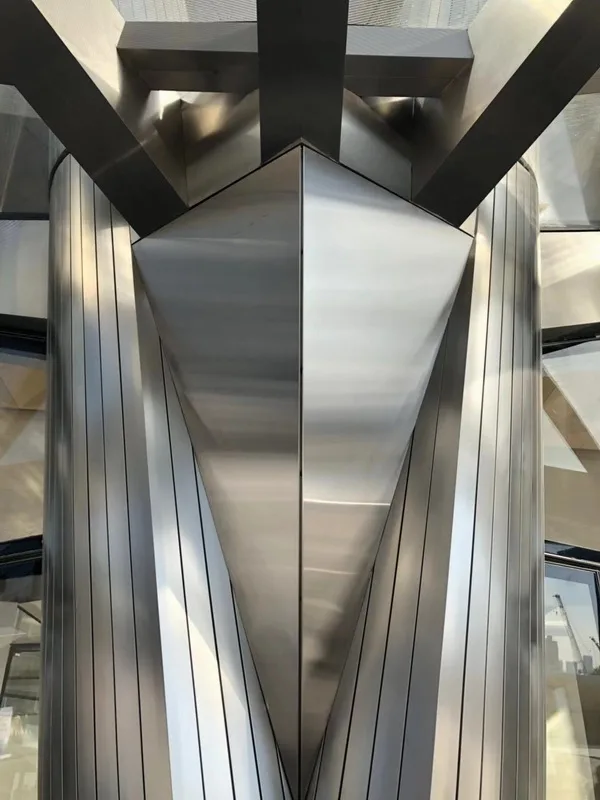

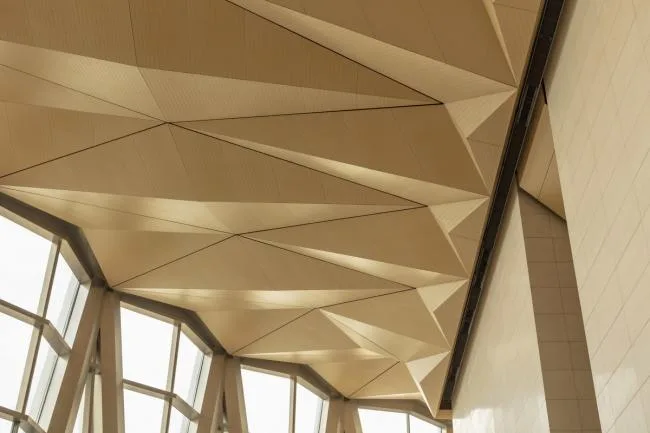

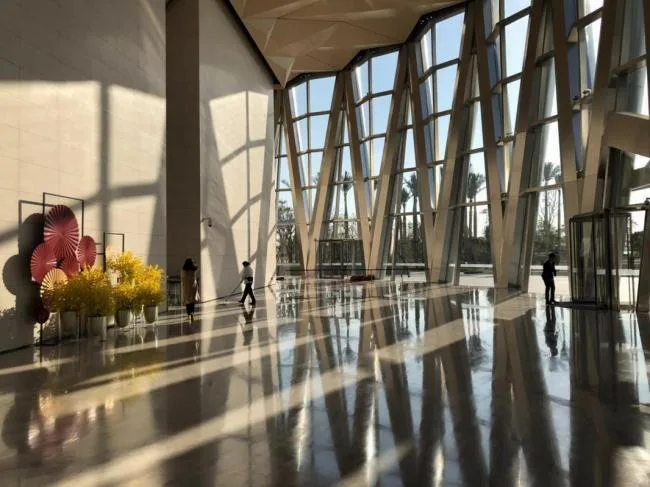

The lobby’s interior design echoes the diamond-like texture seen throughout the BIM design, featuring natural, delicate limestone materials. Twenty-eight columns extend upward to the full 400-meter height, converging at the tower’s peak, capped by a single-piece stainless steel tip.

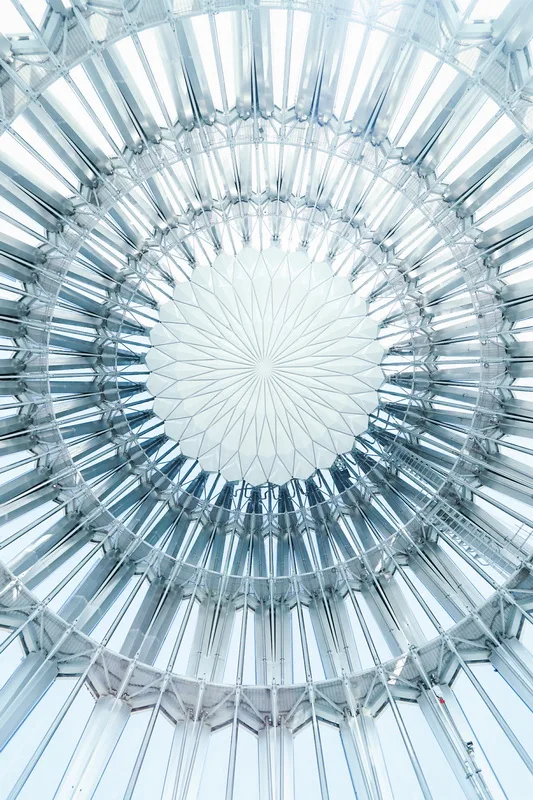

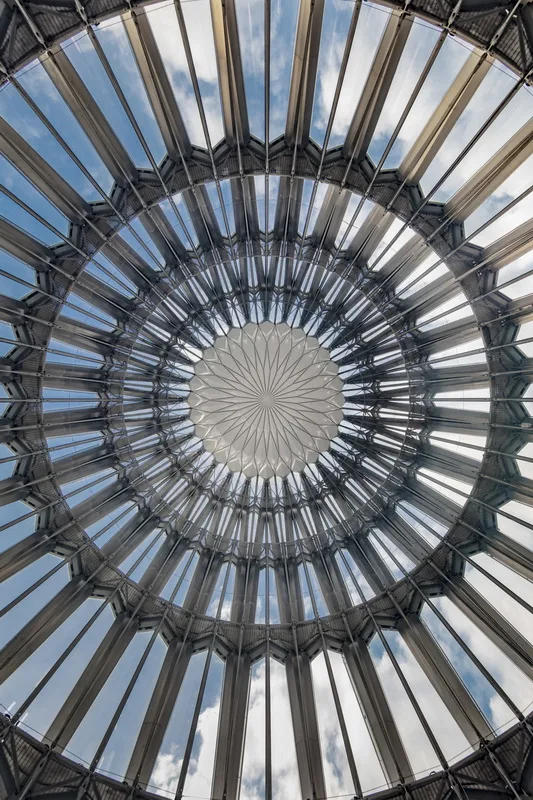

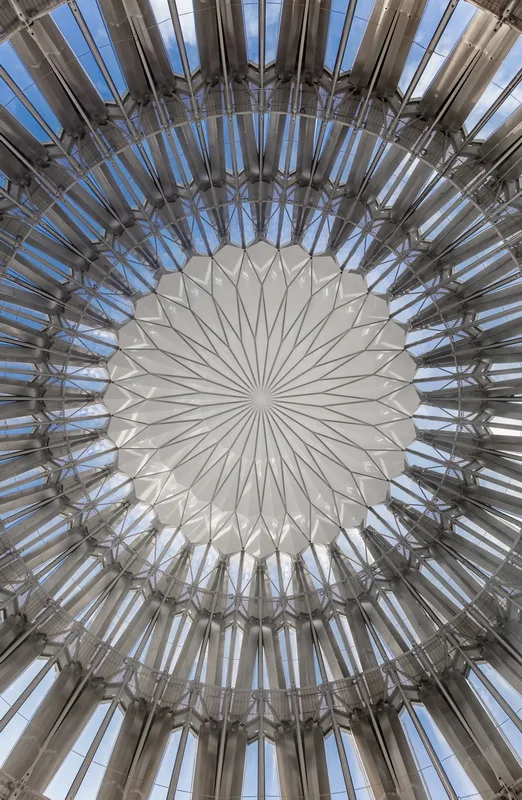

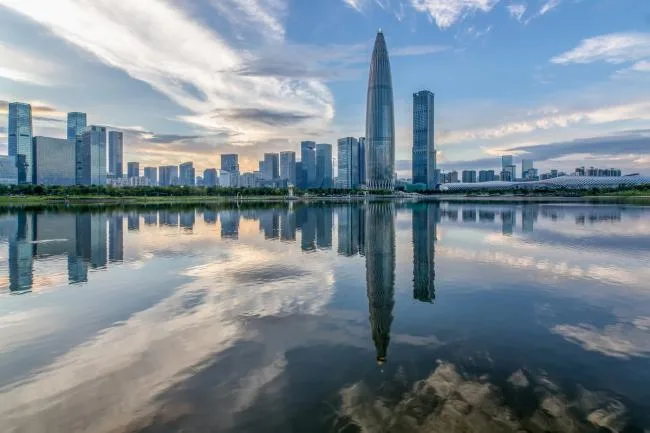

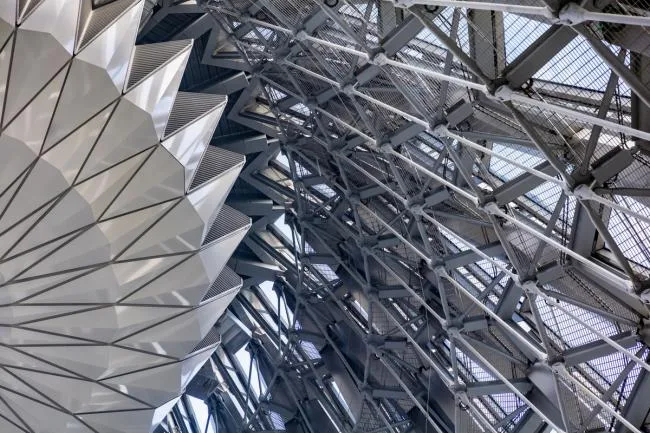

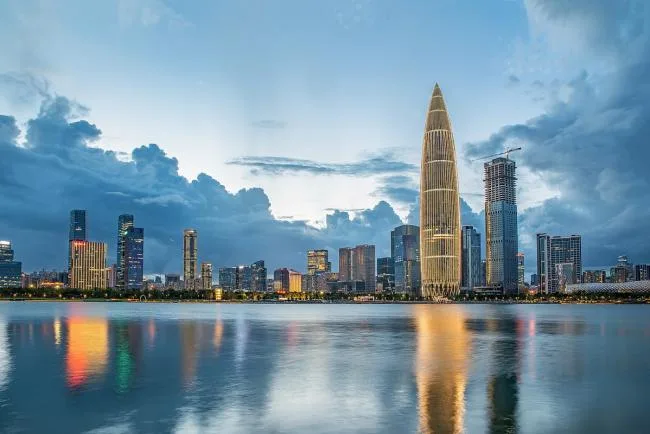

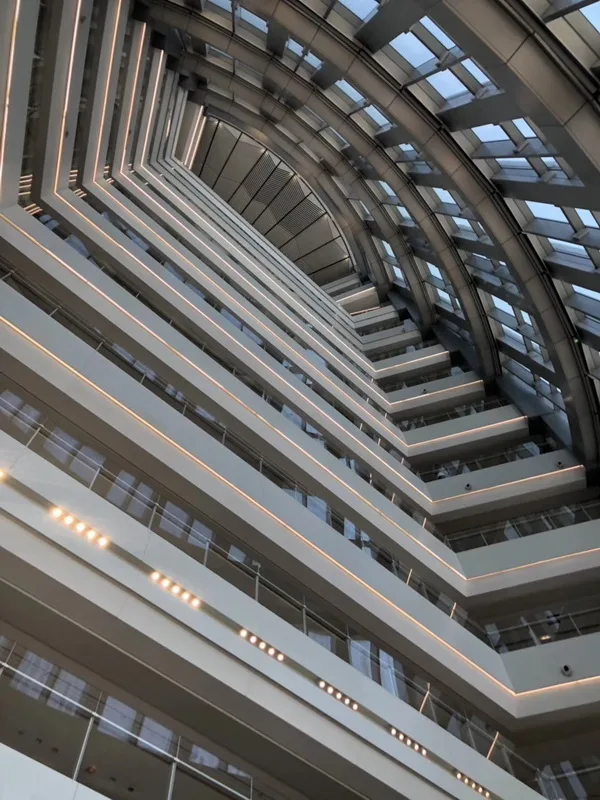

The tower’s “Sky Hall,” located at its summit, offers various business support functions. This magnificent conical space, featuring an exquisite spiral cross-structure, is one of the few ultra-tall towers worldwide open for visitors at its highest point. At night, the illuminated China Resources Building shines like a gem in Shenzhen Bay’s commercial district.
Project Drawings

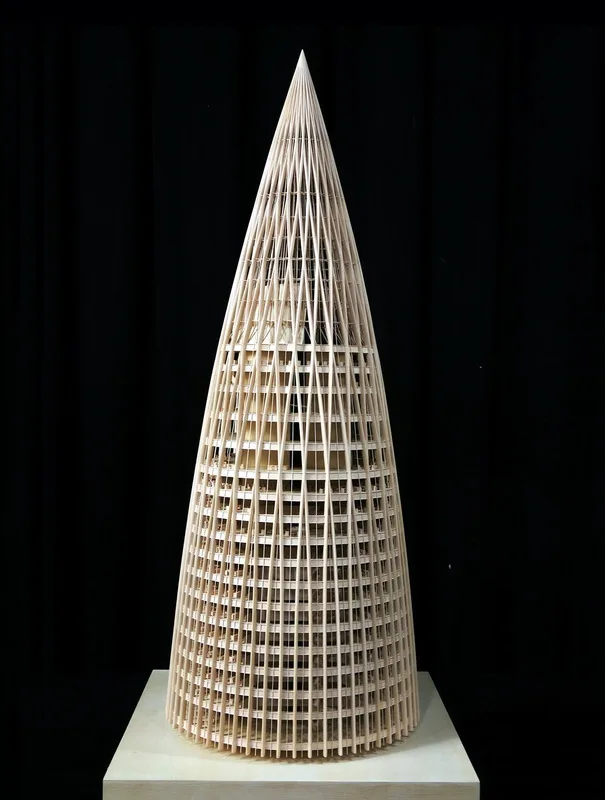

Model
Model
Model

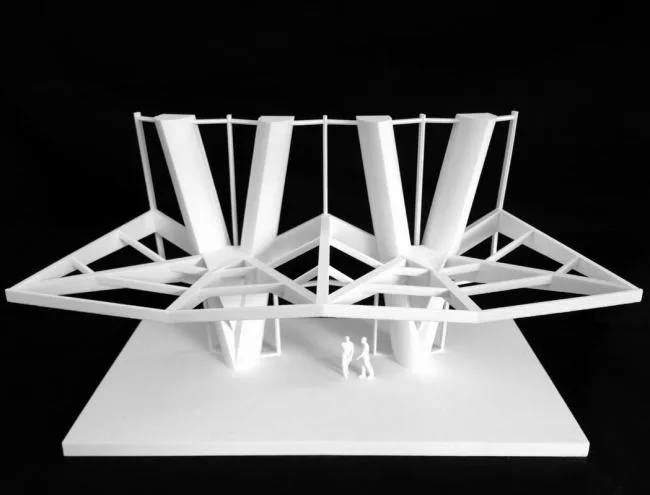

Structural Analysis Model
Analytical Model
Roof Evolution Analysis Diagram

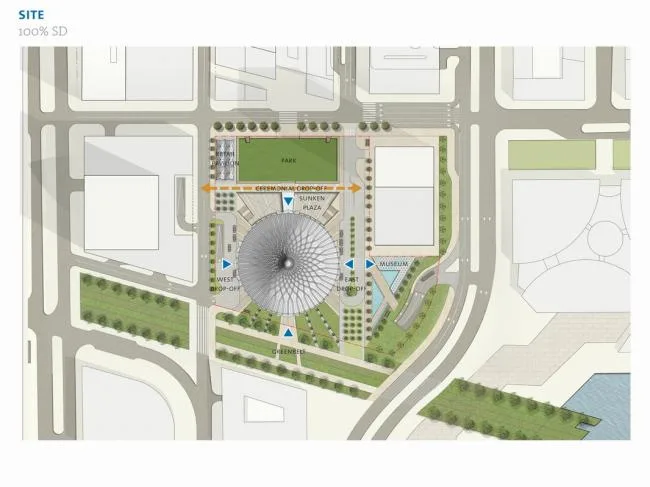

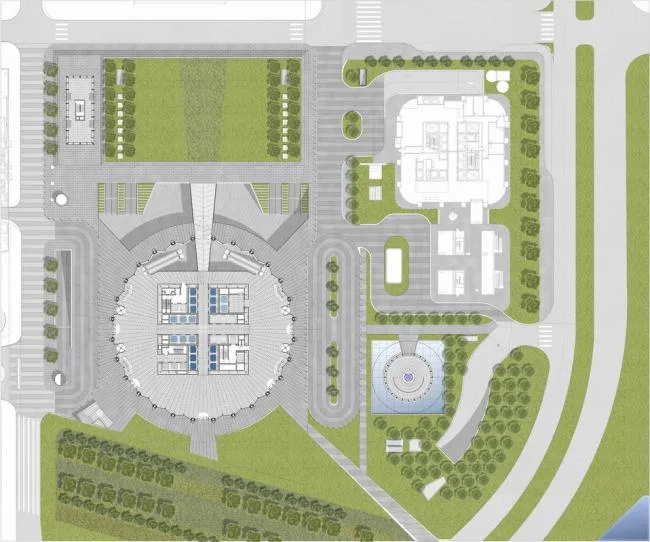

Site Plan

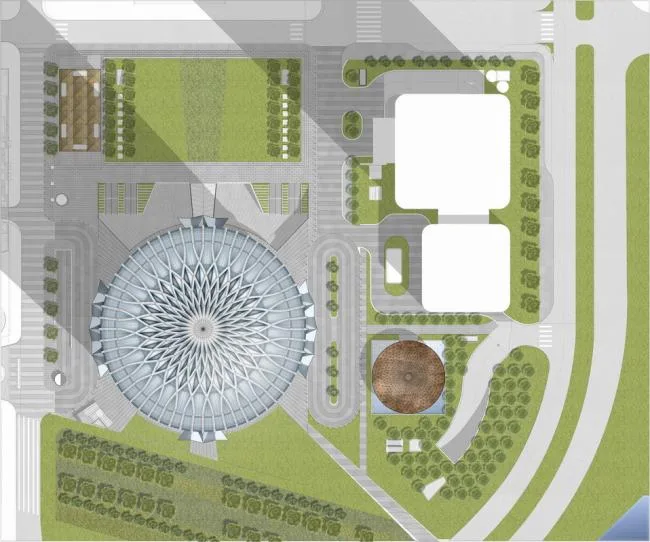

Master Plan

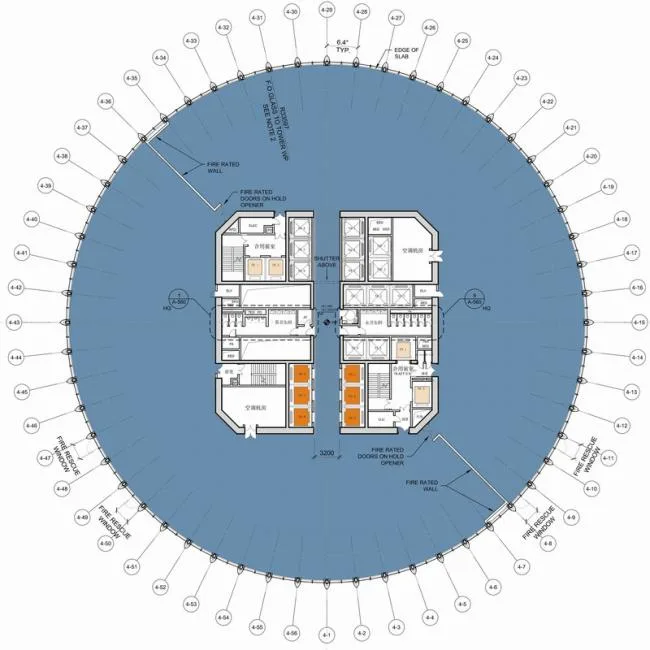

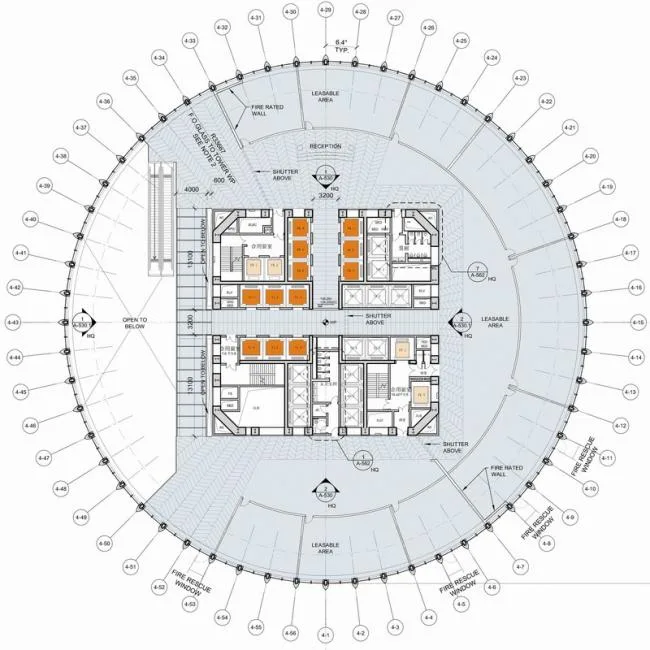

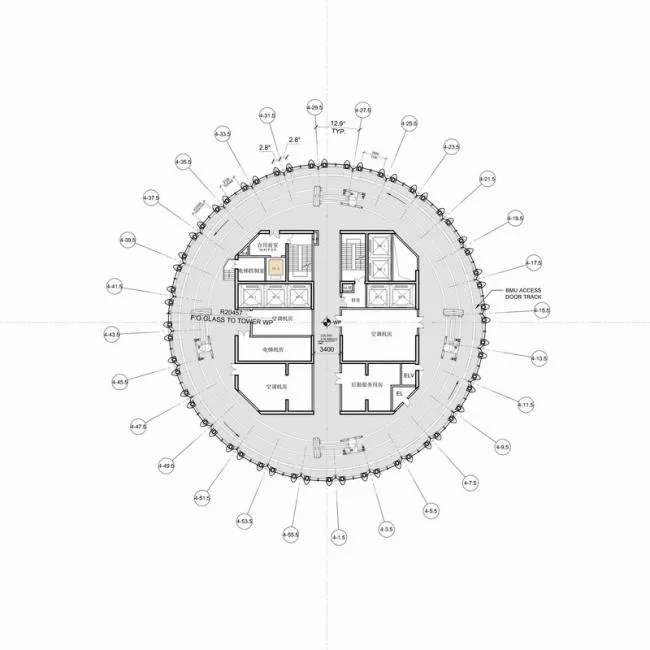

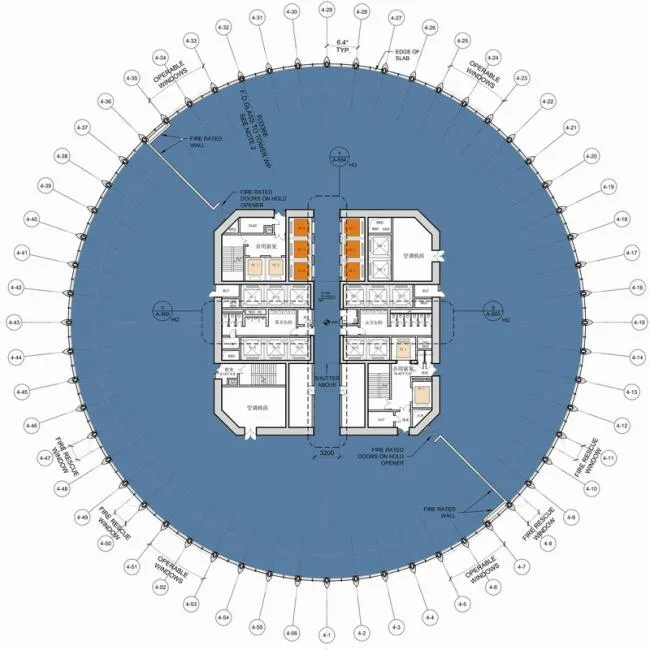

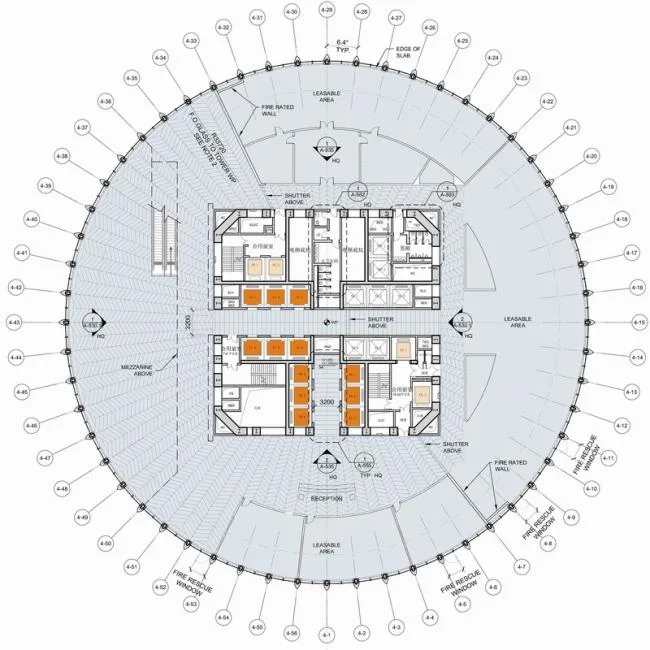

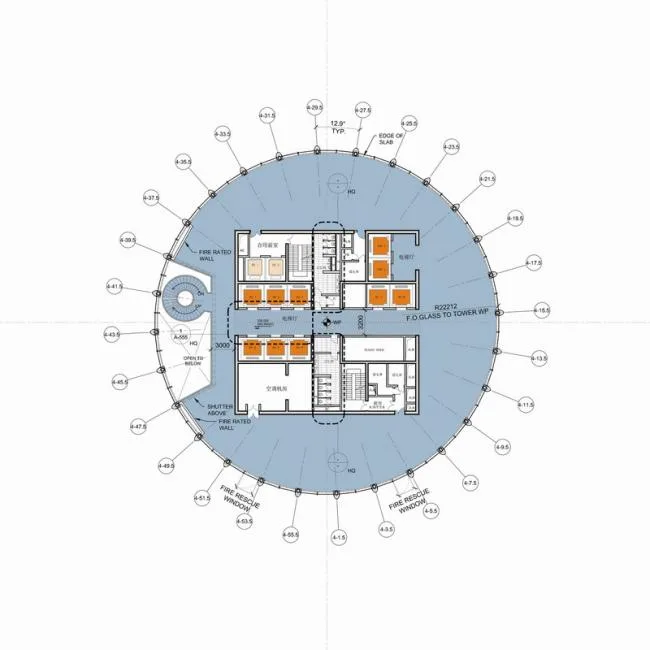

Floor Plan

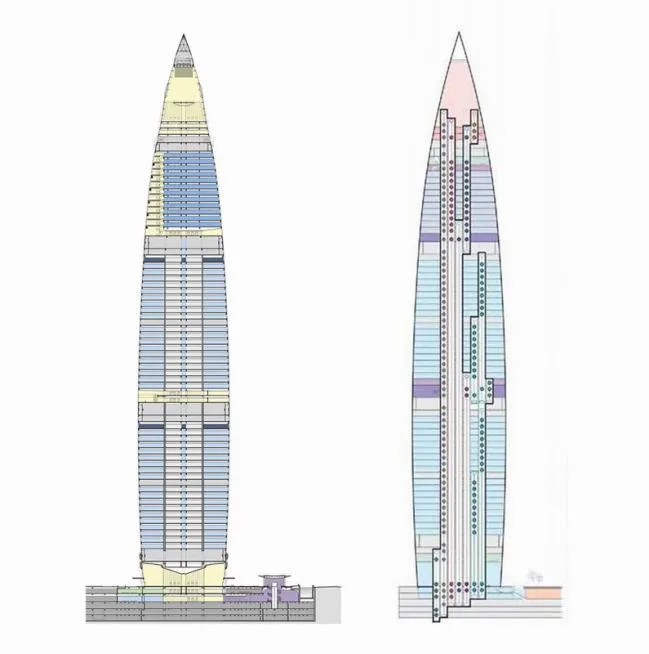

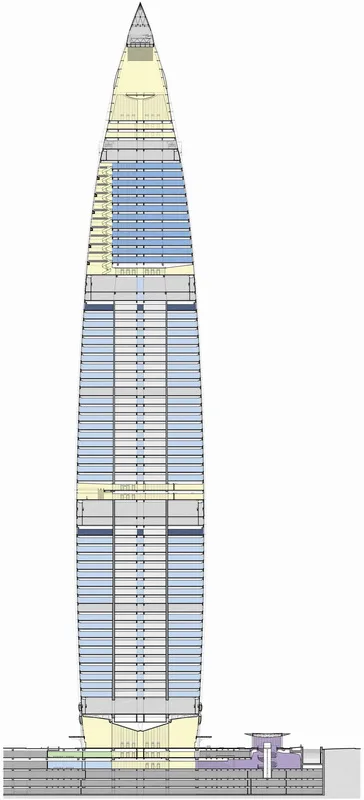

Sectional View

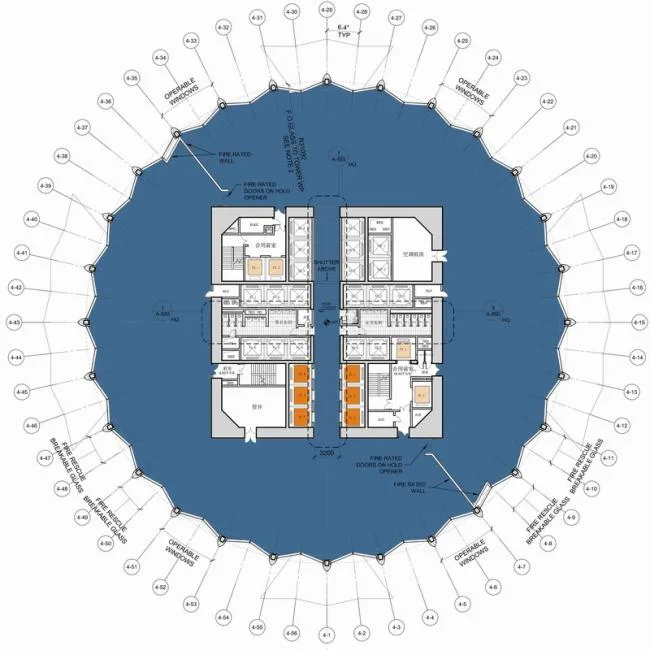

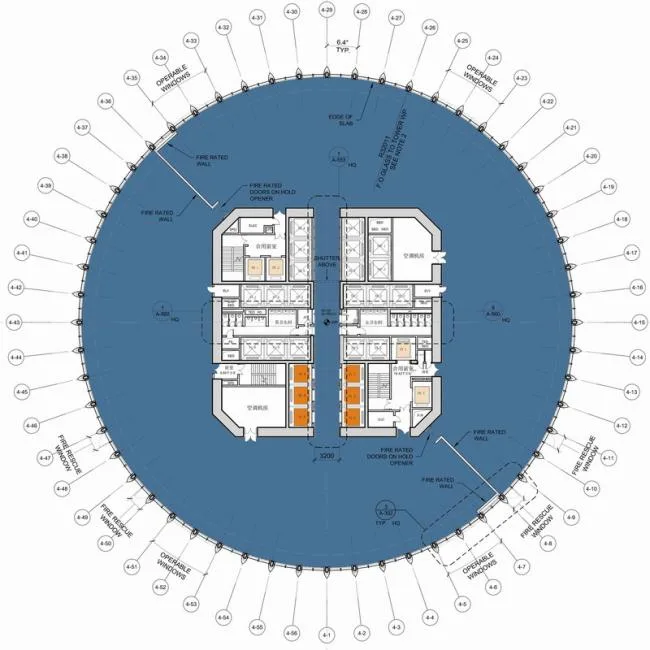

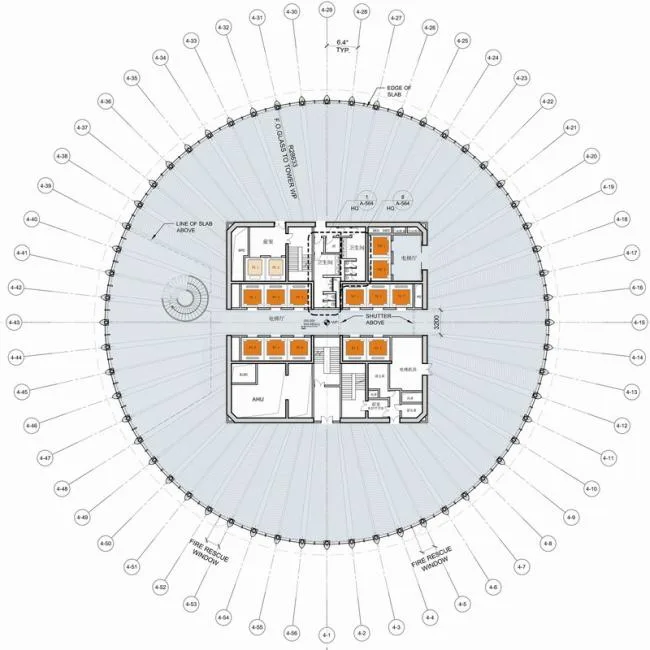

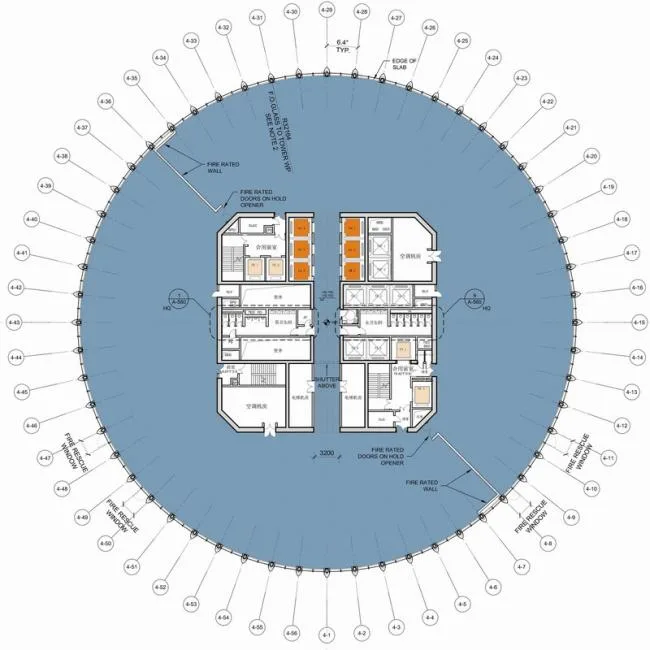

Floor Plan

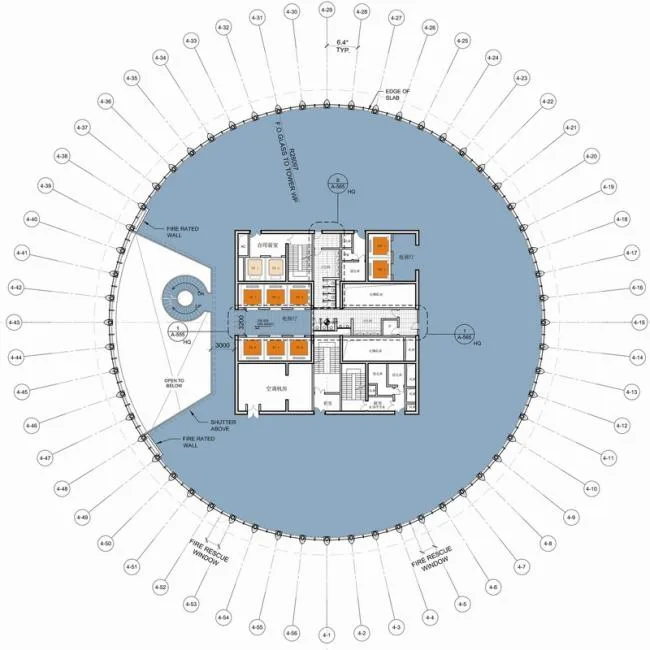

Floor Plan
Floor Plan
Floor Plan
Floor Plan
Floor Plan
Floor Plan
Floor Plan
Floor Plan
Floor Plan
Floor Plan
Floor Plan
Floor Plan

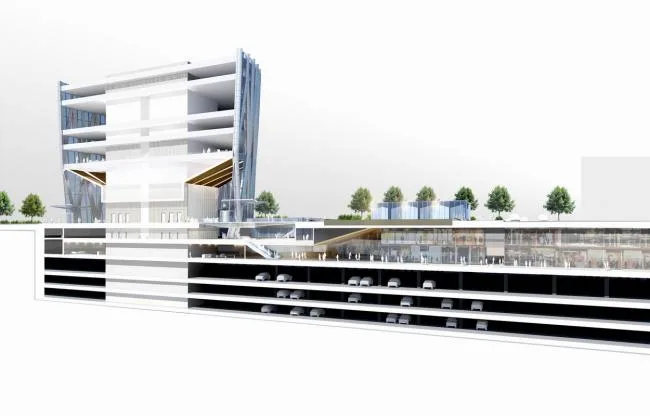

Sectional Rendering

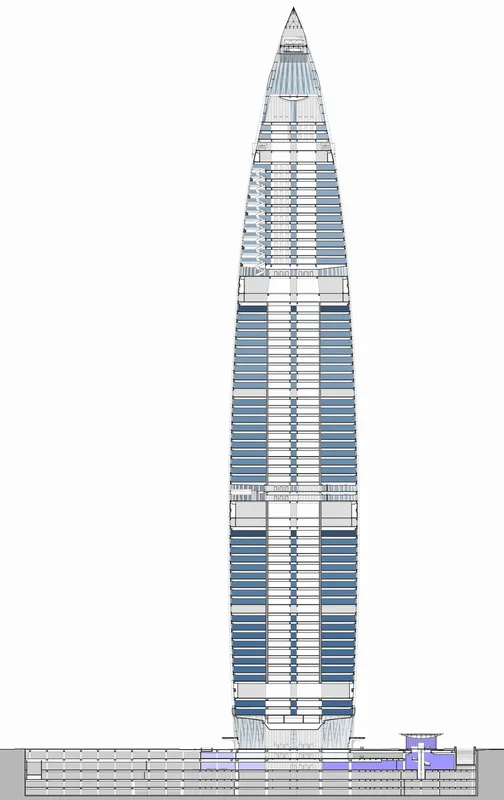

Sectional View
Sectional View

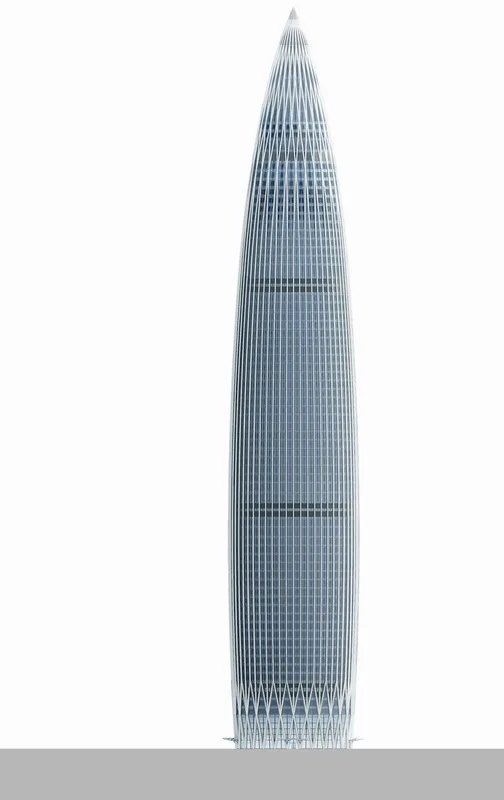

Elevation Drawing

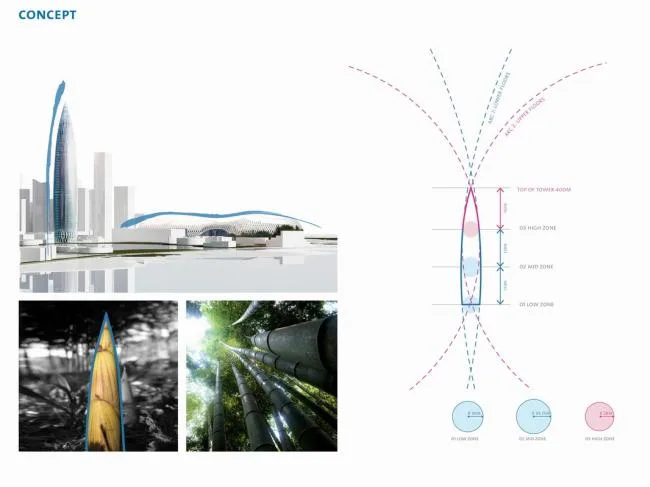

Conceptual Analysis Diagram

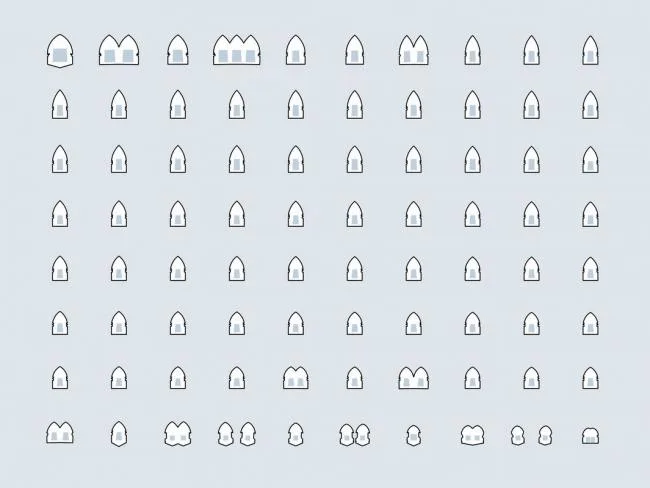

Conceptual Evolution Diagram
Project Information
Architect: KPF
Location: Shenzhen, China
Category: Office Facilities
Construction Drawing Design: CCDI
Structural Consultants: ARUP Engineering, Guangzhou Rongbaisheng Architectural Structural Design Firm
Project Year: 2018
Photographer: Tim Griffith
Mechanical and Electrical Consultant: WSP Technology Group
Curtain Wall Consultant: ARUP Engineering
Interior Consultants: Yao Renxi | Dayuan Construction Factory (scheme and construction drawing design), HASSELL (scheme design), KPF (scheme design), Guangzhou City Group (construction drawing design)
Lighting Consultant: BPI Bi Pu Lighting
Transportation Consultant: MVA Hongda Transportation
Landscape Consultants: PWP (conceptual design), Office MA (conceptual design), KMCM Guangzhou Kemei Urban Landscape Planning (construction drawing design)
Building Area: 210,000 square meters
Height: 400 meters
Floors: 66
