Integrating BIM, VR, and GIS for an Enhanced Fire Protection Plan Demonstration

The 3D GIS demonstration scripting feature has been effectively applied in multiple emergency command plan development processes. Companies like Aibo Jiesi and Tianhe Cloud Construction have conducted in-depth research on its capabilities. Notably, this scripting function also proves highly effective in creating fire protection plans. Today, we will explore its application.

Phase One

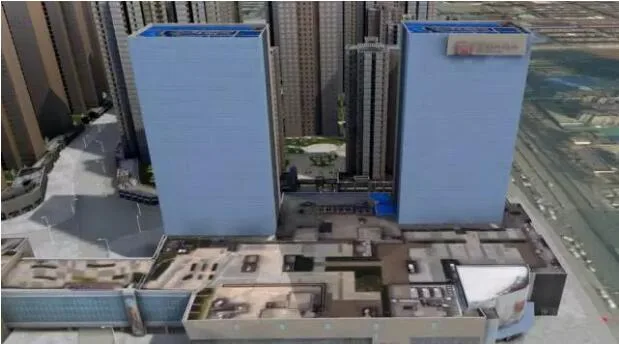

Locate the Building

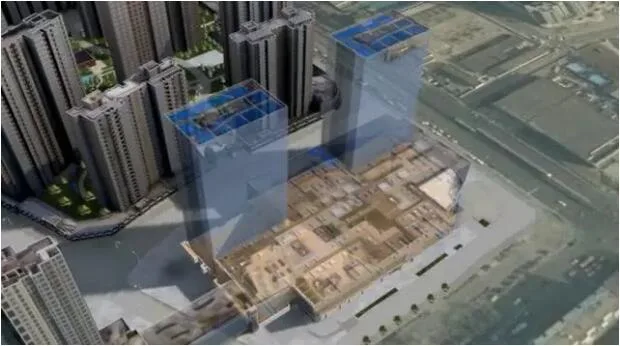

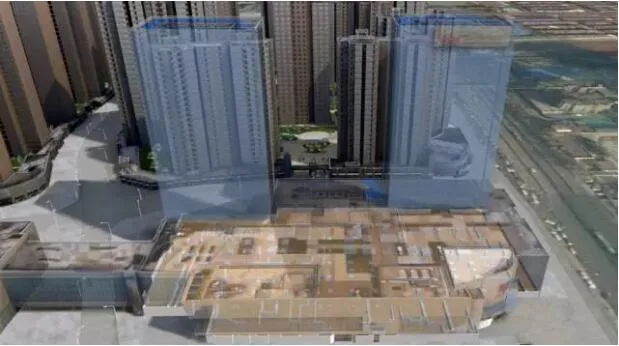

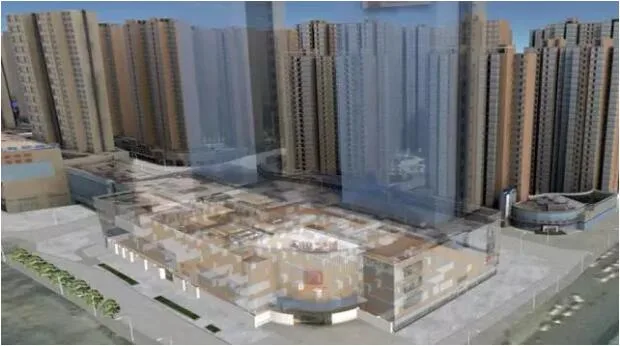

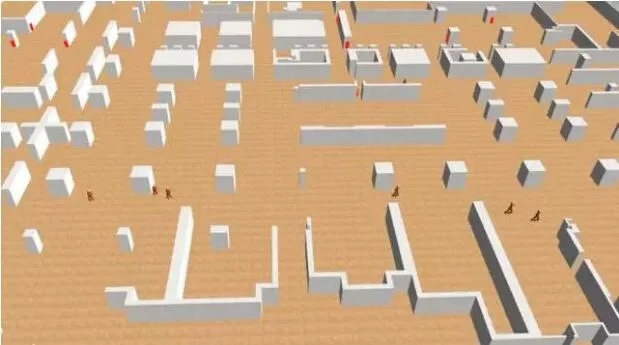

The building’s internal structure is displayed using transparency for detailed inspection.

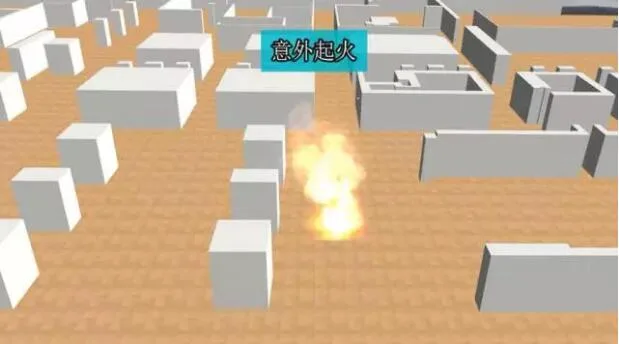

An unexpected fire breaks out inside the building.

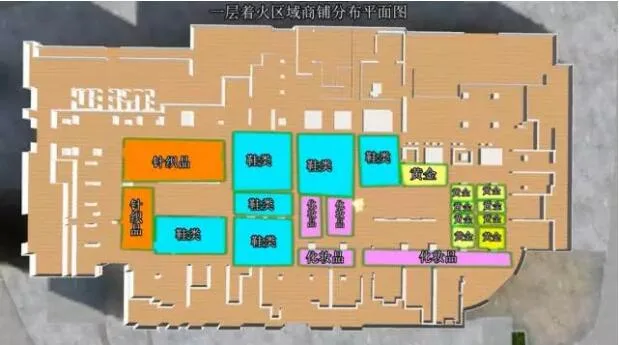

Analyzing the layout of shops on the building’s first floor.

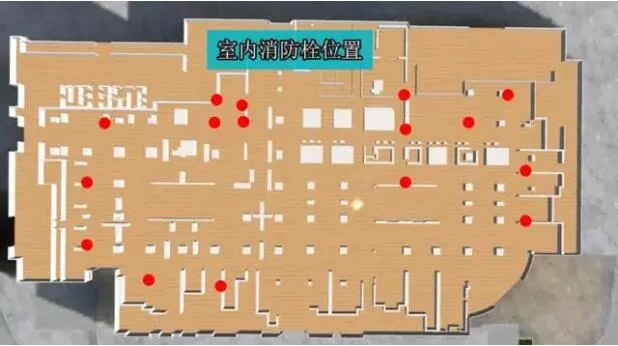

Display of indoor fire hydrant locations throughout the building.

On-site firefighting efforts by building personnel commence.

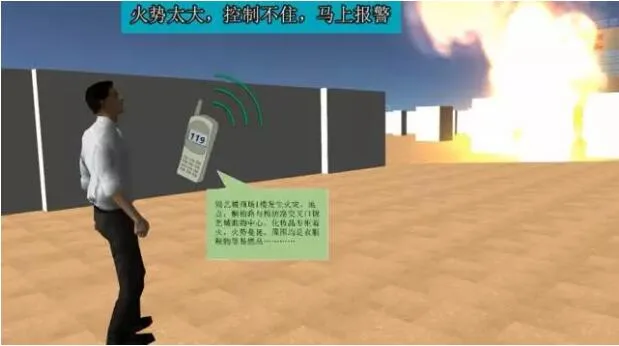

Due to the severity of the fire, authorities are notified.

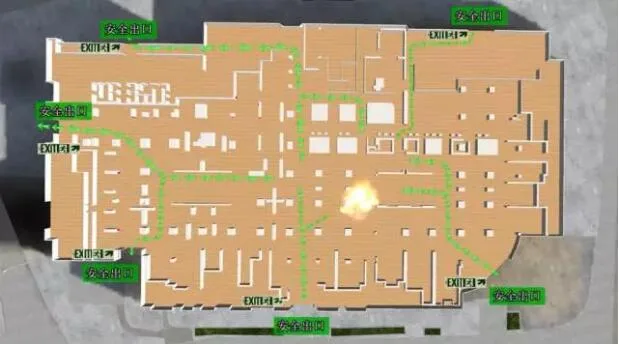

Display of all safety exit locations within the building.

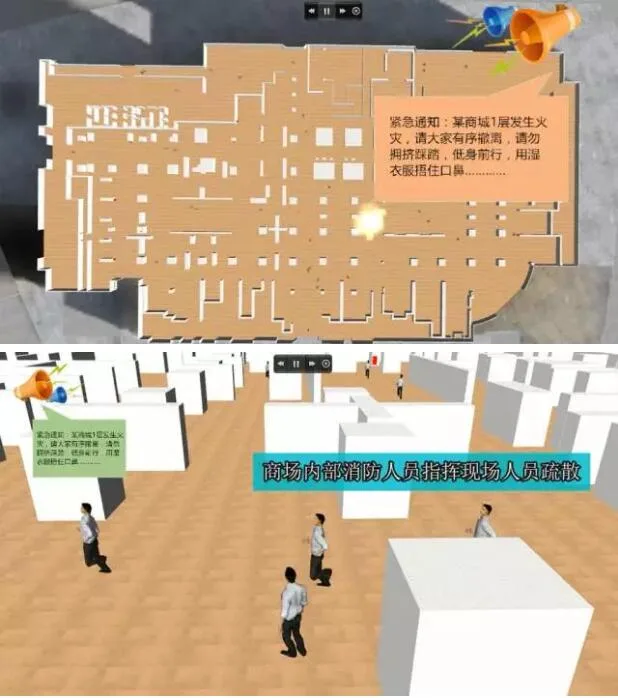

Personnel are notified and guided to evacuate the building in an orderly manner.

Phase Two

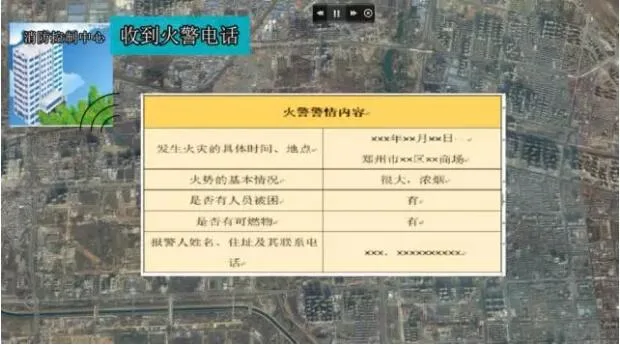

The fire control center receives the alarm call and begins analyzing the situation.

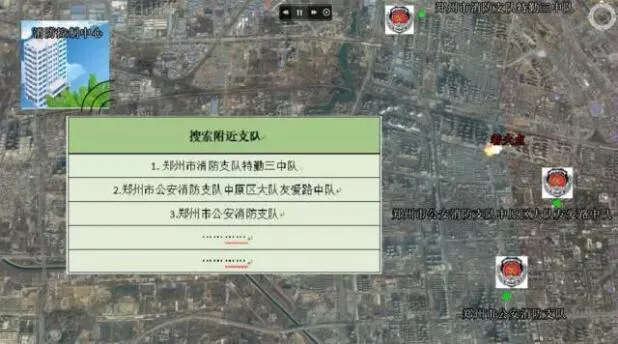

Nearby emergency teams are located.

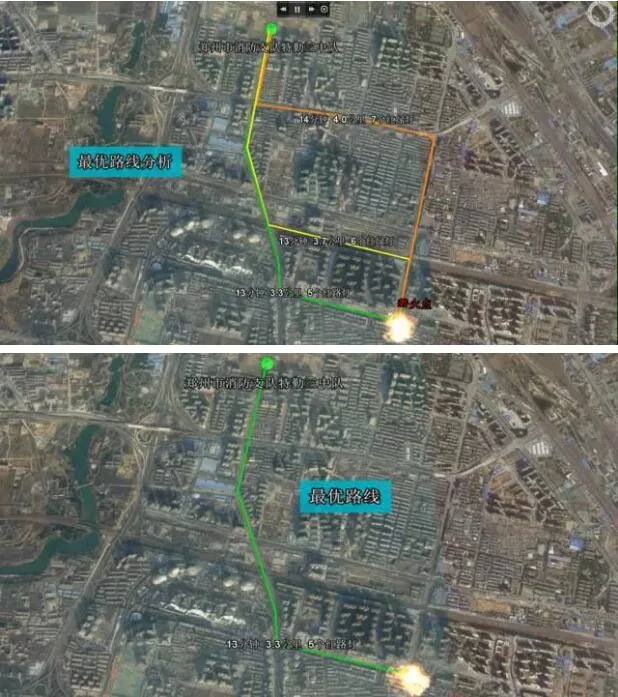

A team is selected, and the optimal route to the fire scene is analyzed.

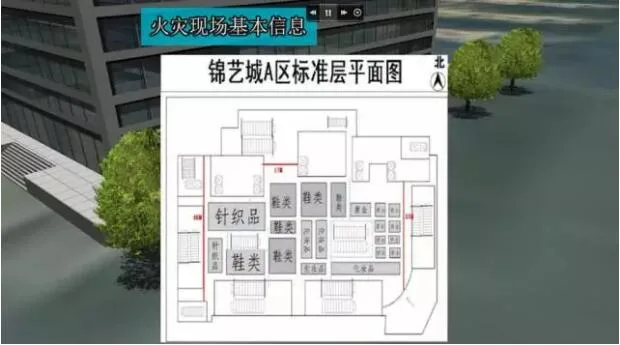

Fire scene information is extracted and analyzed for effective response planning.

The fire control center remains on alert and ready to coordinate.

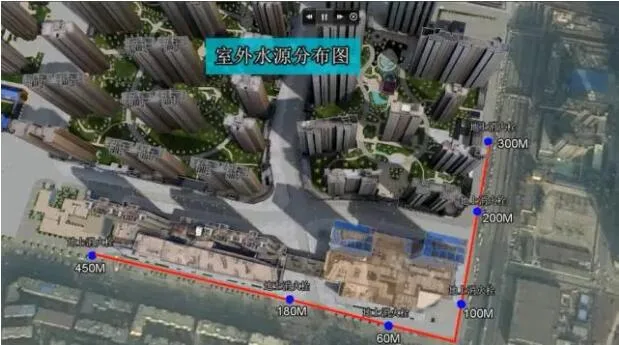

Upon arrival at the fire scene, the distribution of outdoor water sources is displayed.

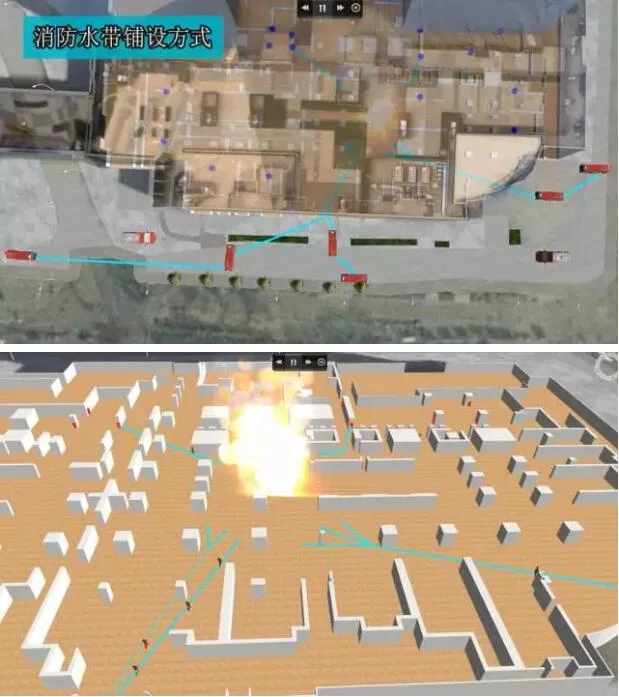

Analysis of the fire hose deployment methods is conducted.

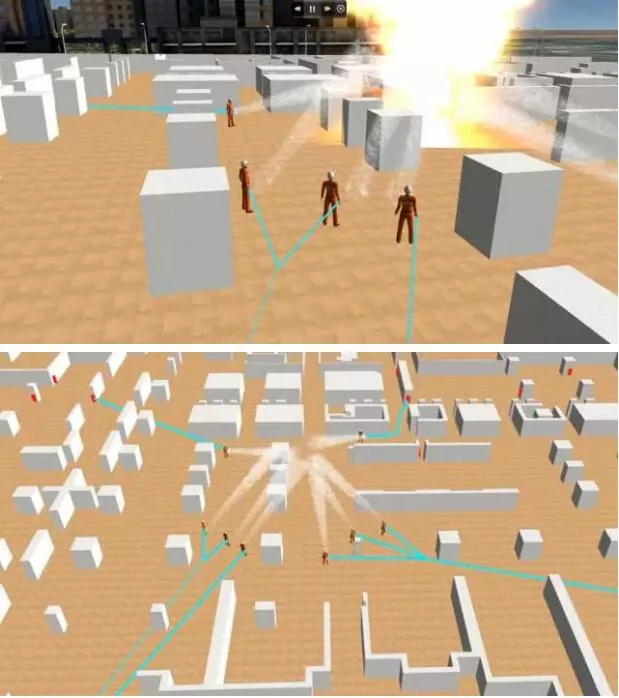

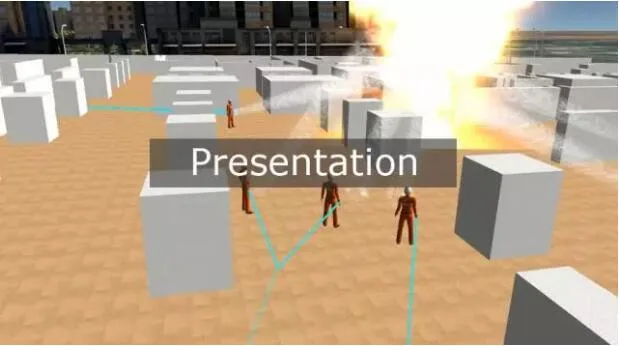

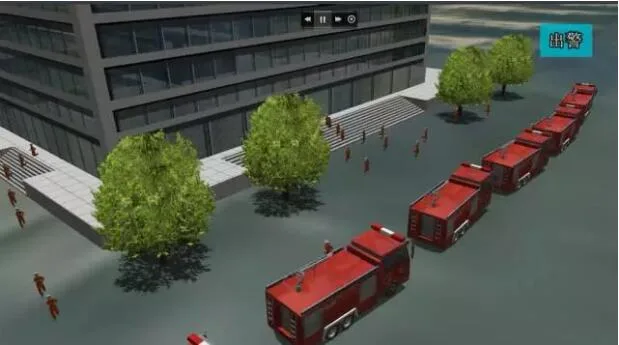

Firefighters carry out firefighting operations on site.

Prefabricated research and development

The firefighting operation is successfully completed.
