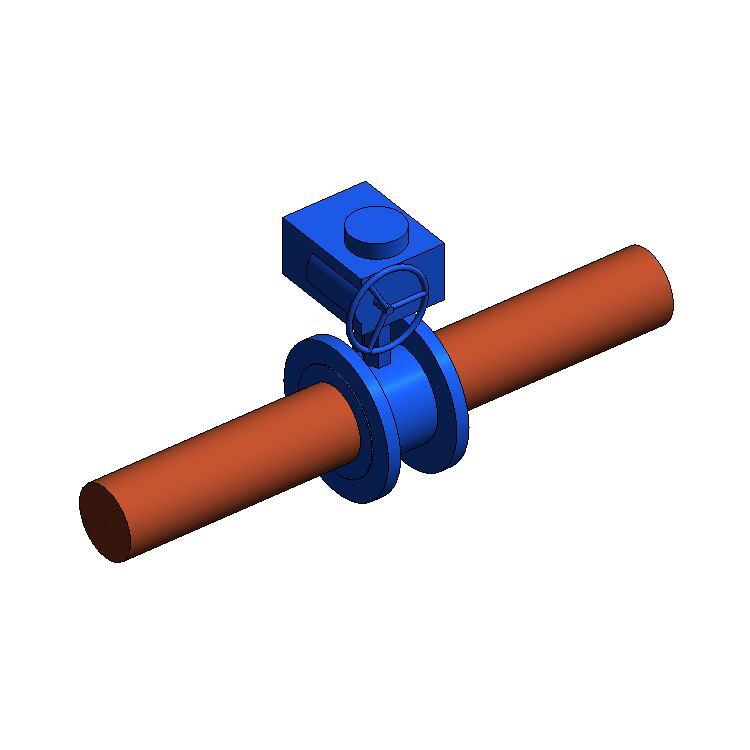

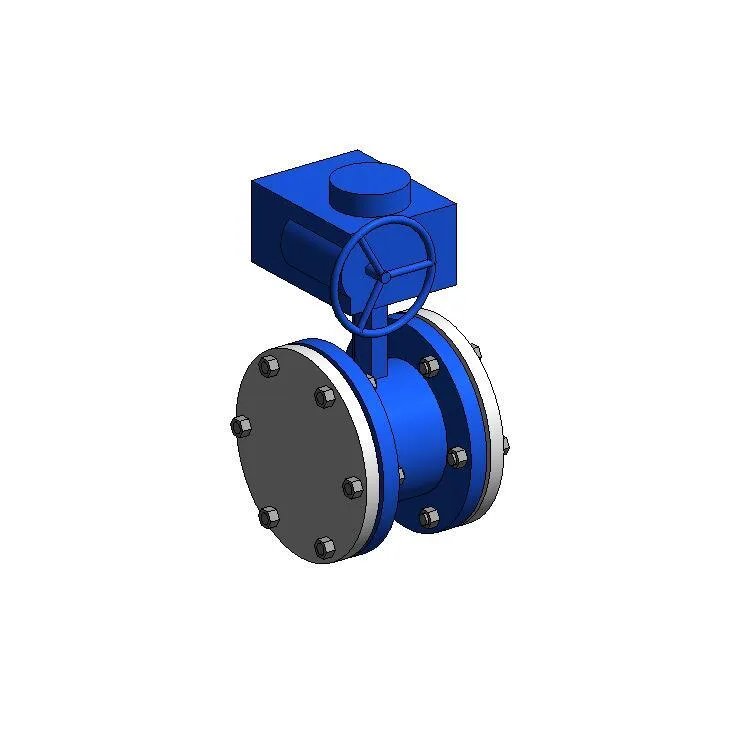

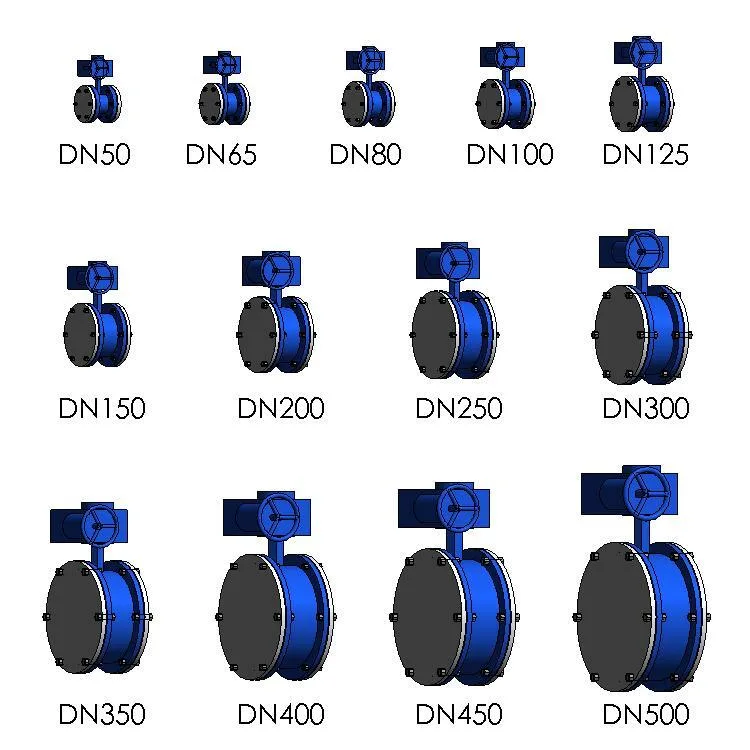

This butterfly valve represents a family of adaptive pipelines designed to meet a wide range of specifications. Its main dimensions are based on standard butterfly valve sizes (DN50-DN500), allowing for easy table lookup and one-to-one correspondence. This ensures that all variants within this family precisely match real-world products.
When creating plans, the display can be customized to show the actual product or a legend. Additionally, the inclusion of flanges is optional, providing flexibility to suit different project needs. The operation of this valve family is straightforward, flexible, and practical.
Our family version is compatible with Revit 2014 and later versions, ensuring seamless integration for users with Revit 2014 or newer.
