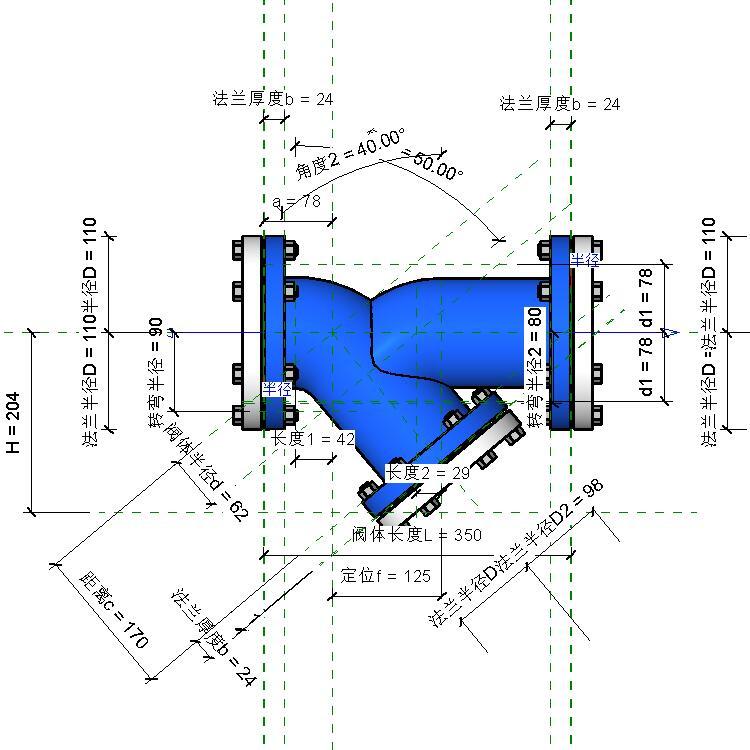

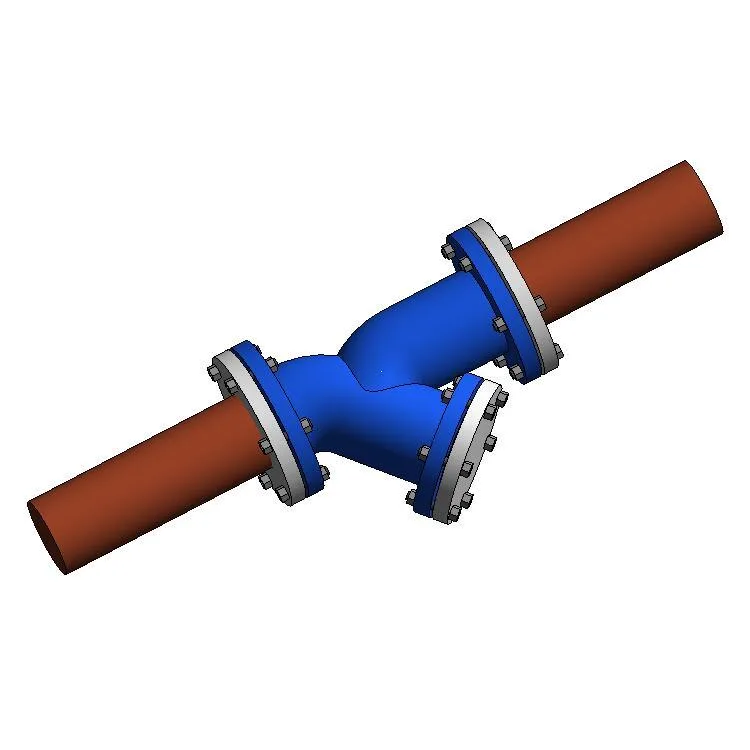

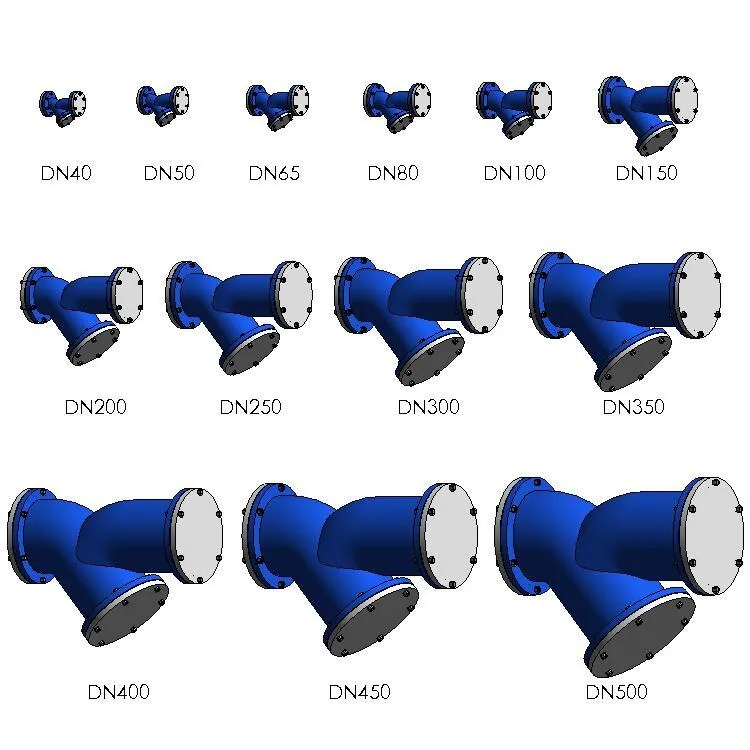

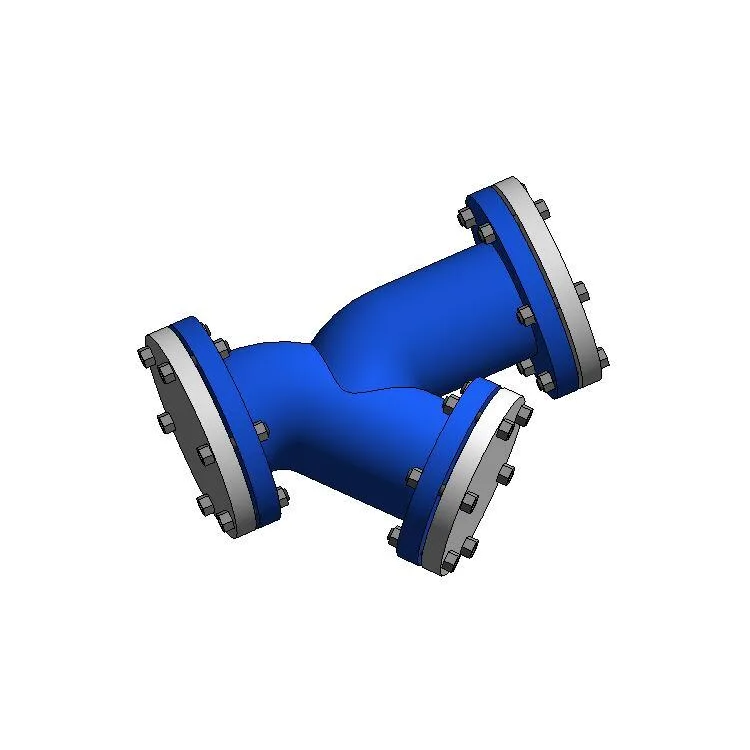

This family represents an adaptive pipeline instance, with its main dimensions based on the conventional Y-shaped filter sizes (DN40~DN500). This design allows for easy table lookup and one-to-one correspondence, ensuring that every specification within this family matches the actual product accurately.
During the planning phase, the display can be customized to show the actual product or a legend, and the selection of flanges is completely flexible. The operation is straightforward, adaptable, and practical, offering great convenience.
Our family version is compatible with Revit 2014, and it works perfectly with versions 2014 and above!
