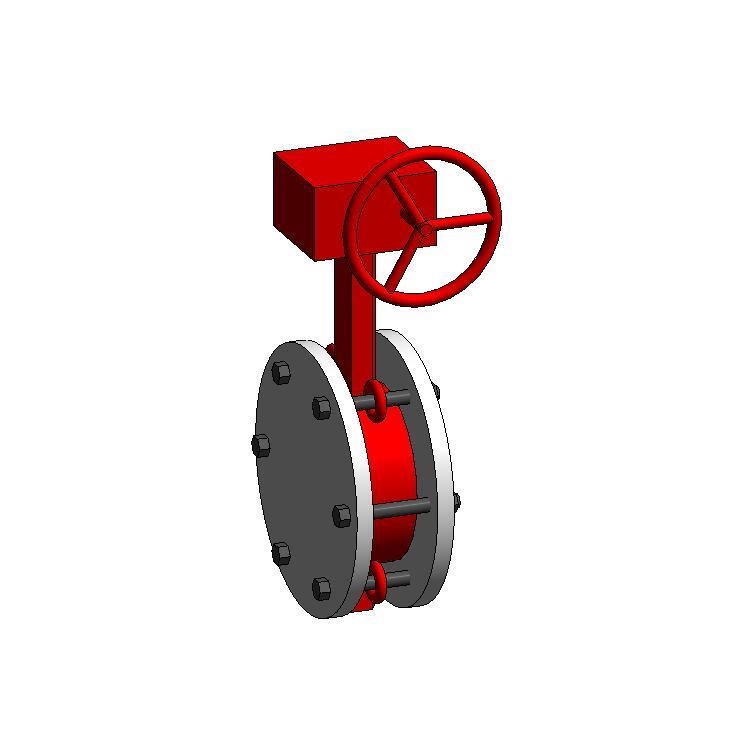

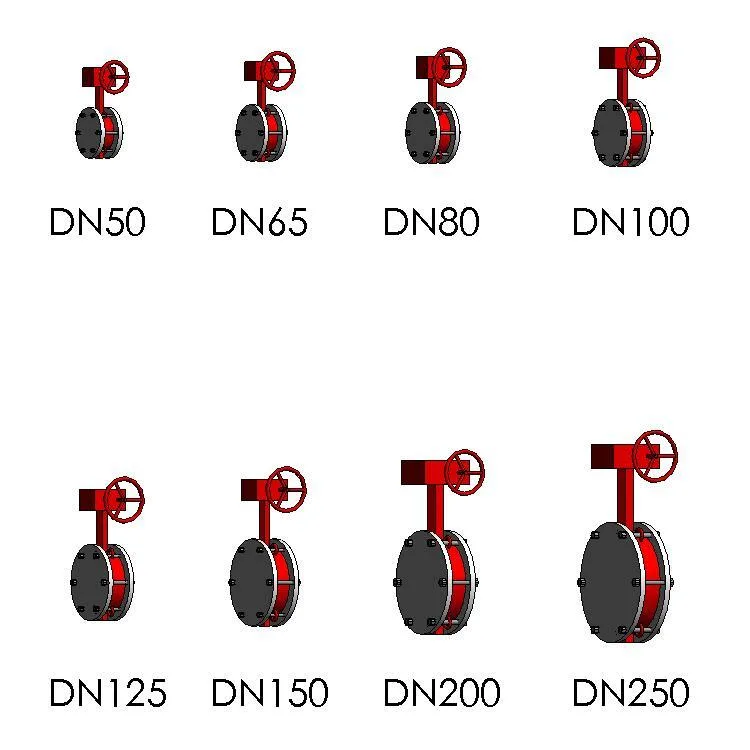

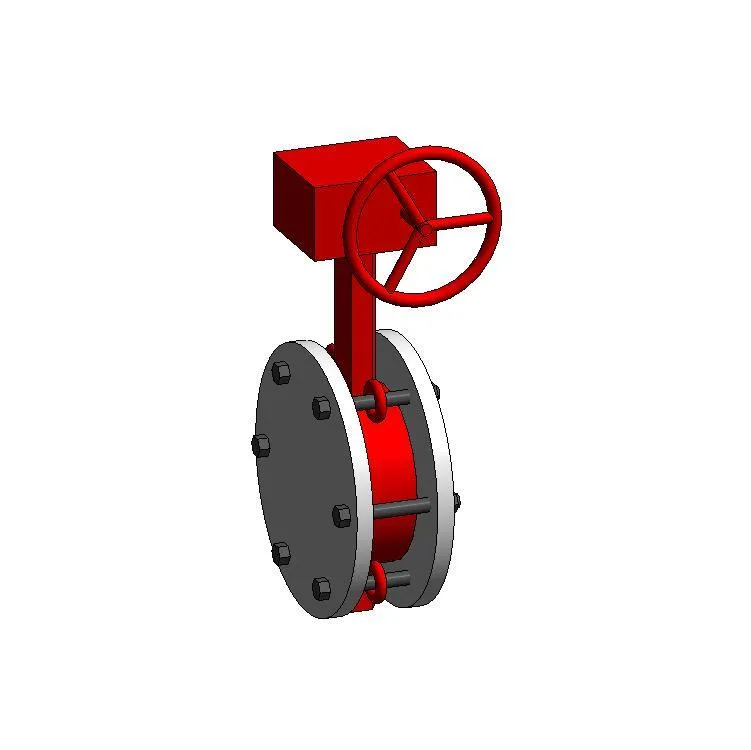

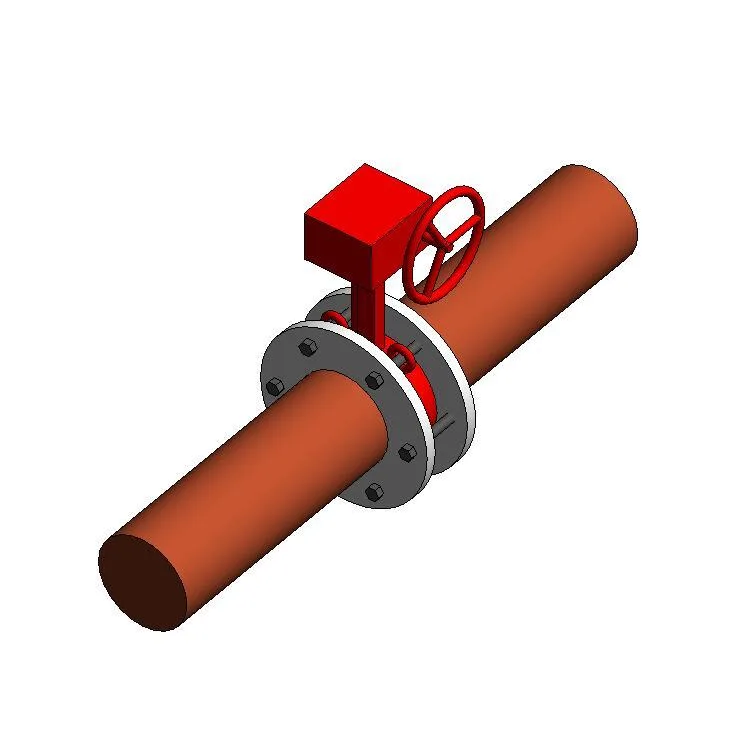

This butterfly valve is part of an adaptive pipeline family designed with reference to the standard dimensions of conventional signal butterfly valves (DN50-DN250). This ensures a one-to-one correspondence through table lookup, allowing all specifications within this family to accurately match real products.
When creating plans, users can customize the display to show either the actual product or a legend representation. The operation is straightforward, flexible, and practical, making it easy to work with in various design scenarios.
Our family version is compatible with Revit 2014 and above, ensuring seamless use across these versions.
