Located between two distinct neighborhoods—the historic residential district of Dialogue Bay Village and Boston’s “High Ridge” architectural cluster—212 Stuart Street breaks away from the city’s typical glass skyscrapers. The design team sought to introduce quality and diversity to the building’s exterior facade by using innovative materials and construction techniques.

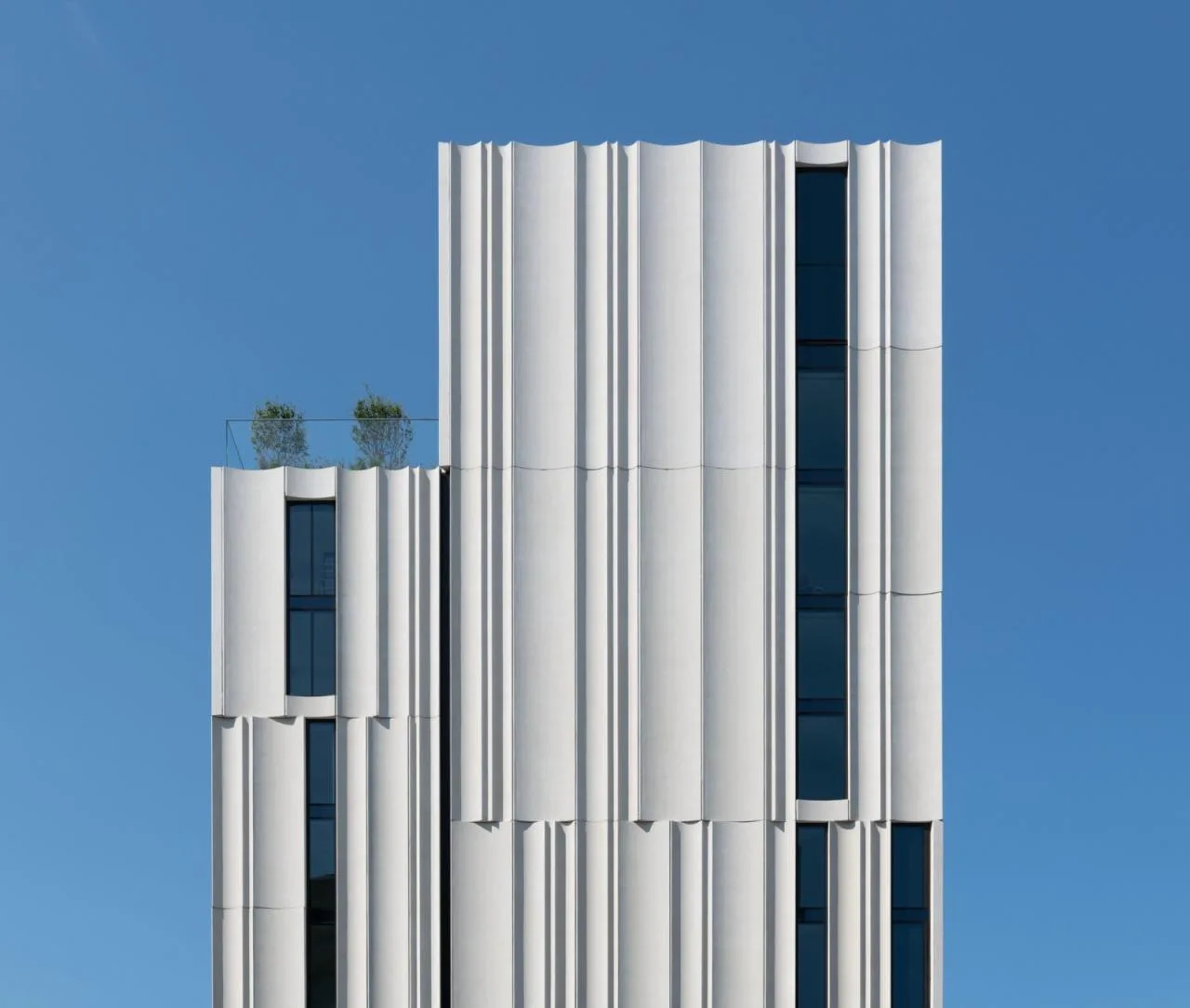

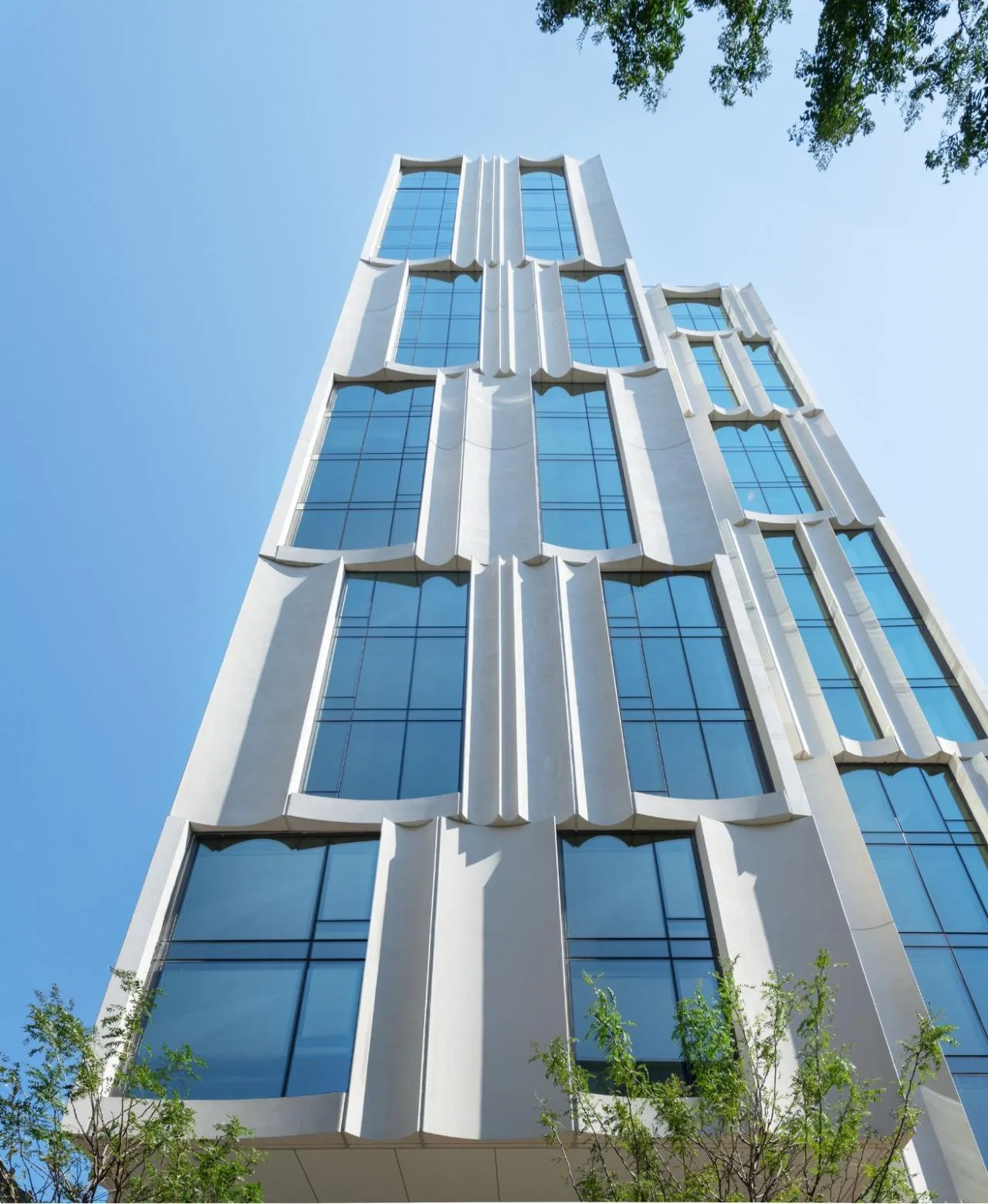

The building’s unique facade features curved, recessed decorative panels that vary in size across the entire enclosure. These panels echo traditional elements found in the historic district, such as bricks and stones, blending contemporary design with local heritage.

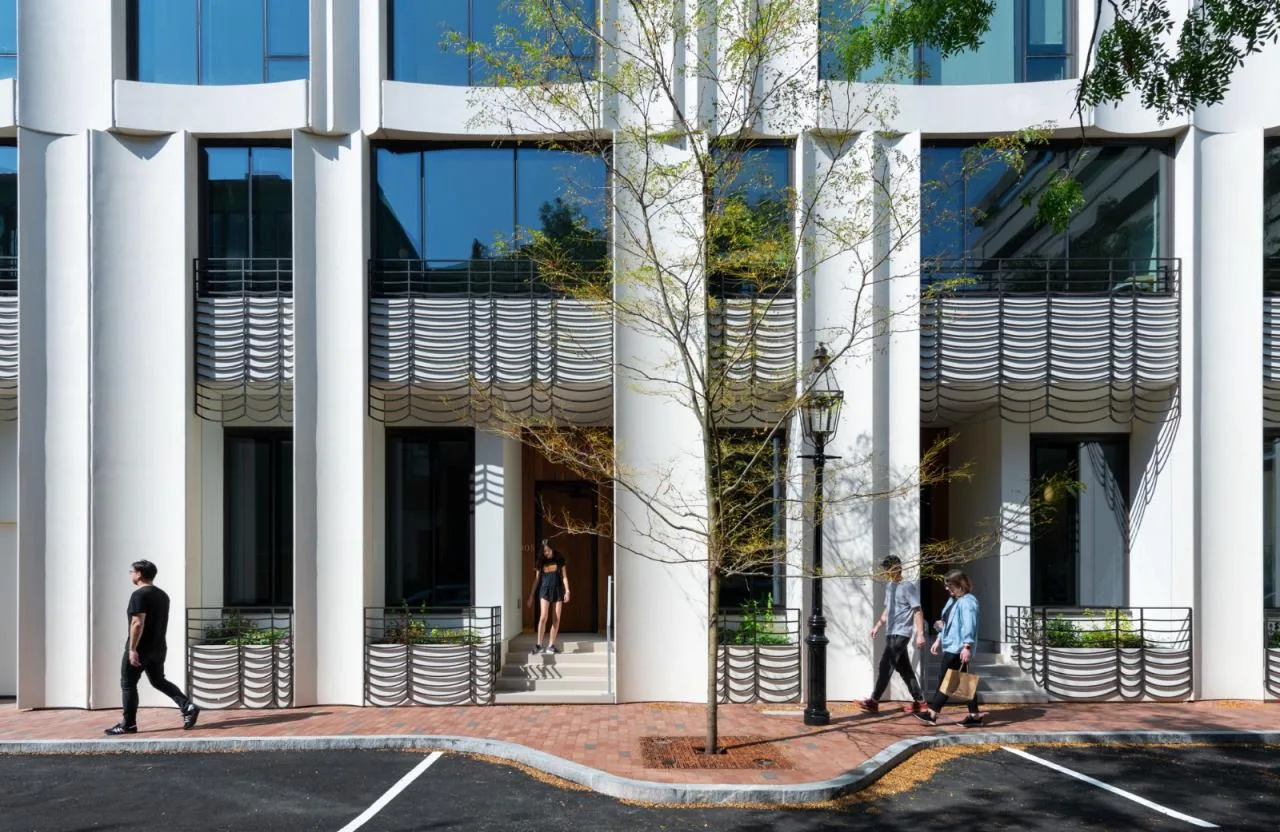

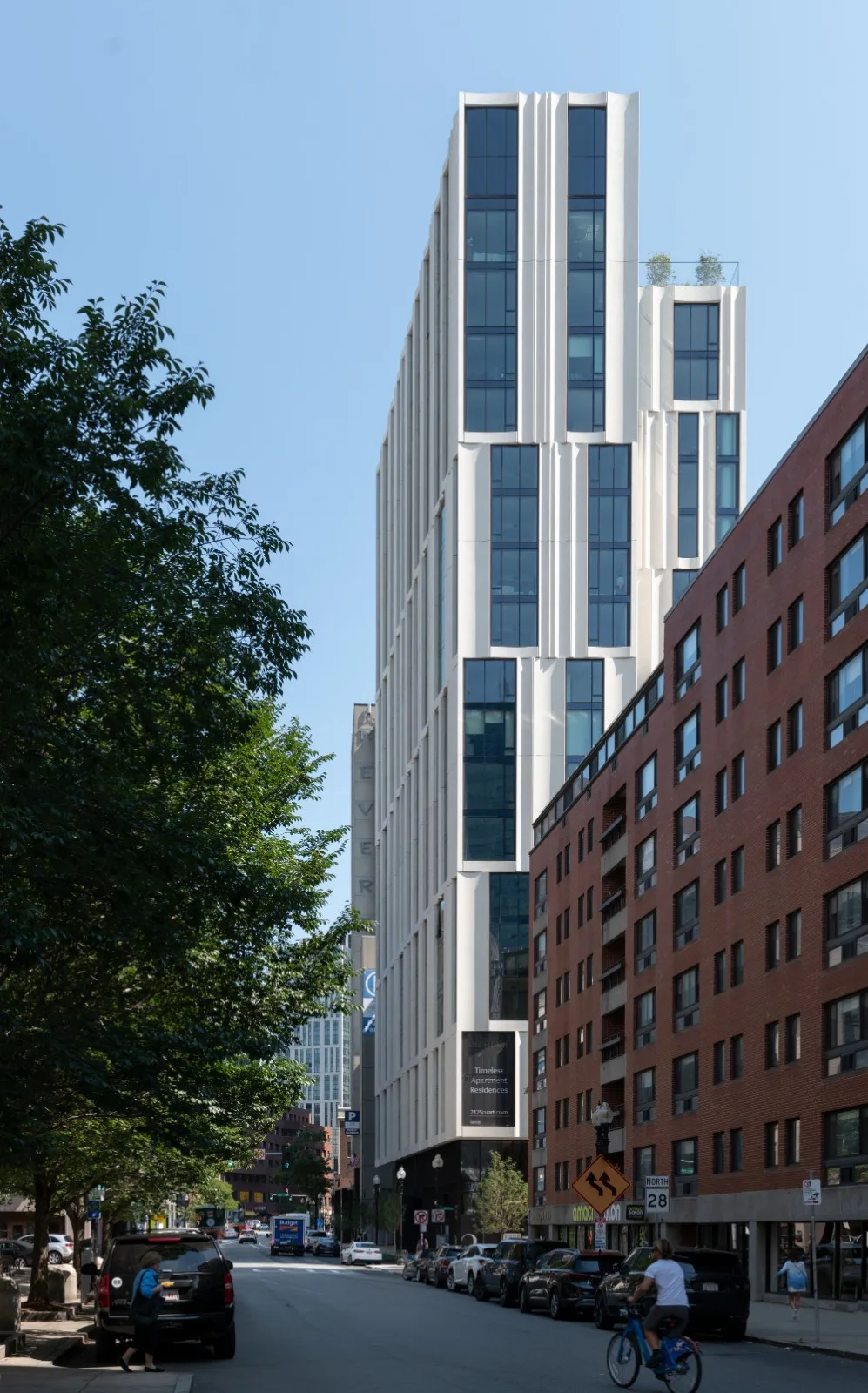

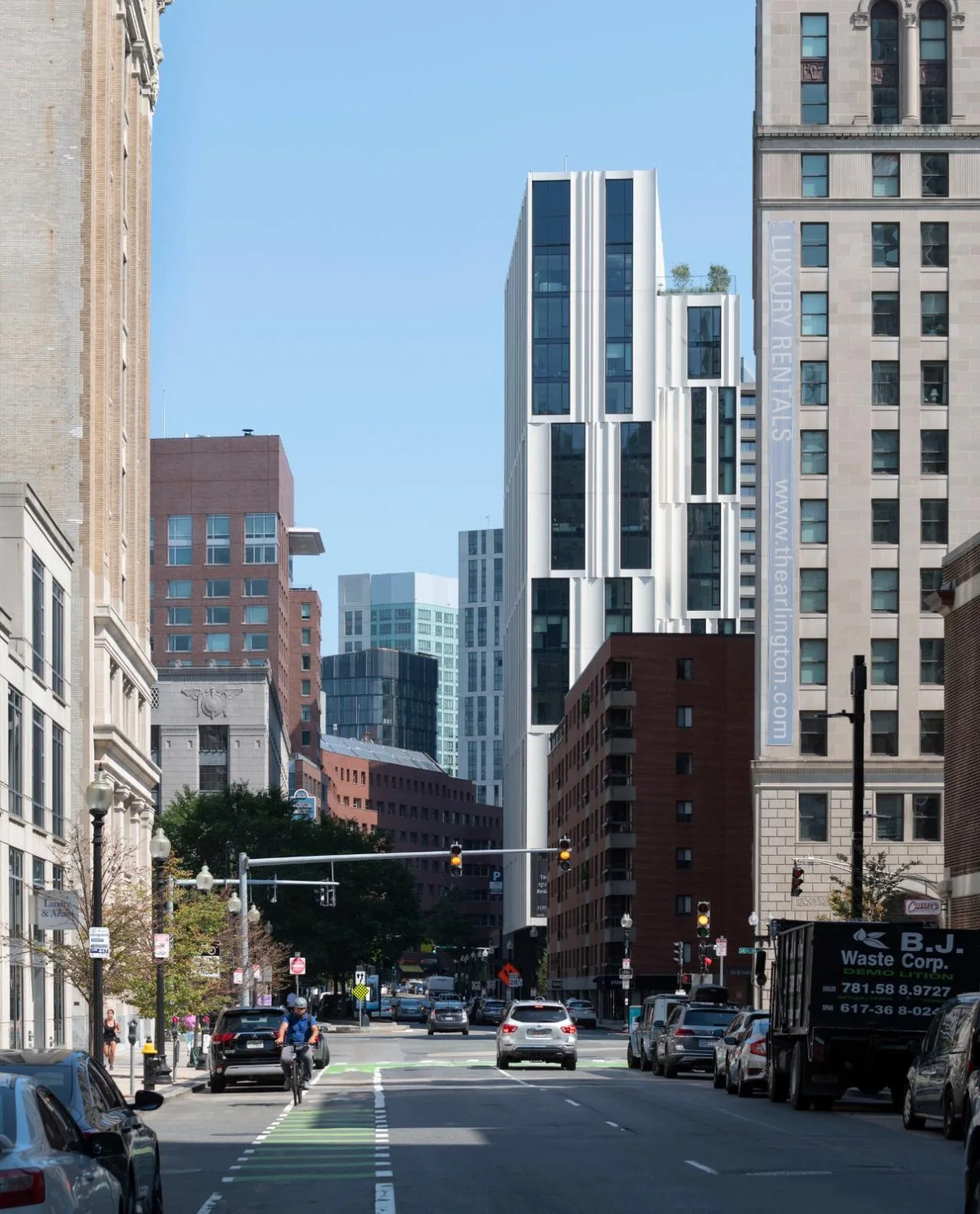

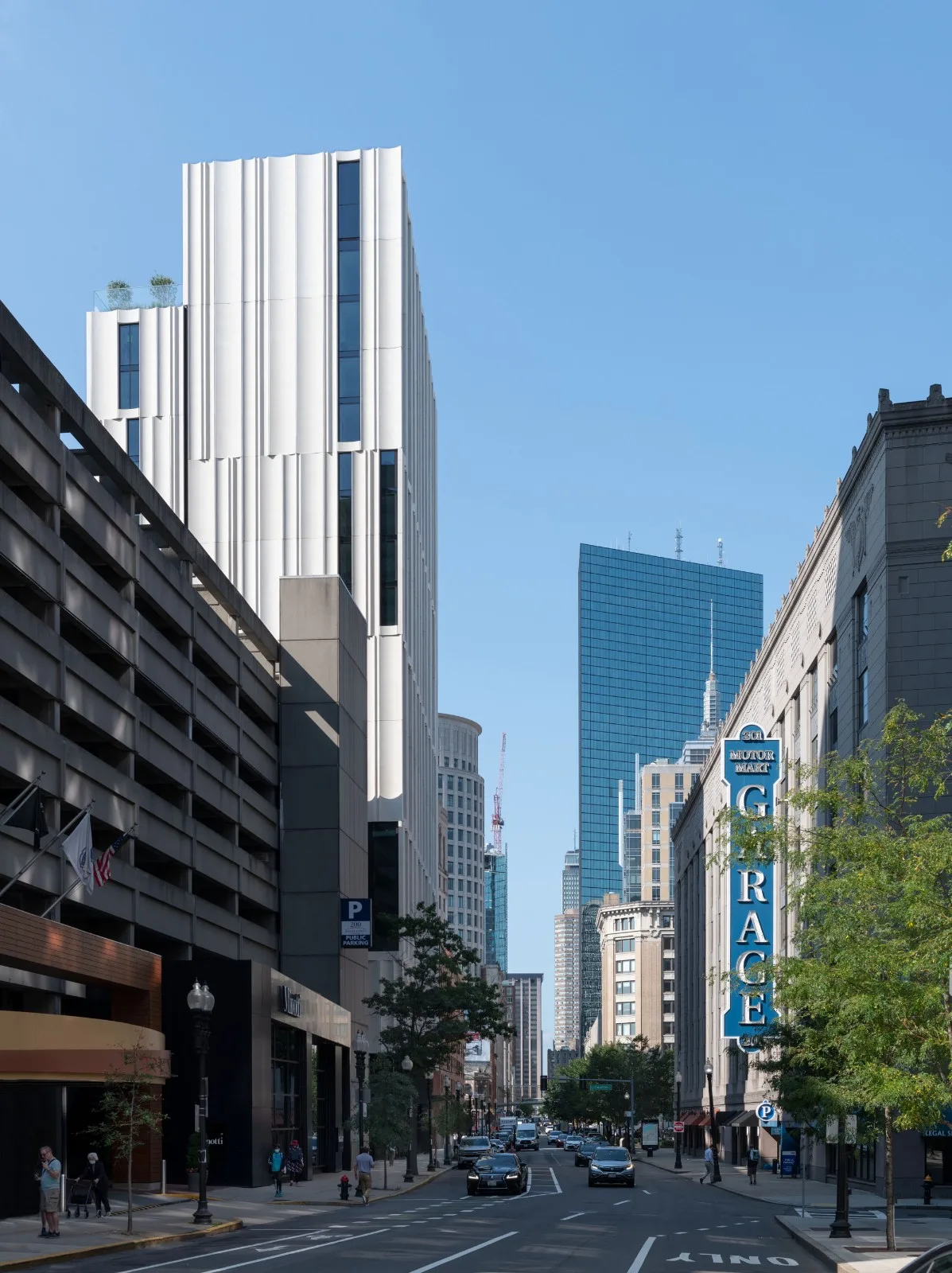

212 Stuart Street presents itself in various ways within the urban landscape. From afar, its distinctive silhouette meets the sky with a commanding presence. Up close, the building connects seamlessly to the ground, integrating smoothly with the sidewalk and surrounding streetscape. Features like its porch, flower pots, and ironwork complement the residential character of Haiwan Village.
This 19-story building also incorporates two row houses, enriching the northern streetscape of Haiwan Village with architectural diversity.
The project site—a small, irregularly shaped lot formerly used as a parking area—posed certain design challenges, especially given its dense urban surroundings. Early in the design and construction phases, there was close coordination between the building envelope team, precast concrete manufacturers, and exterior wall installers to streamline the process and minimize friction during construction.
This approach overcame typical manufacturing limits for multi-layer concave panels, which are usually 20 to 30 feet tall and require eight main molds. By optimizing the construction sequence, installation time was significantly reduced.

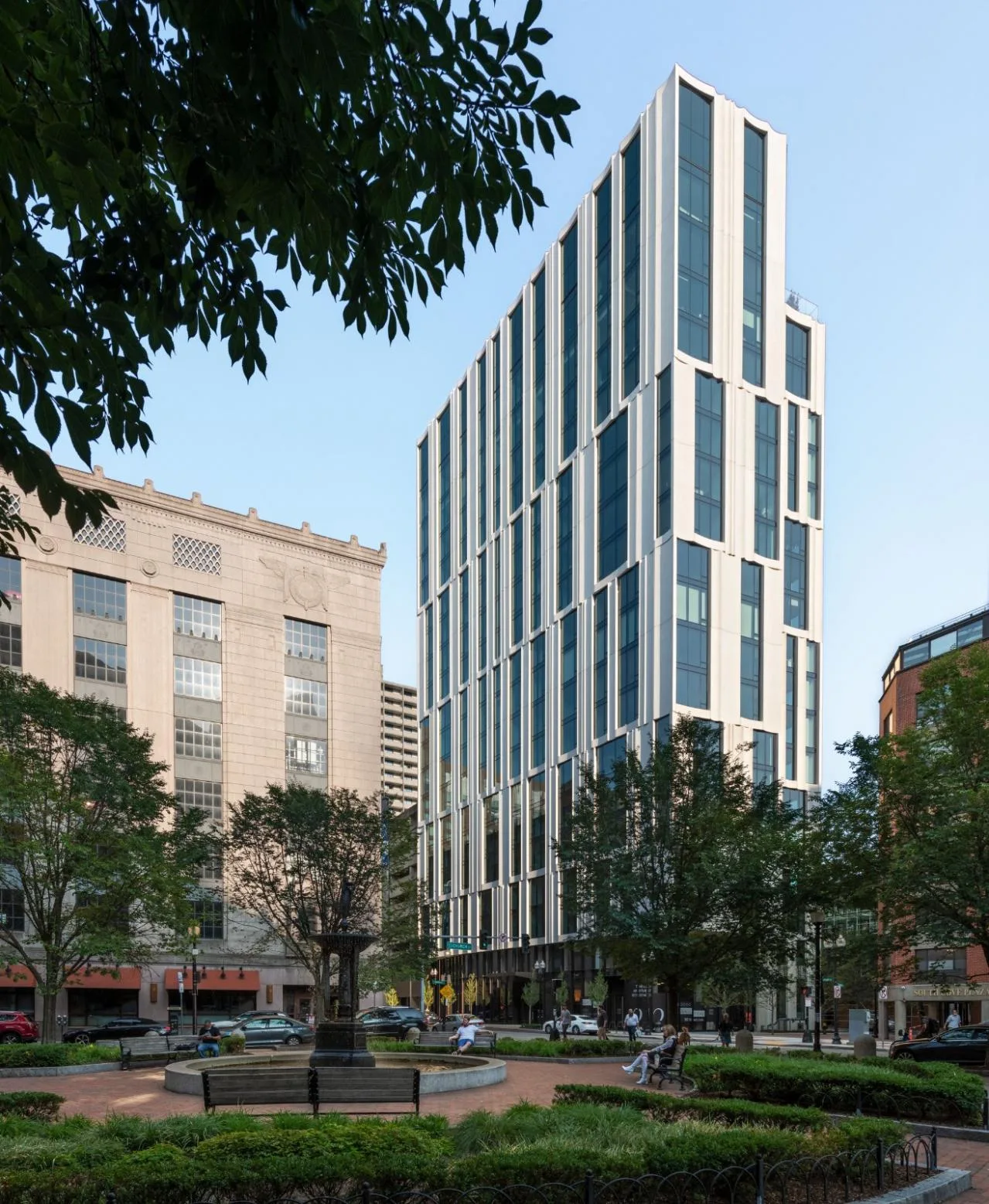

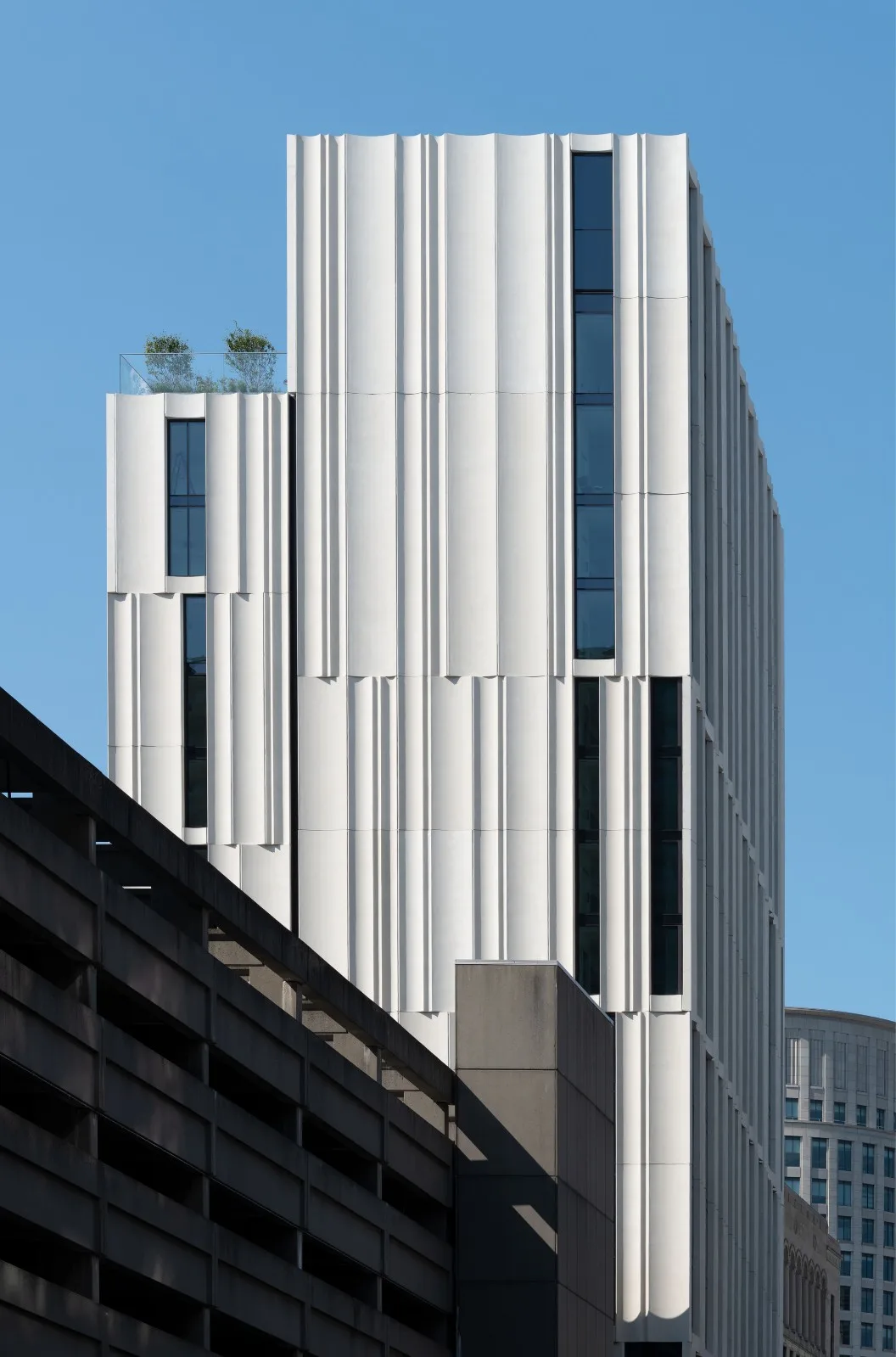

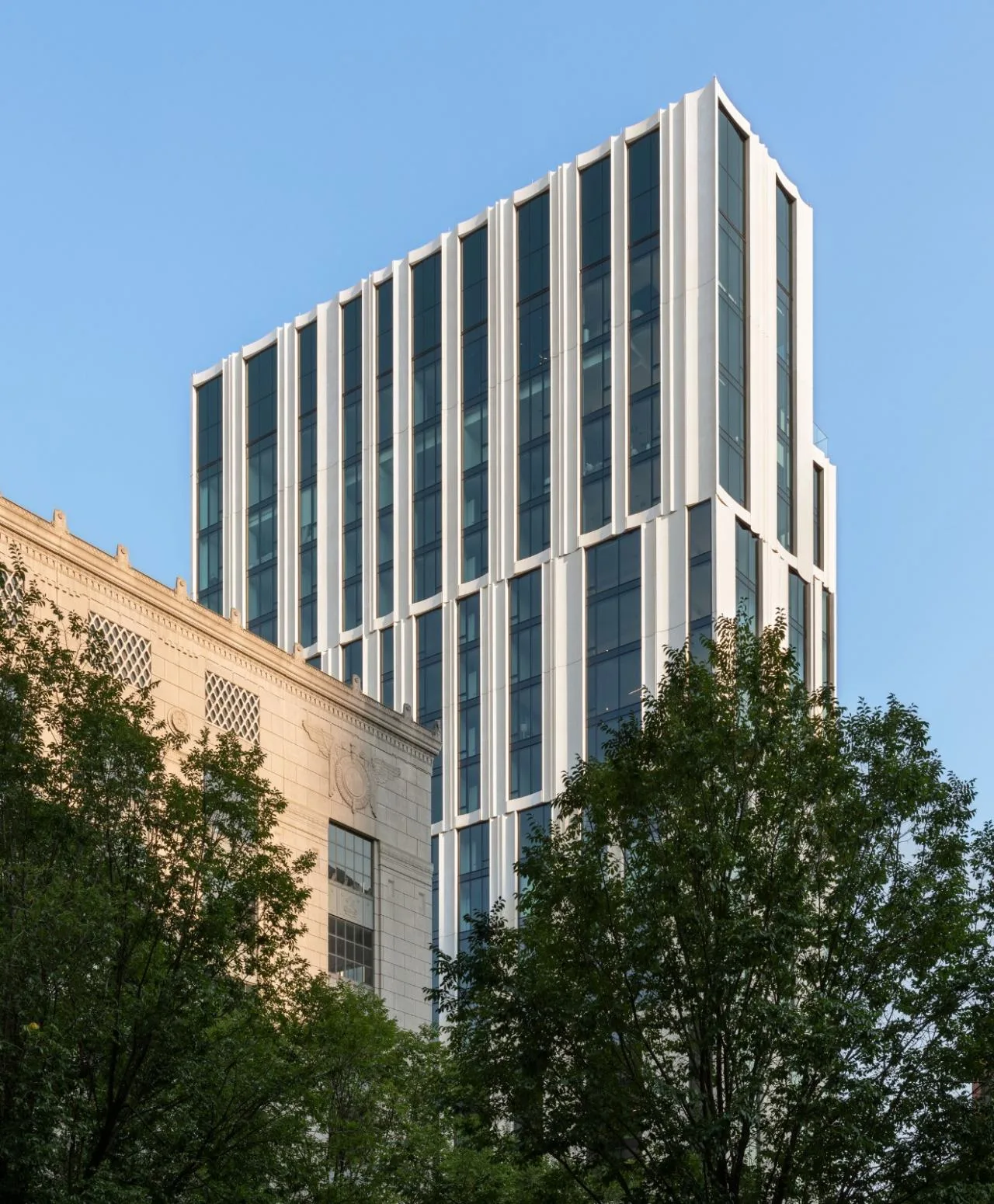

The irregularly spaced concave panels, produced locally by BPDL, together with multi-layer recessed glass curtain walls, emphasize the building’s verticality. This creates a dynamic interplay between individual elements and the overall structure, allowing 212 Stuart Street to stand out prominently in the Boston skyline.
Each panel was meticulously labeled and sequenced at the factory before being loaded onto trucks in the exact order of installation. On site, panels were lifted directly from the trucks by crane and attached to the building, eliminating the need for time-consuming bracket installations.
The residential units feature floor-to-ceiling window walls, with partition glass installed at intervals along the concrete slabs. The glass panel thickness ranges from 12 inches at the edges to 5 inches at the center, creating dramatic depth and shading effects while partially concealing the exterior walls.
Project Drawings

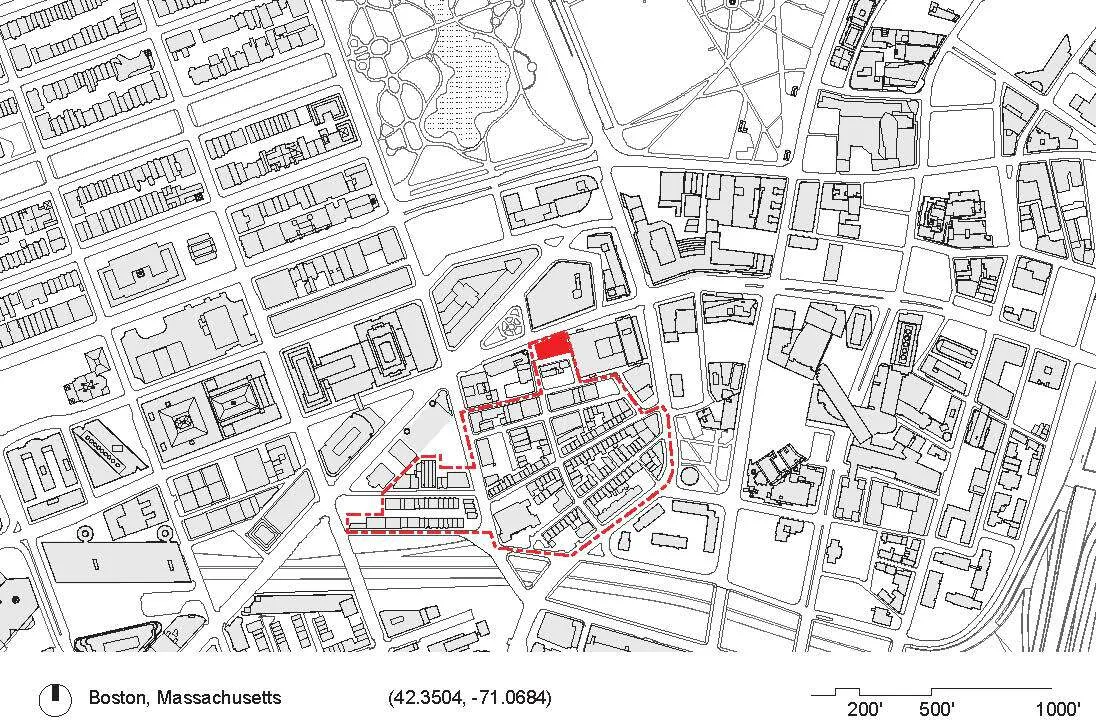

△ Base schematic diagram

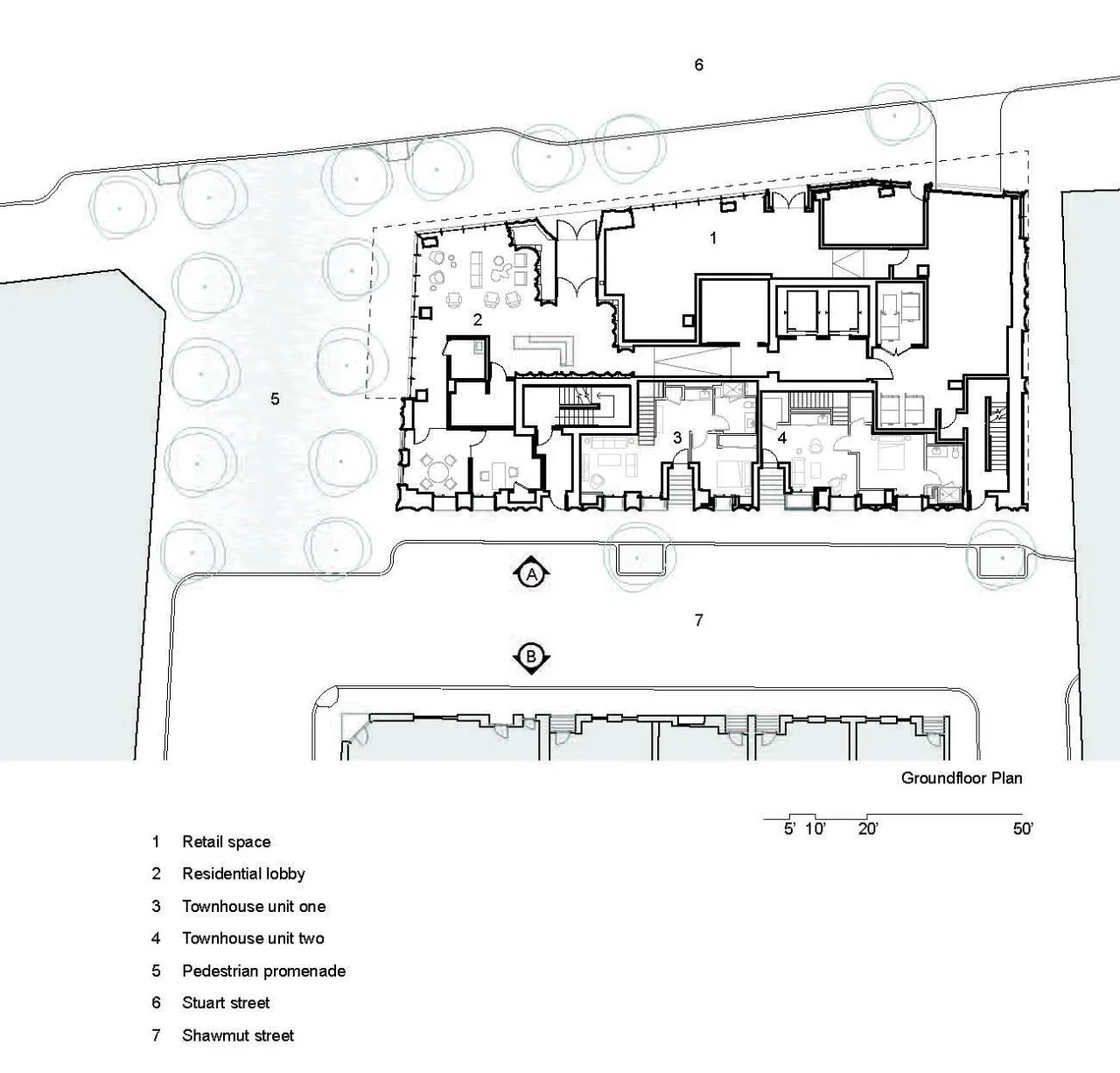

△ Plan view

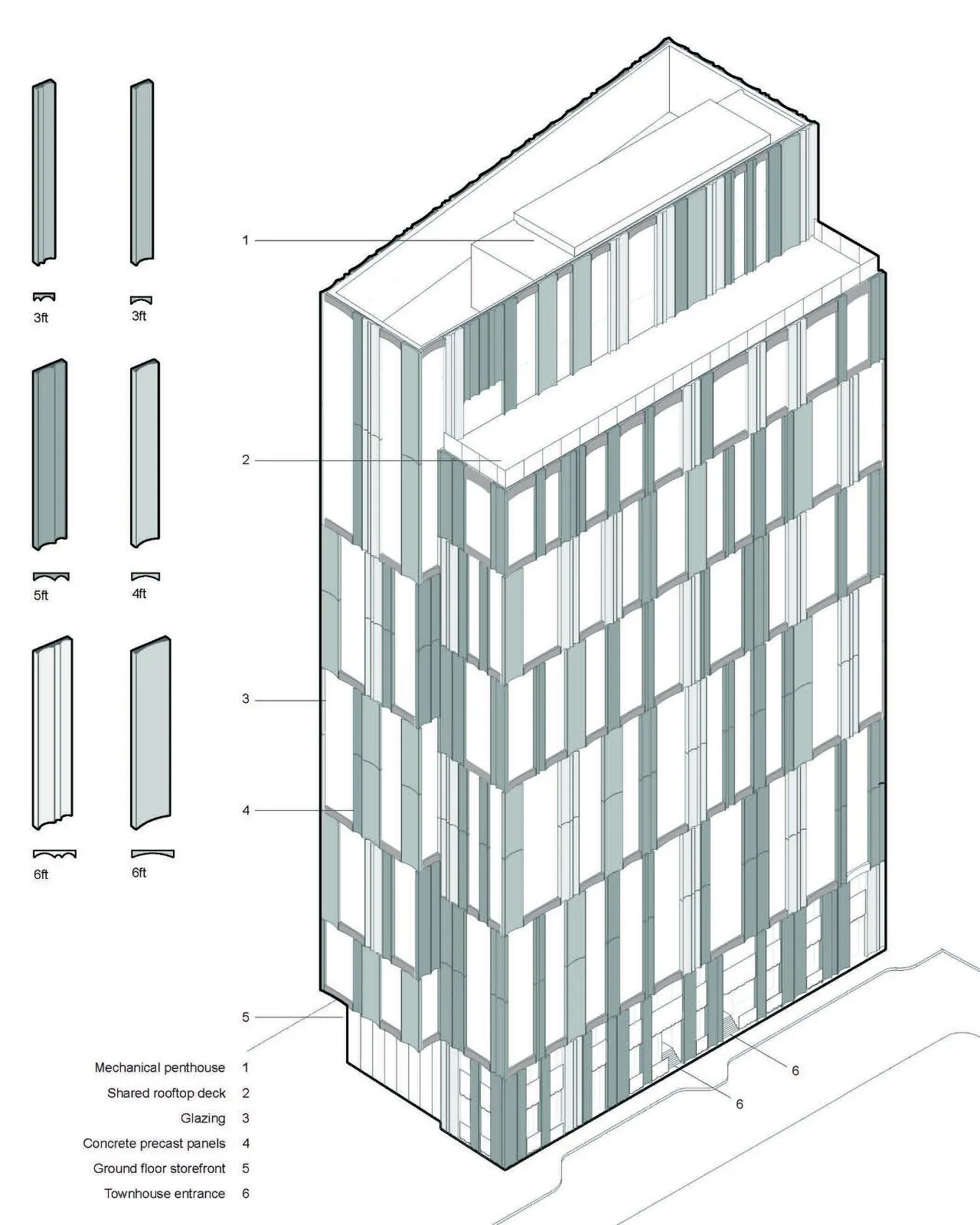

△ Facade analysis chart

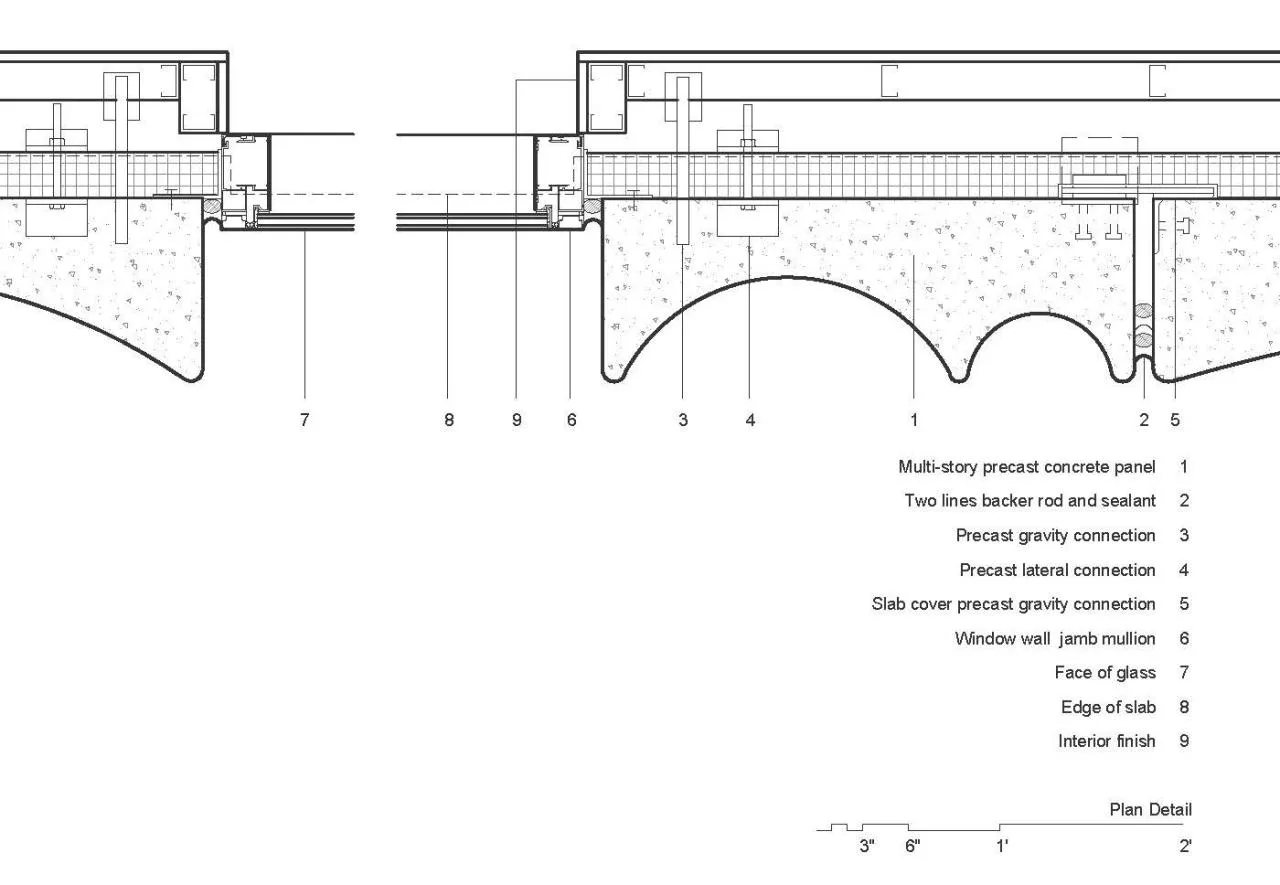

△ Detailed drawing
Project Information
Architects: Höweler+Yoon Architecture, Sasaki
Area: 146,000 ft²
Project Year: 2022
Photographer: Chuck Choi
Design Team: J. Meejin Yoon, Eric Höweler, Kyle Coburn, Jacob Bruce, Sophie Juneau, Sarah Martos, Daniel Fougere, Caleb Hawkins
Registered Architect: Sasaki
Landscape Architect: Sasaki
General Contractor: Consigli Construction Company
Structural Engineer: McNamara Salvia
MEP Engineer: AHA Engineers
Interior Design: Elizabeth Stuart Design
Facade Consultant: Vidaris
Location: Boston, United States
