Understanding LOD Levels in BIM Technology: What They Are and How They Are Classified

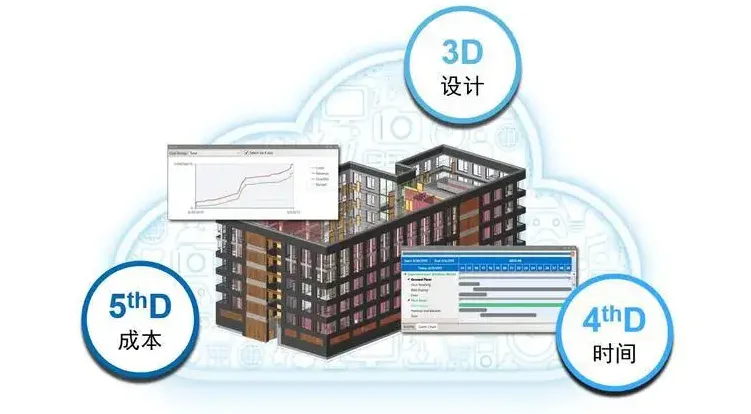

In BIM technology, LOD (Level of Detail) refers to the degree of detail in a model. It describes the progression of a BIM model component from the most basic conceptual representation to the highest level of accuracy and detail.

1. Definition of LOD

The American Institute of Architects (AIA) introduced the concept of LOD in its 2008 document E202 to standardize BIM participation boundaries and project phases. These definitions can be adapted depending on the specific purpose of the model. LOD serves two main roles: defining the expected deliverables at various project stages and assigning modeling tasks.

Model stage deliverables: Different model components progress through LOD levels at varying rates depending on their development.

Modeling tasks: Beyond 3D visualization, a BIM model component can contain extensive information, which may come from multiple contributors.

2. Levels of LOD

LOD 100 – Conceptual Design: This stage corresponds to early conceptual design. The model typically represents building volume and overall form, including aspects like volume, orientation, and rough cost estimates per square meter.

LOD 200 – Approximate Geometry: At this level, roughly equivalent to schematic or preliminary design, the model includes approximate quantities, dimensions, shapes, locations, and orientations of major systems.

LOD 300 – Precise Geometry: Corresponding to construction documents and detailed drawings, this stage features accurate component properties and parameters as specified by the owner’s BIM standards. The model is suitable for cost estimation, construction coordination (including clash detection), scheduling, and visualization.

LOD 400 – Fabrication and Assembly: At this level, the model supports fabrication and installation processes. Specialized contractors and manufacturers use it to produce and assemble components.

LOD 500 – As-Built: This final stage reflects the completed project. The model includes all component parameters and properties as specified in the owner’s BIM submission guidelines. It is integrated into the building’s operation and maintenance system as a central database.

With this overview, I hope readers now have a clearer understanding of LOD. These are the commonly referenced LOD levels and their divisions within BIM technology. I hope this article proves helpful!
