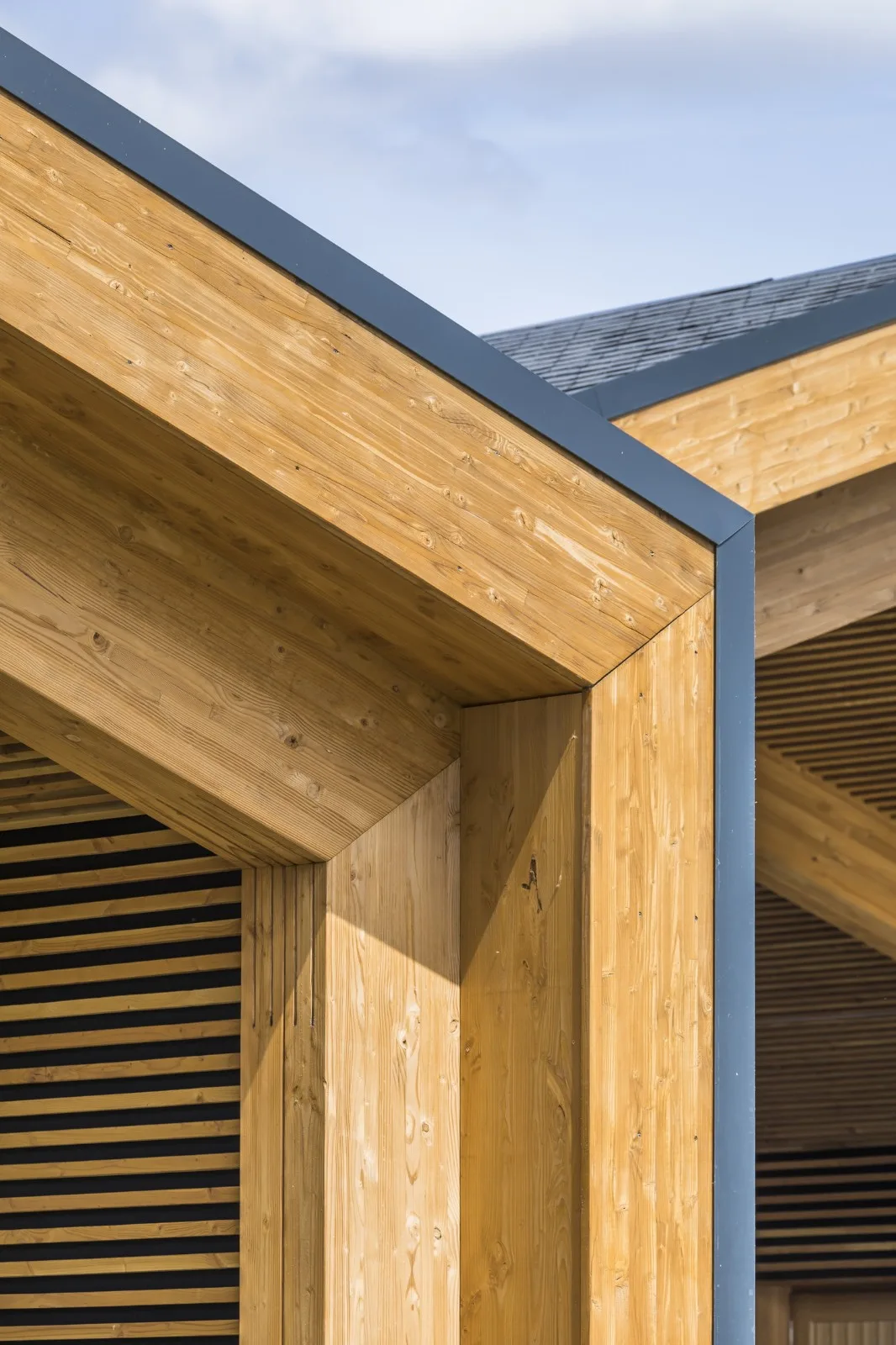

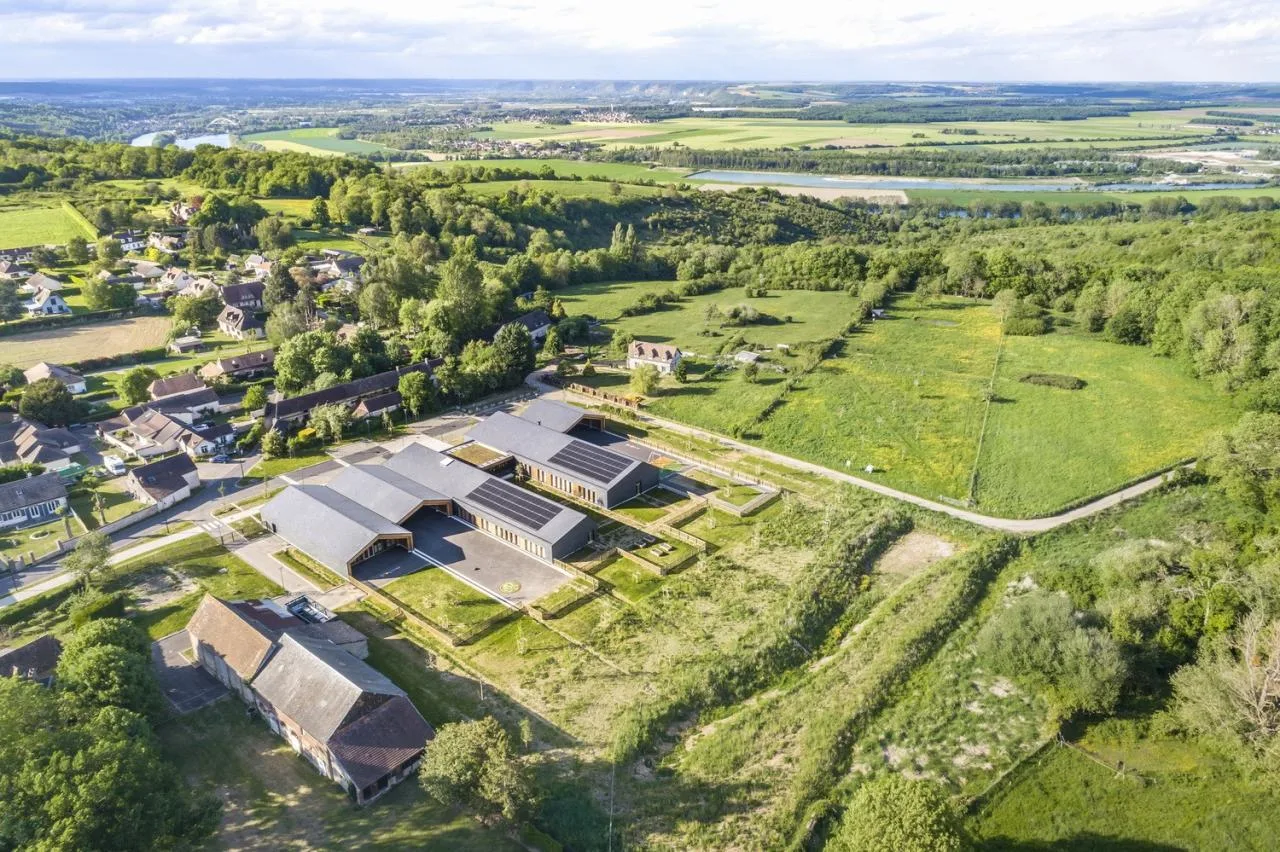

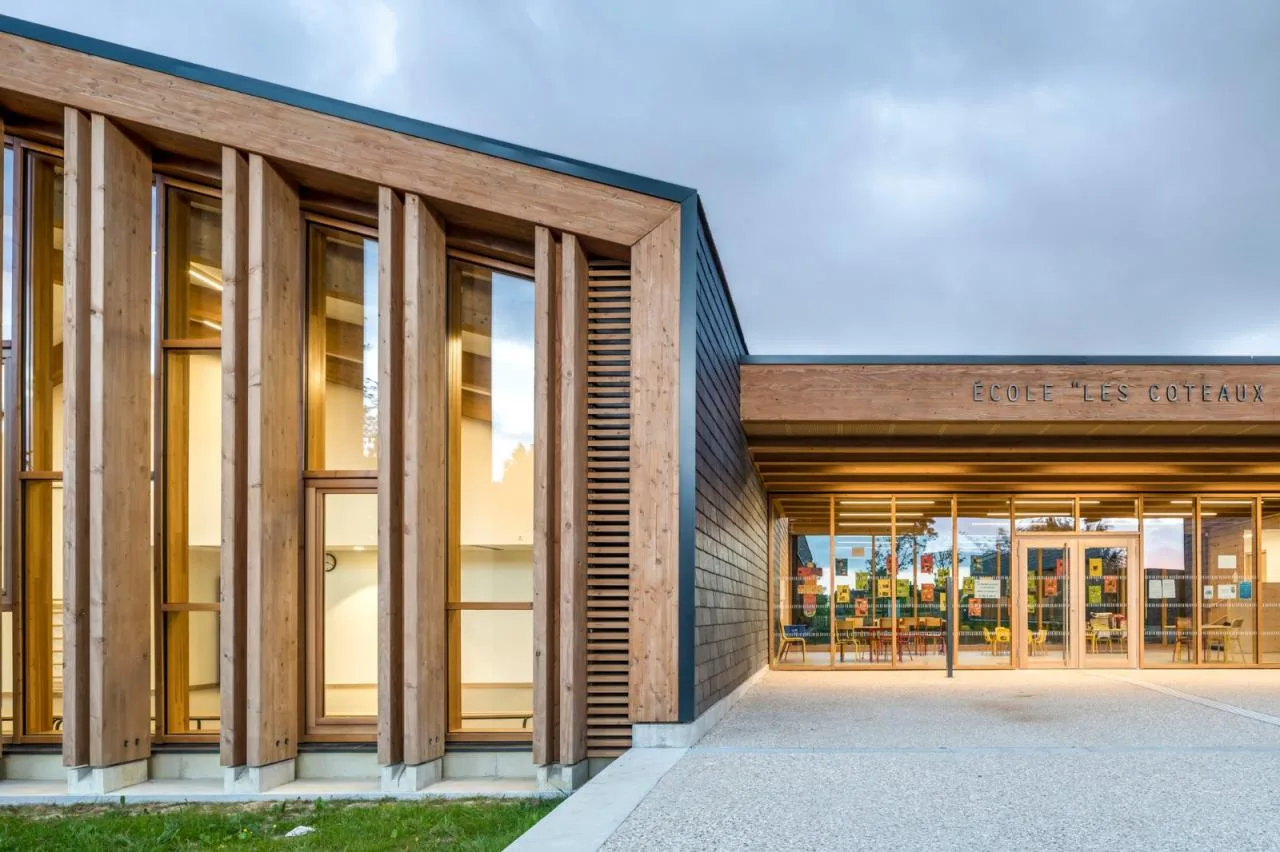

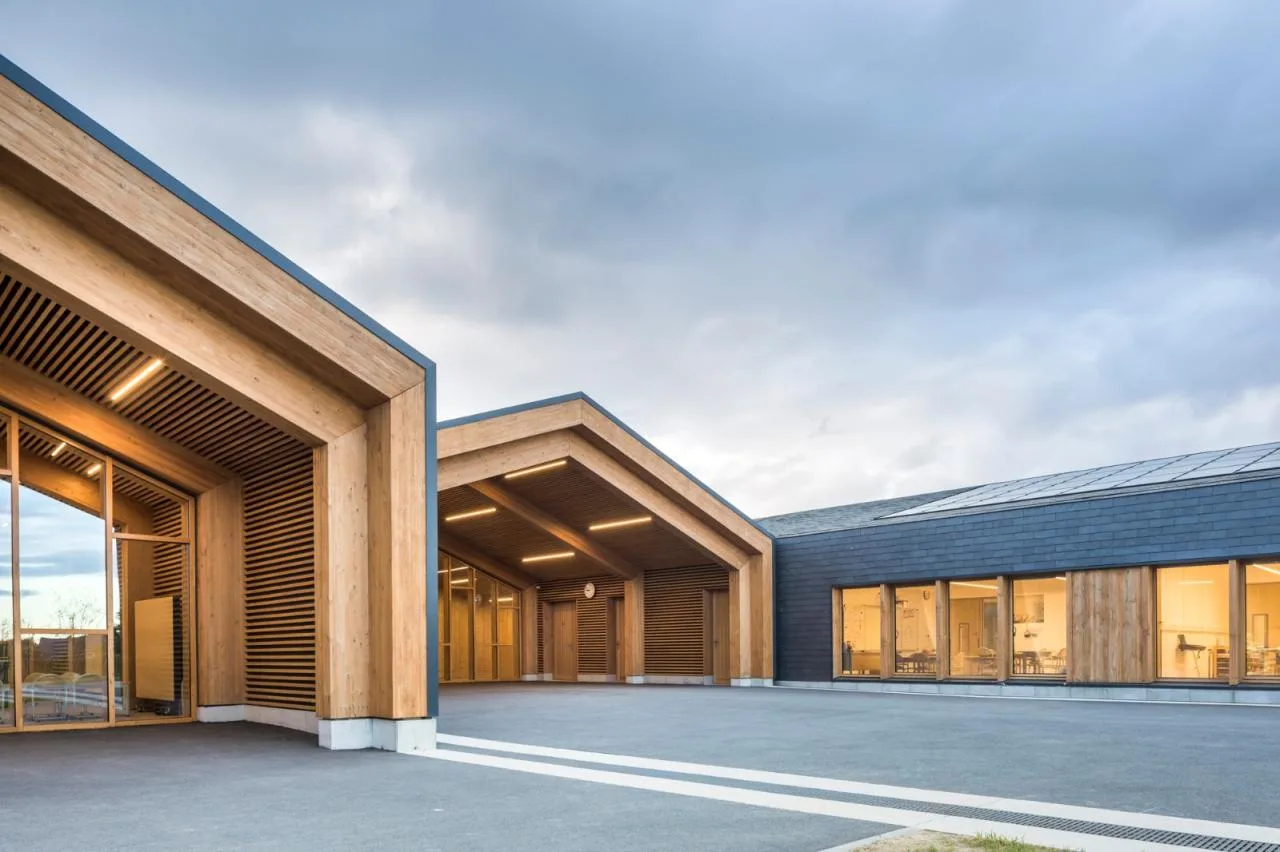

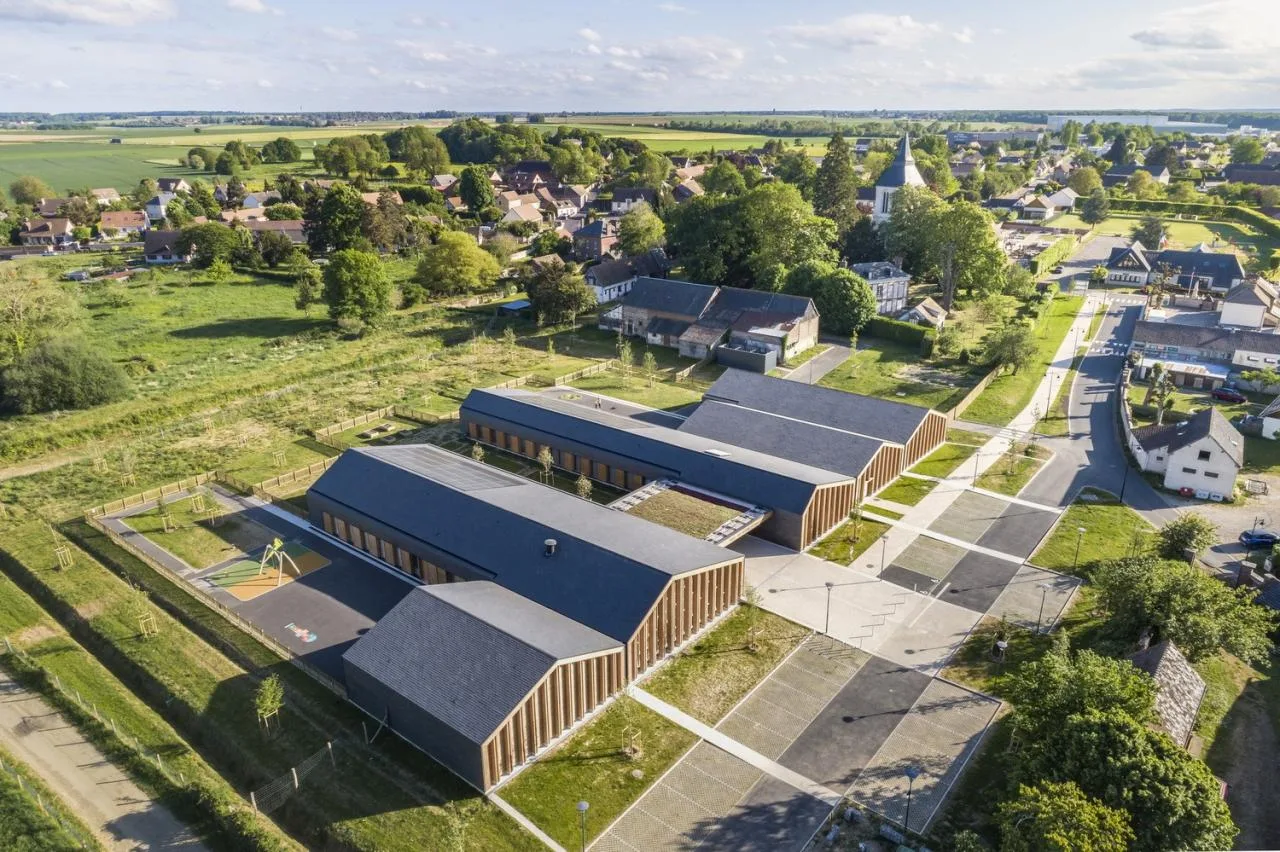

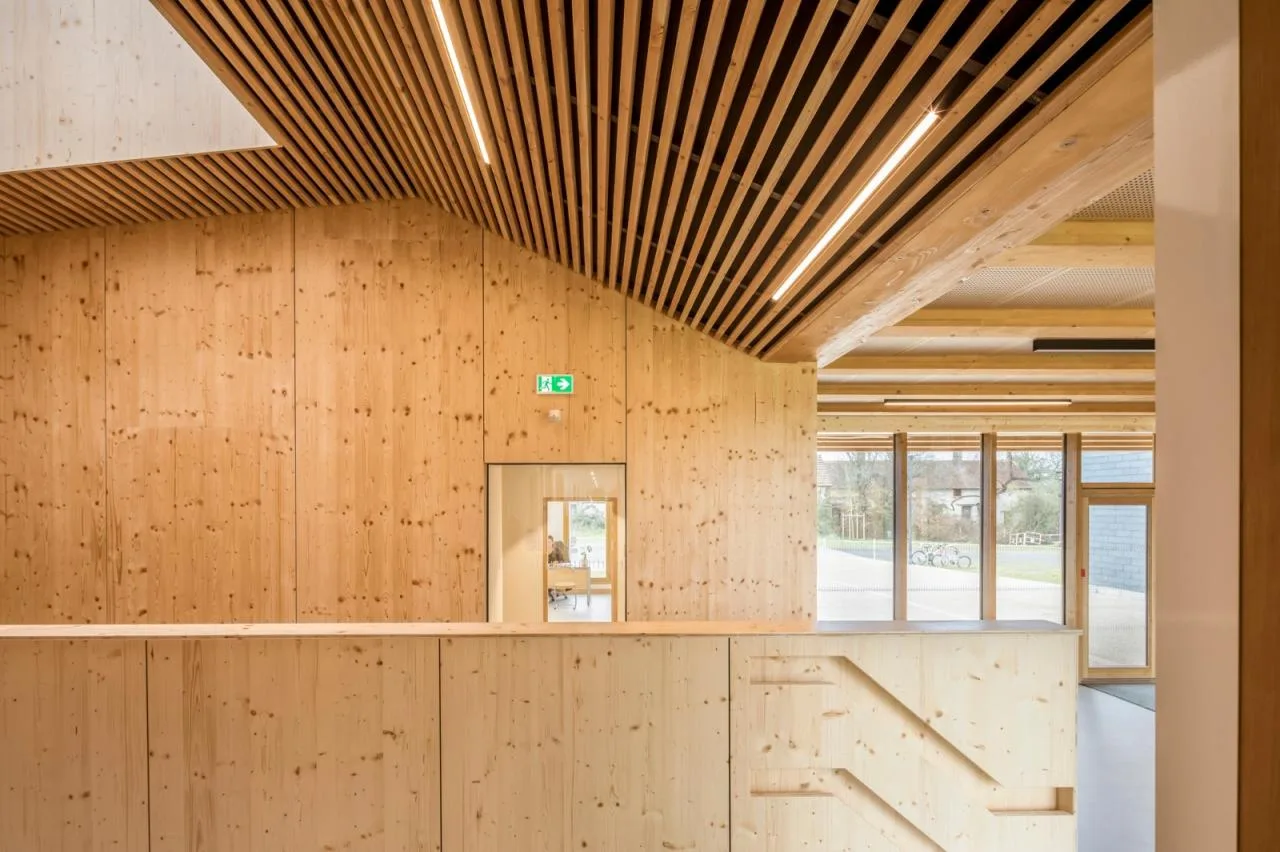

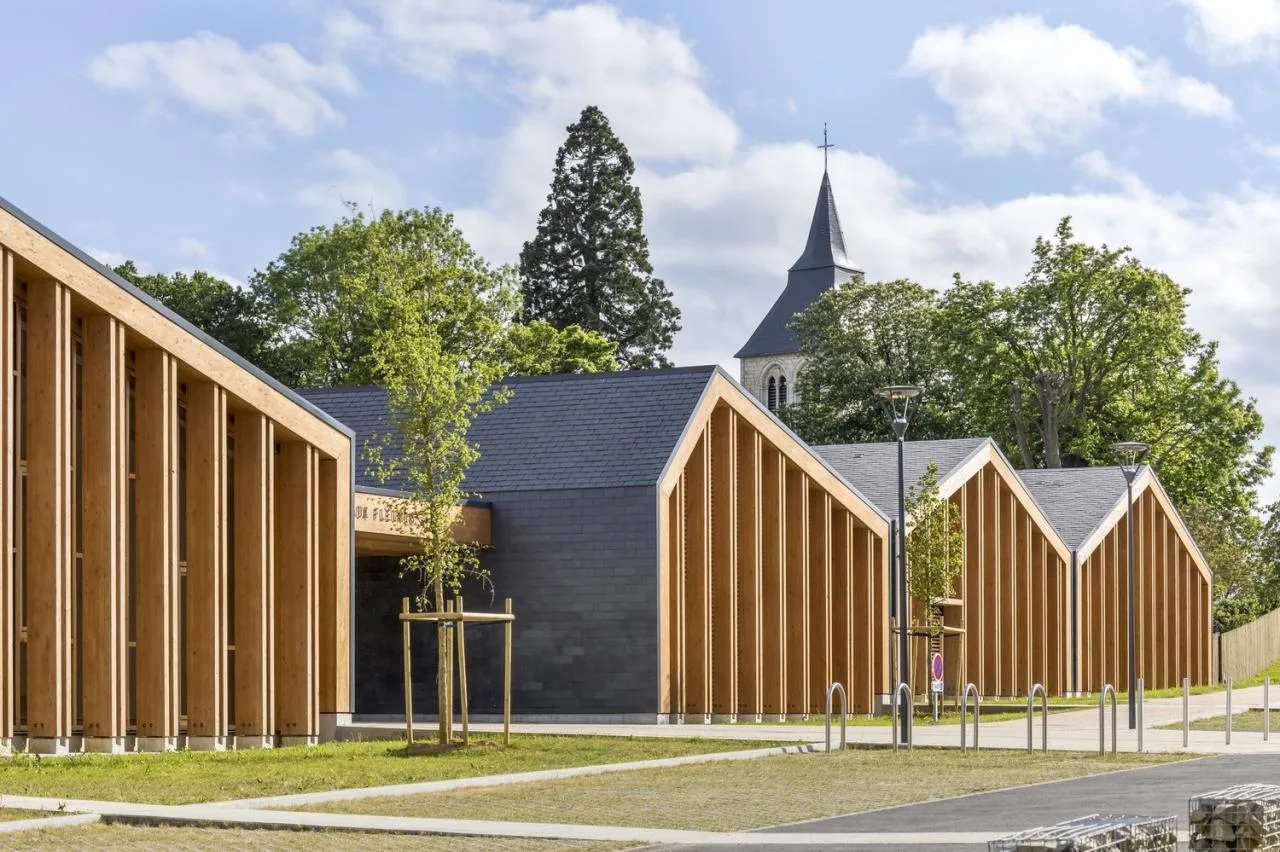

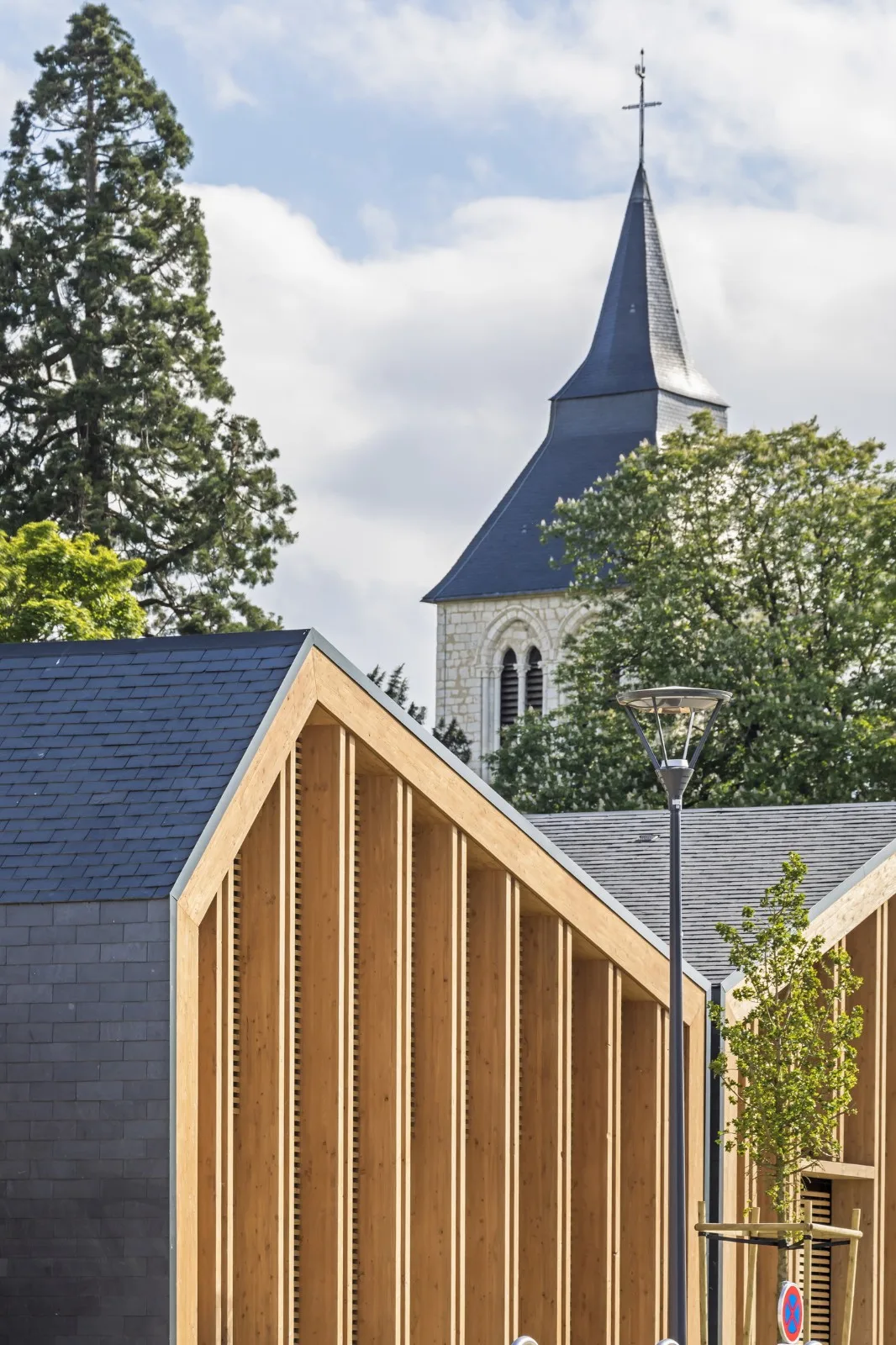

Located in the Normandy village of Heudebouville, France, this new school is set on a picturesque site overlooking the Seine River Valley, surrounded by lush countryside and trees. The design thoughtfully incorporates local history, using wood from the traditional half-timbered houses in the town center for the window frames and structural elements. Stone slabs, reminiscent of those on the clock tower and city hall, clad and protect the exterior walls and roof.

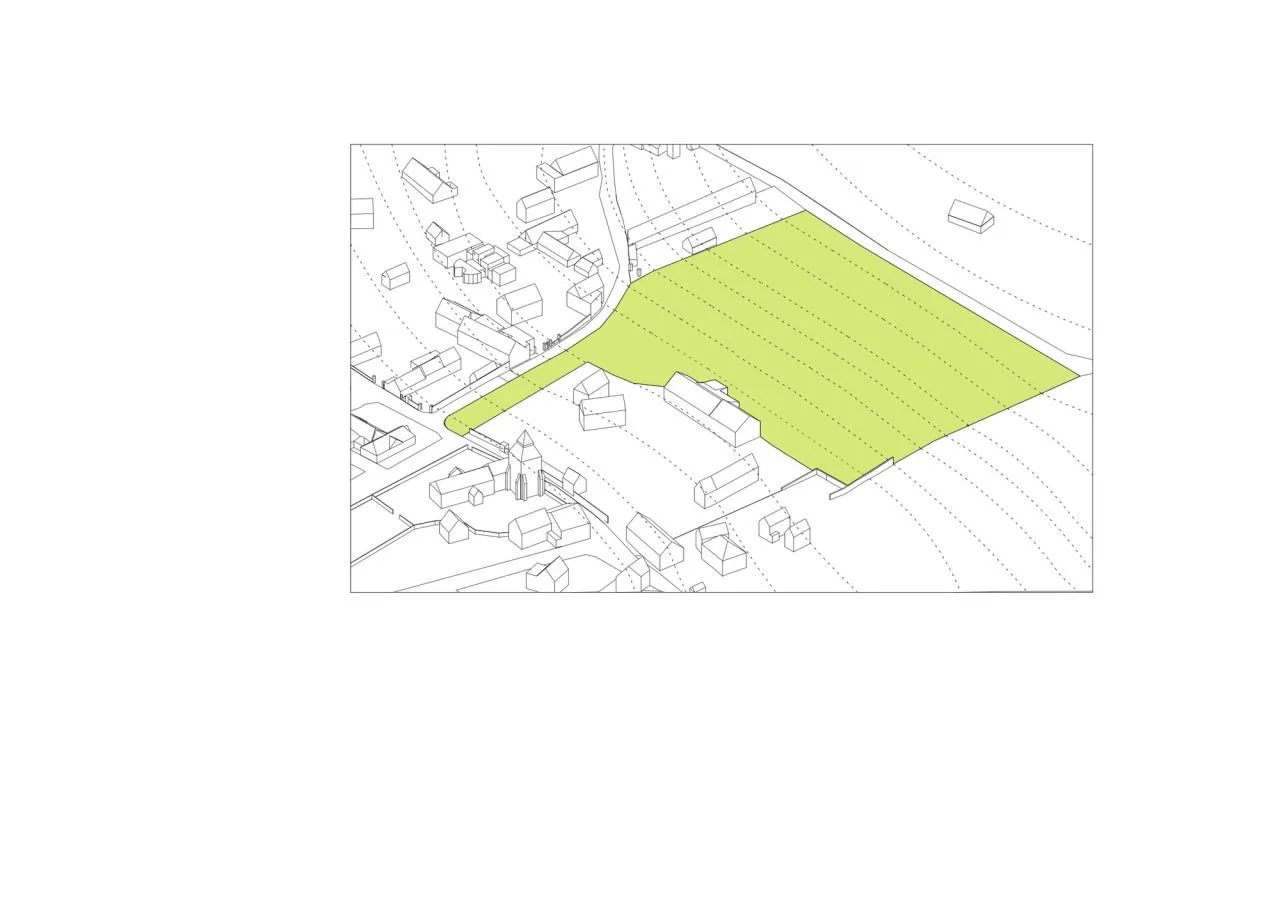

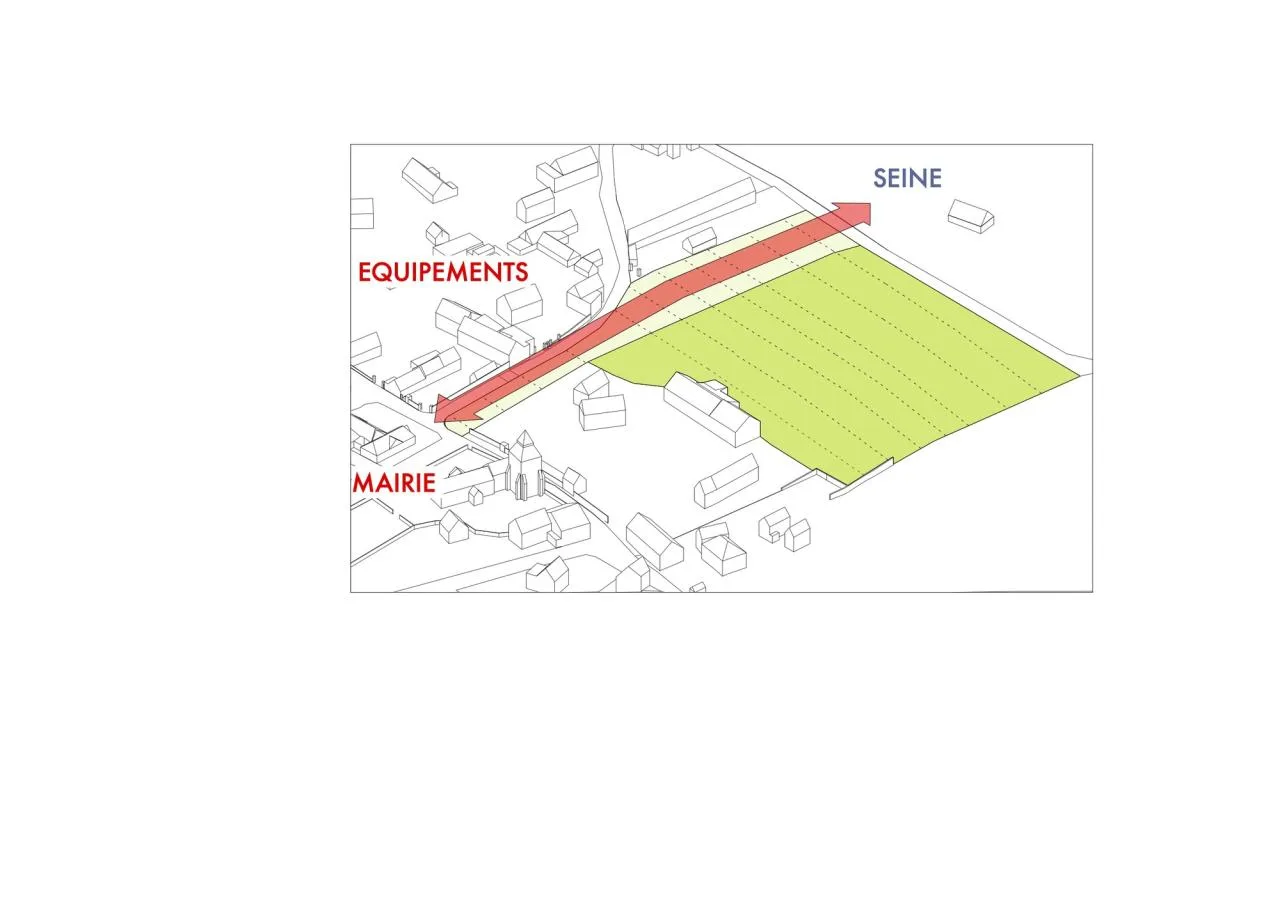

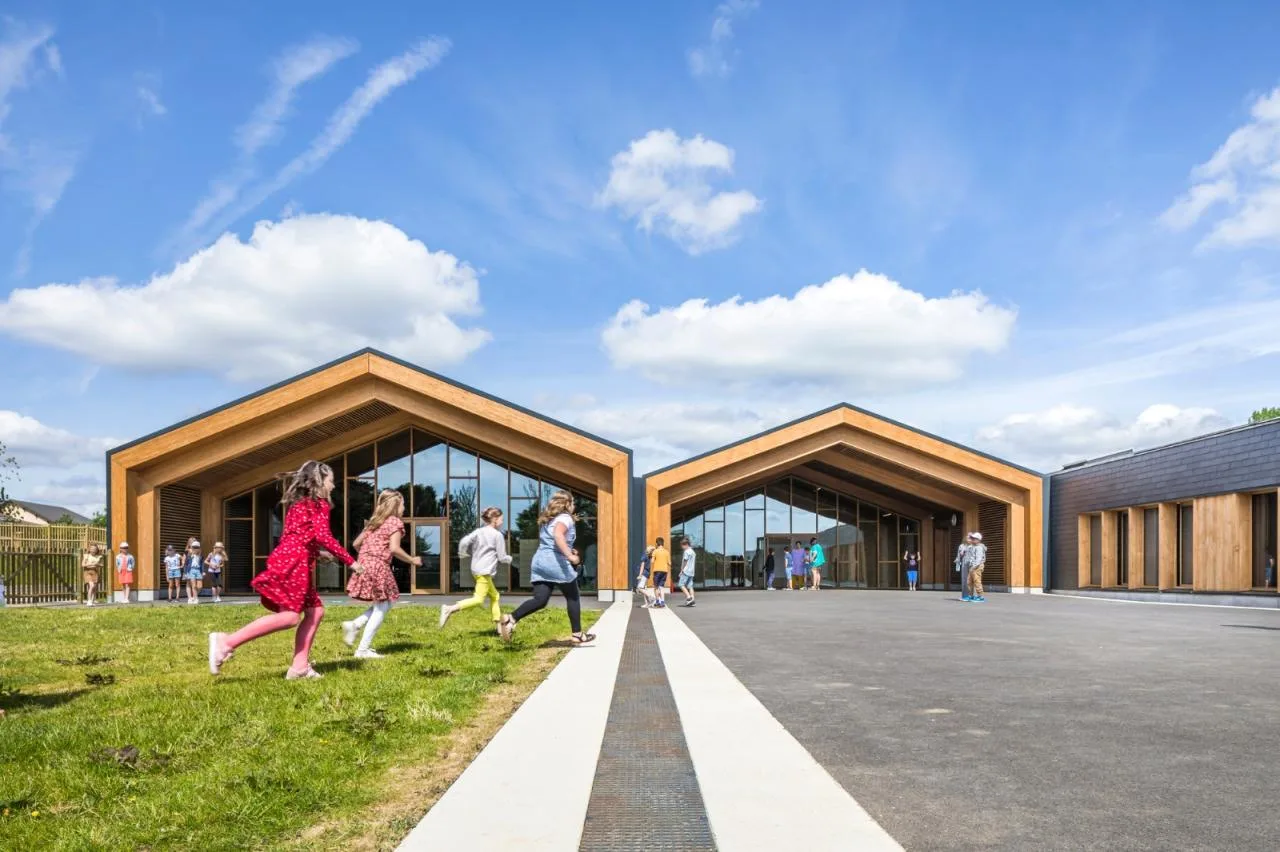

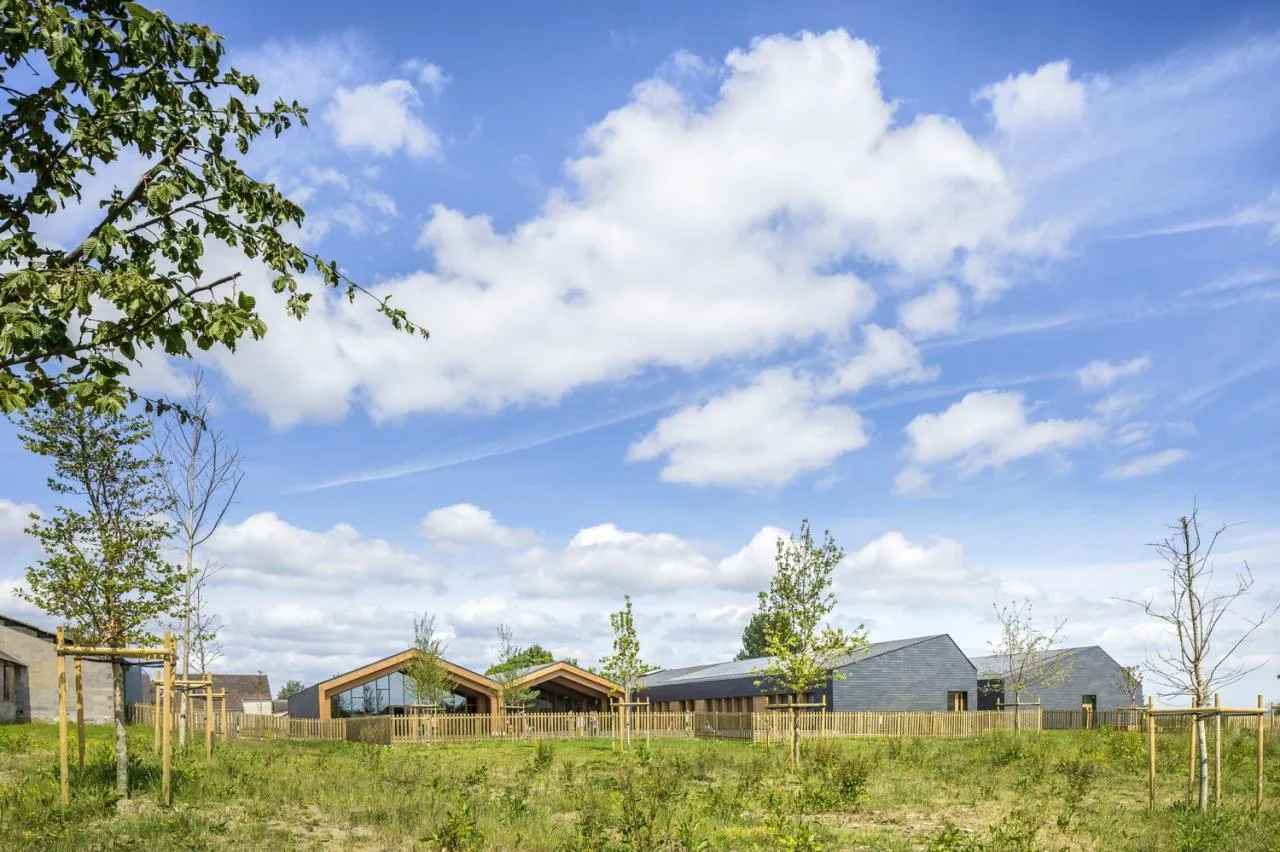

The shapes of traditional houses and farm buildings have been reimagined to create large, contemporary longères. These are narrow homes extending along the ridge of the roof, historically inhabited by farmers and craftsmen, and typical in Brittany and Normandy. The site’s geographical features guide the placement of buildings, which follow the land’s contours to preserve the natural soil. This approach defines the playground boundaries, incorporates orchards, and forms a valley to collect rainwater across the site, supplying water to a landscaped basin below.
Looking ahead, the design incorporates a hierarchical layout that anticipates village growth and the school’s future expansion. Each building allows for modular additions: classrooms, canteens, courtyards, and play areas can be extended to accommodate more students and users. The infrastructure, including network and fire safety systems, is designed to support this potential growth seamlessly.

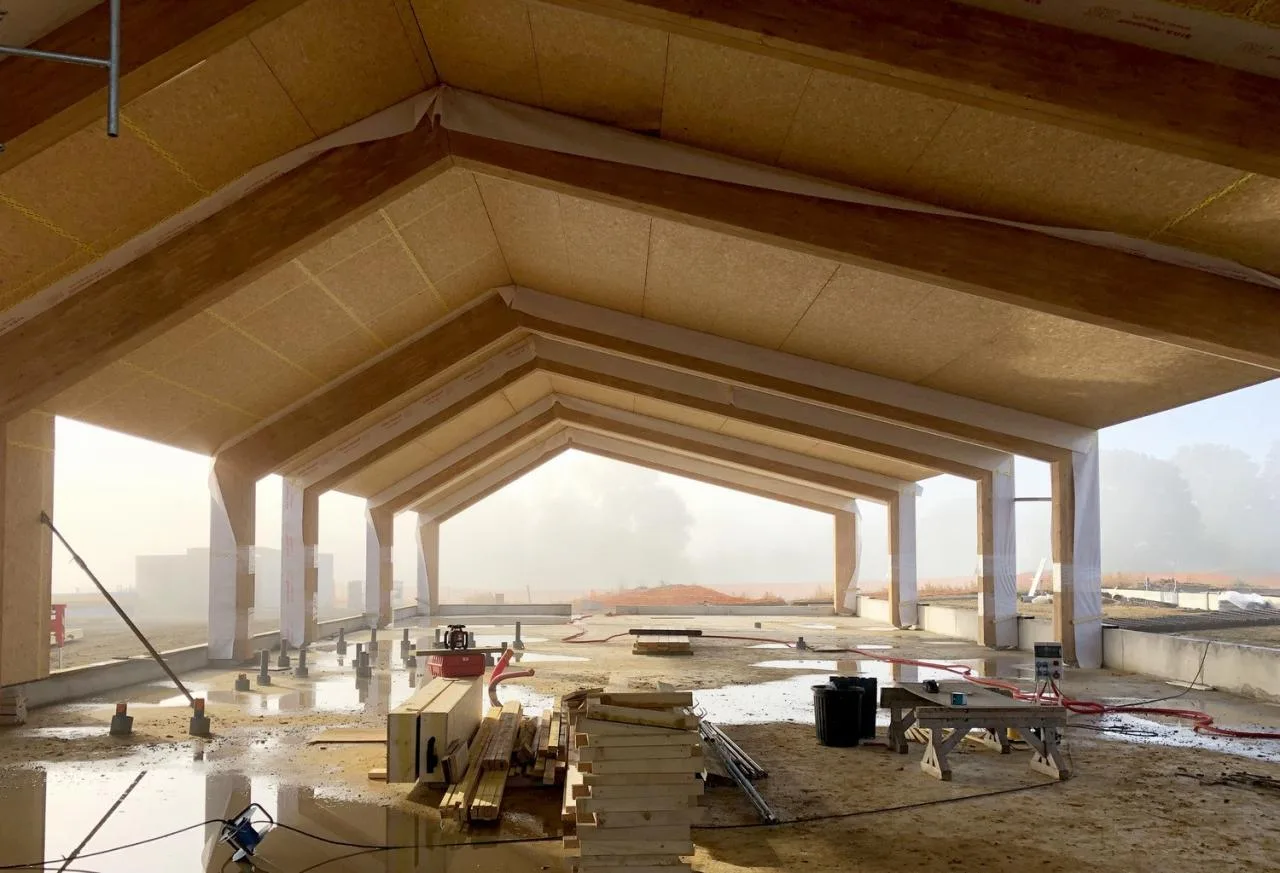

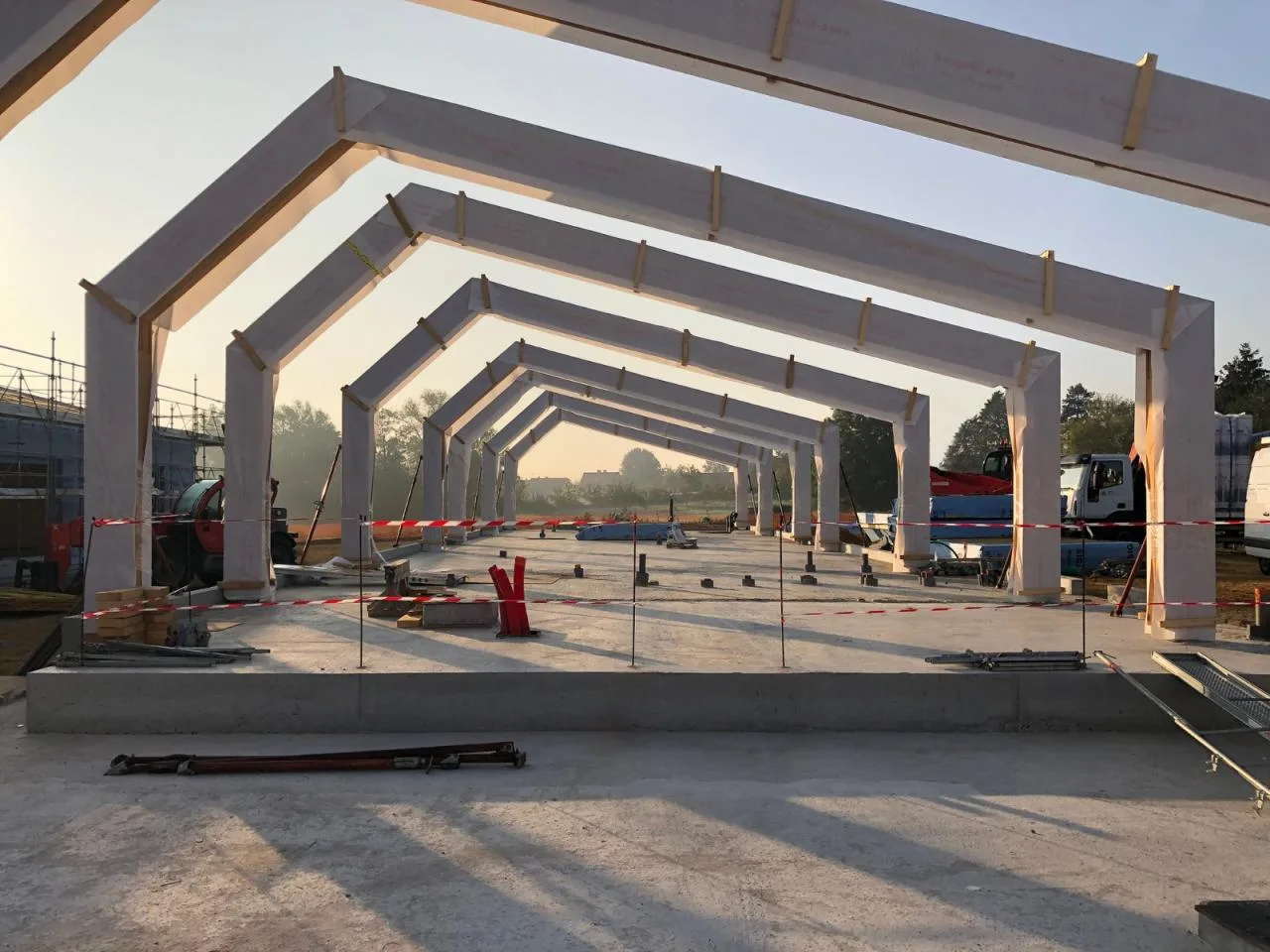

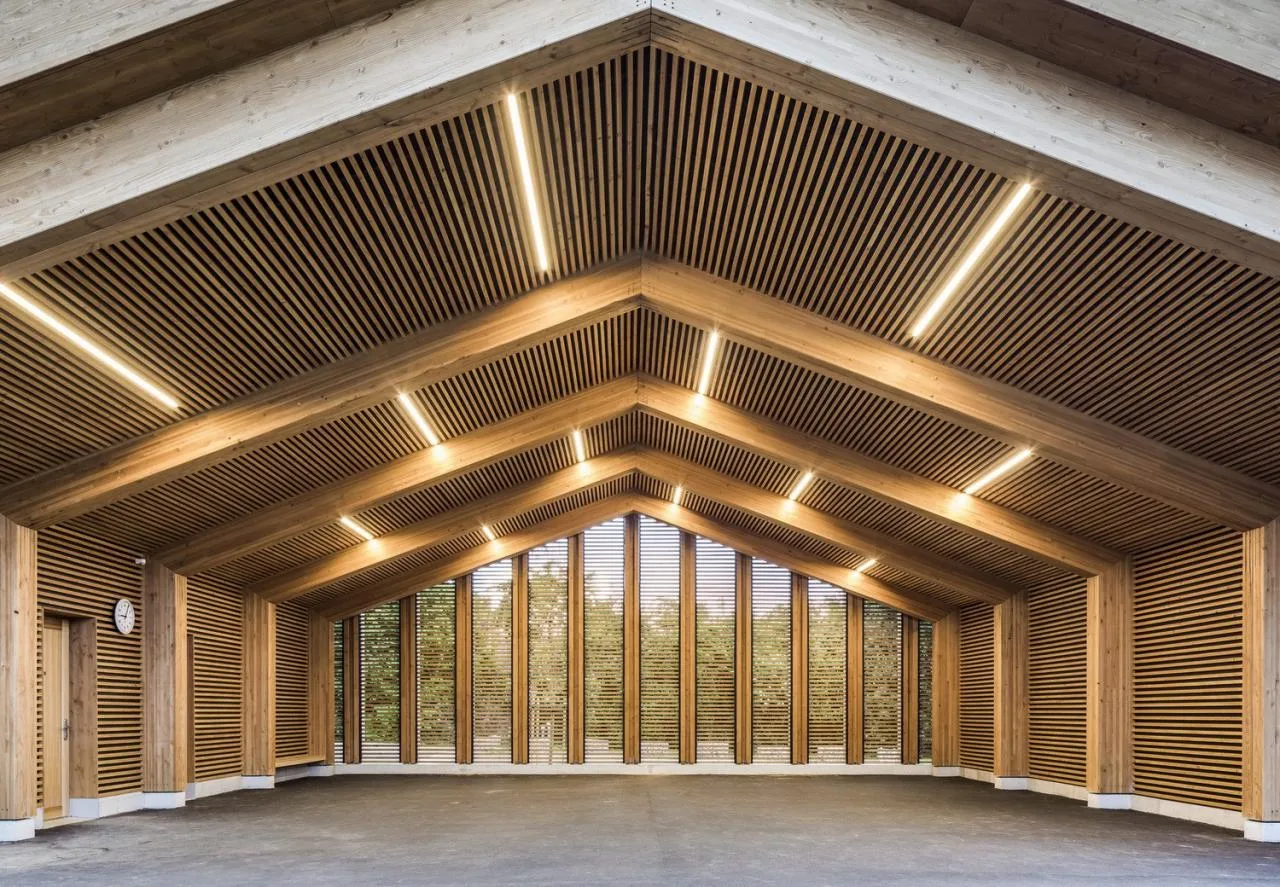

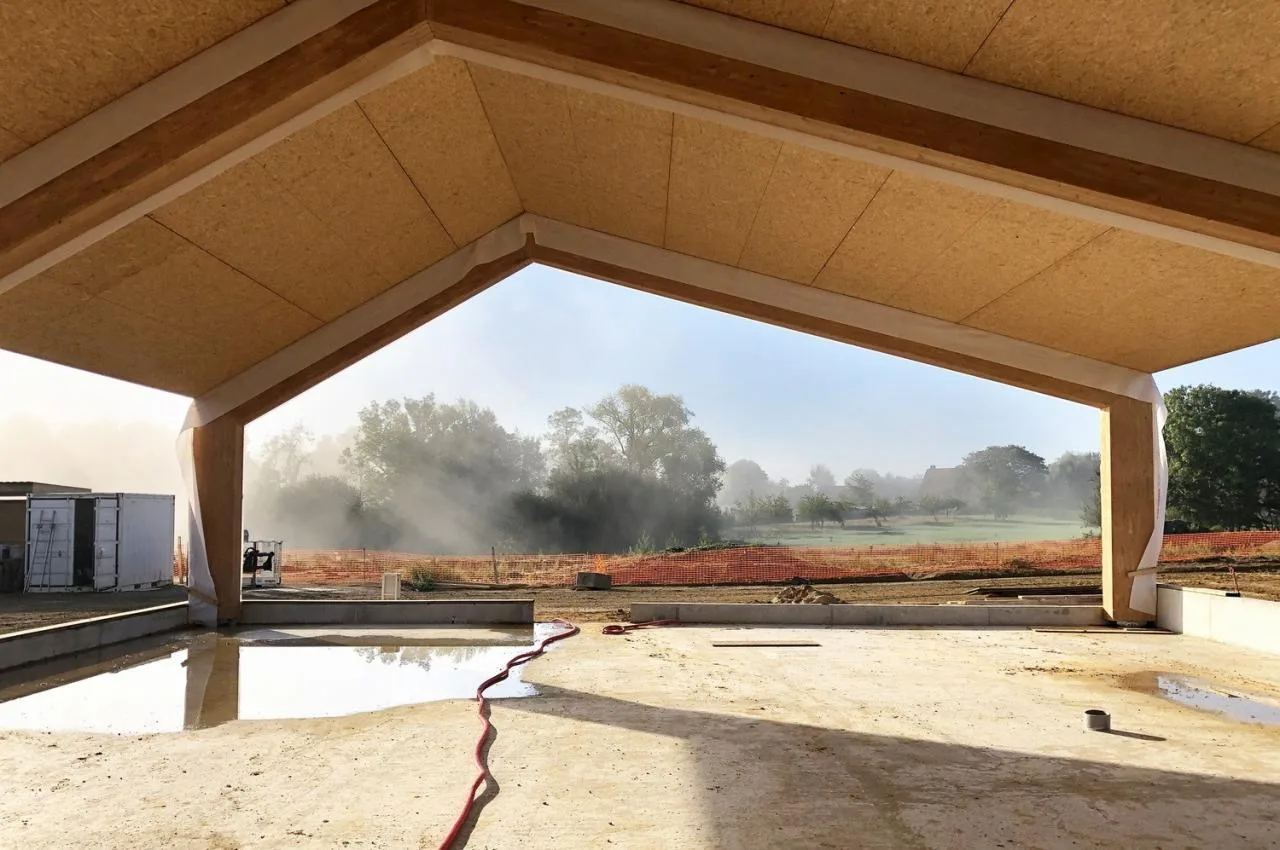

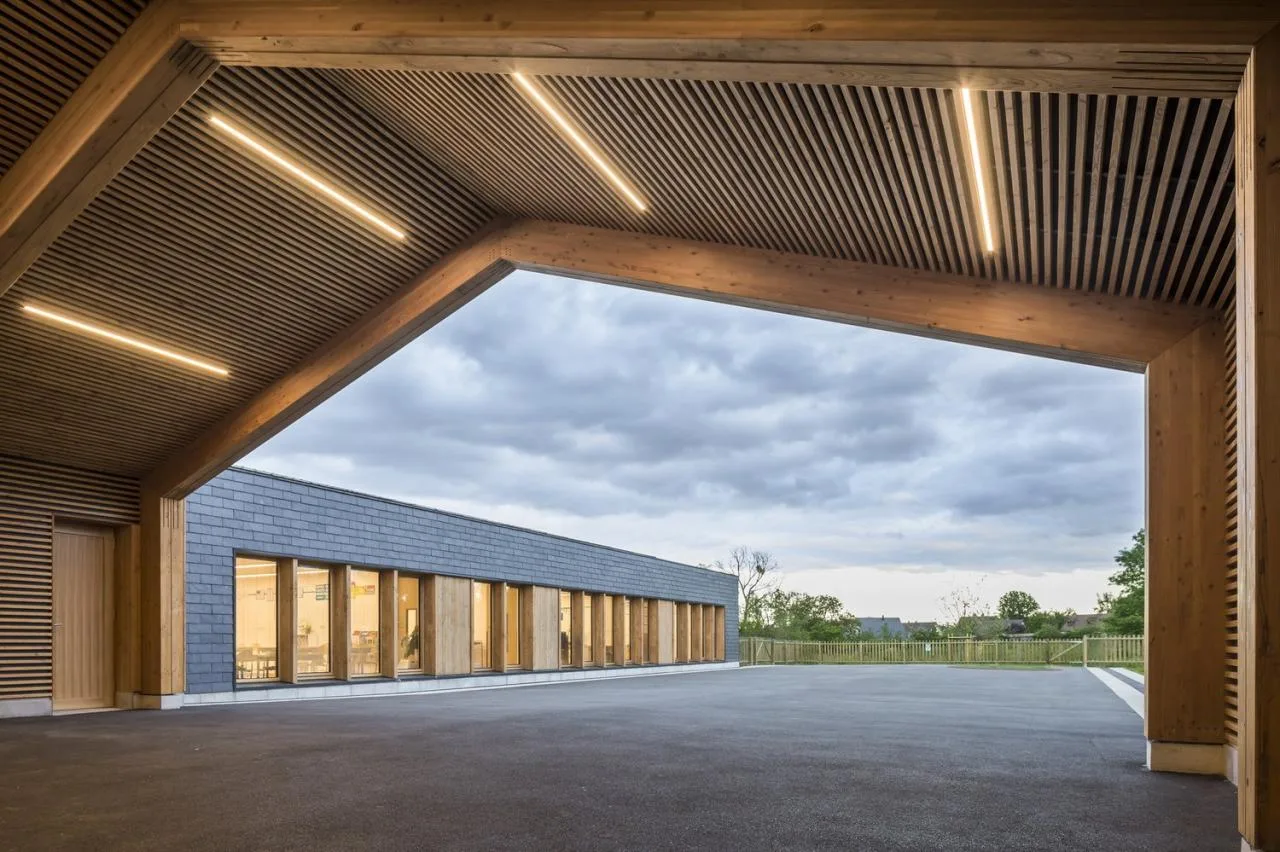

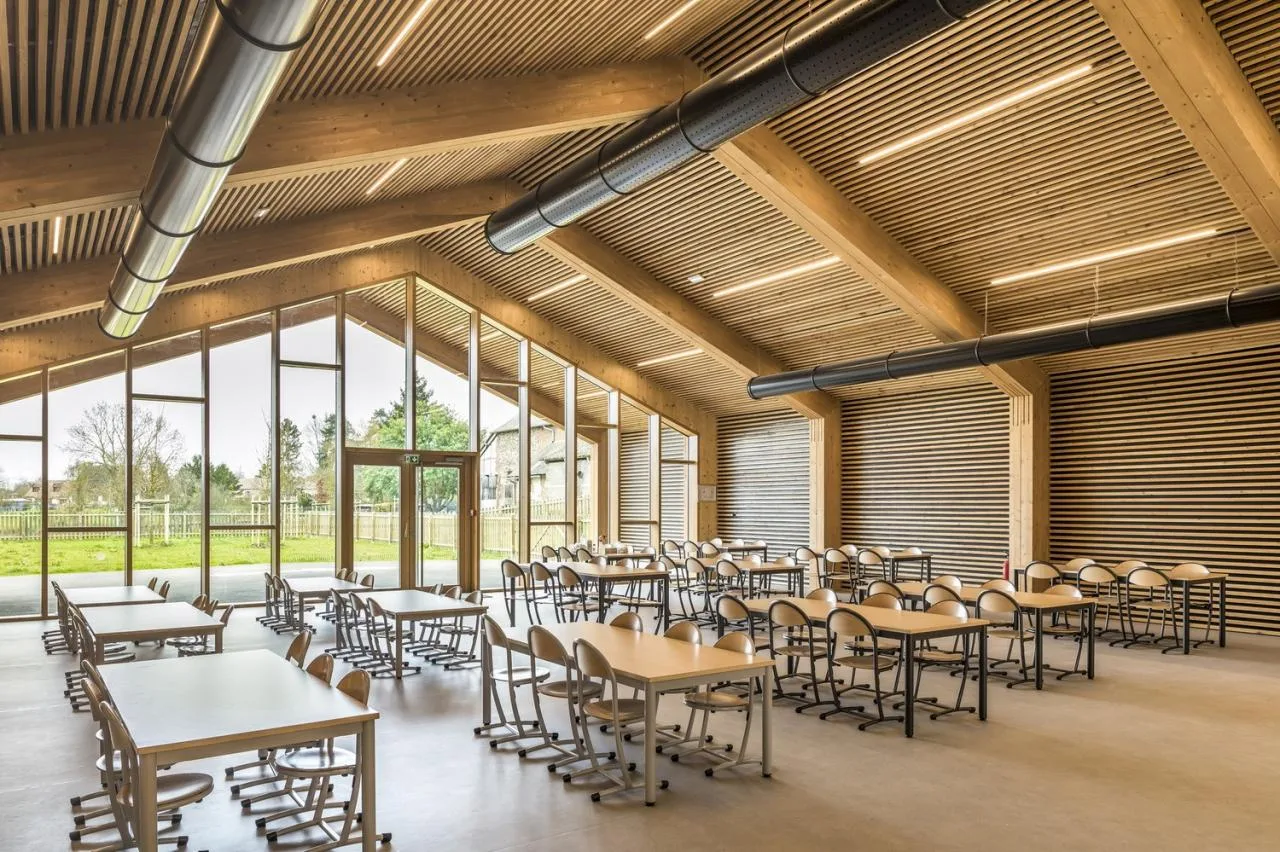

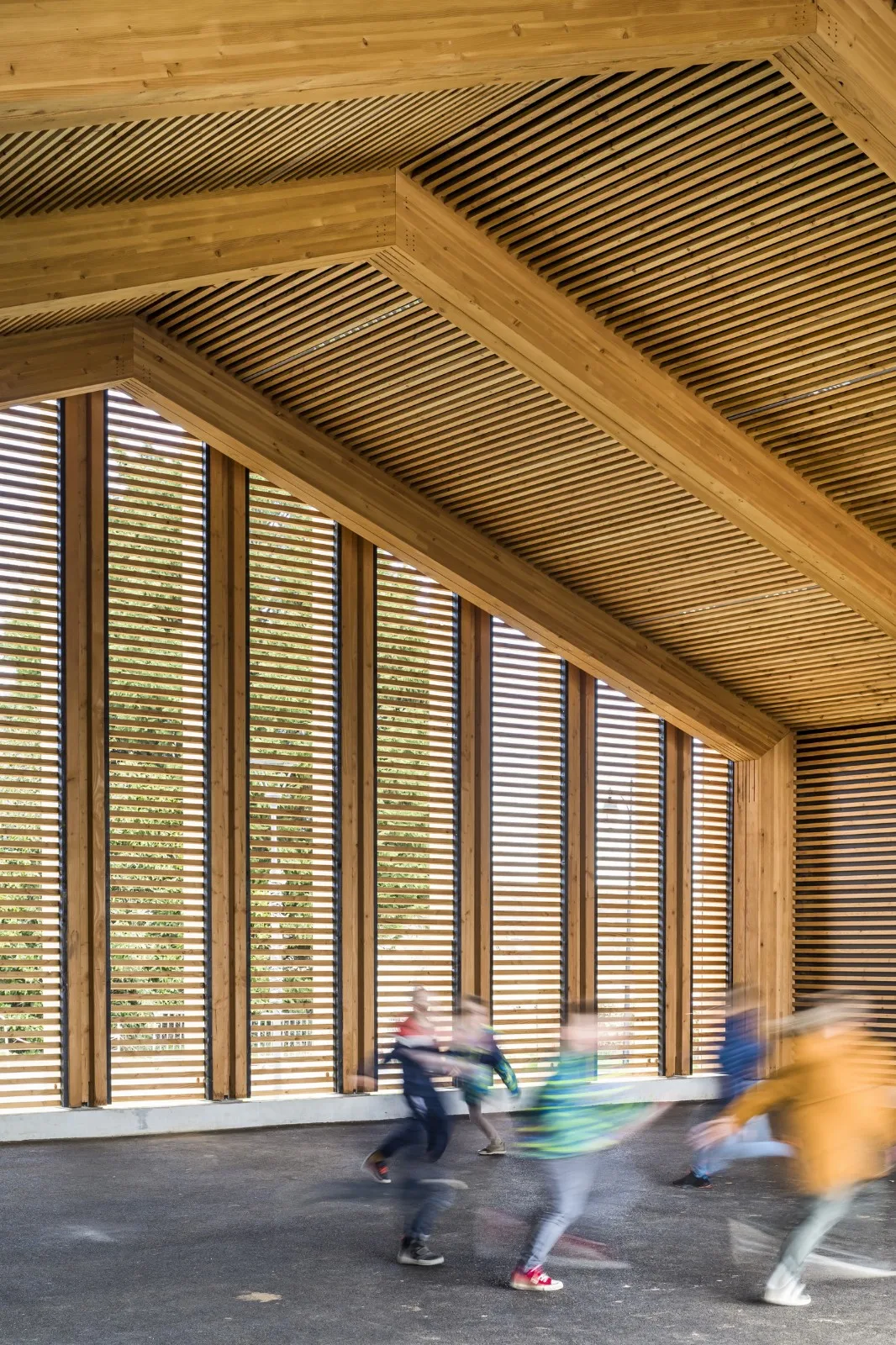

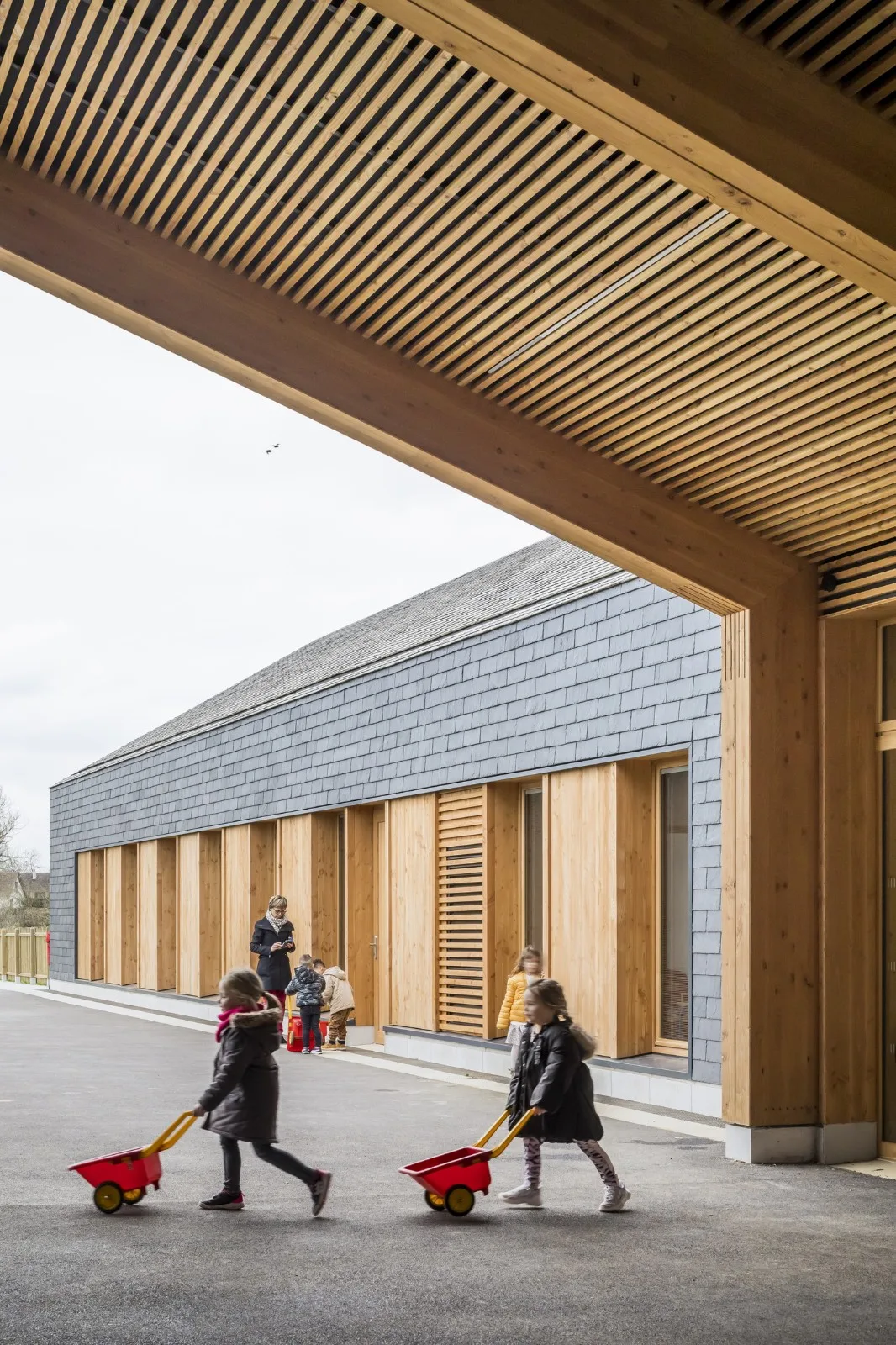

The porch’s structural system, free of intermediate supports, enables complete modularity and future expansion. The exterior walls and roof consist of pre-assembled modules built off-site, combining air and water tightness, insulation, and structural integrity. These 5×2 meter modules were developed using 3D technology in partnership with local carpenters to ensure efficient construction timelines.
Reducing carbon footprint was a key goal in the school’s construction. The use of wood and slate, integration of photovoltaic panels, and fossil fuel-free heating systems contribute to achieving high environmental performance levels, specifically E3C2 and BEPOS certifications. Additionally, the entire foundation was built using local materials and regional contractors.
Project Drawings

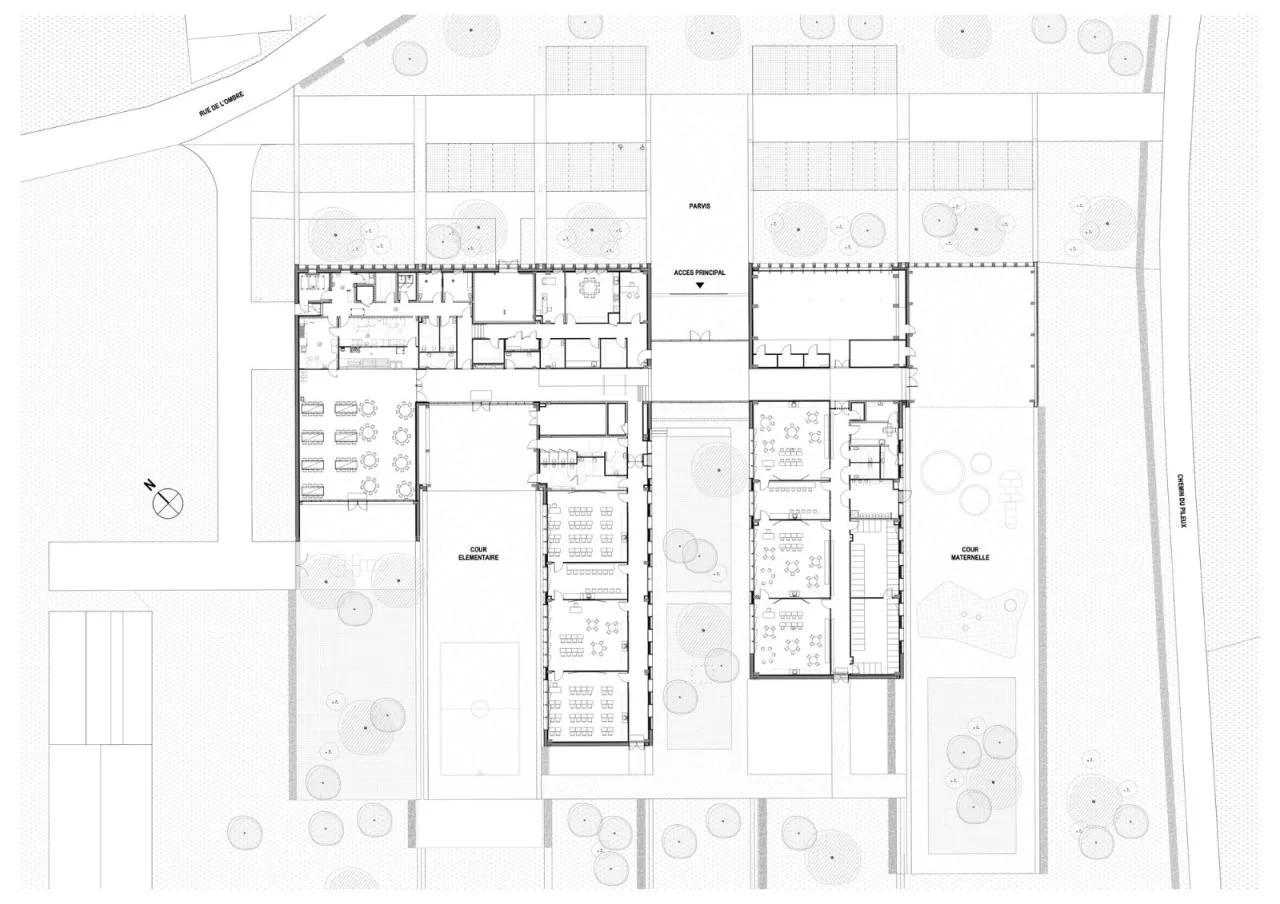

△ Plan View

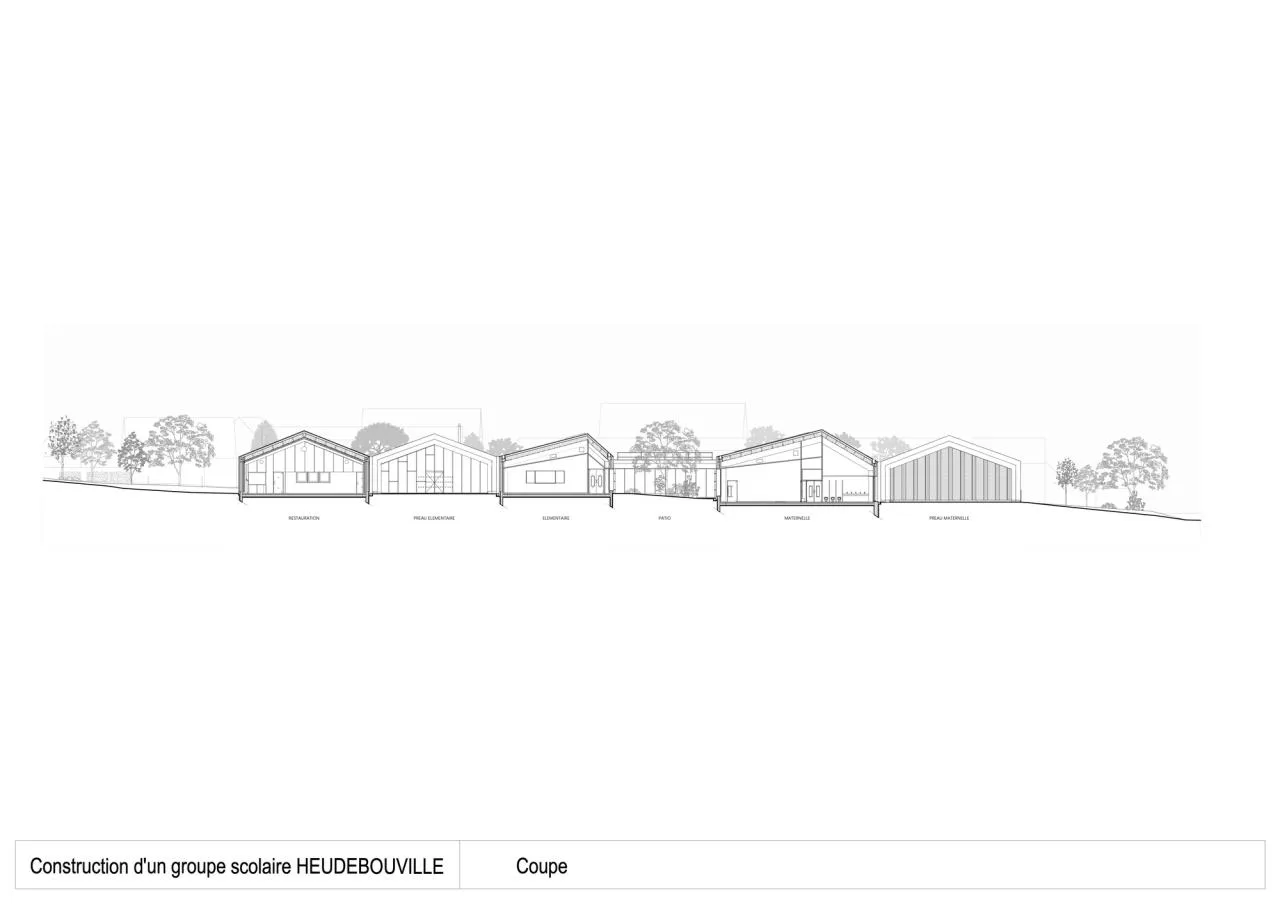

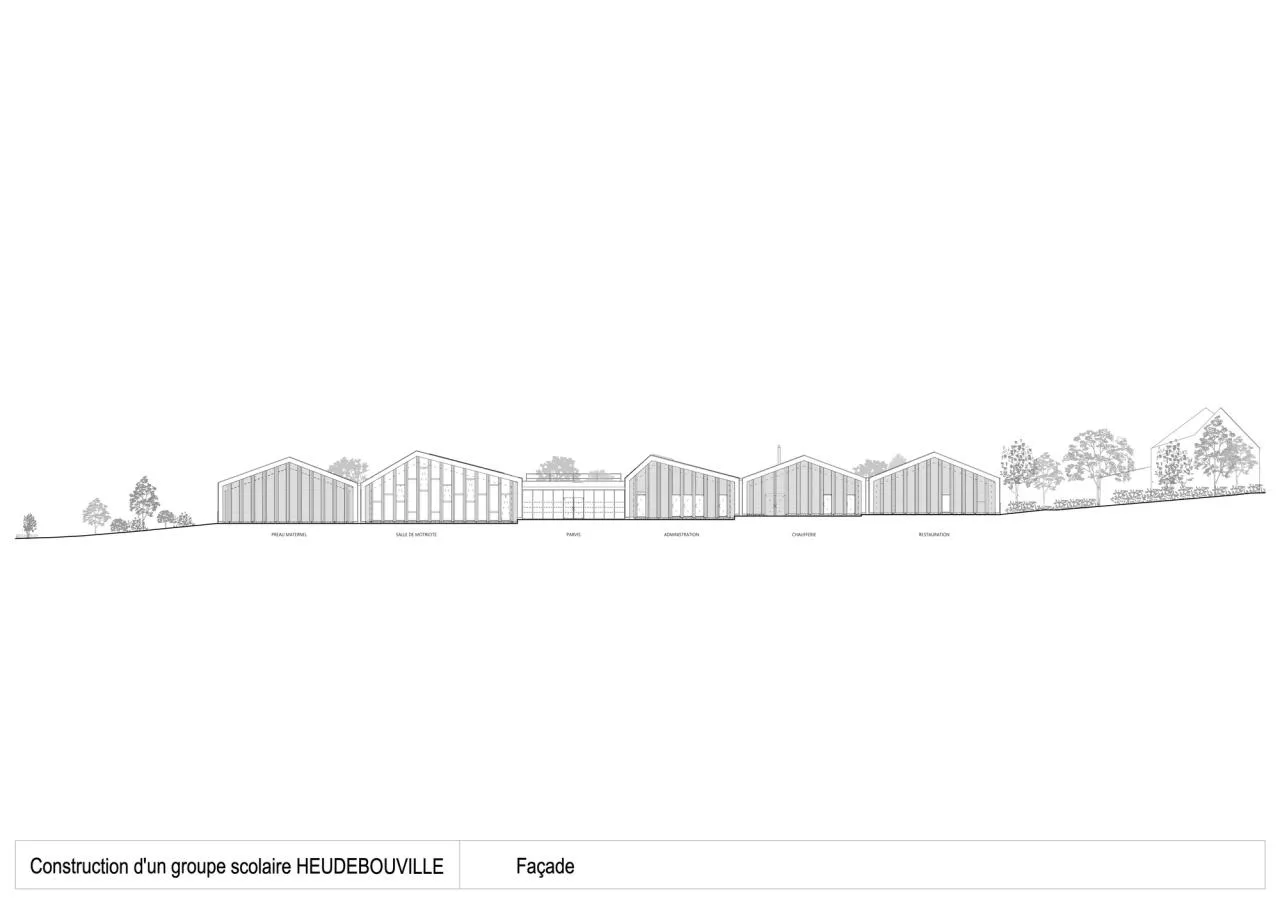

△ Elevation Drawing
△ Elevation Drawing

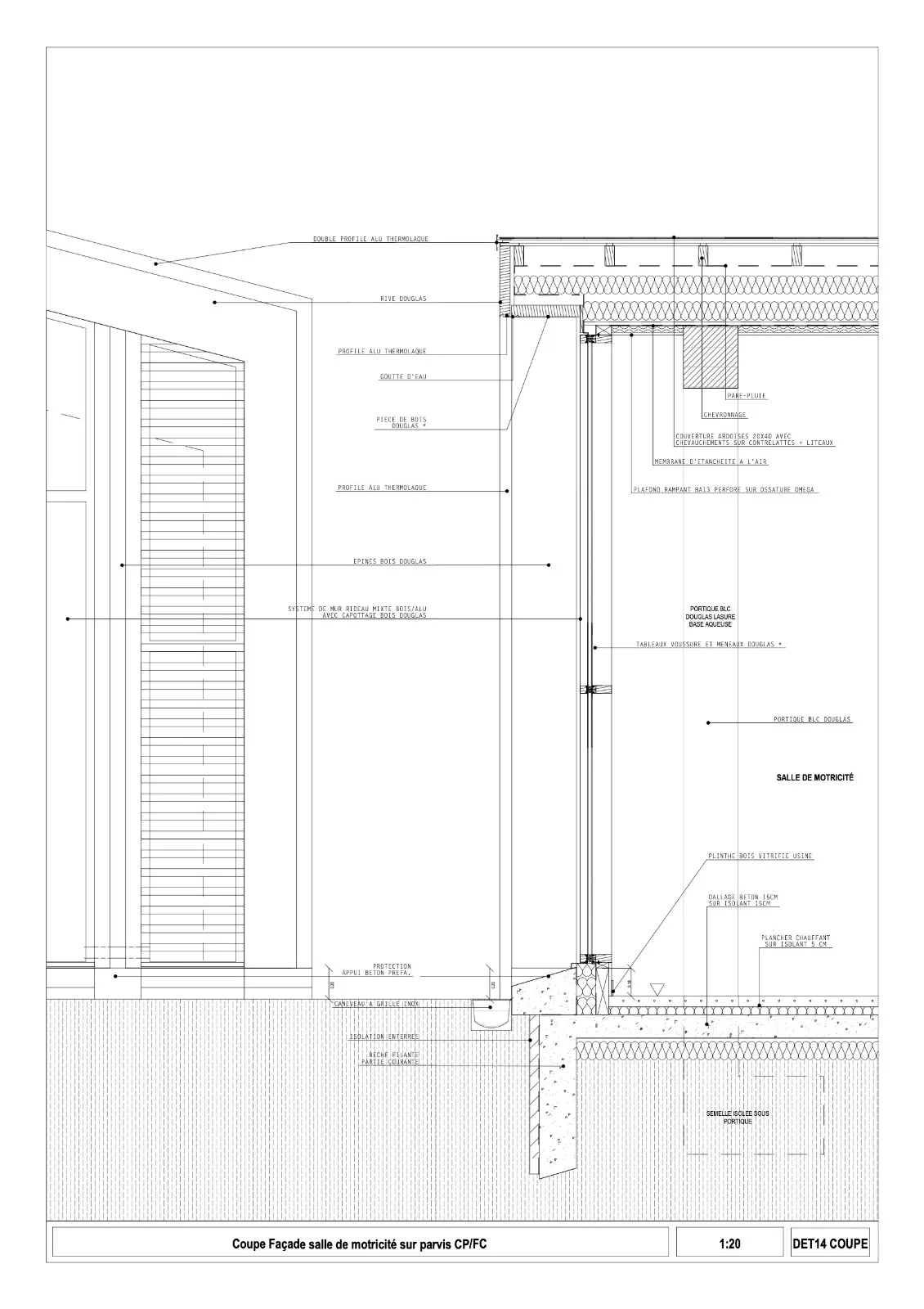

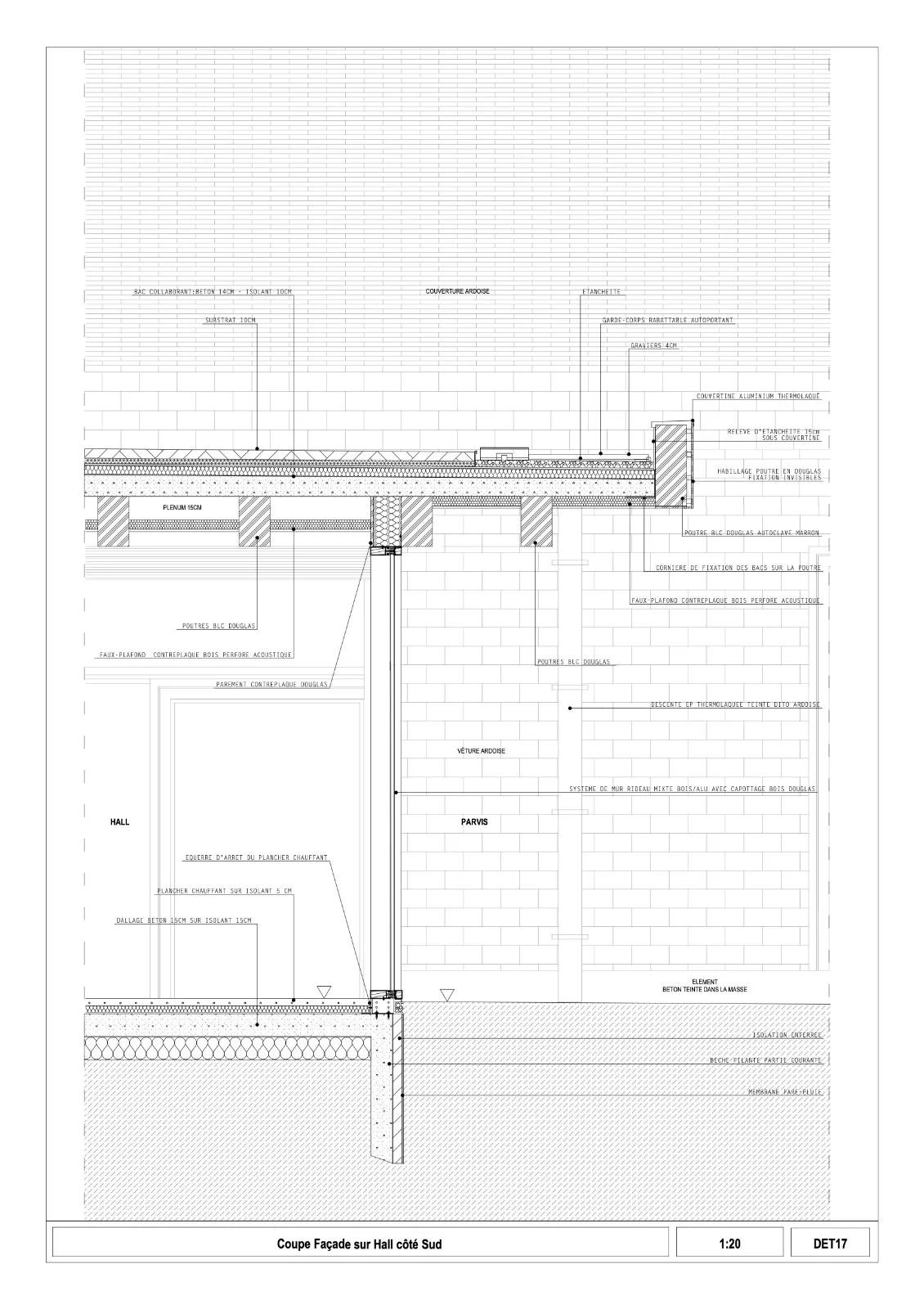

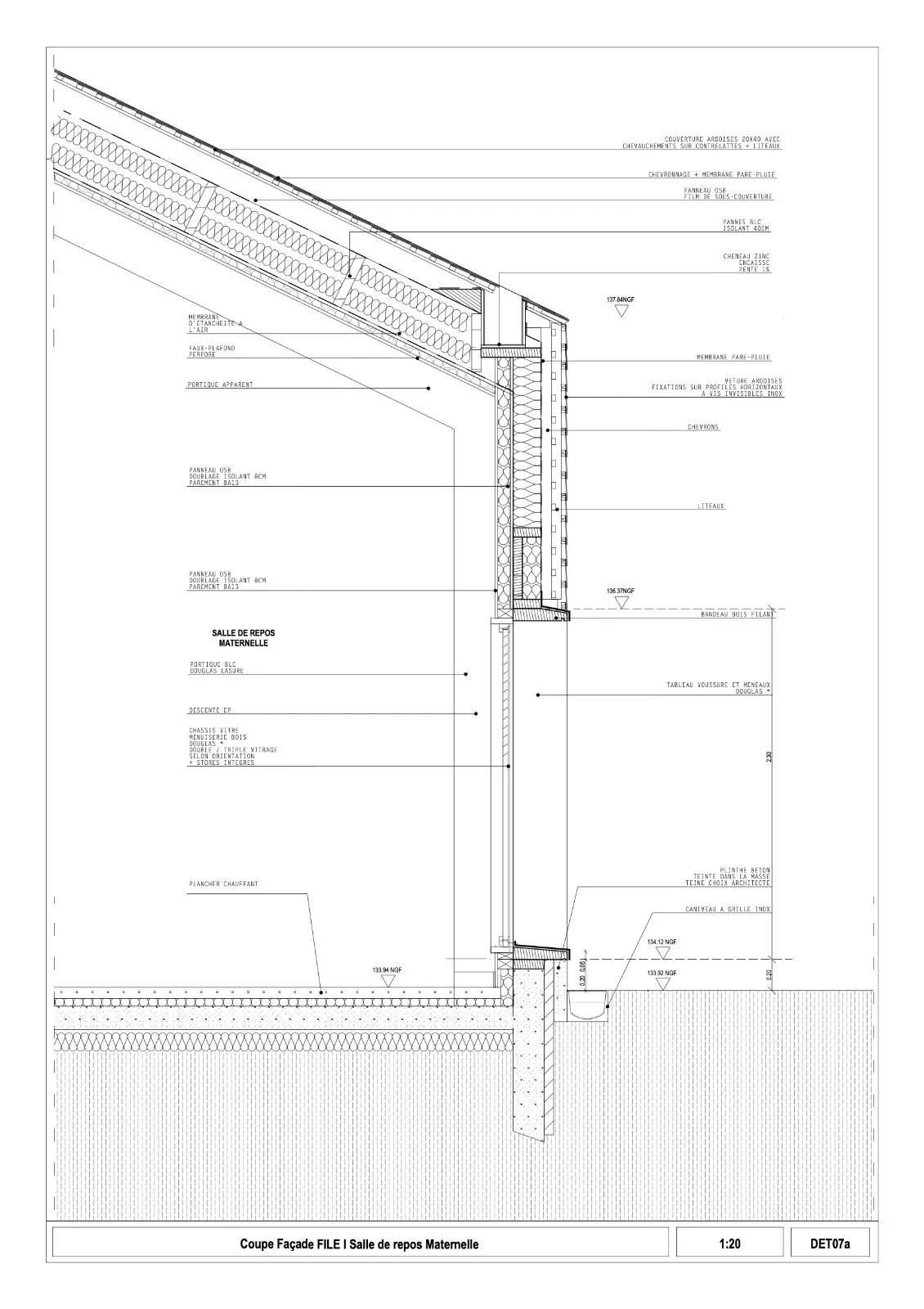

△ Detailed Drawing
△ Detailed Drawing
△ Detailed Drawing

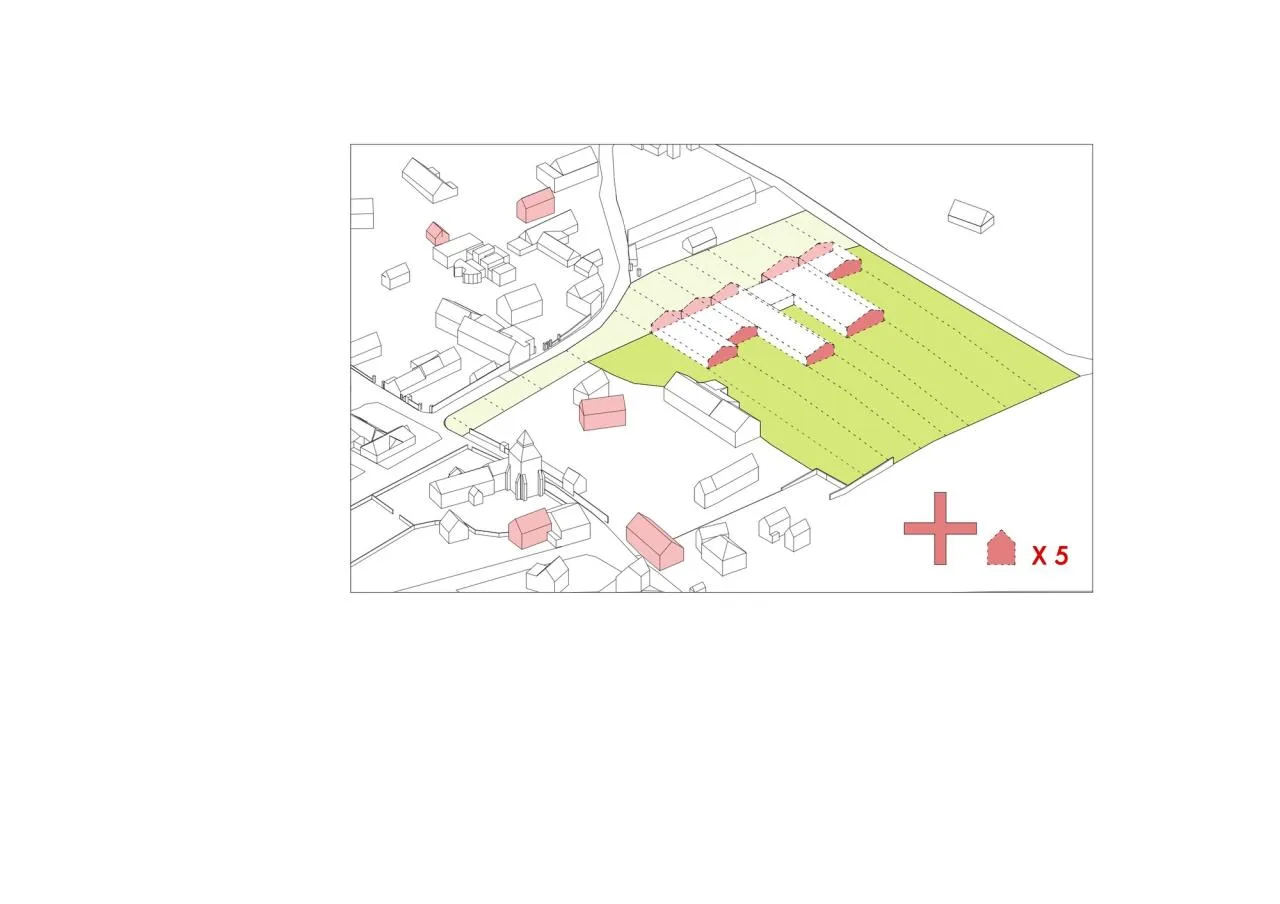

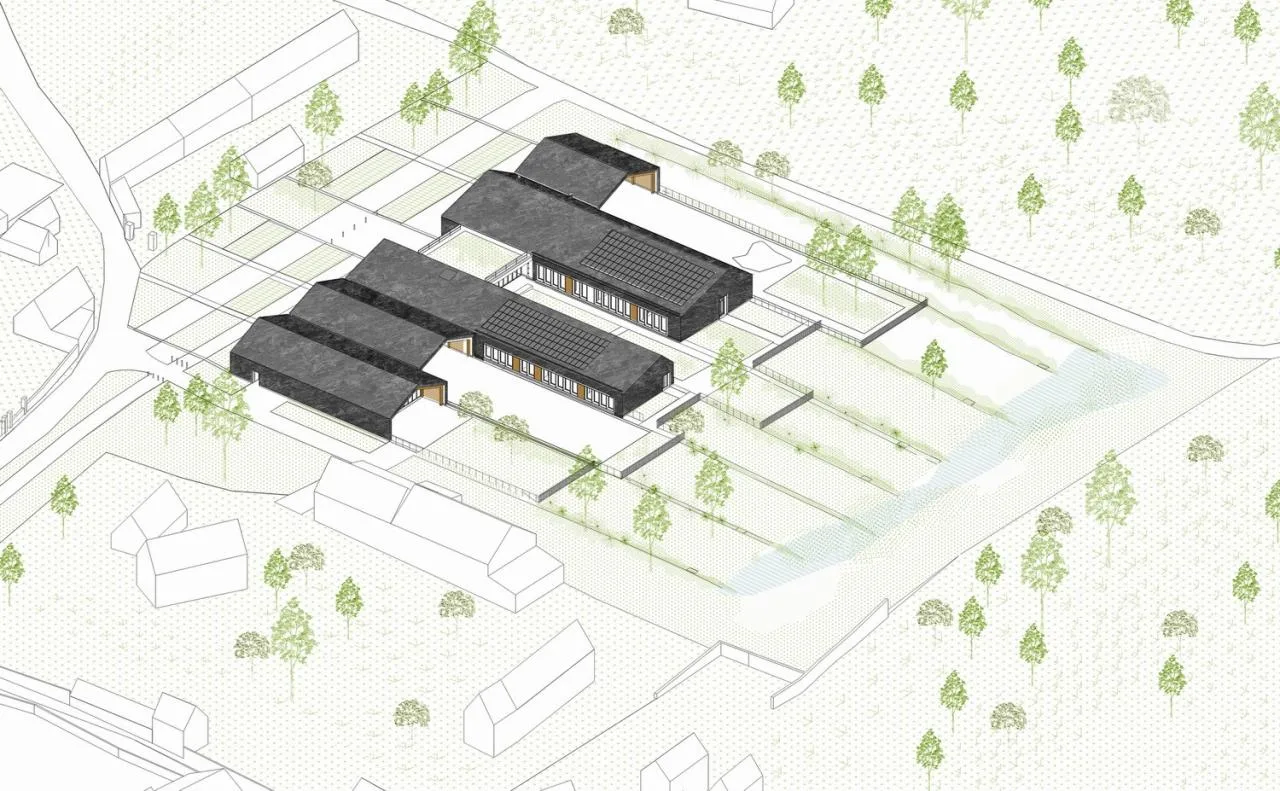

△ Axonometric Diagram

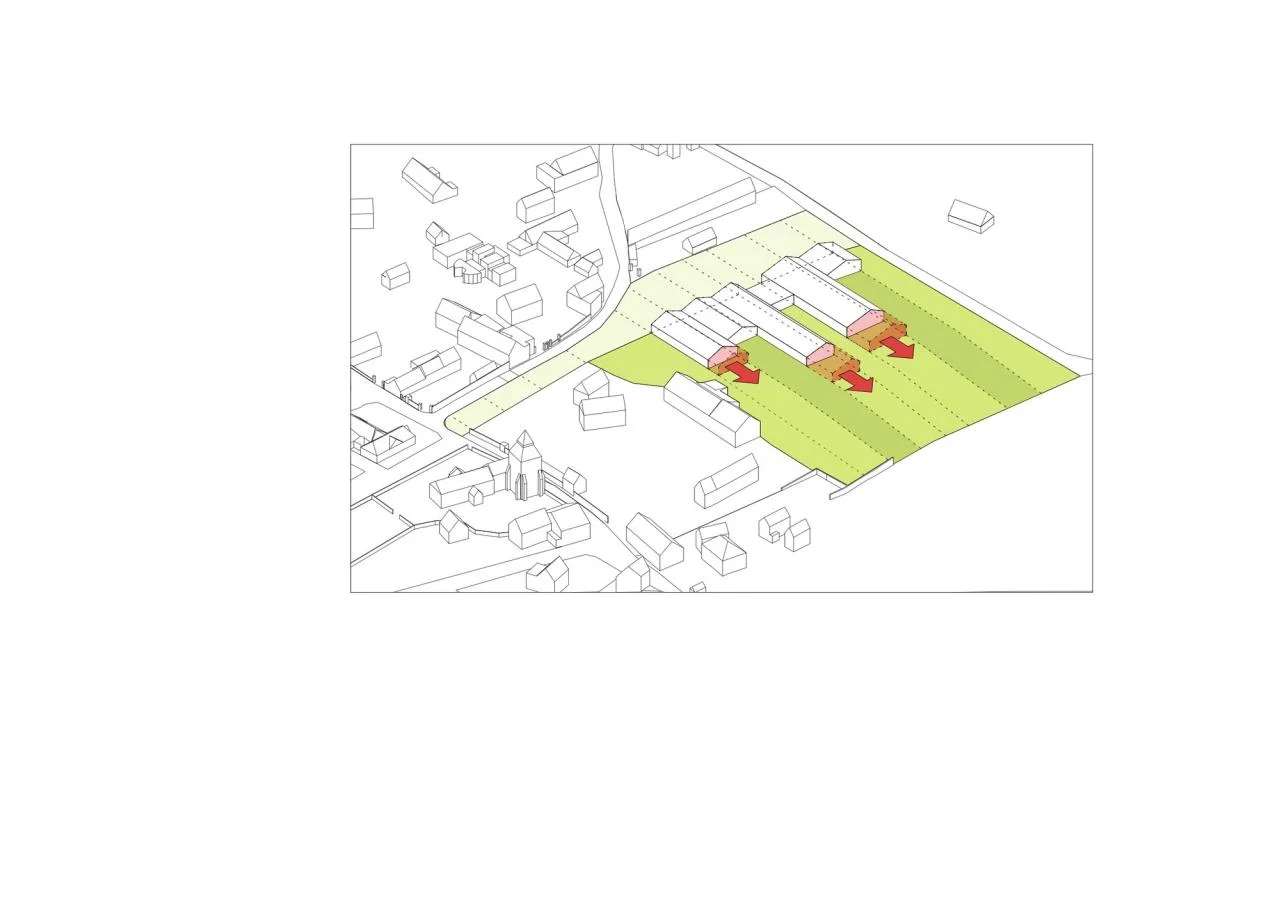

△ Generated Graph
△ Generated Graph
△ Generated Graph
△ Generated Graph
Project Information
Architects: HEMAA Architects, Hester Orion
Area: 1,500 square meters
Completion Year: 2022
Photographer: Sergio Grazia
Manufacturer: Cupa Pizarras
Budget: €4.5 million
Performance Level: BEPOS – E3C2
Client: City of Heudebouville
Technical Design: BETEM
Acoustic Consultant: Impedance
Location: Heudebouville, France
