BIM Techniques: Step-by-Step Guide to Drawing Three-Run Stairs in Revit

Source: Applied Consultation Society

This staircase design can be divided into three straight flights for drawing purposes.

Begin by clicking the staircase button in the Building tab and select the “Integral Pouring Staircase” type.

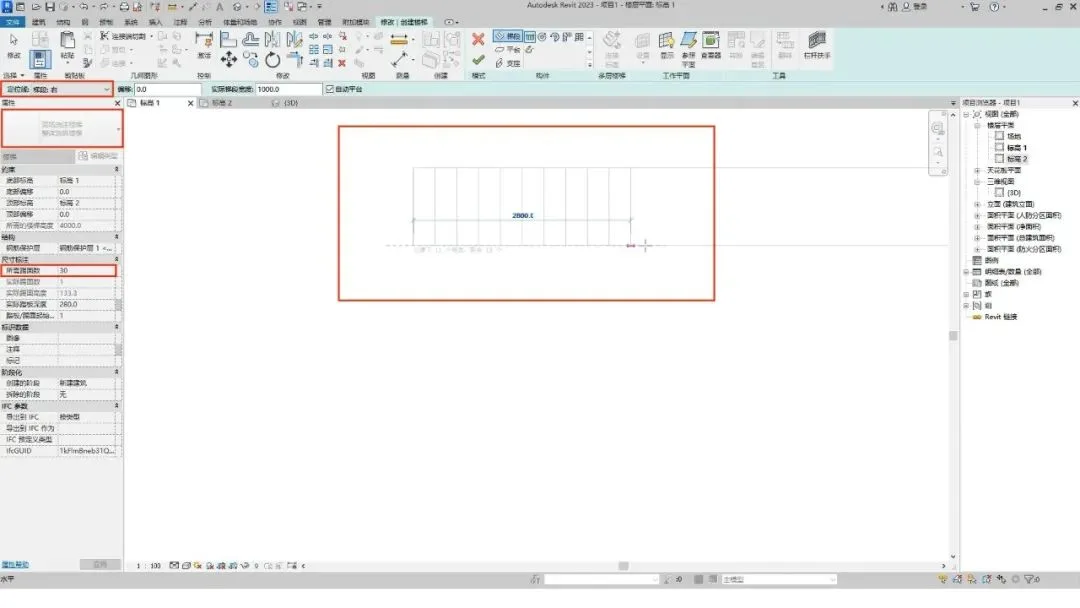

Set the number of kickoff faces to 30 and adjust the positioning line to “Stair Run: Right”.

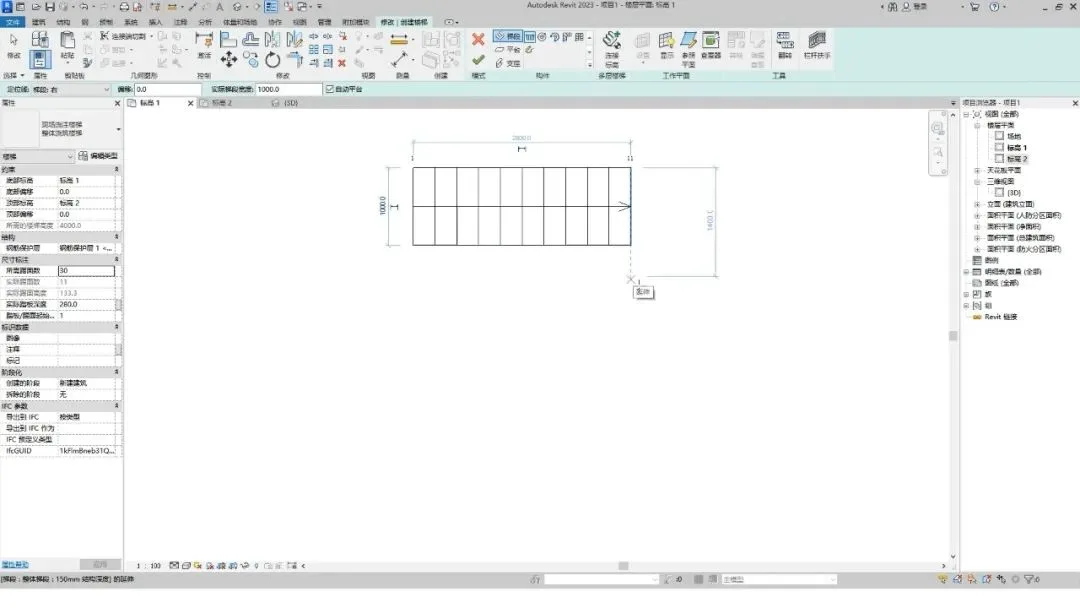

Start by drawing the first flight of stairs.

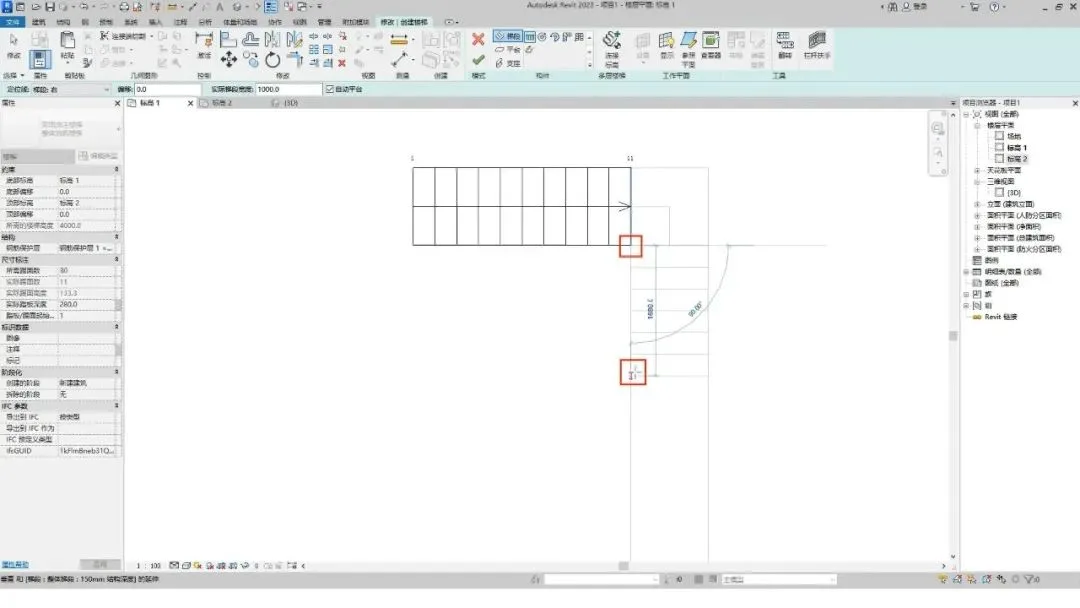

Next, proceed to draw the second flight.

Here, make sure to align the outer edge of the first flight as shown by the blue dashed line.

Start drawing from the endpoints to ensure accuracy.

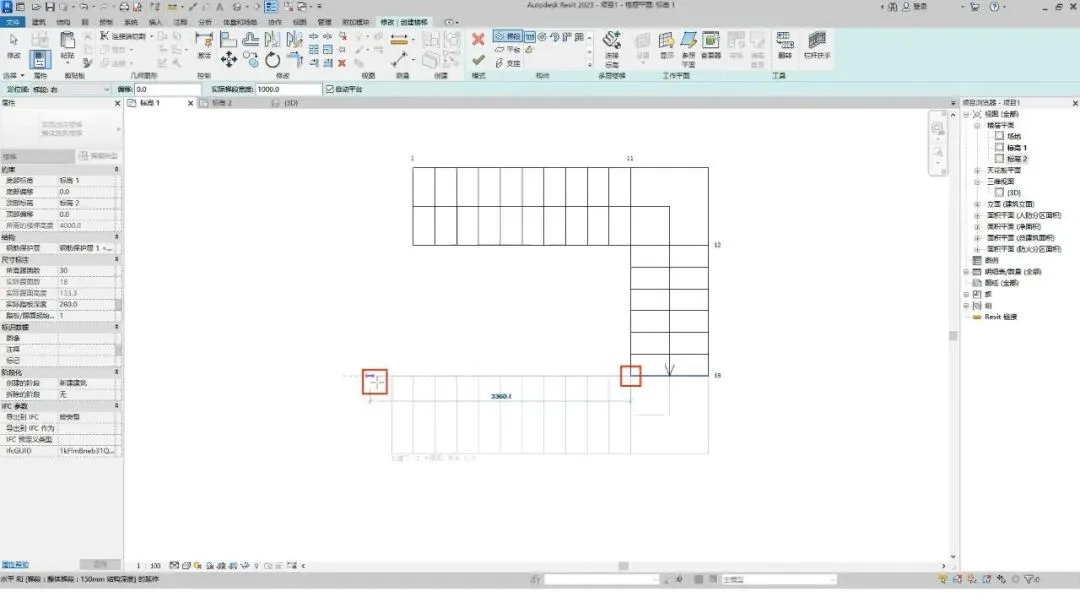

Then draw the third flight, again paying careful attention to edge alignment.

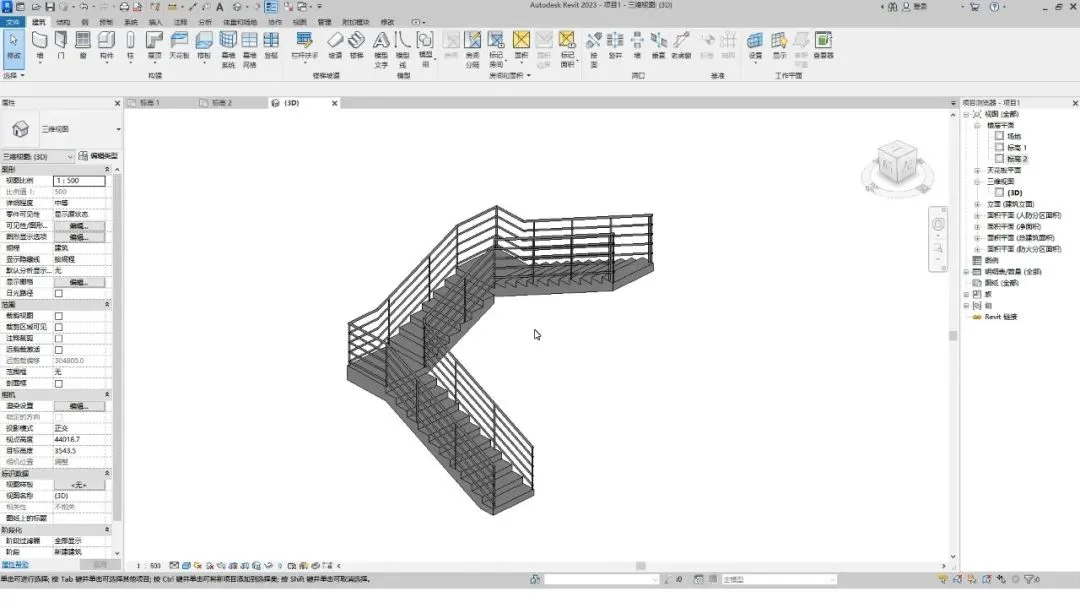

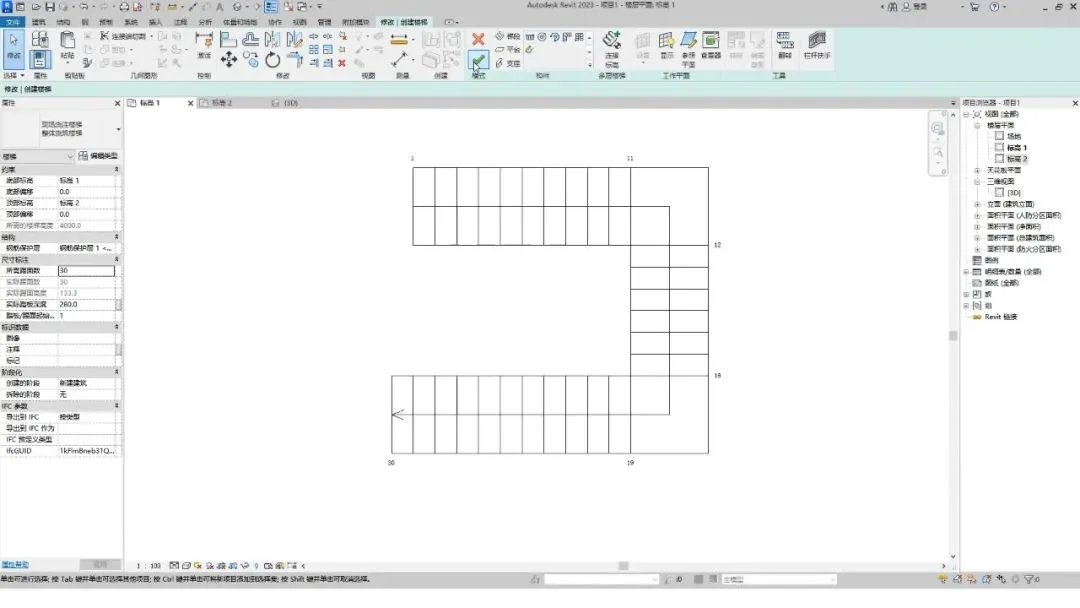

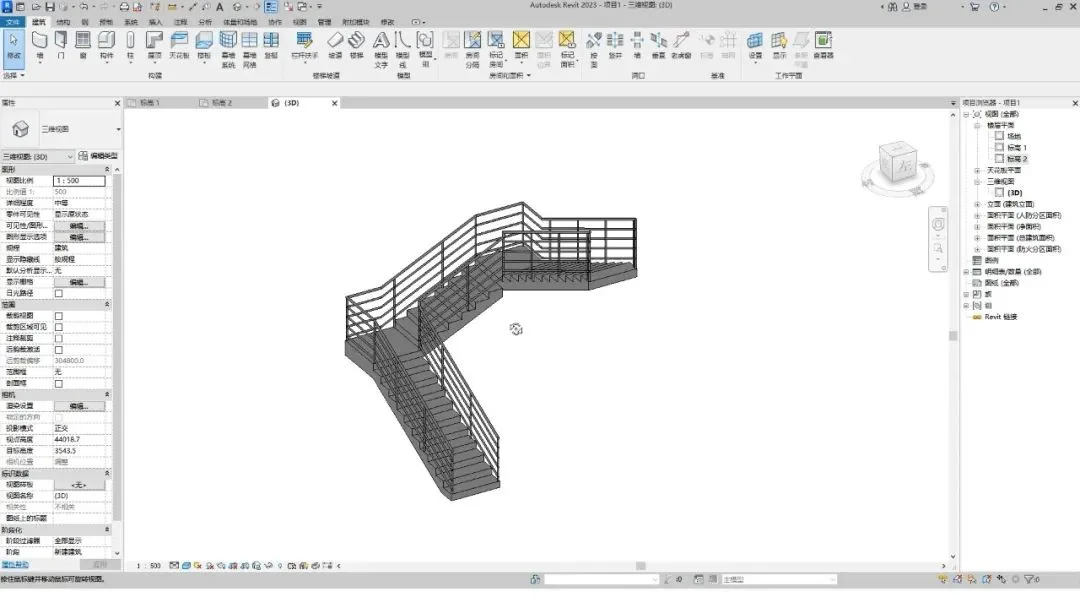

Once complete, click the Finish button and switch to the 3D view to review your work.

And that’s it — your three-run staircase is complete.
