Formerly known as “Zhuxi” in southern Tainan, this small creek was also called “Yuejian Creek,” inspiring the name of the newly constructed Yuejian Bridge. The Moon Viewing Bridge is a key element in the comprehensive landscape revitalization plan surrounding the Zhuxi River Basin in the southern district. This project encompasses sewage interception, water purification, and extensive landscape restoration along both riverbanks.

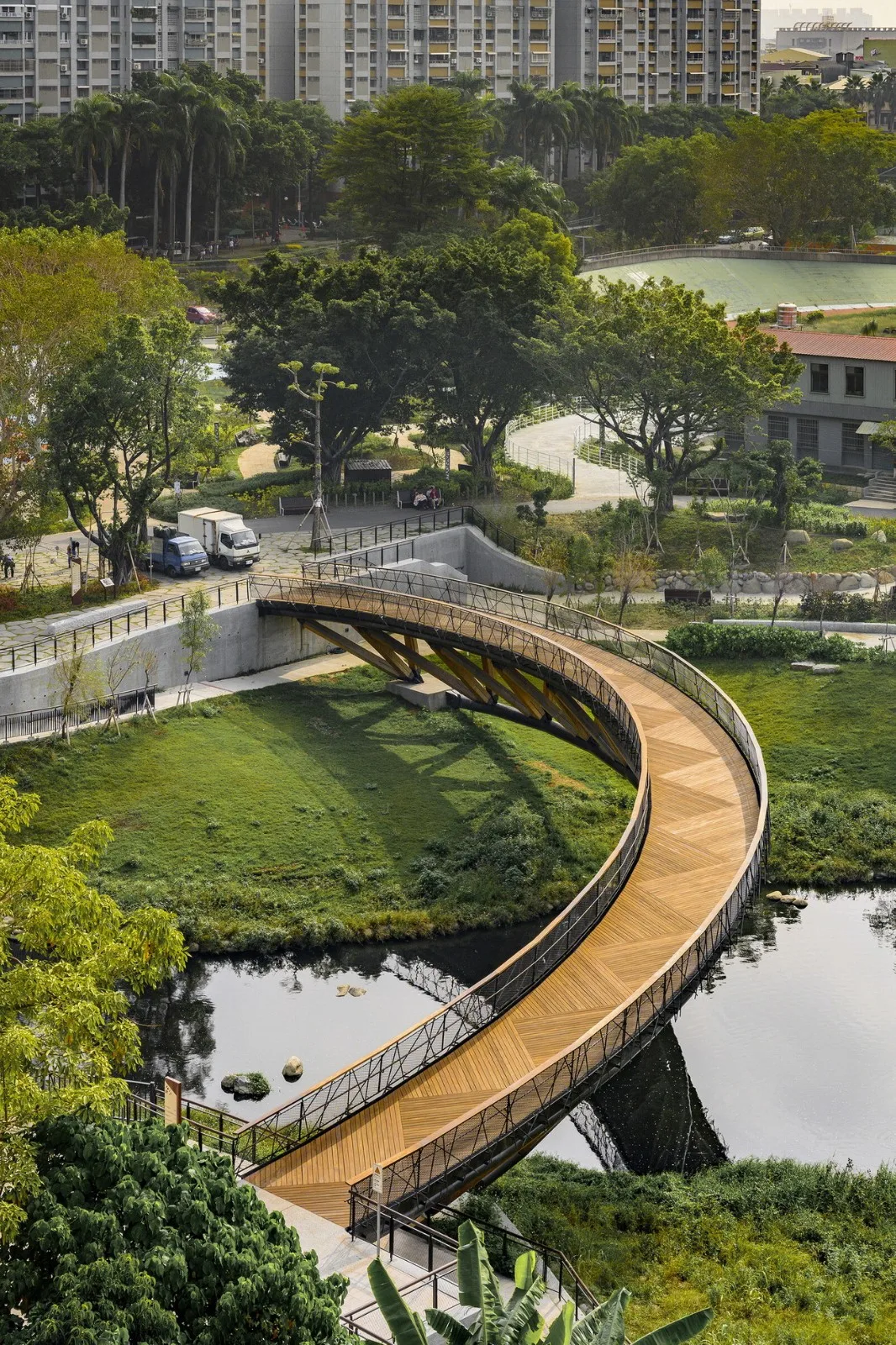

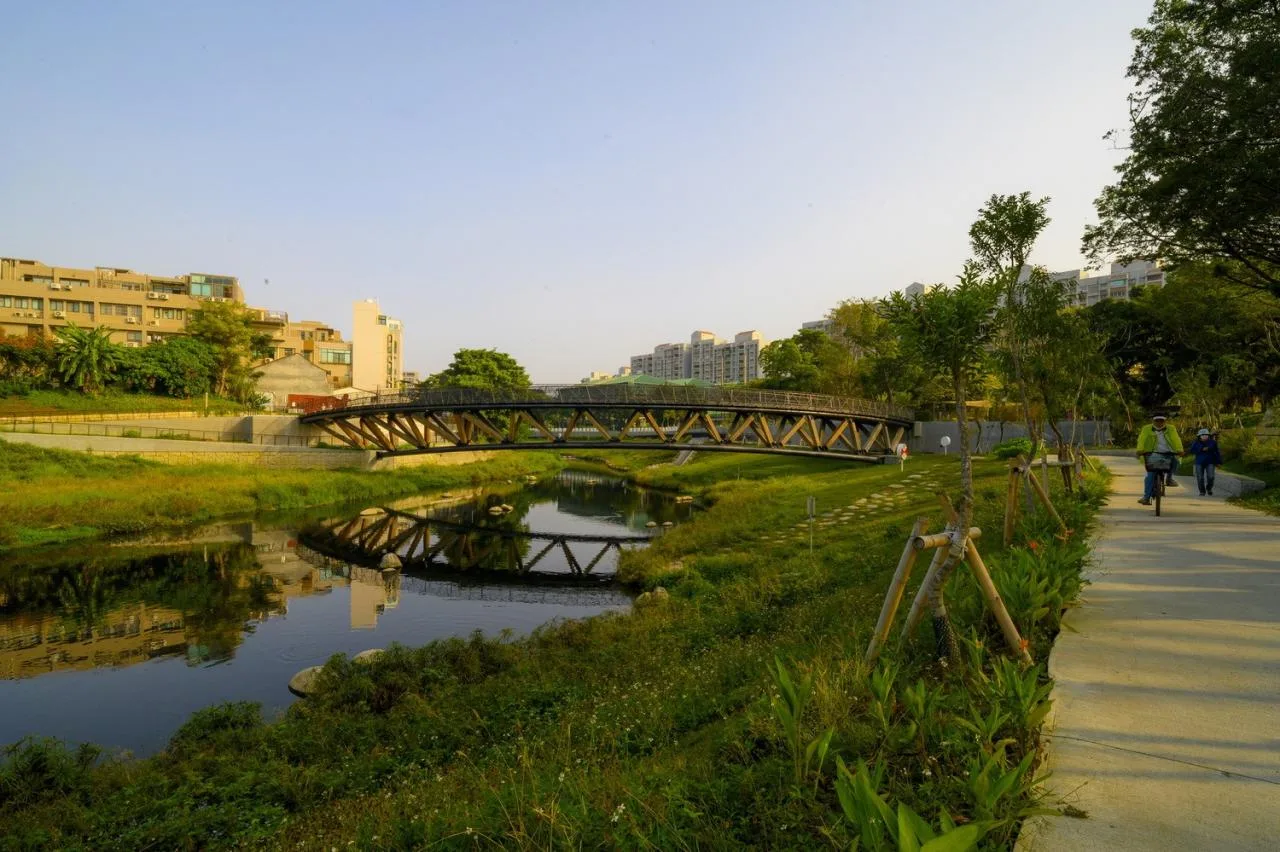

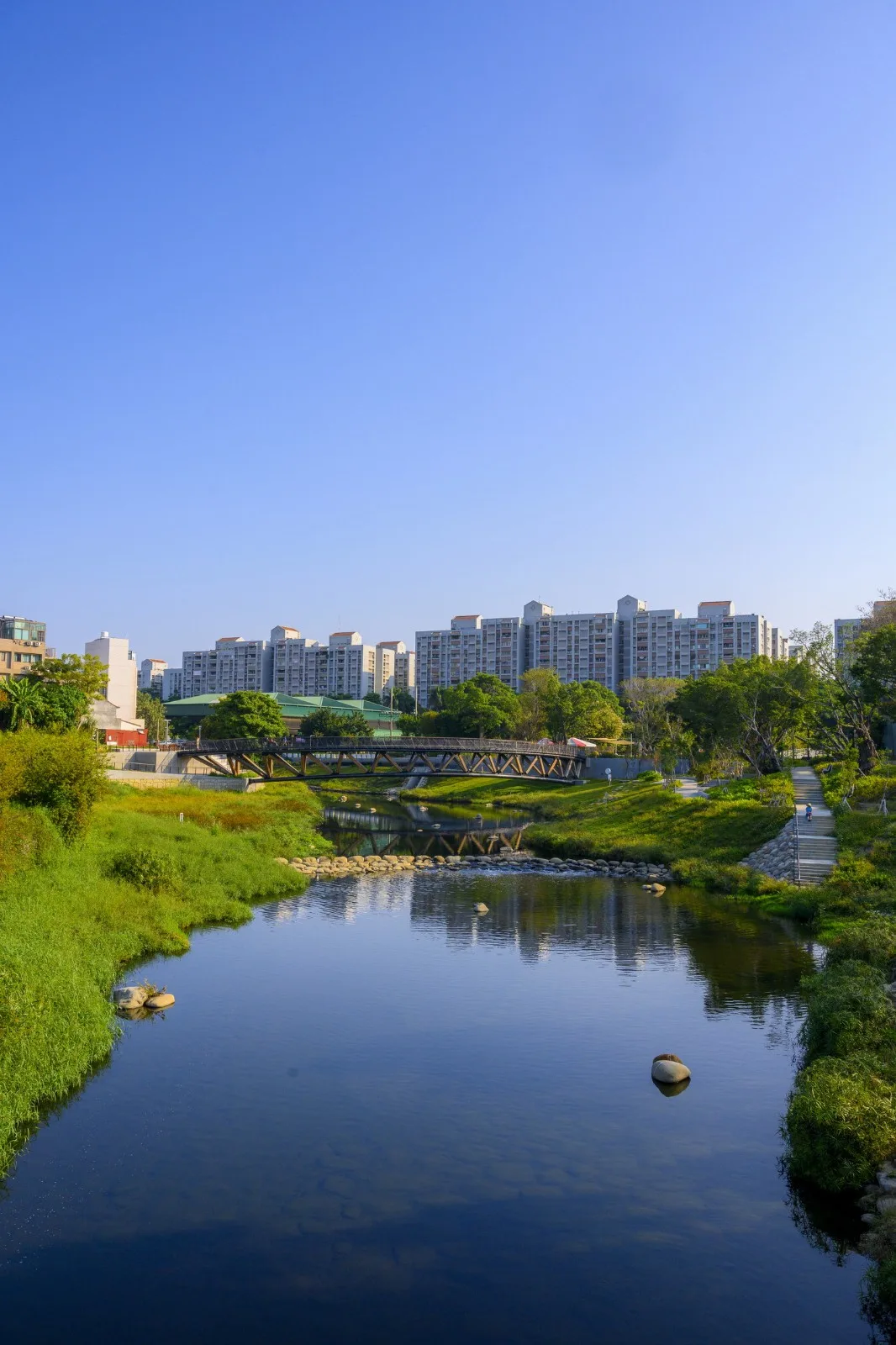

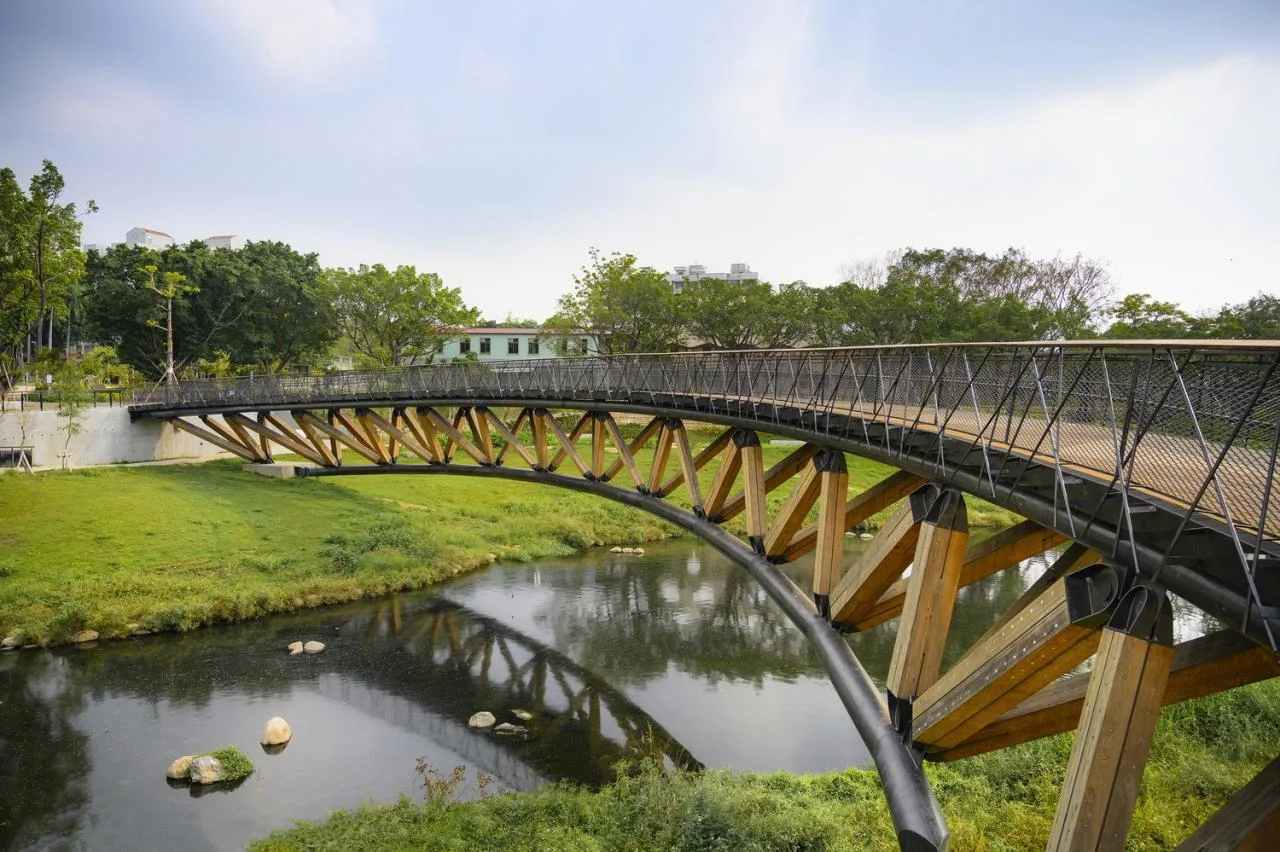

Situated at the widening of the river channel within Zhuxi Riverside Park, Yuejian Bridge gracefully curves like a crescent moon, linking the linear green corridors along both riverbanks. Its structure is a steel-wood hybrid, inspired by bamboo’s natural qualities: lightweight, flexible in the wind, yet robust and durable.

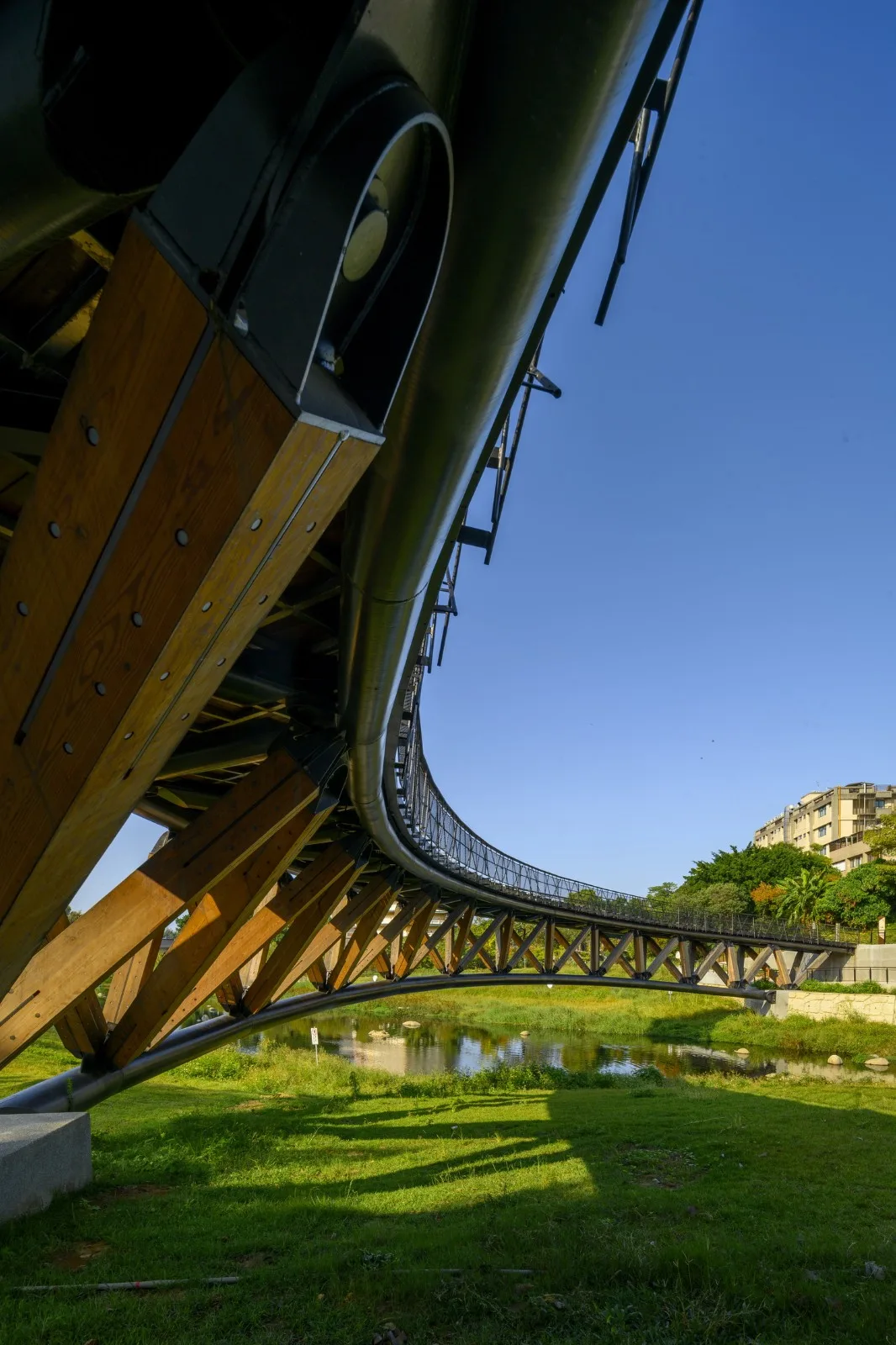

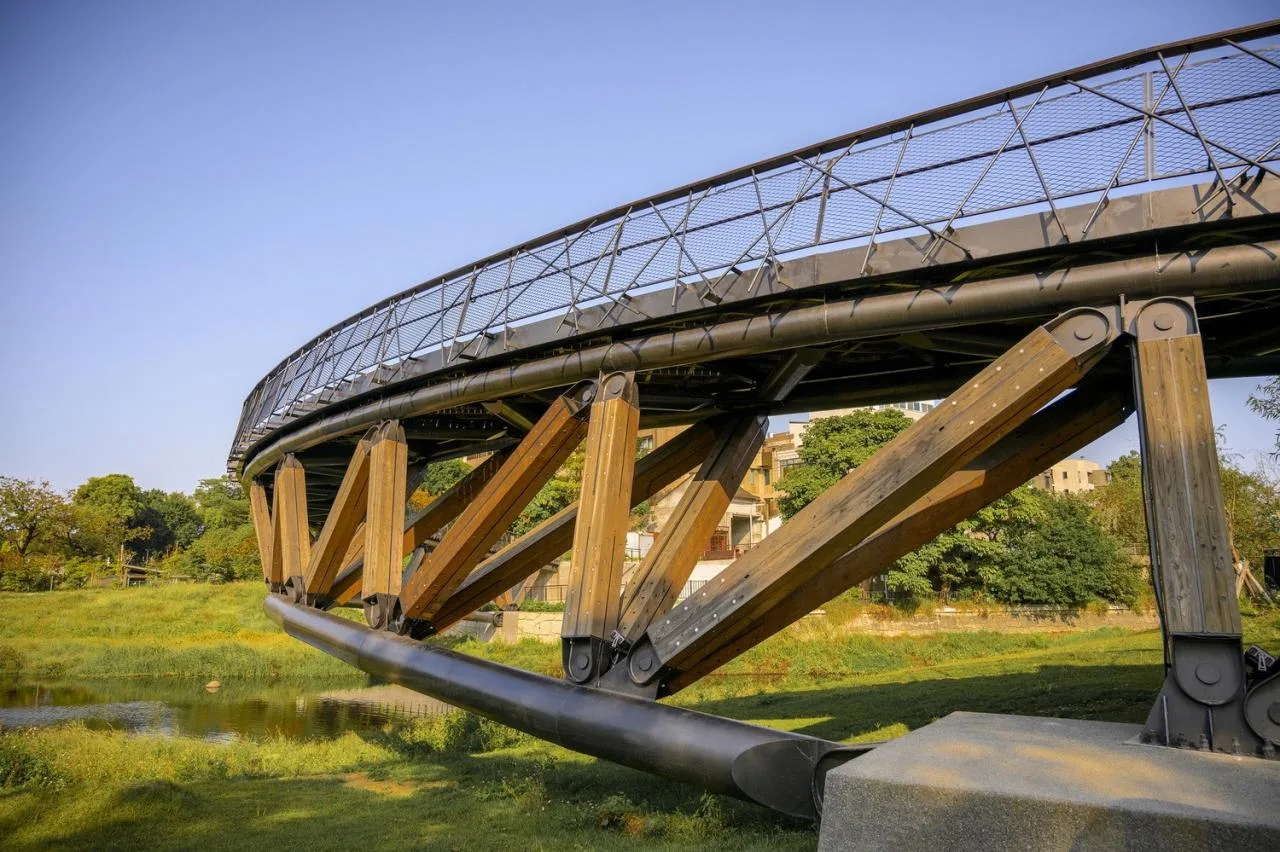

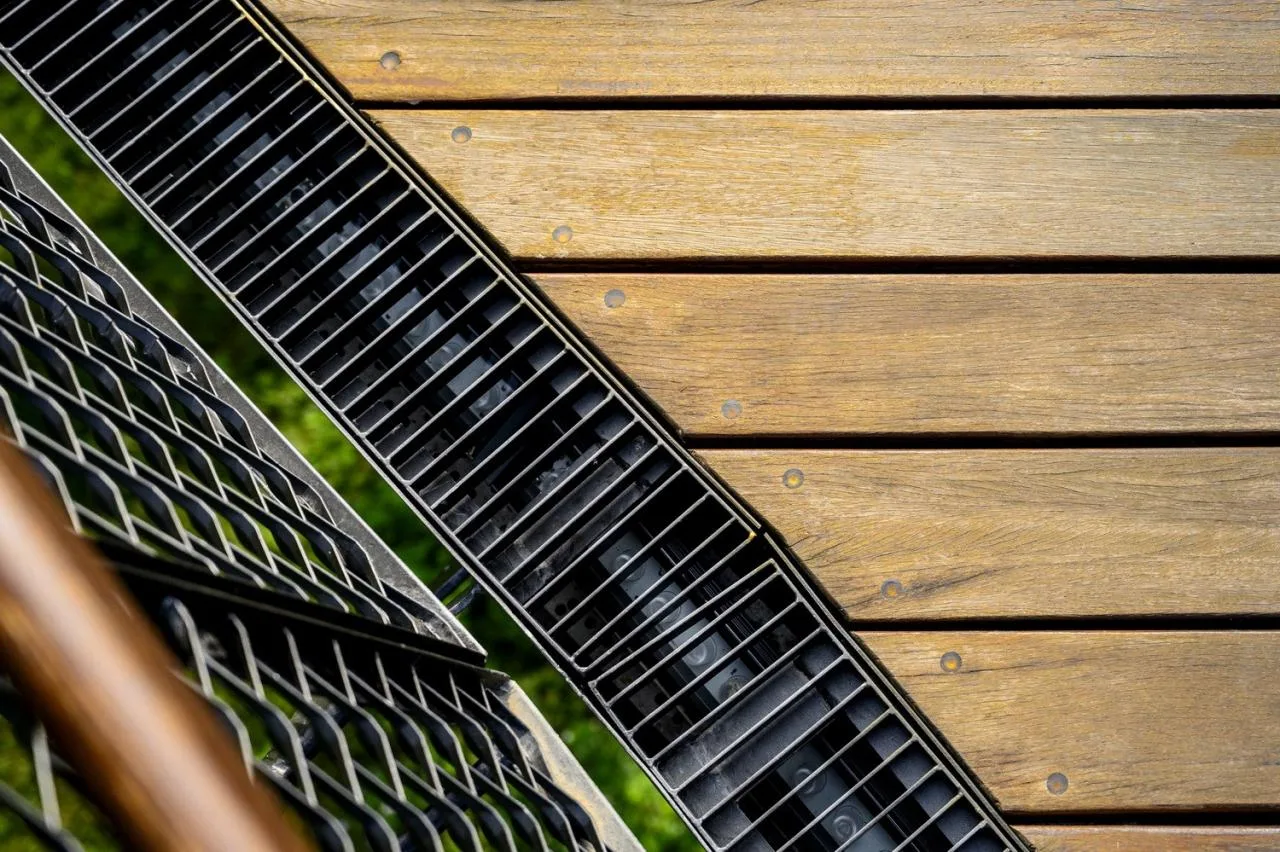

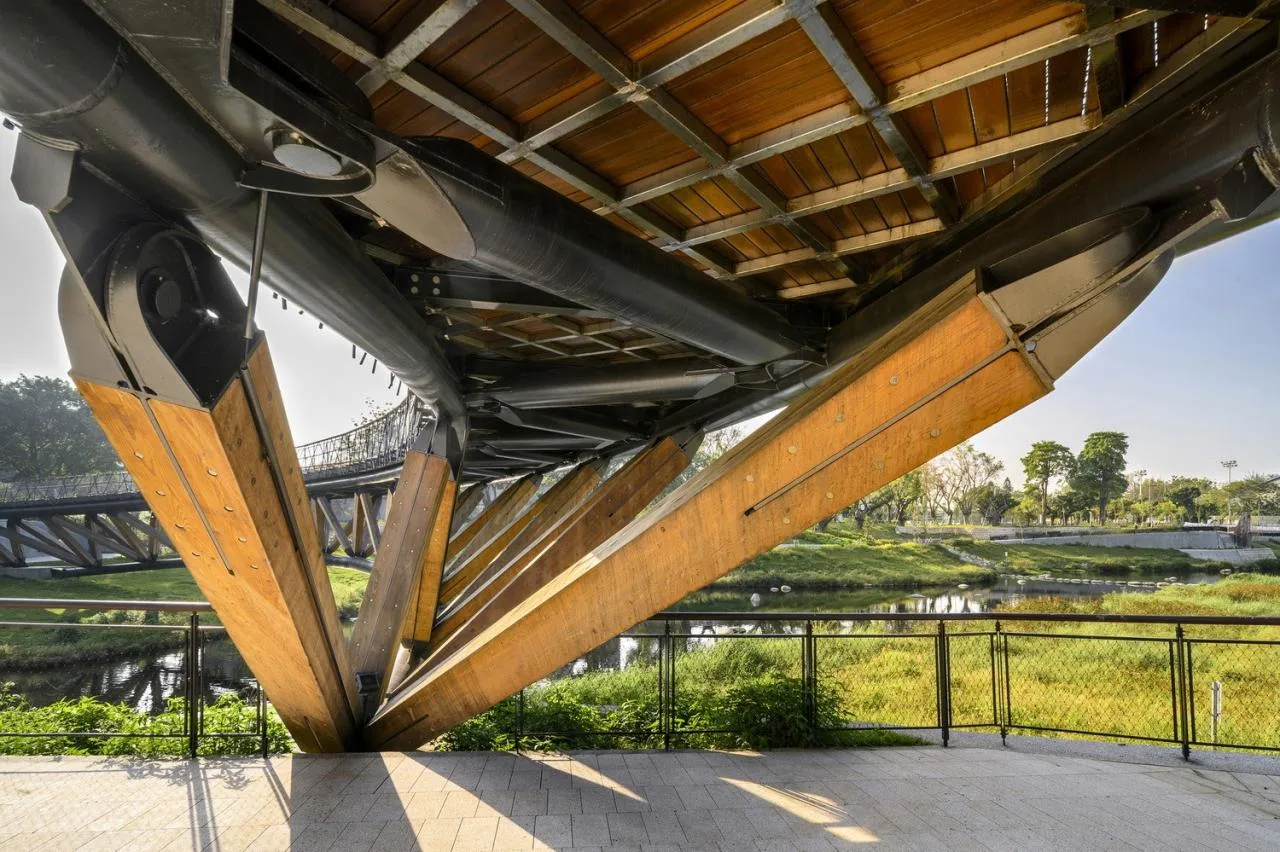

The bridge’s upper deck features a combination of steel cable supports and cross-laminated timber (CLT) beams, while the underside incorporates steel cables and a stainless steel secondary support system. Spanning approximately 80 meters, the bridge is column-free beneath to accommodate waterway requirements. Design constraints on the riverbanks’ connection points inspired the crescent shape, echoing the form of the smaller “Qu Bridge” over Wangyue Creek.

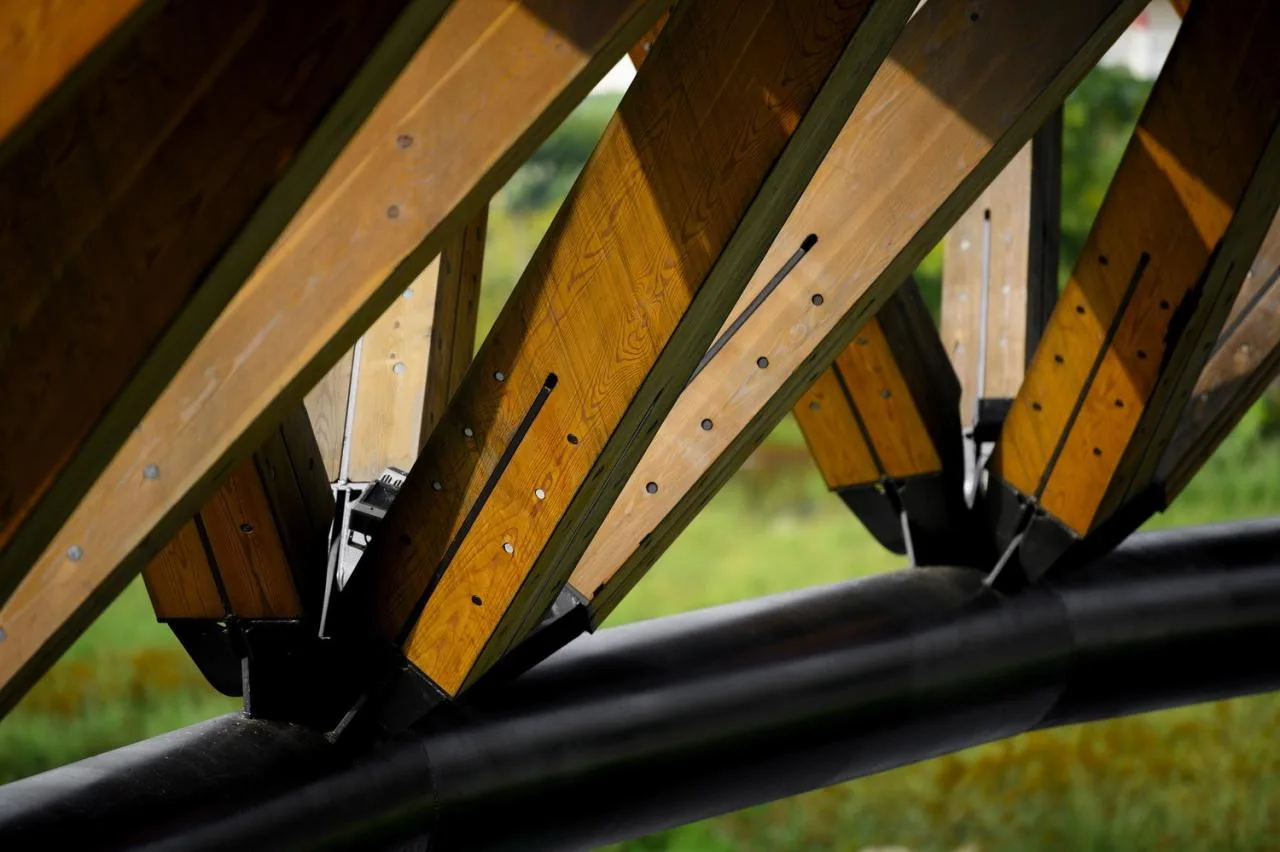

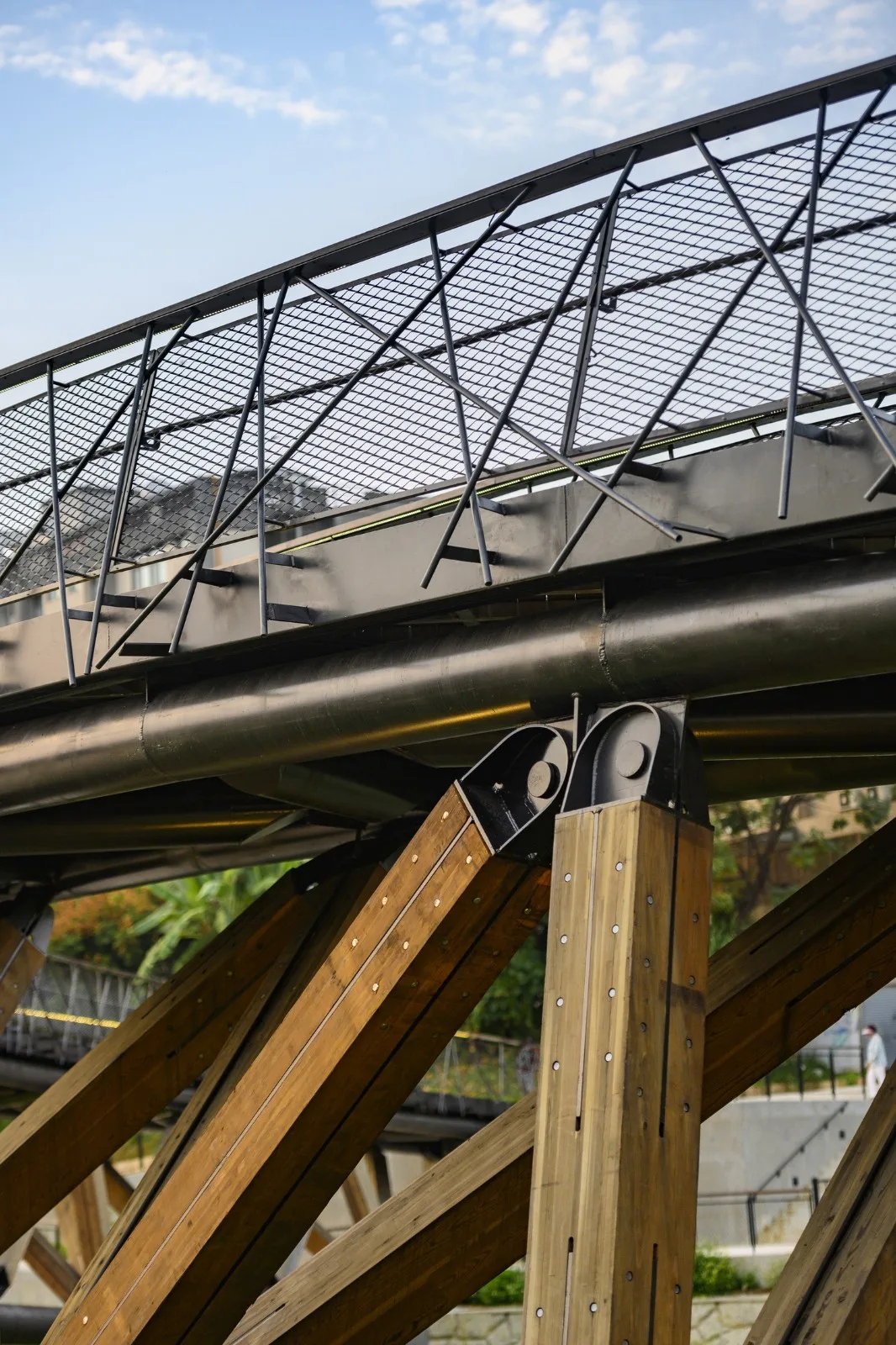

The bridge’s connection points feature gentle curves, with each component uniquely shaped according to its function. The wooden beams are laser-cut, demonstrating the adaptability and craftsmanship of traditional building materials like wood.

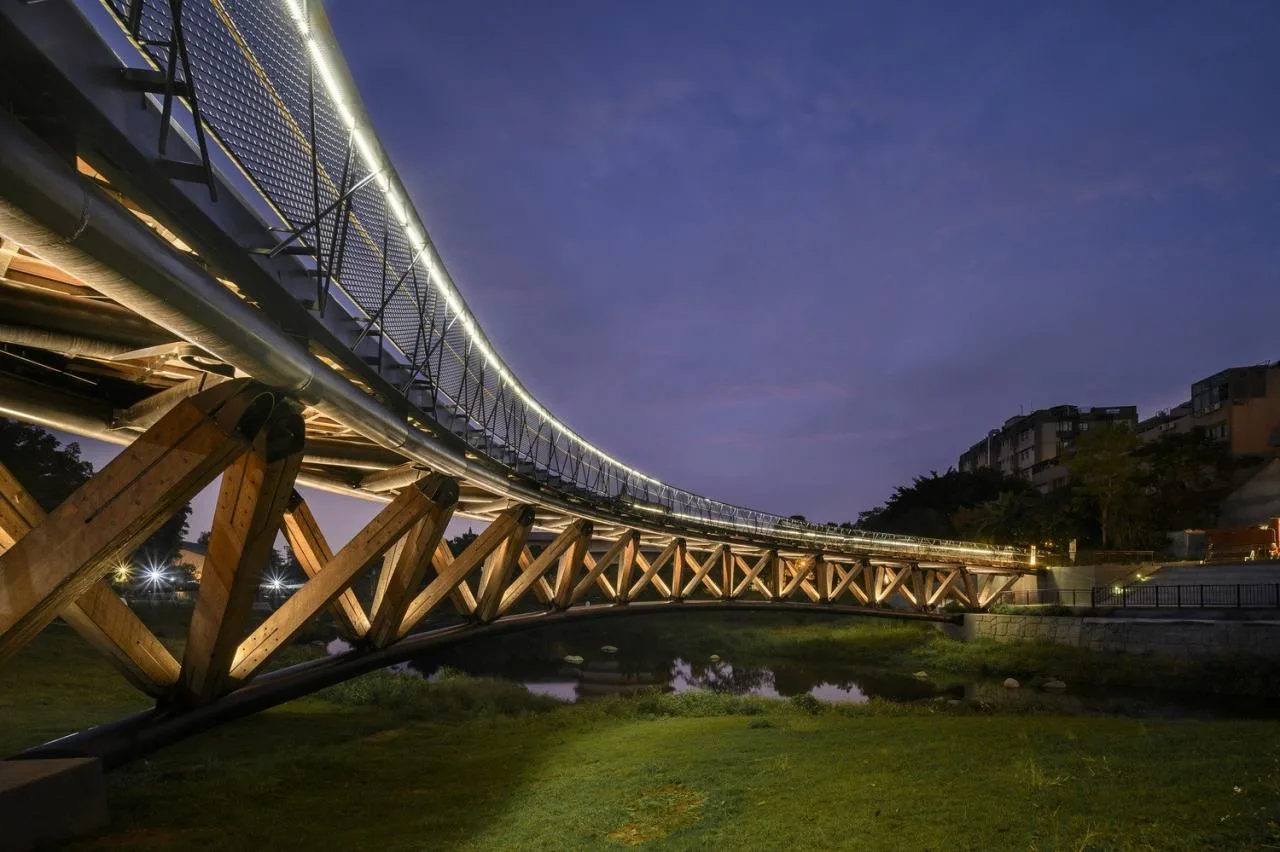

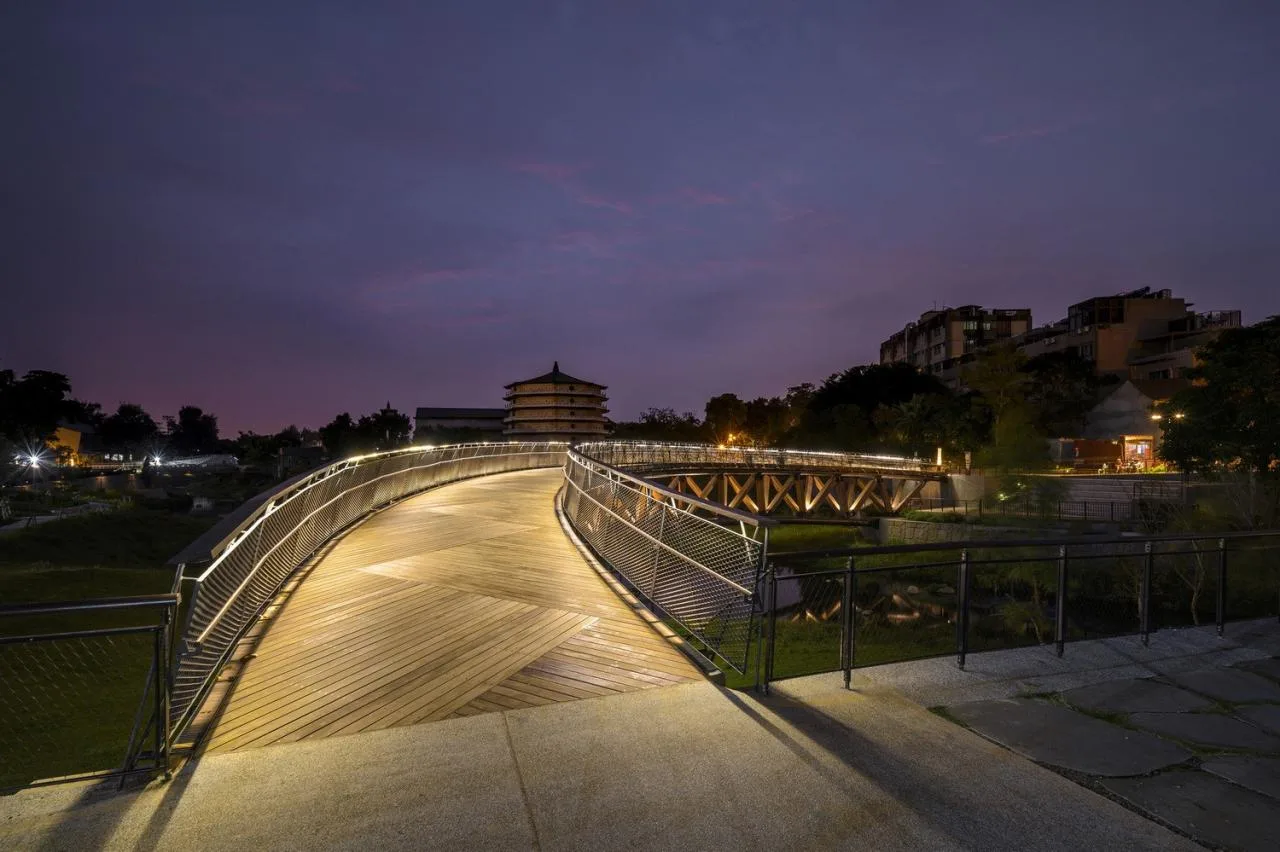

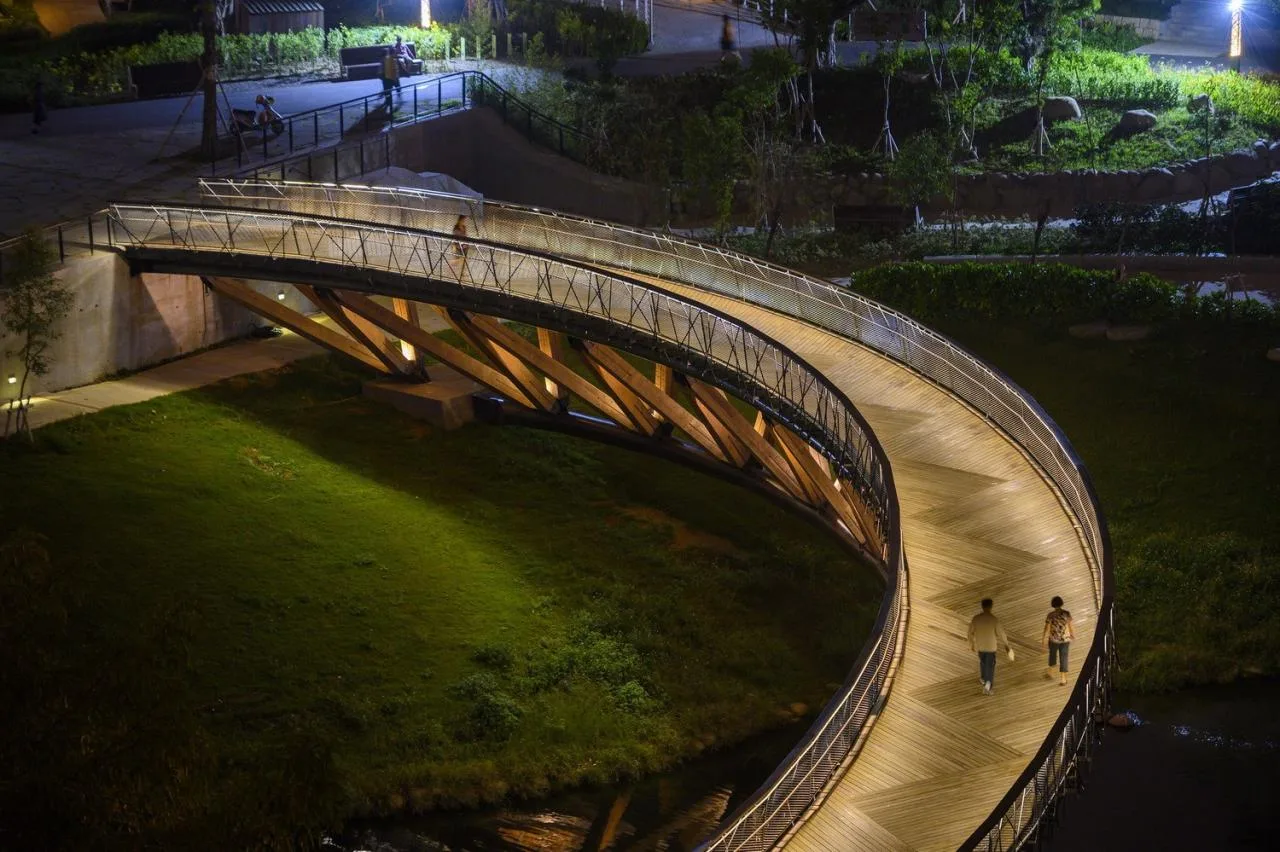

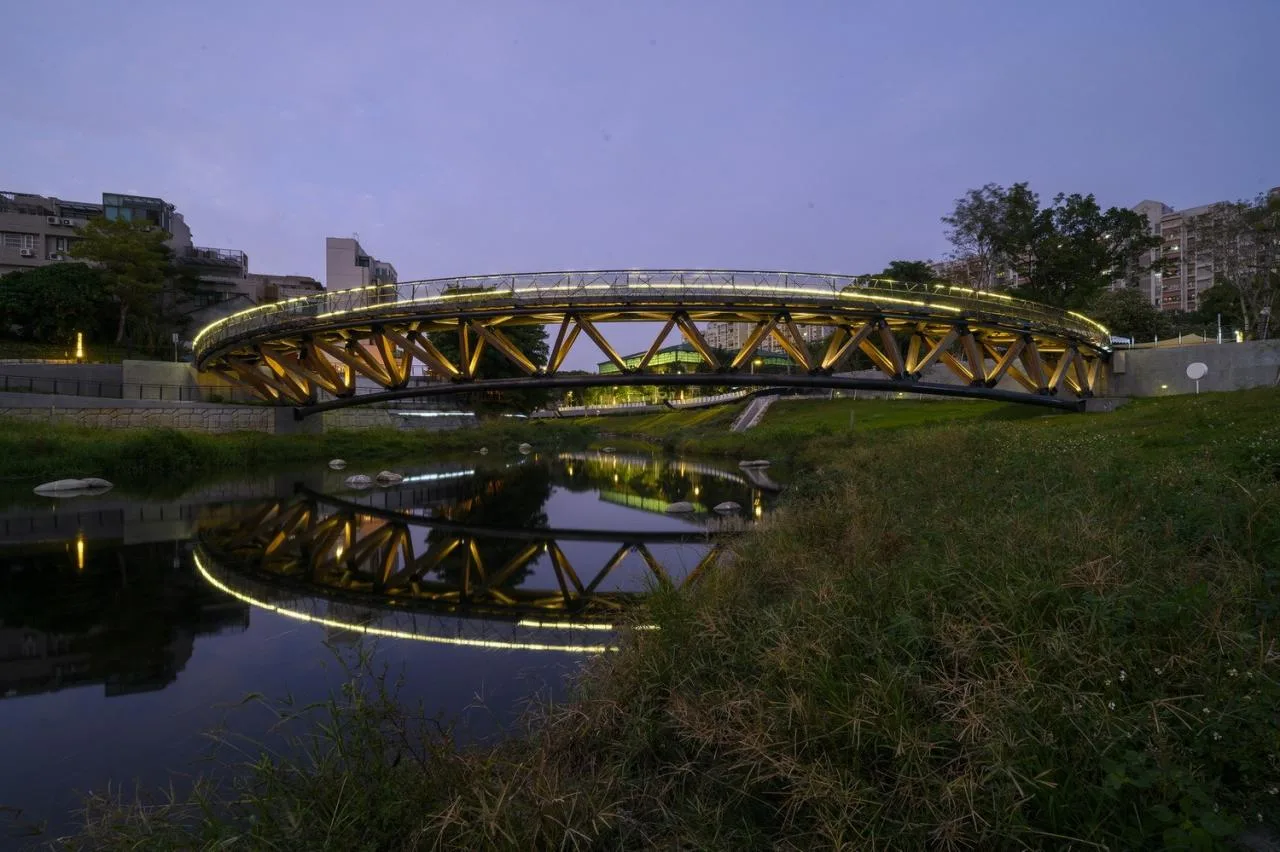

Yuejian Bridge not only connects the urban areas on either side of the river but also honors Tainan’s long-standing tradition of using wood in construction. The lightweight wooden structure, combined with the changing views of the riverbank day and night, enhances the poetic atmosphere of Zhuxi Riverside Park and strengthens its bond with nature and local heritage.
Project Drawings

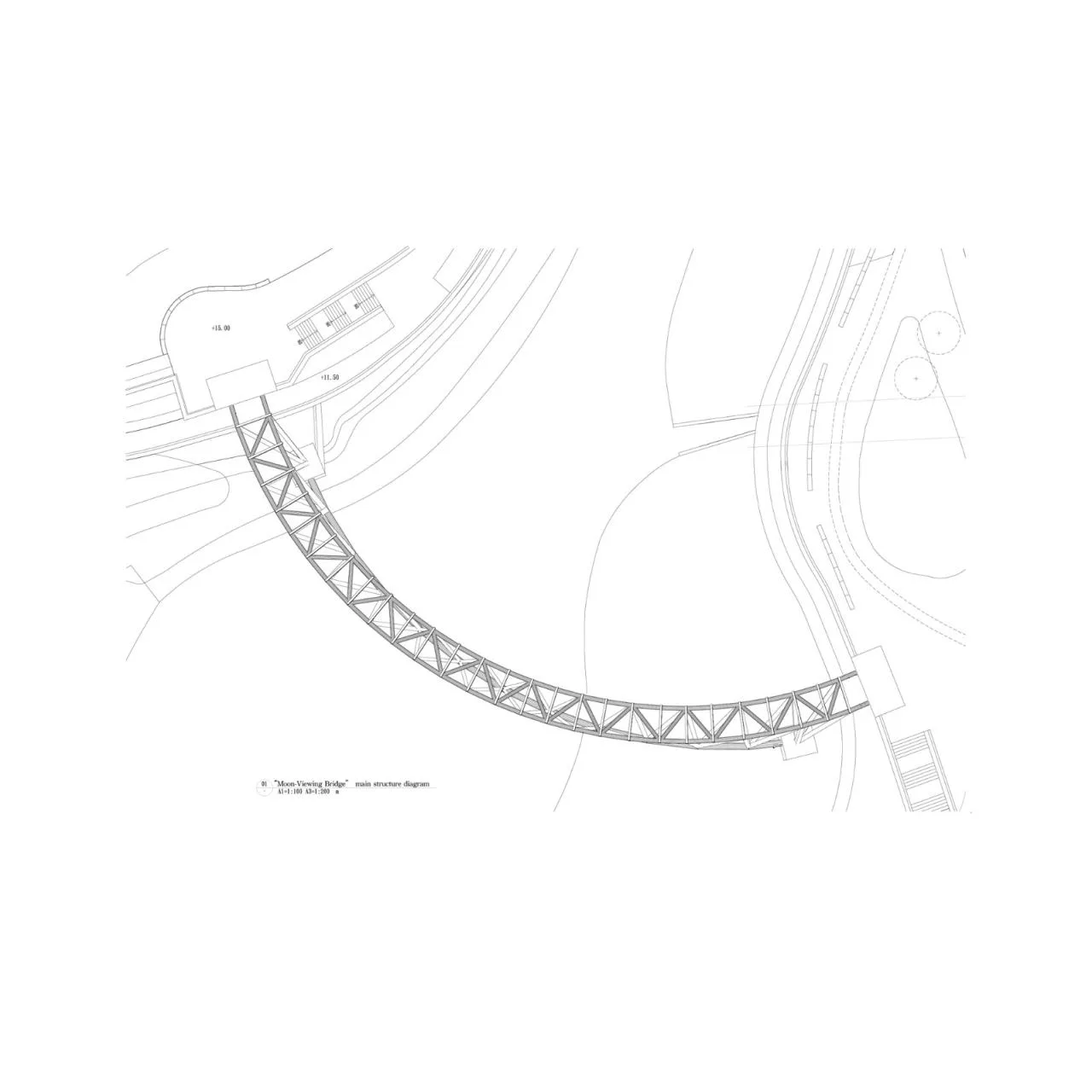

△ Plan view

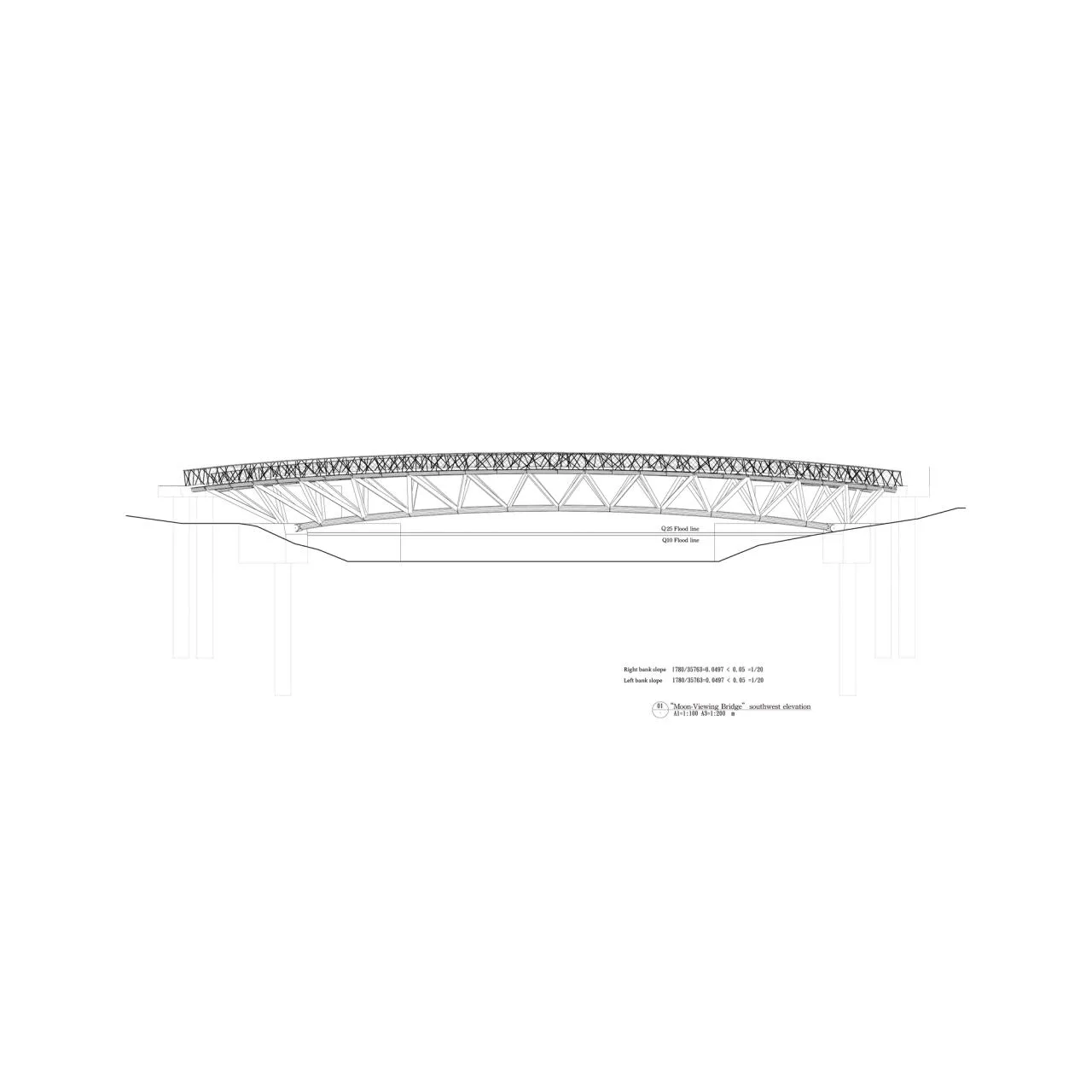

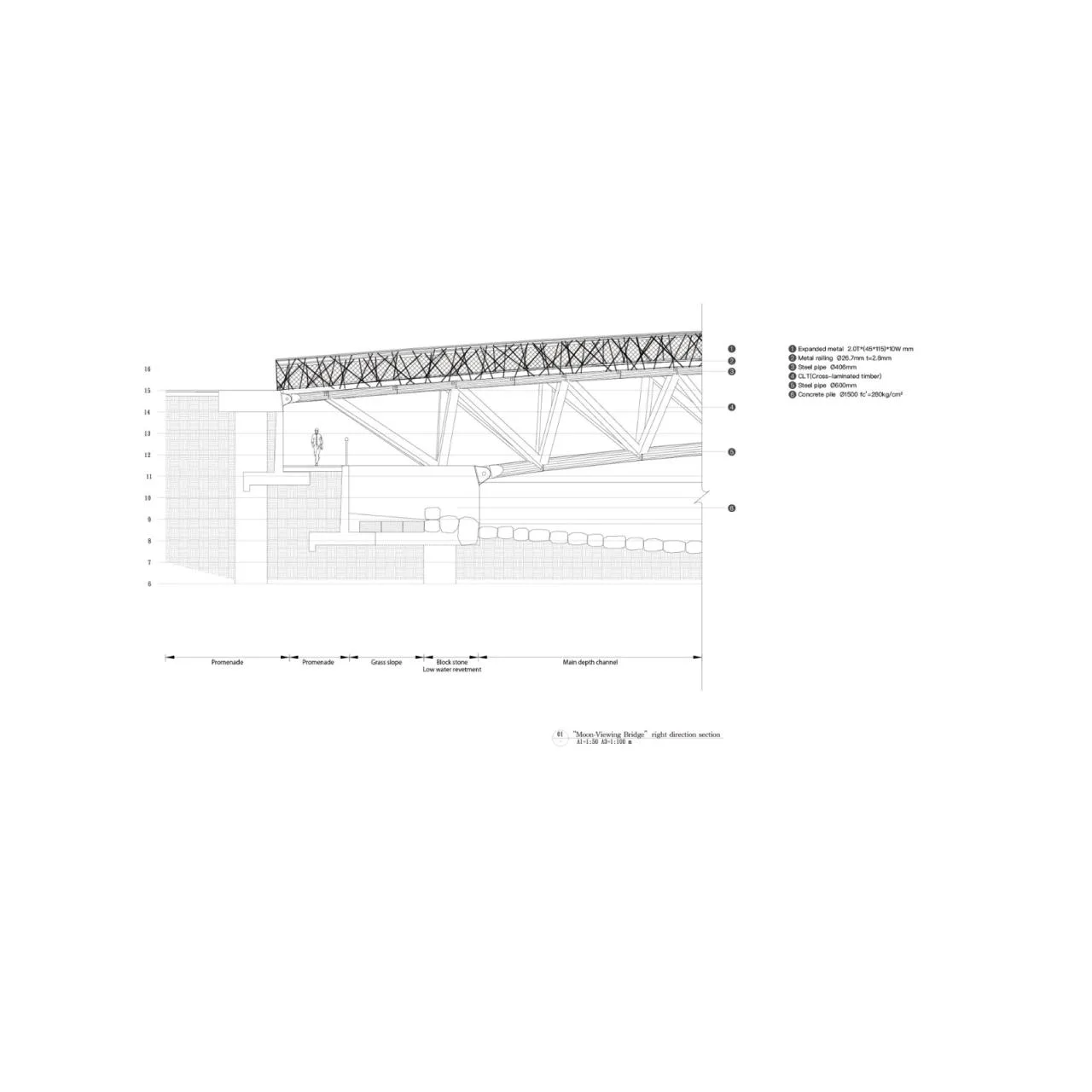

△ Elevation drawing

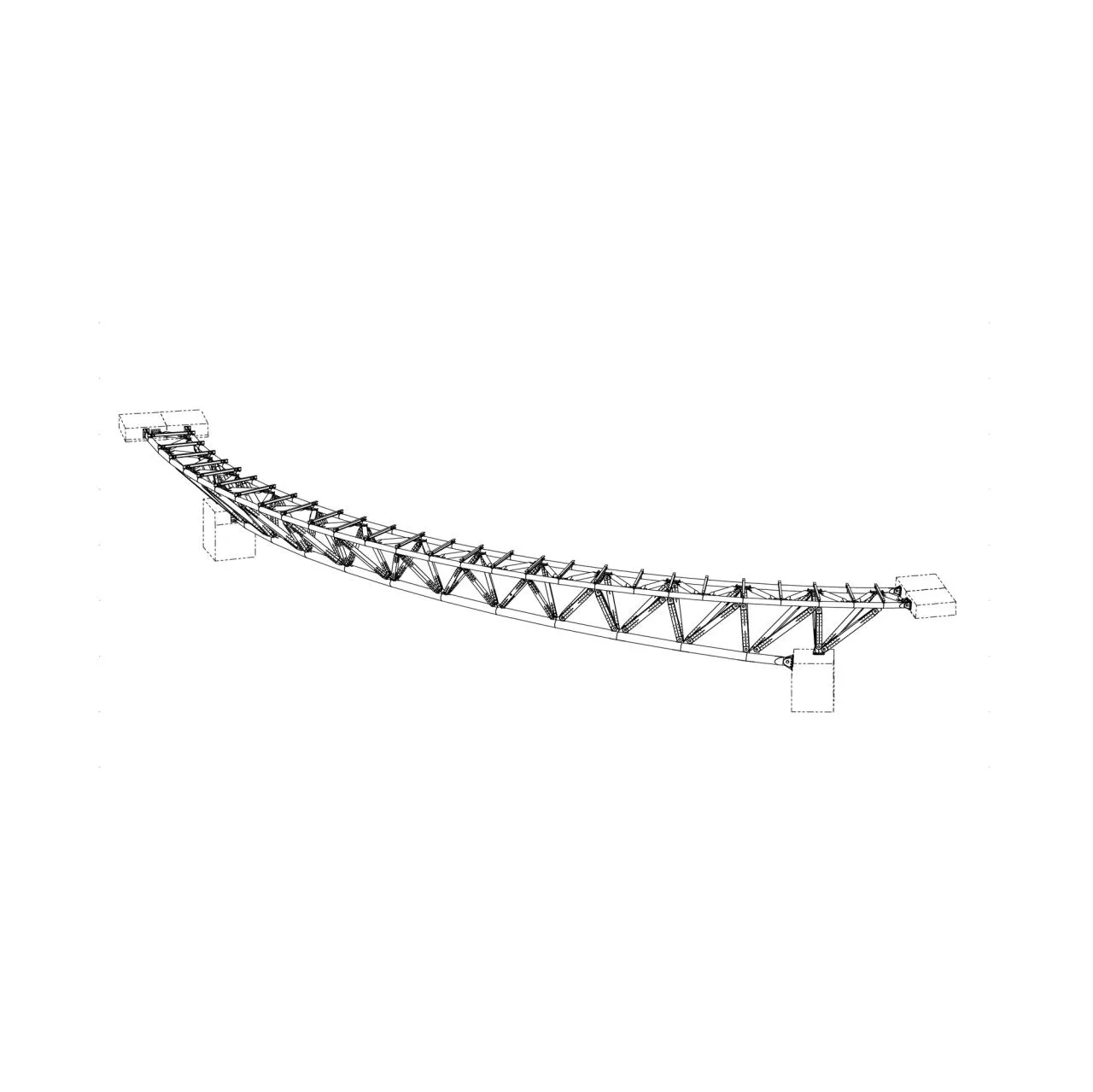

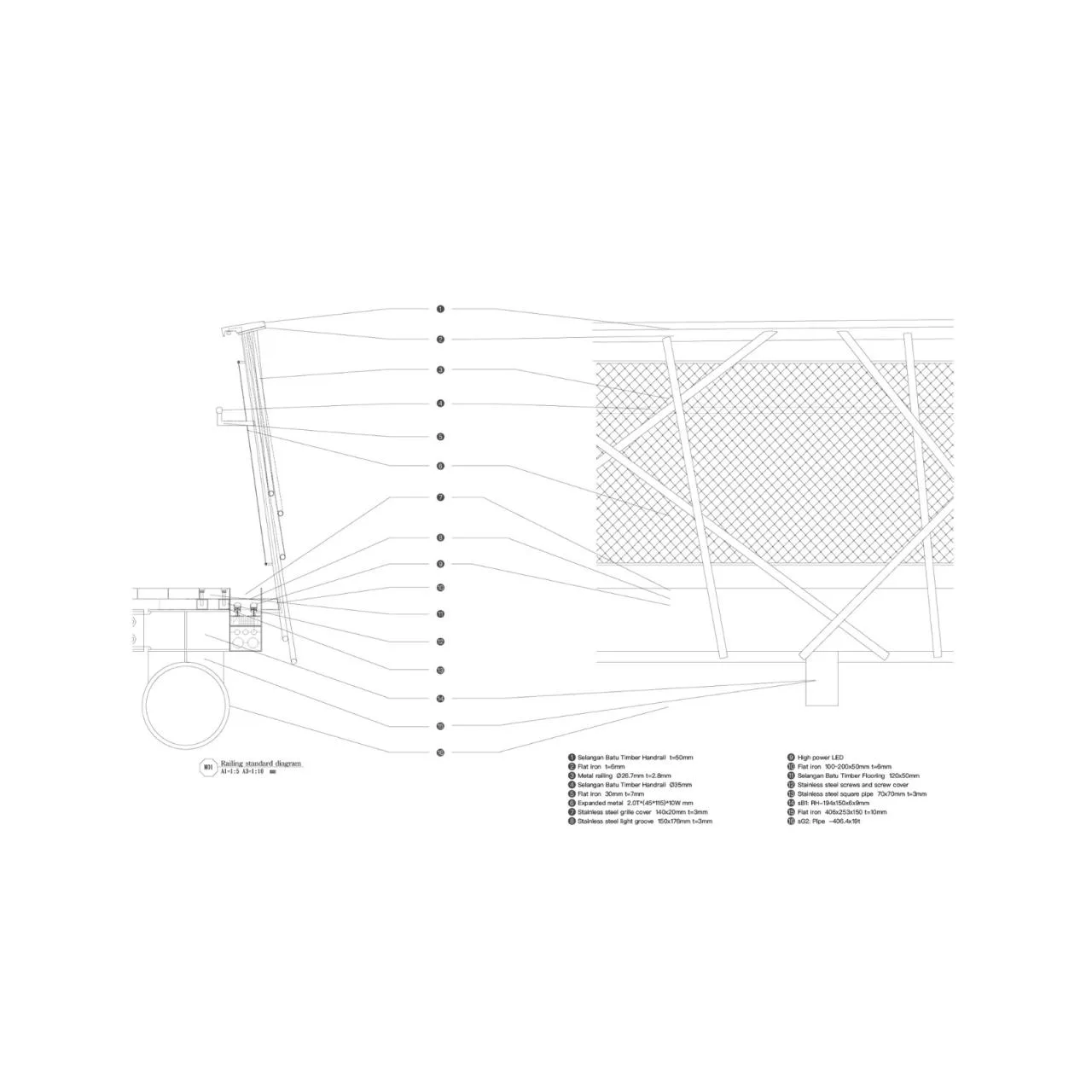

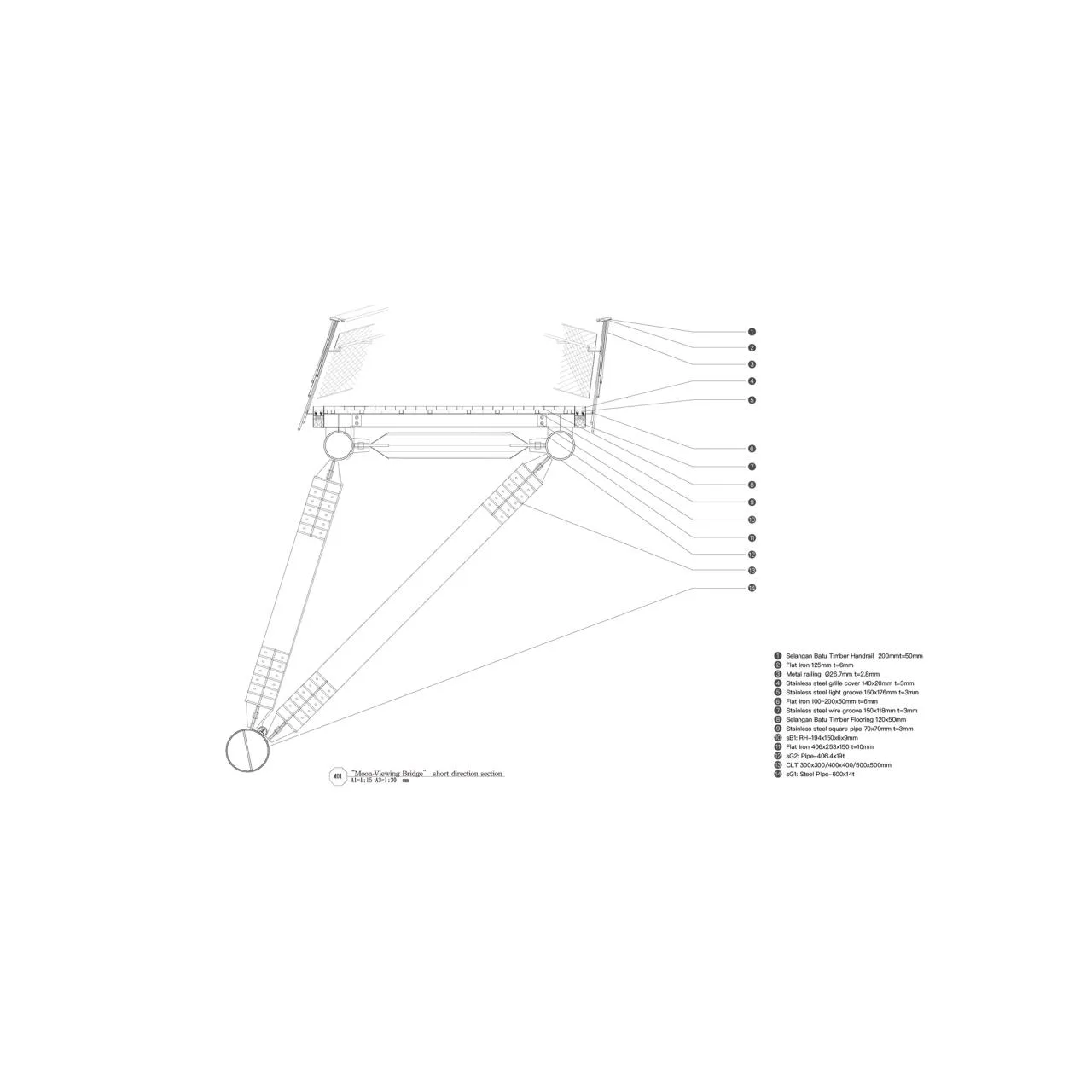

△ Structural schematic diagram

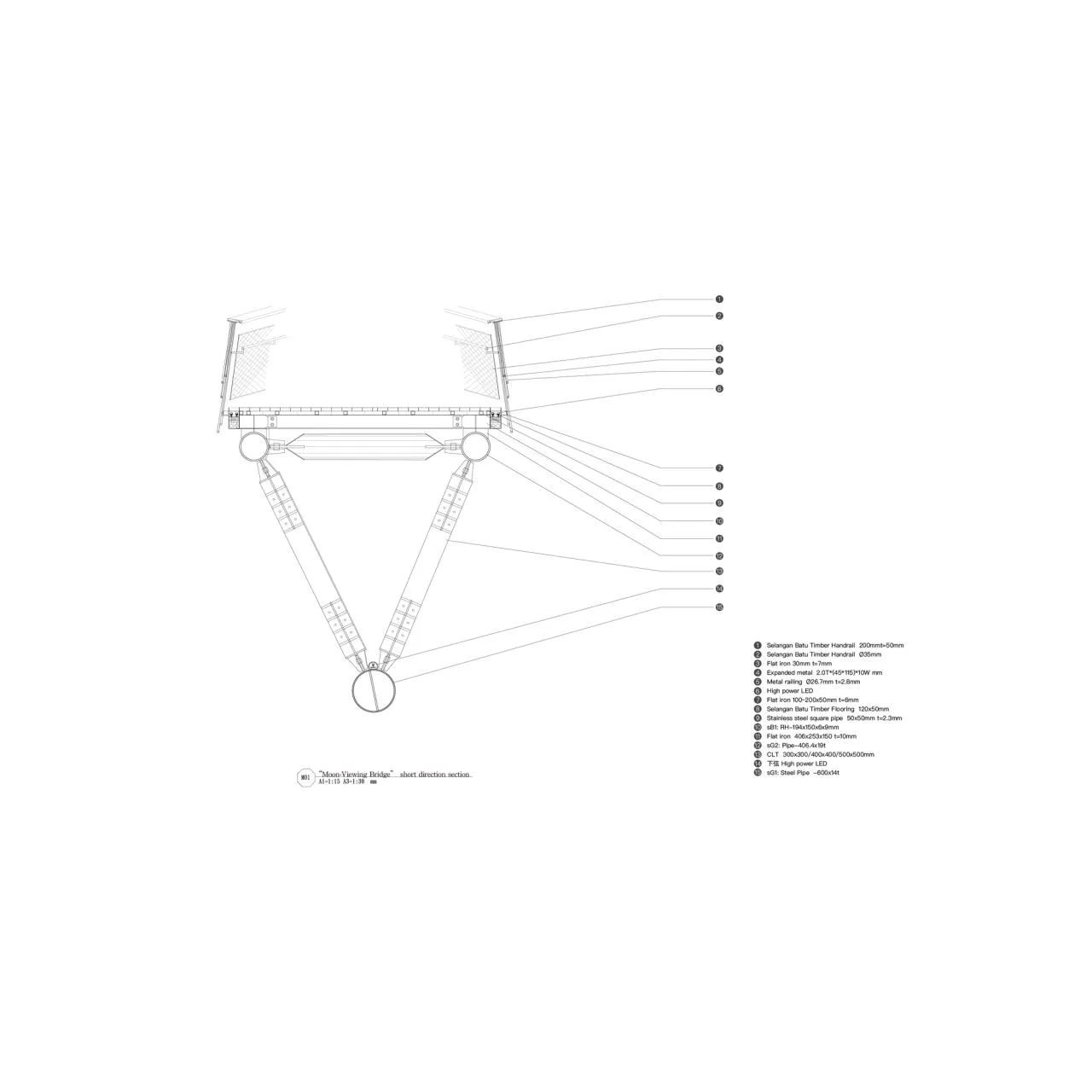

△ Structural schematic diagram
△ Structural schematic diagram
△ Structural schematic diagram
△ Structural schematic diagram
Project Information
Architectural Design: HWCA Huai Wen Chang Architect
Area: 273 square meters
Year: 2020
Photographer: Shephotoerd
Location: Taiwan, China
