BIM Architecture: Shenzhen Bao'an Hangcheng Community Health Service Center by Zhonghai Century Design

Background

The Hangcheng Community Health Service Center is located at the intersection of Kaicheng 2nd Road and Taoyuan Road in Huangtian Community, Xixiang Street, Bao’an District, Shenzhen. The existing building, covering approximately 4,000 square meters with floor heights of 3.9 meters from the first to fourth floors and an accessible roof, has become outdated and presents safety concerns.

1. What type of project is this? What was the purpose of the renovation? What social and market needs does it address?

The renovation of the Hangcheng Community Health Service Center represents a response to the evolving demands of the times. The project adapts the building’s functions and exterior to meet current and future functional and aesthetic requirements. The primary goal is to upgrade public and service spaces, increase green and ecological areas, and transform the center into an international, standardized, and eco-friendly health facility, all while preserving the building’s main structure. The renovation aims to revitalize the Bao’an Xixiang Community Health Service Center by reshaping spatial functions, reinforcing the structure, and upgrading equipment.

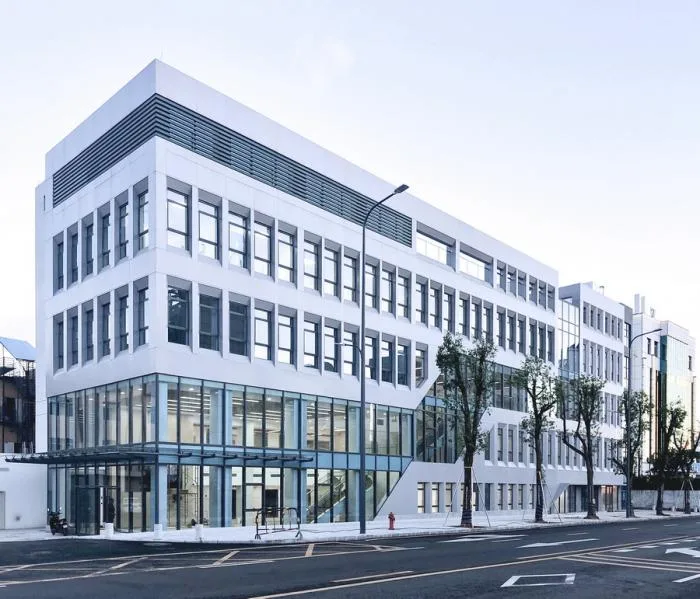

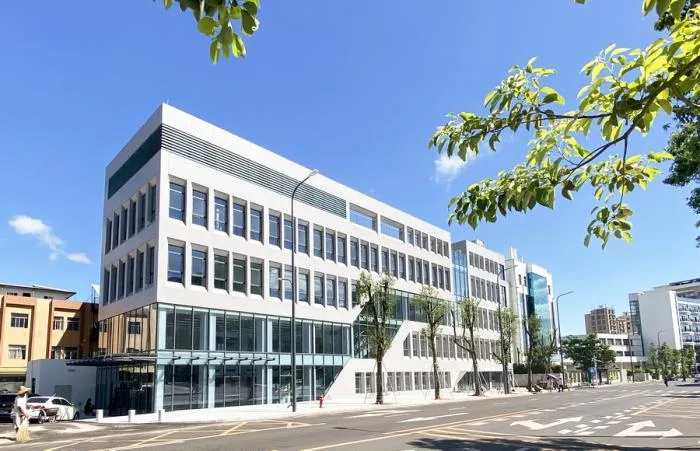

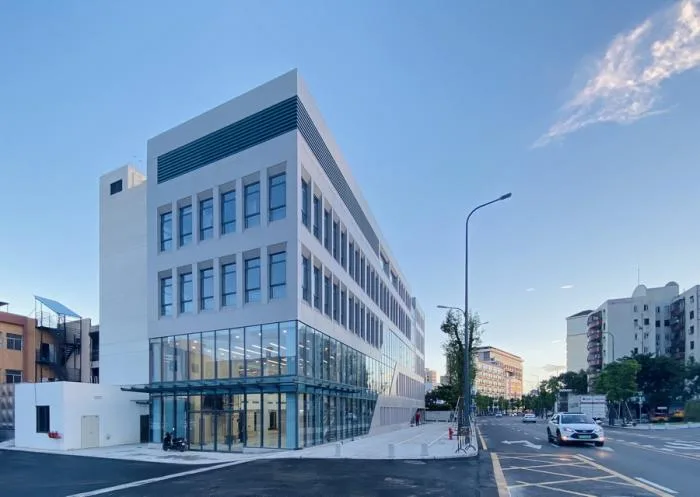

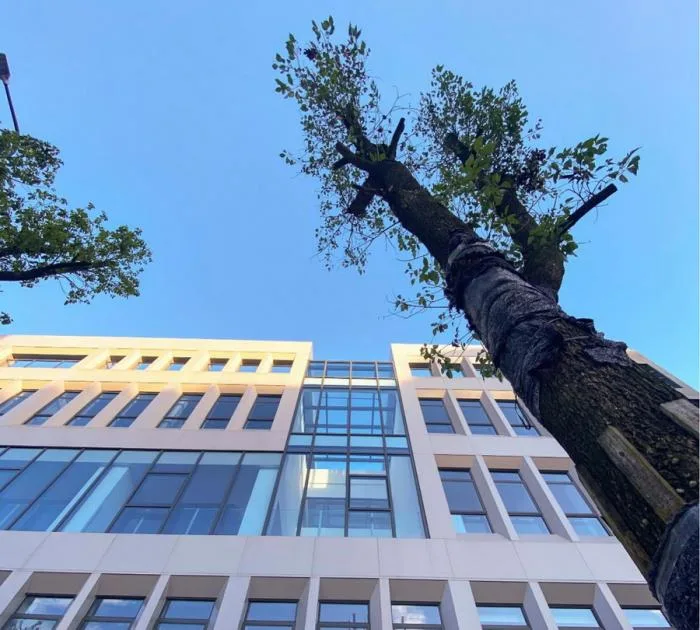

△ View from the east entrance

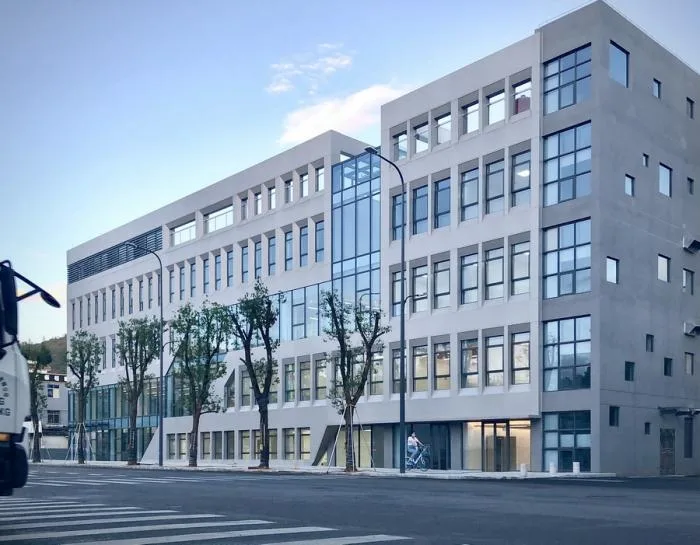

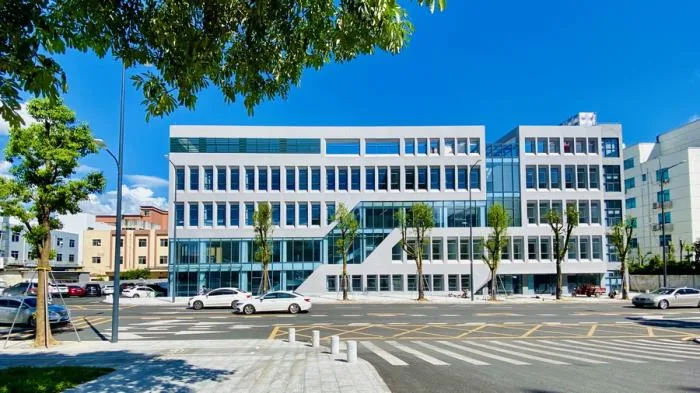

△ Front elevation

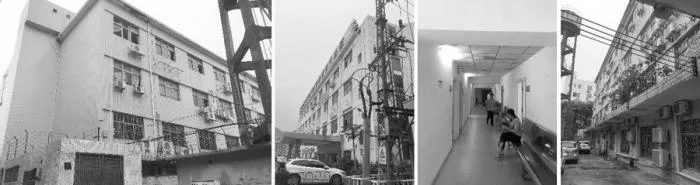

△ Existing condition before renovation

2. What challenges did the project face, what were the renovation strategies, and what key difficulties arose?

After thorough inspections and on-site assessments, the main issues identified in the community center included:

• The main entrance faces a busy municipal road, creating safety risks due to high traffic;
• The outdoor ground level is higher than the indoor floor level, increasing the risk of rainwater intrusion;
• Fire damage previously required reinforcement work, resulting in reduced clearance under some beams;
• Exposed outdoor air conditioning units negatively affect the building’s appearance.

To address these concerns, the design team developed a comprehensive renovation strategy focusing on architecture, structural reinforcement, and building systems.

△ Renovation design plan

The architect’s key renovation strategies are as follows:

1. Relocate the main entrance to the east side and create an entrance plaza that serves as a buffer from the busy road;
2. Break from the traditional community health center design by introducing public spaces that foster neighborly interaction and a relaxed atmosphere. The first through fourth floors are designed as layered, stepped interior public spaces to enhance spatial experience and activate the building;
3. Upgrade evacuation routes by adding a medical elevator and renovating stairs to meet clearance requirements;
4. Externally express indoor public spaces and establish standardized building modules based on function while incorporating natural lighting and ventilation. The façade features rhythmic window openings and large glass panels that combine with public spaces on each floor to create bright, transparent, and vibrant environments. The interior reflects a soft, natural architectural identity;
5. Functionally organize spaces based on the public areas on each floor, accommodating medical staff, patients, and waste management effectively;
6. Structurally reinforce columns and beams to meet current standards using cross-section enlargement and lightweight methods such as carbon fiber wrapping. Foundation beams are added to unify and strengthen the foundation. Post-reinforcement monitoring showed no uneven settlement or deformation. Note that beam clearance may be lower due to medical equipment, piping, and increased ceiling heights;
7. Utilize BIM technology for comprehensive pipeline layout to avoid conflicts and improve coordination.

△ Transformation strategy

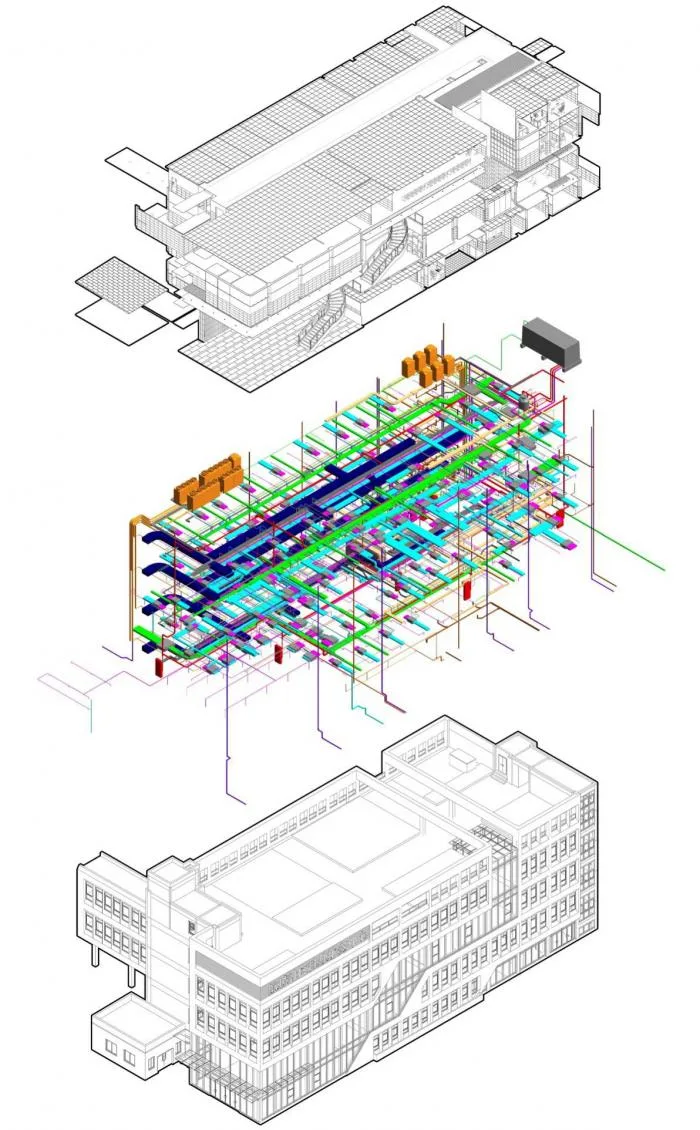

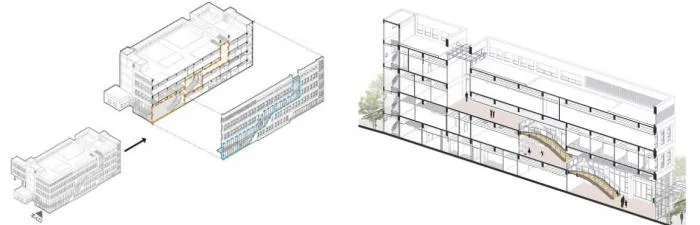

△ Axonometric diagram showing disassembly

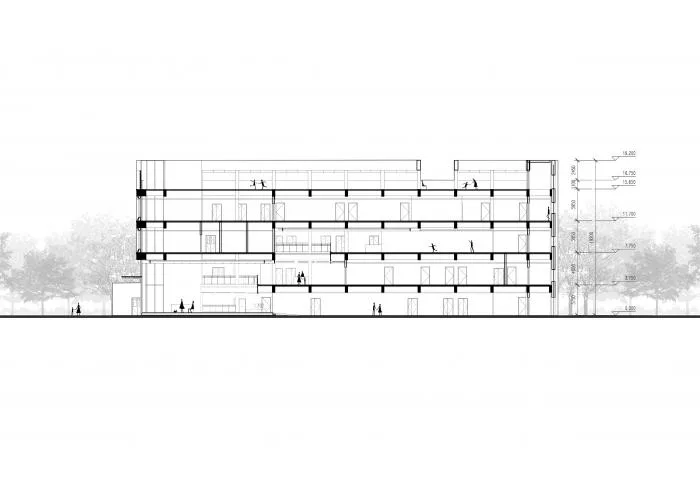

△ Section diagram

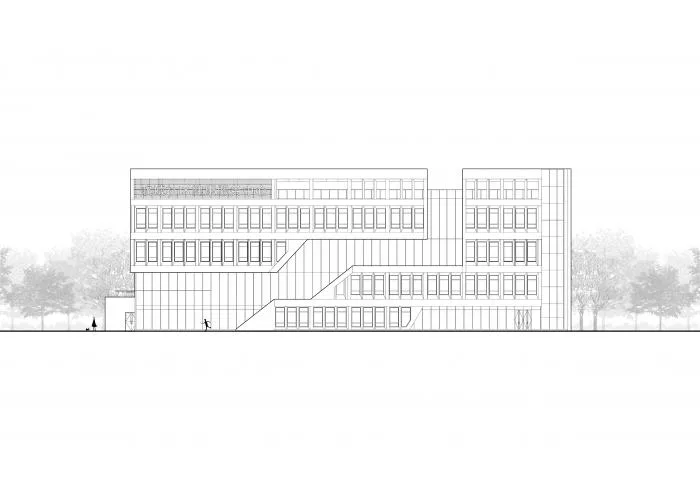

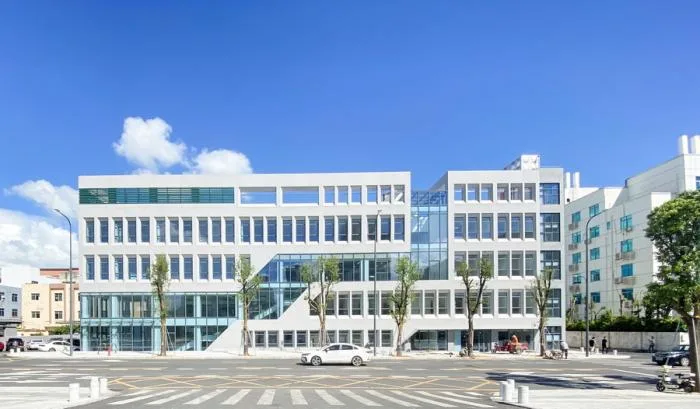

△ North elevation view

△ East elevation view

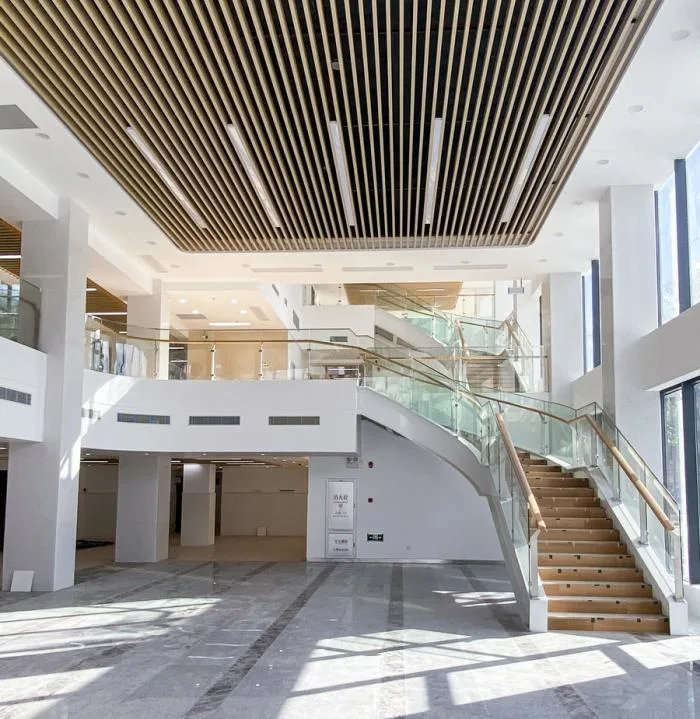

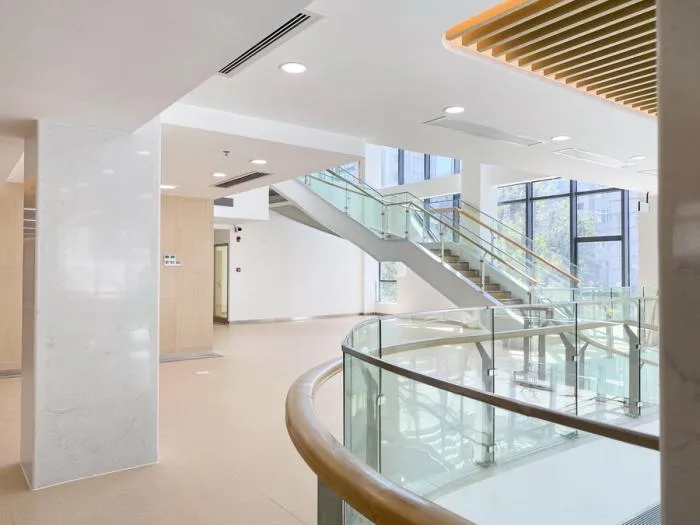

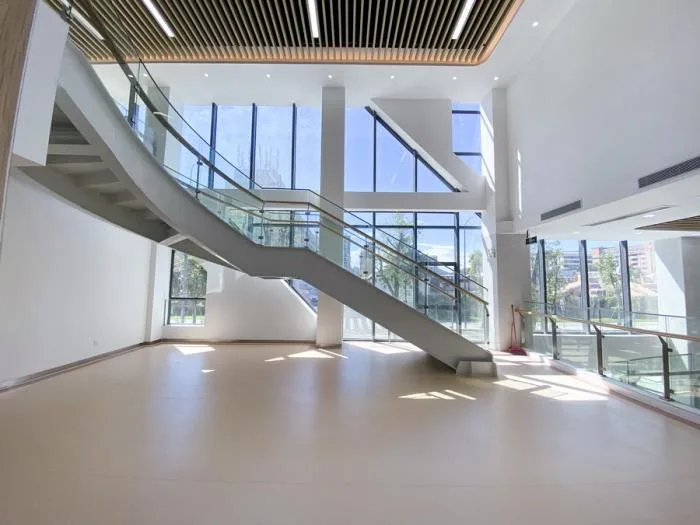

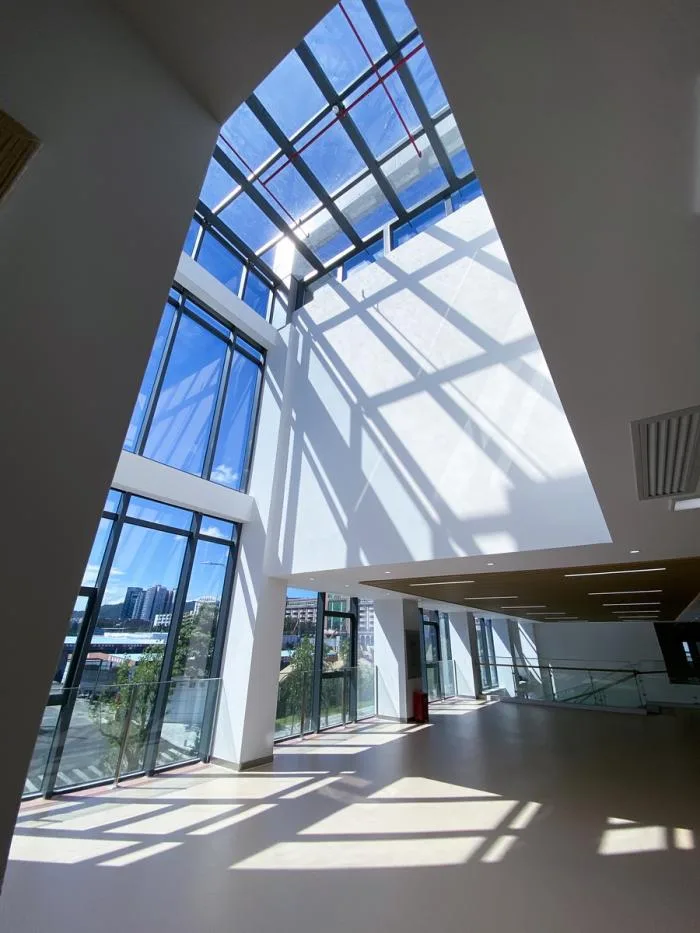

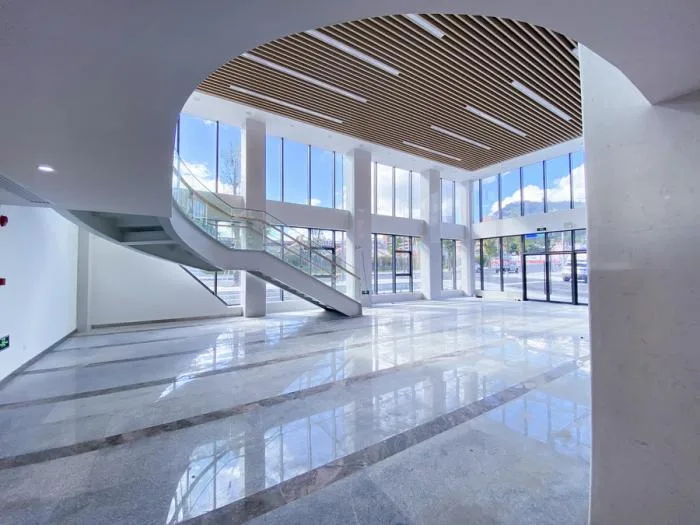

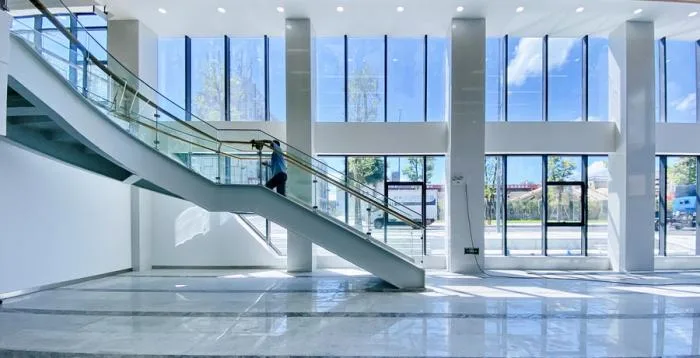

△ Interior space after renovation

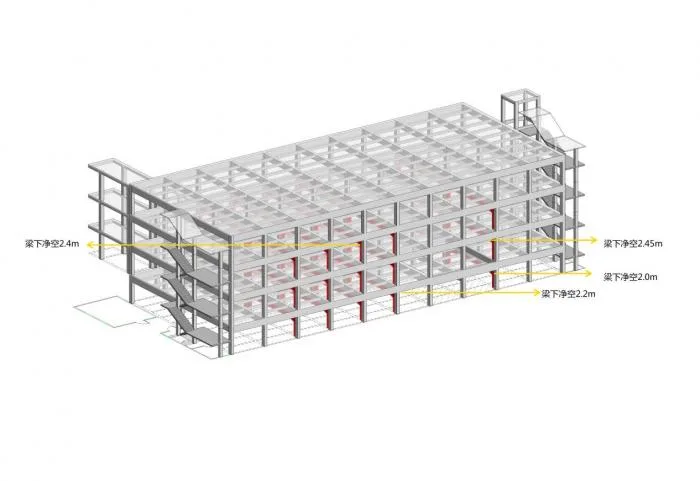

△ Structural reinforcement diagram

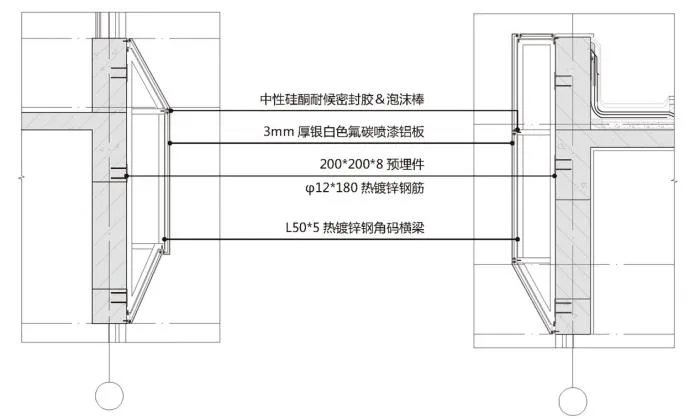

Exterior wall structure construction method

△ Outdoor shaft side disassembly diagram

△ Structural diagram

This renovation project comprehensively transforms the building’s structure, function, exterior facade, and mechanical and electrical systems. Through this design and construction, the old building has been given a new lease on life. As urban renewal continues, we anticipate many similar projects ahead, each bringing fresh vitality to the city.

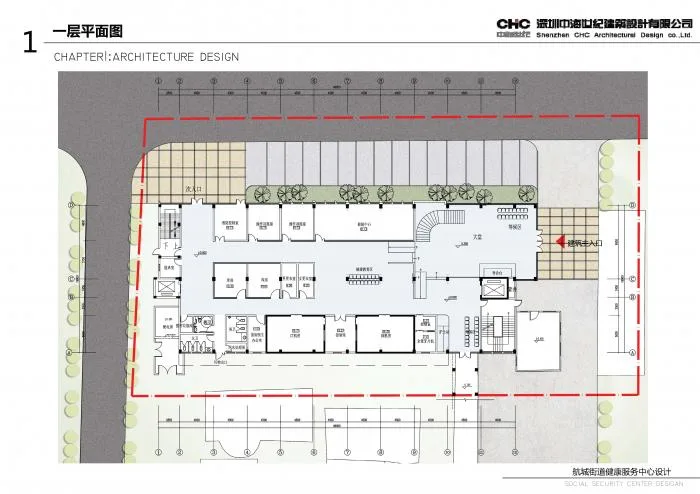

△ First floor plan

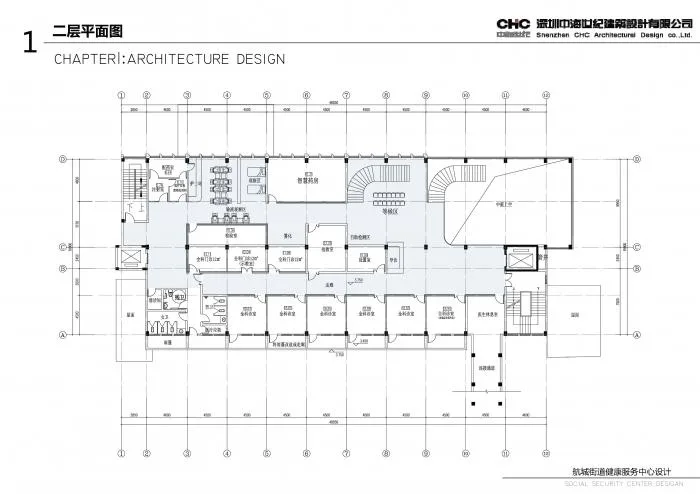

△ Second floor plan

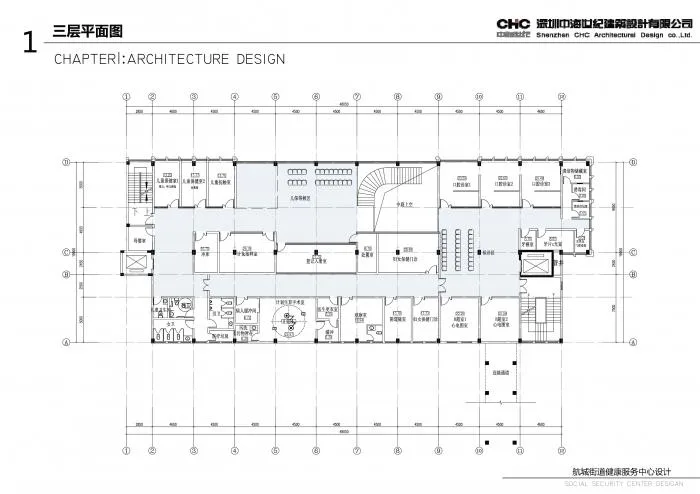

△ Third floor plan

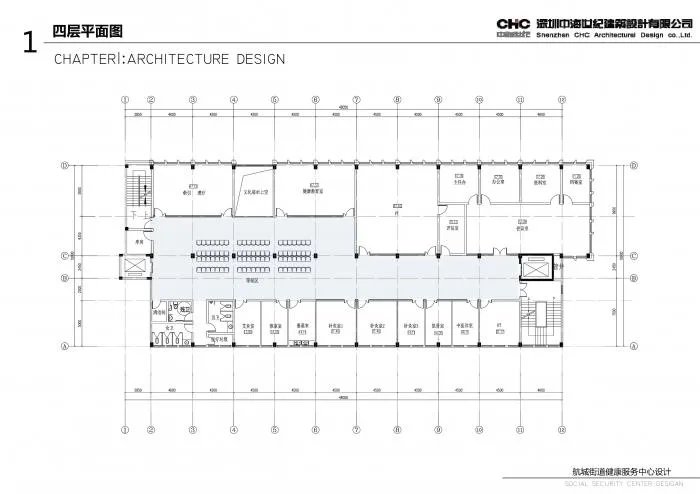

△ Fourth floor plan

Project Information

Project Name: Shenzhen Bao’an District Hangcheng Street Health Service Center Renovation Project

Function: Neighborhood Community Health Service Center

Location: Intersection of Kaicheng 2nd Road and Taoyuan Road, Huangtian Community, Xixiang Street, Bao’an District, Shenzhen

Design & Completion Year: 2017 – 2020

Building Area: Approximately 4,000 square meters

Designer: Shenzhen Zhonghai Century Architectural Design Co., Ltd

Company Website: www.chc-ad.com

Contact Email: __AI_S_SC0__

Contact Phone: 0755-22274118

Lead Architect: Wu Kefeng

Architecture Team: Yang Shunxin, Cheng Guang

Structural Engineers: Chen Songdi, Xiaojun Liu, Jianqing Liu

Electromechanical Engineers: Ding Dongcheng, Liu Lina

Photographer: Qiu Chenglong

Editors: Li Sufang, Tang Lingling

Main Materials: Perforated aluminum panels, real stone paint
