This design exemplifies the exploration of modernist architecture within extreme desert settings. Situated on a volcanic ridge with distant western views and perched on a small rocky hill facing west toward the Sea of Cortes to the south, the project makes the most of its challenging site conditions. Despite budget constraints, careful planning allowed for optimal use of natural indoor sunlight throughout the villa.

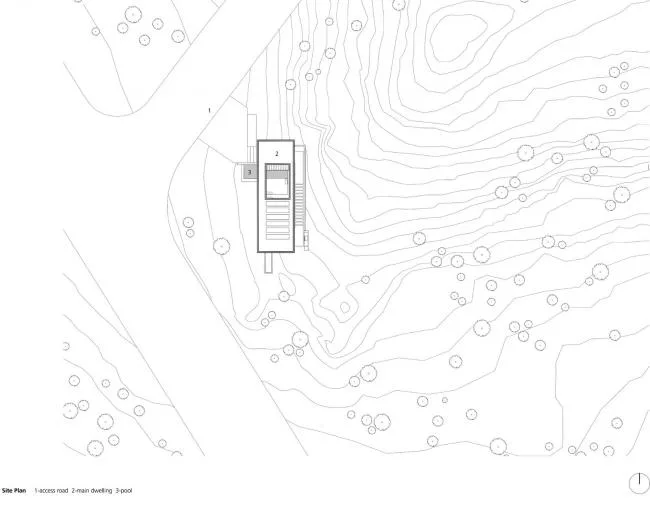

▲ General layout plan

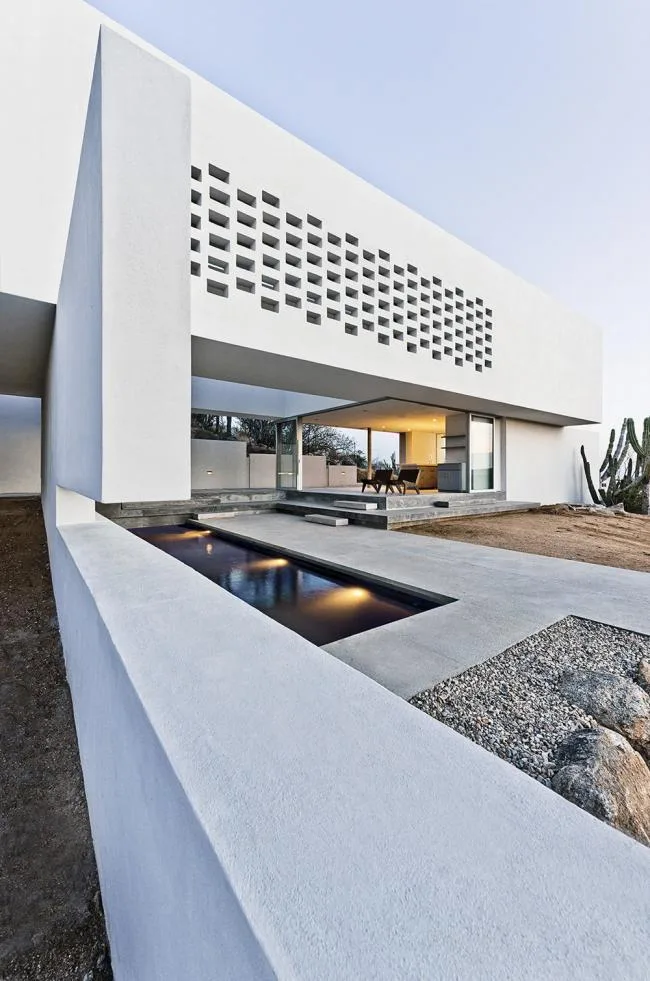

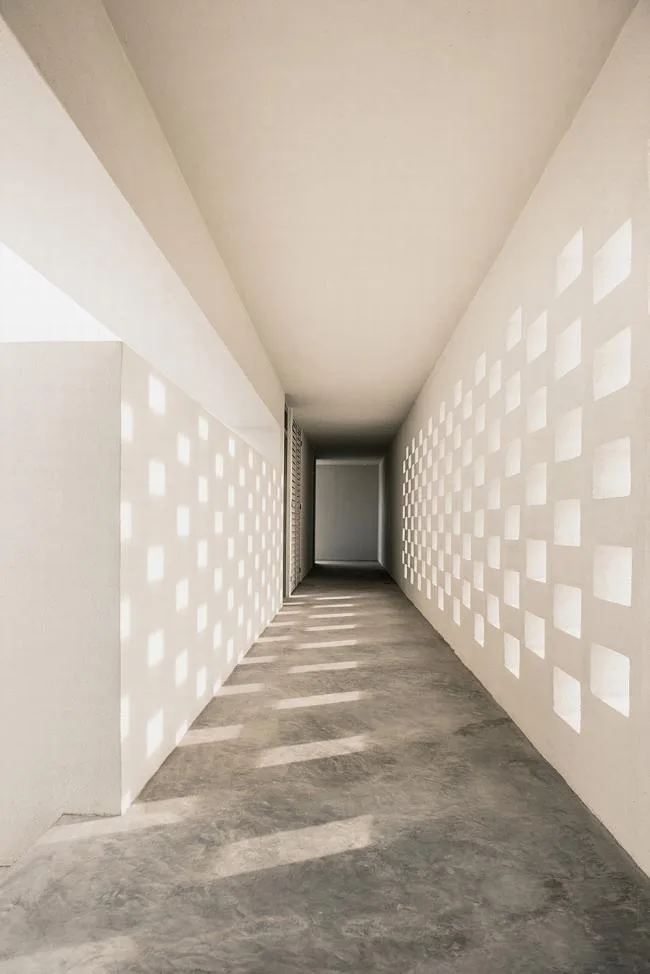

The villa is positioned on a steep slope, featuring a public living area on a slanted platform beneath the bedroom, which is supported by a large rectangular structure. A distinctive feature of the circular corridor upstairs is its perforated southwest-facing exterior wall, designed to absorb significant solar energy. This element not only addresses insulation challenges in the bedrooms but also creates a pressure difference that facilitates an efficient passive ventilation system.

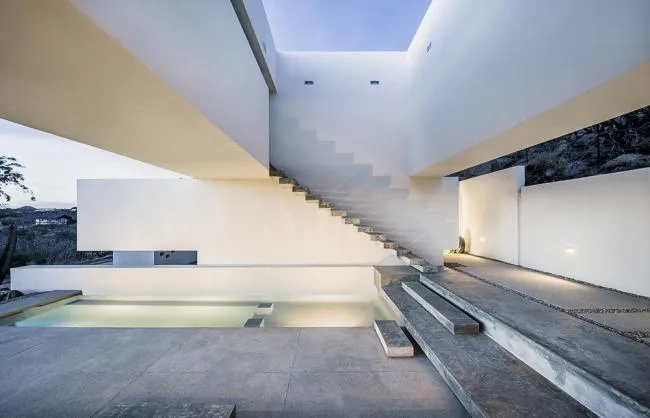

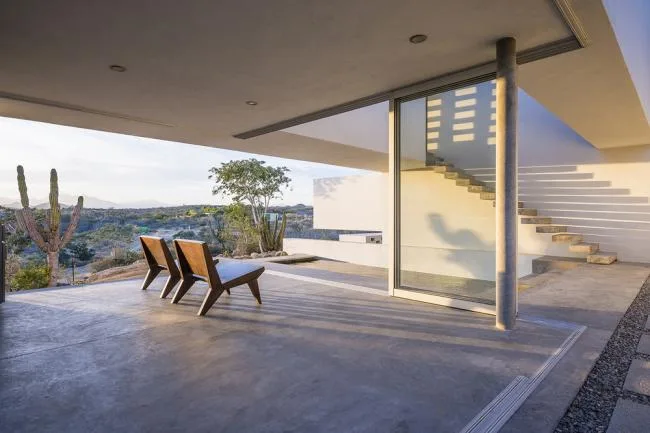

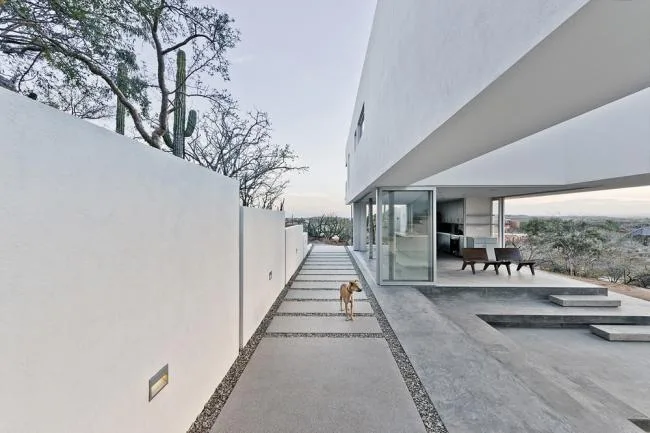

The upper structure rests on three main pivot points, while the majority of the main floor seamlessly connects to the surrounding landscape through a series of operable glass windows. A large rectangular courtyard is incorporated into the upper design, linked by a cantilevered staircase that hangs above an indoor waterfall pool. This deep open courtyard allows direct sunlight to flood the living areas below and provides an open connection, enabling residents to gaze up at the sky from the outdoor living space or pool.
Project Drawings

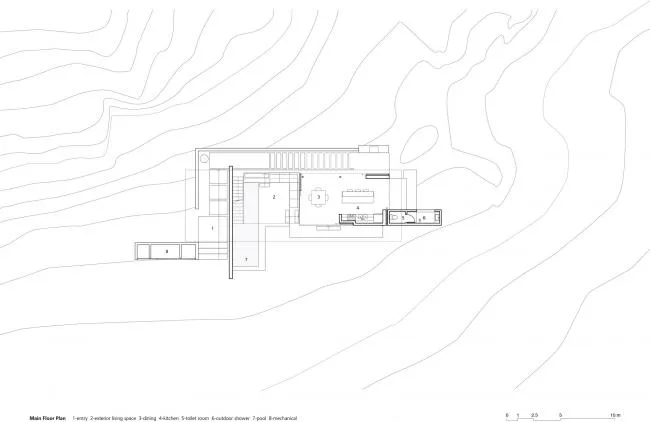

▲ Bottom floor plan

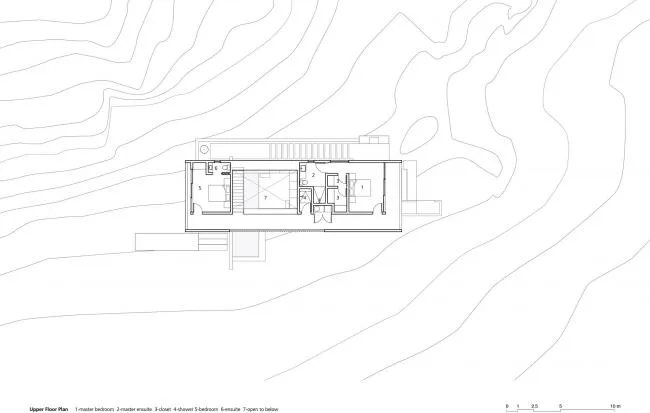

▲ Upper floor plan

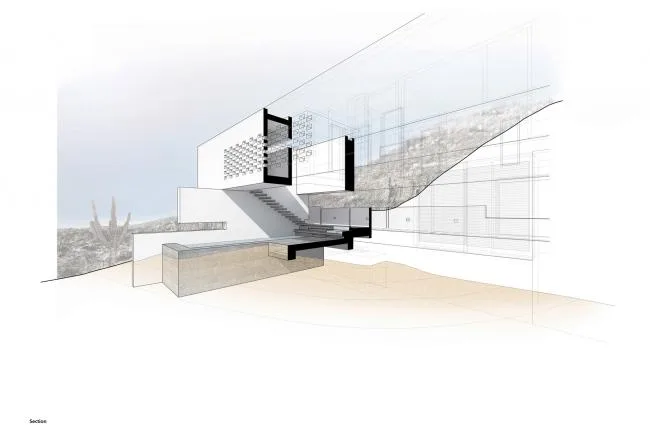

▲ Sectional view
Project Information
Type: Independent Residential Building
Location: Mexico
Architectural Design: Campos Leckie Studio
Area: 2400.0 ft²
Year: 2013
Photographer: John Sinal
