BIM Architecture: White Elves on the Aegean Coast by Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

This charming small house is situated in the eastern suburbs of Attica, in Artemis, positioned on the third row from the Aegean coast. Designed to meet the needs of a young, small family, it also responds thoughtfully to the surrounding environment.

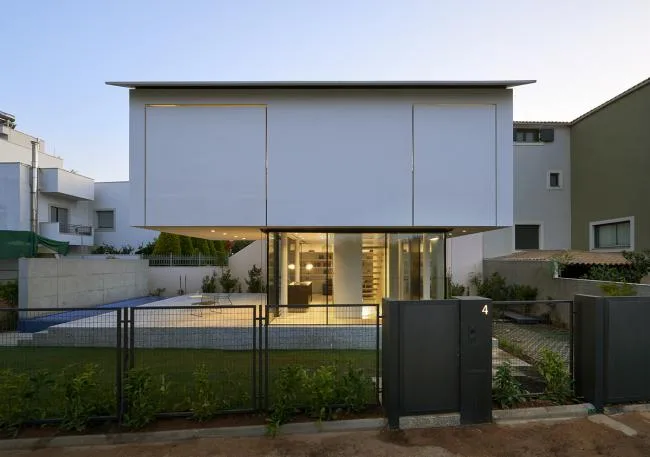

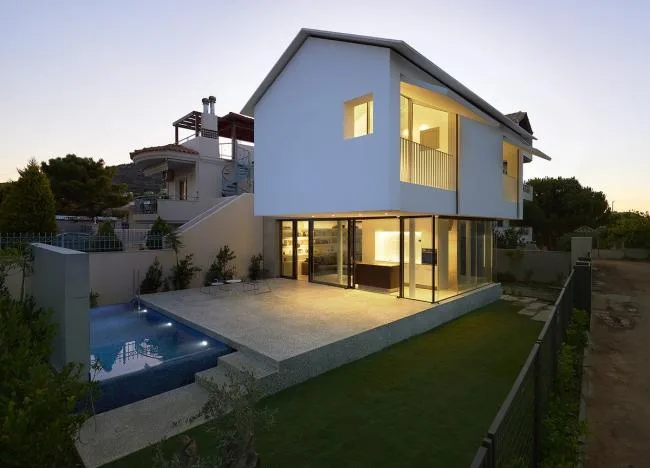

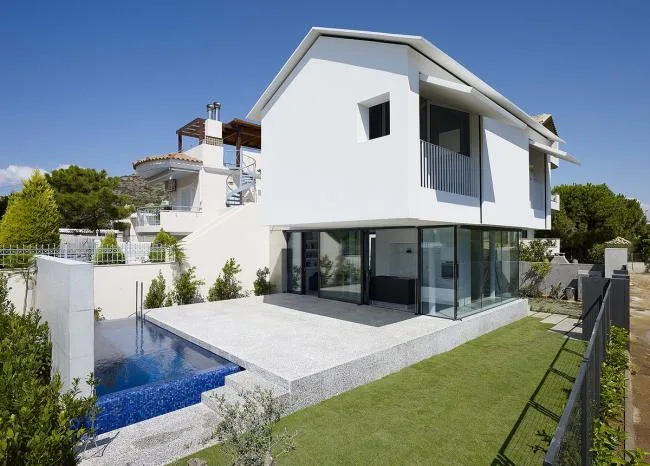

The design redefines the essence of a transient and flexible coastal lifestyle by creating comfortable, high-quality indoor and outdoor spaces. The house opens its silhouette to the sea, while carefully protecting the residents’ privacy from neighboring views.

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

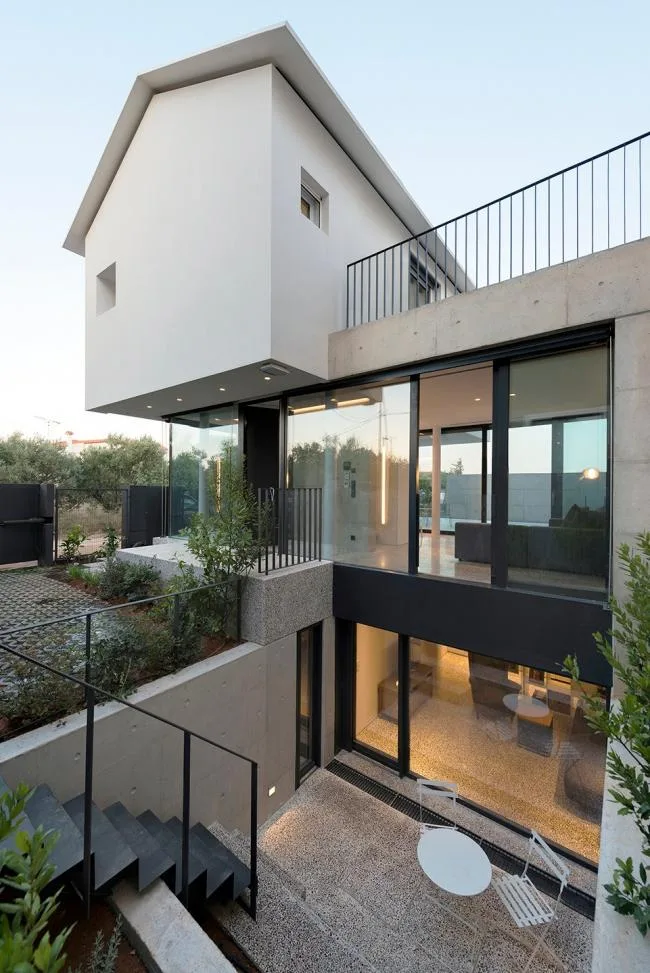

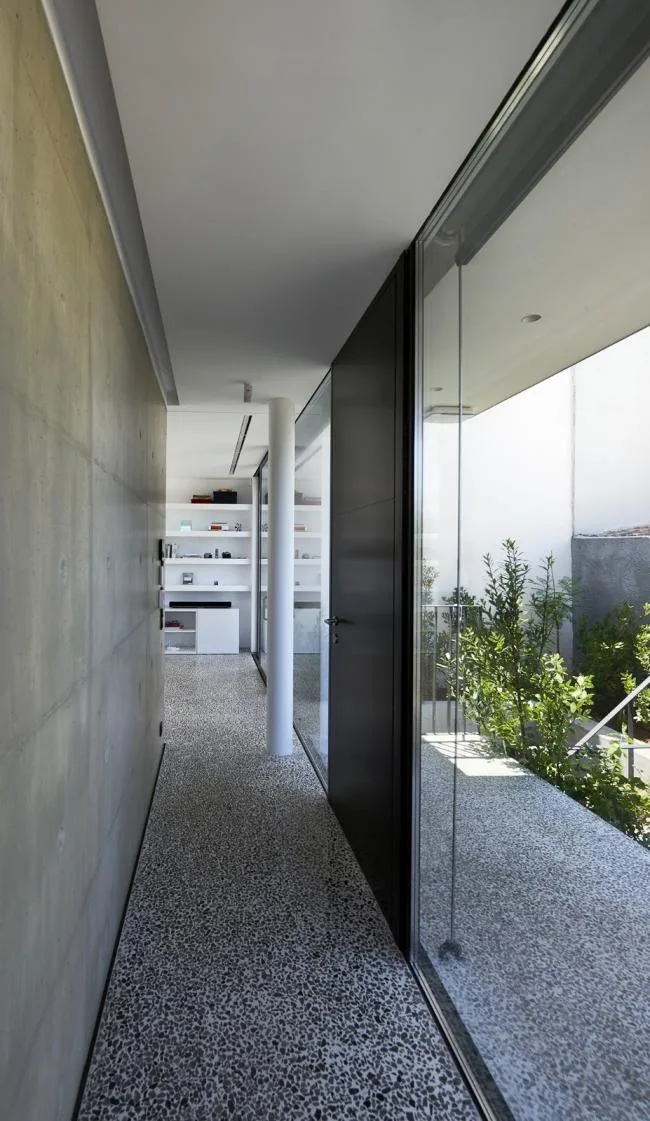

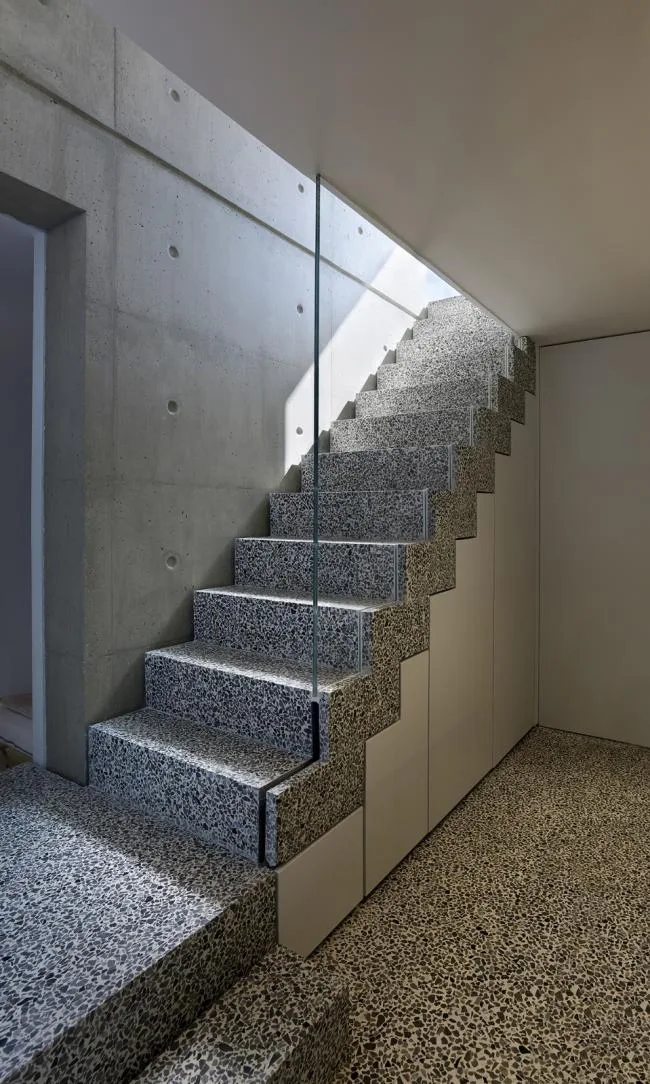

Built on a foundation of concrete and terrazzo, this two-story structure is divided into two volumes with distinct spatial capacities and materials, set perpendicular to each other.

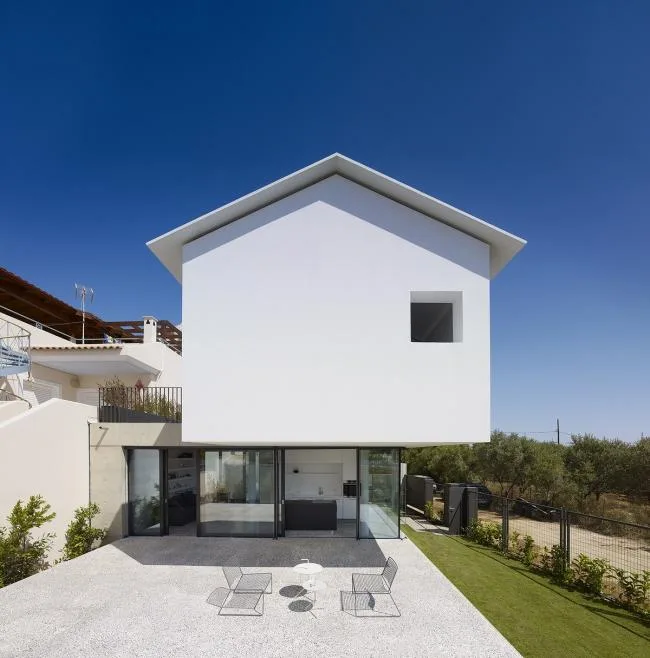

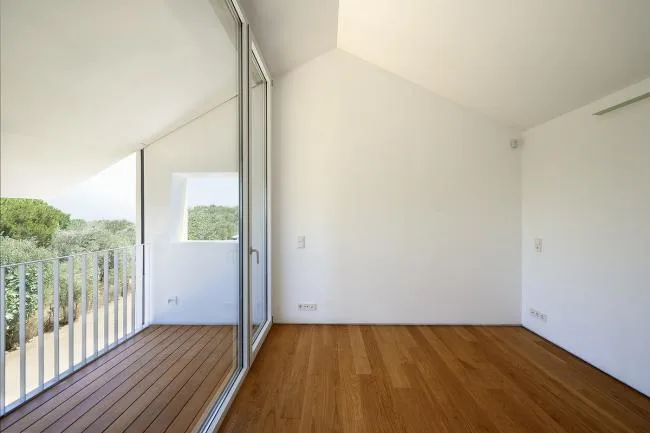

The white, floating sloped roof frames an open, light-filled space with overhangs, enhancing the indoor-outdoor living experience within the garden enclosure. On the upper level, two bedrooms with high ceilings and a bathroom are arranged around a stairwell and study area.

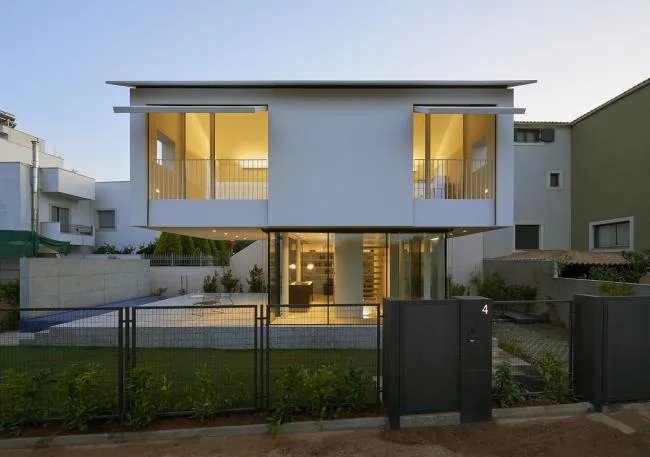

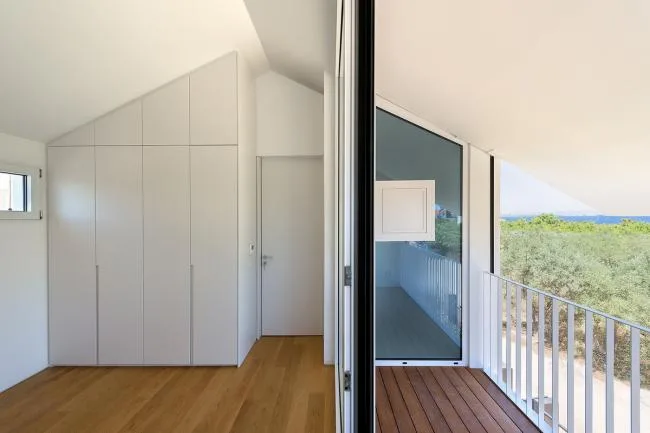

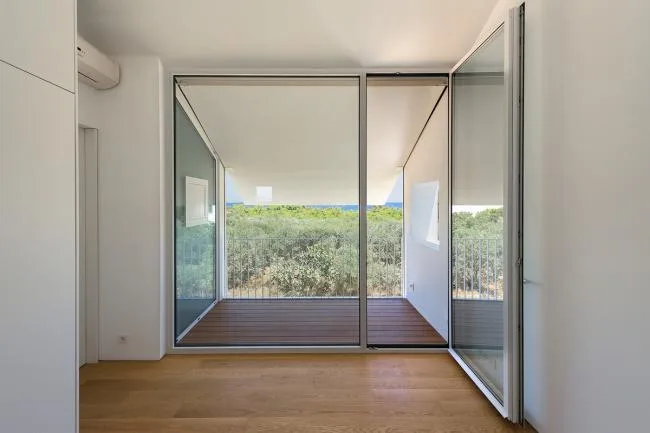

One side of the partition wall features a protected terrace that serves as an outdoor “room,” extending from the exterior toward the stairwell. The bedrooms offer access to two private loggias with full-height open blinds, while the central bathroom overlooks the sea beyond the nearby olive grove.

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

From a construction standpoint, this house features a composite structure designed to minimize its footprint on a small site.

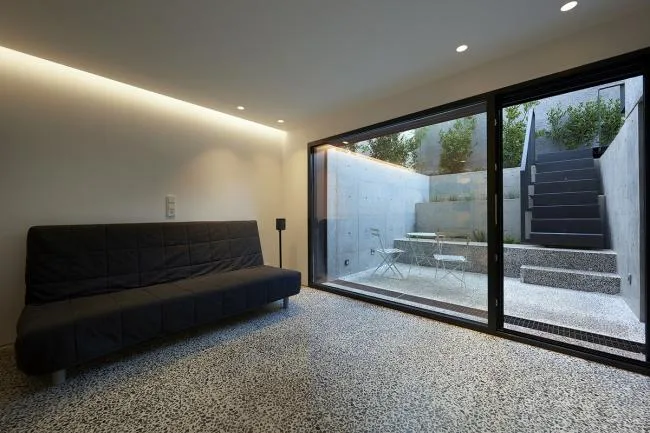

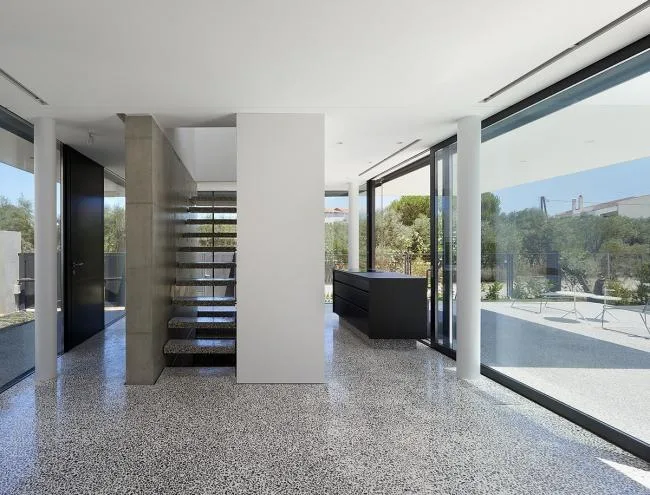

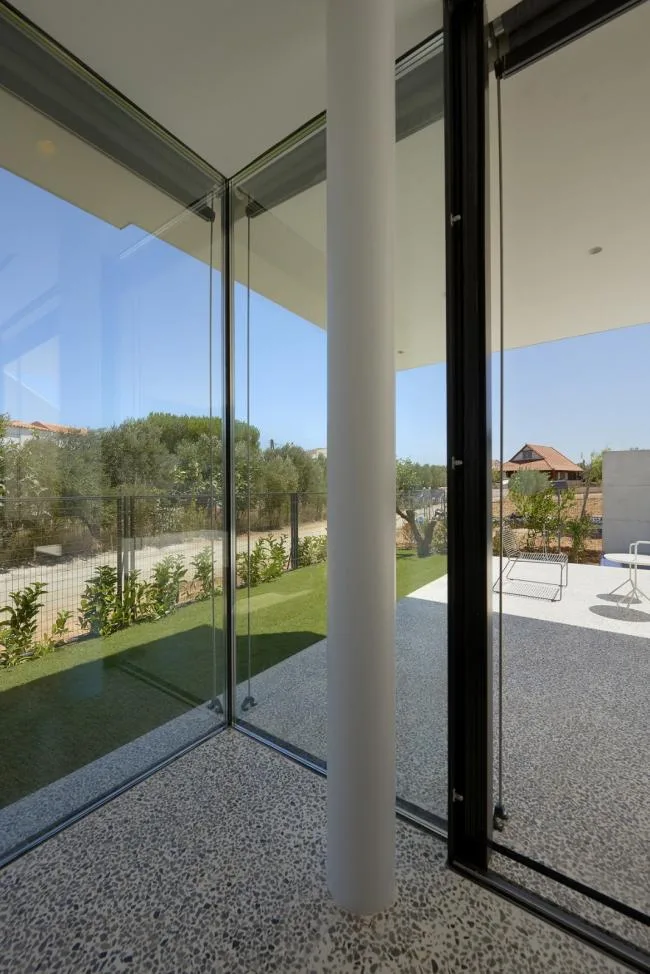

The basement and ground floor are reinforced concrete, with the ground floor broken down into minimal building elements: two plain concrete shear walls and four slender steel columns. This approach maximizes spatial flexibility and visual connection with the garden.

The second-floor slab is supported by two cantilevered steel beams. The upper volume and sloped roof are constructed with lightweight steel structures.

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

Project Drawings

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

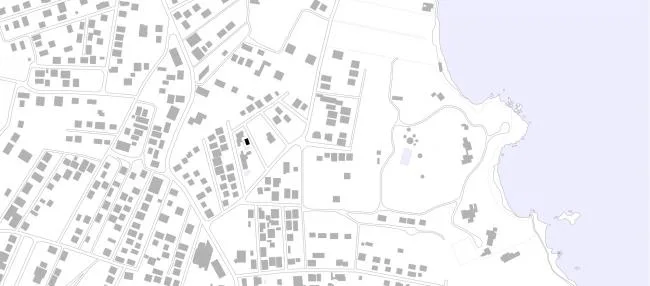

▲ General site layout

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

▲ First floor plan

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

▲ Second floor plan

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

▲ Basement floor plan

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

▲ East elevation view

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

▲ Sectional drawing AA

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

▲ Sectional view

BIM Architecture | White Elves on the Aegean Coast - Greek E-House/Buerger Katsota Architects

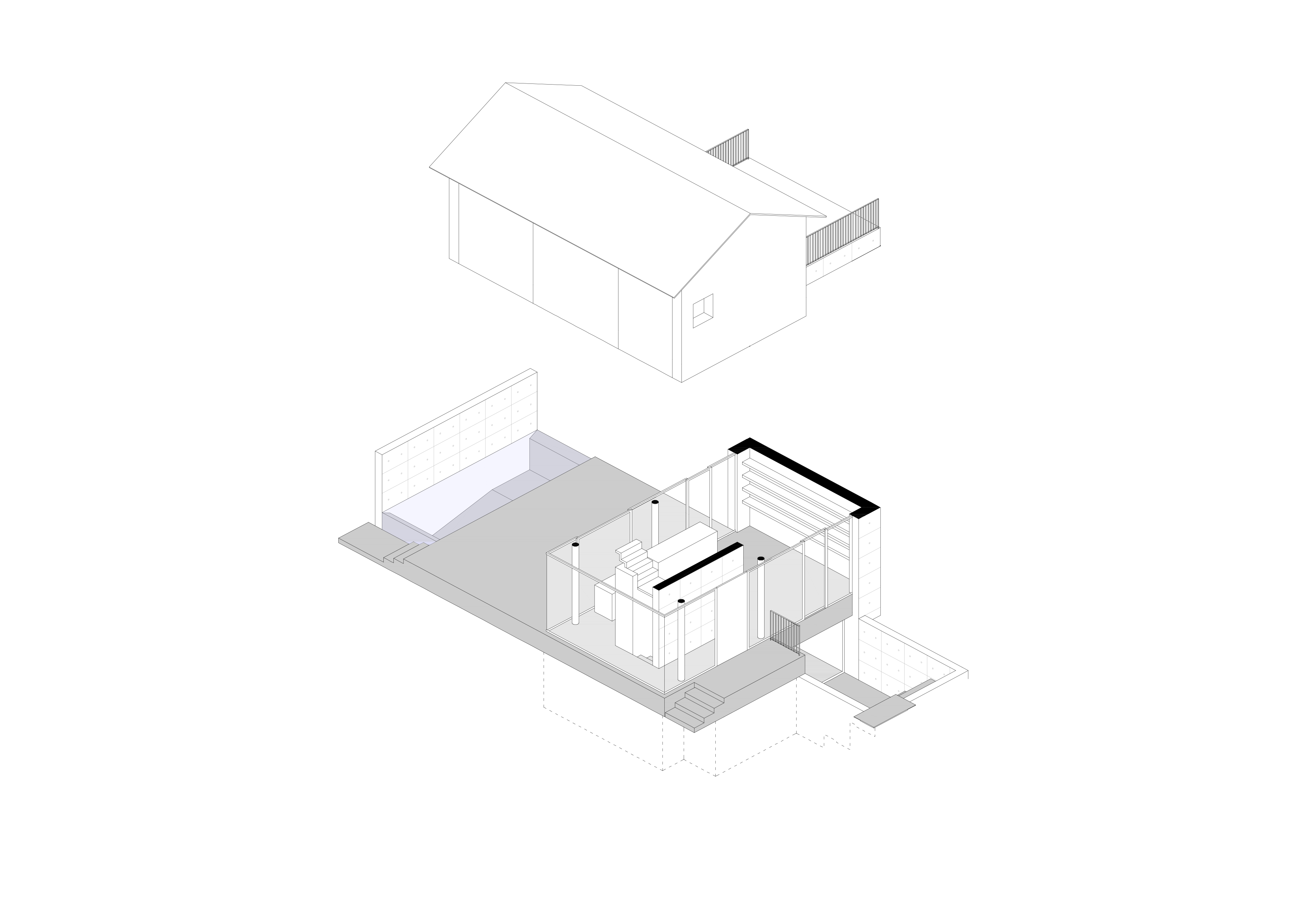

▲ Exploded axonometric diagram

Project Information

Type: Independent residential building

Location: Artemida, Greece

Architectural Design: Buerger Katsota Architects

Area: 95.0 m²

Year: 2019

Photography: Yiorgis Yerolymbos

Manufacturers: Alumil, Busch-Jaeger, DAIKIN, Flos, Geberit, KEIM, Knauf, Penetron, REHAU, Vidrepur, Roussetos, Autodesk, FIBRAN, BRUMA, Baumit

Design Team: Stephan Buerger, Demetra Katsota, Georgios Kourakos, Klelia Siska, Myrto Tsarouchi

Structural Engineering: P. Panagiotopoulos & Associates

Mechanical & Electrical Engineering: Clima Therma, D.P. Kryfos & Associates

Model: Taras Diachun

General Contractor: ACRM S.A.
