The reconstruction design of the area surrounding the Caststaff site in Crekvina (BIM tutorial) draws inspiration from the archaeological remains of the Barčock Jesuit Church of St. Mary’s — a ruined and never-completed church building. The exact construction date remains unknown, but various sources suggest it was built in the 18th century on the site of a smaller, demolished St. Mary’s Church.

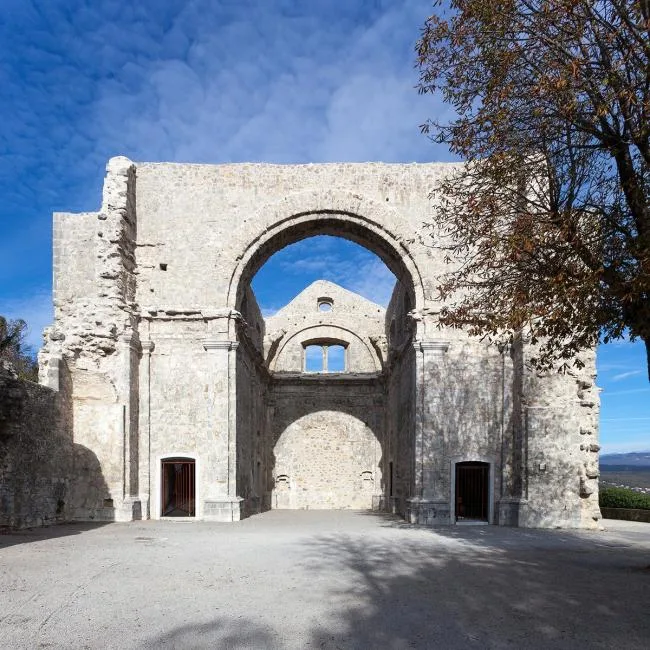

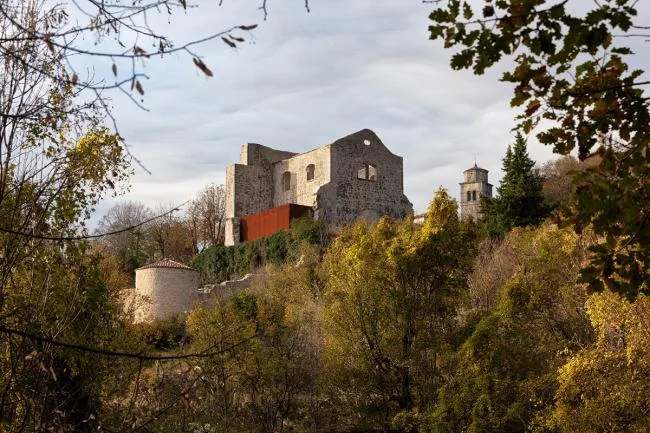

Today, Crekvina serves as a plateau featuring a parking lot and observation deck to the east, alongside temple ruins and the remaining western wall of five chapels. The design serves a dual purpose: during the summer, it functions as a stage for the Caststaff Cultural Festival for BIM engineers, while at other times, it operates as a public square and observation platform open to all visitors.
The striking spatial “shell” formed by the ruins offers an ideal setting for displaying architectural relics and provides a unique spatial experience for public and cultural events.
The terrace layout is shaped by the concept of both a church and an observation deck, offering visitors expansive views to capture the surrounding scenery. This project showcases how enhanced functionality and aesthetic value can be achieved by integrating with existing archaeological sites and historical context.

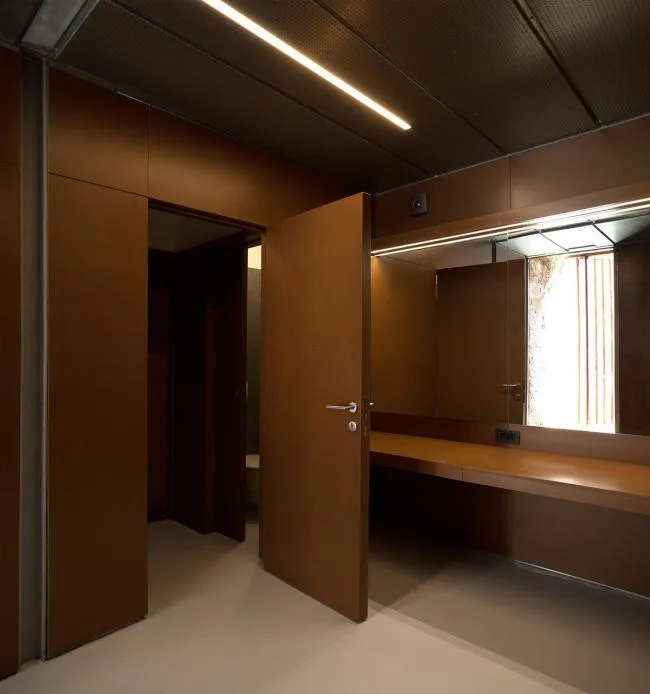

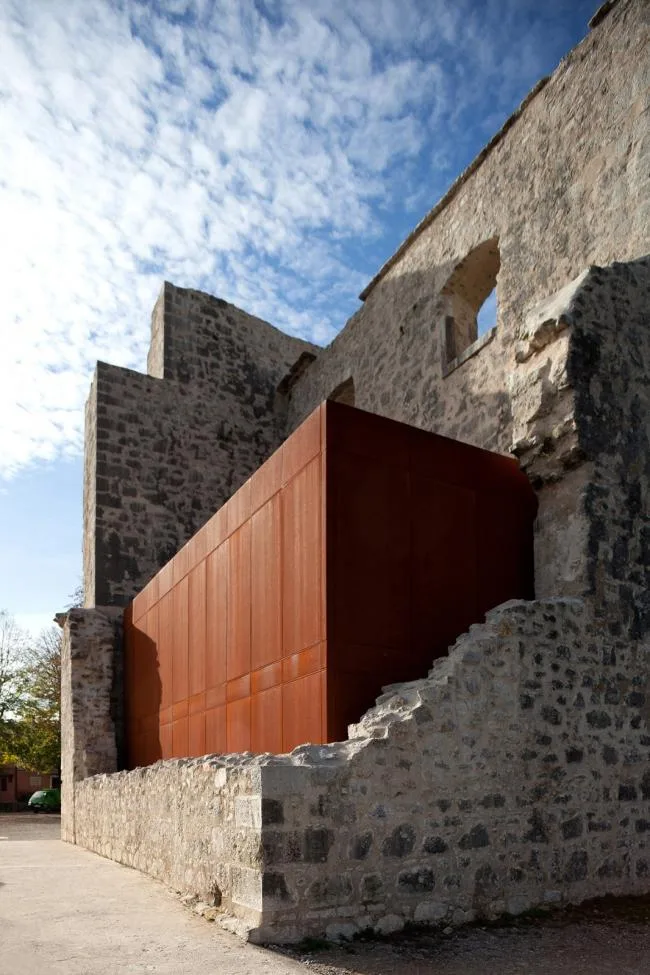

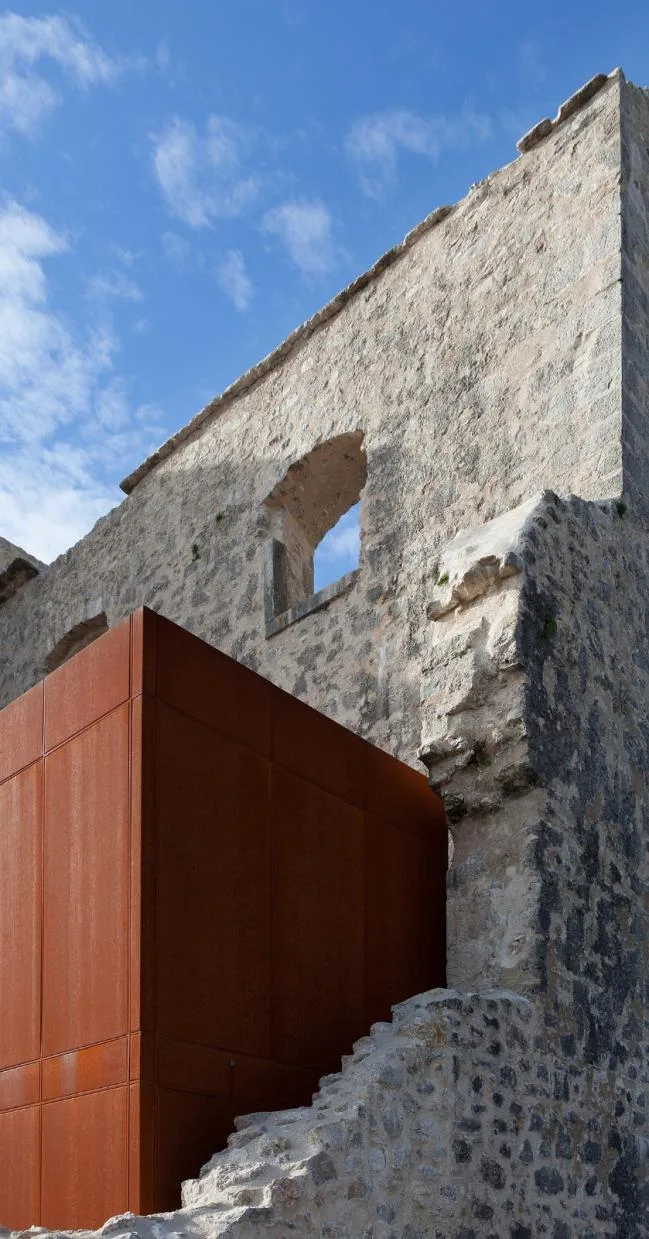

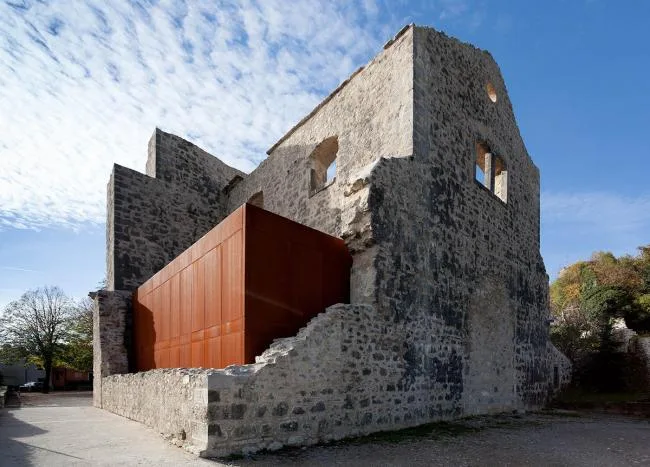

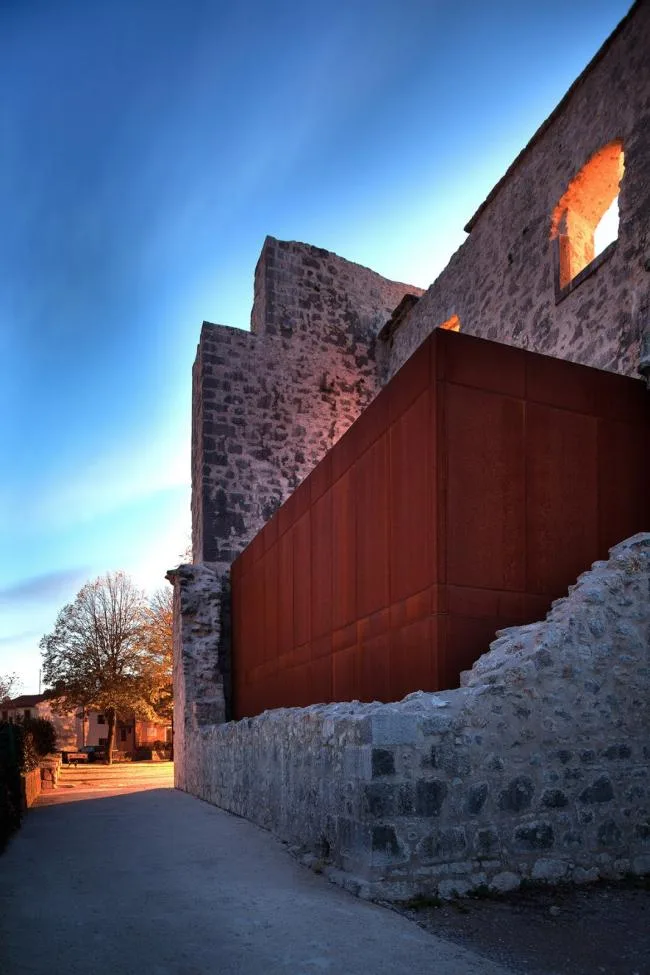

The site’s structure remains in its original excavated condition. Additional assumptions and simulations were made regarding the entrance, openings, chapel, and storage rooms of the former church. The new design contrasts sharply in both form and materials, standing apart from the original walls and foundations without physical connection.
Project Drawings:

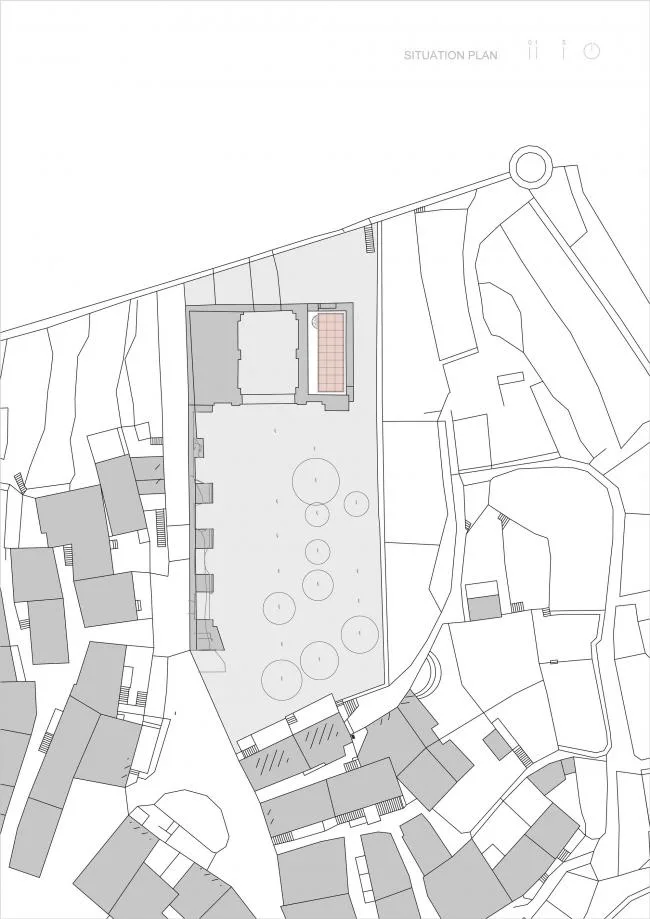

Site Plan
First Floor Plan
Second Floor Plan
Roof Plan
Elevation/Section View
Longitudinal Sectional View
Project Information:
Architect: Nenad Fabijanić
Location: Kastav, Croatia
Category: Public Buildings
Design Team: Željko Pavlović
Building Area: 1680.0 m²
Project Year: 2018
Photographer: Miro Martinić
